MGSF1P02ELT3

Description

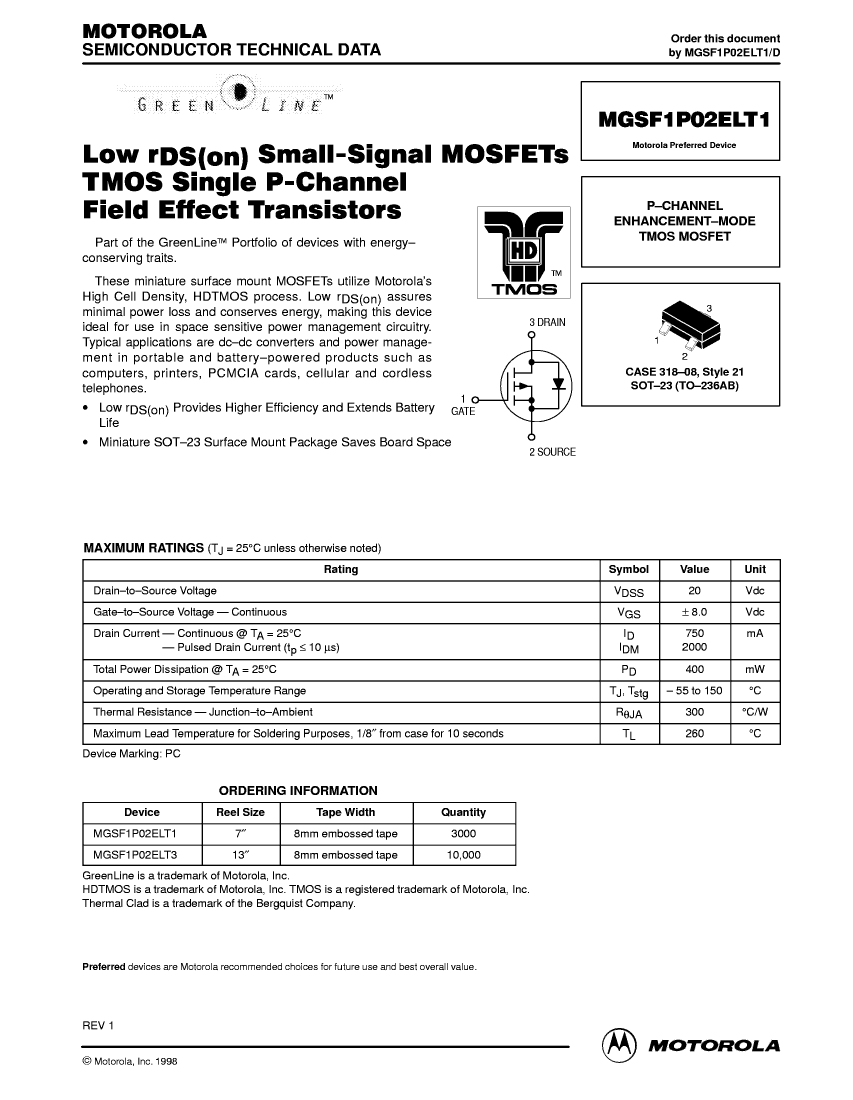

Small Signal Field-Effect Transistor, 0.75A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-236AB
CategoryDiscrete semiconductor    The transistor
File Size305KB,5 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

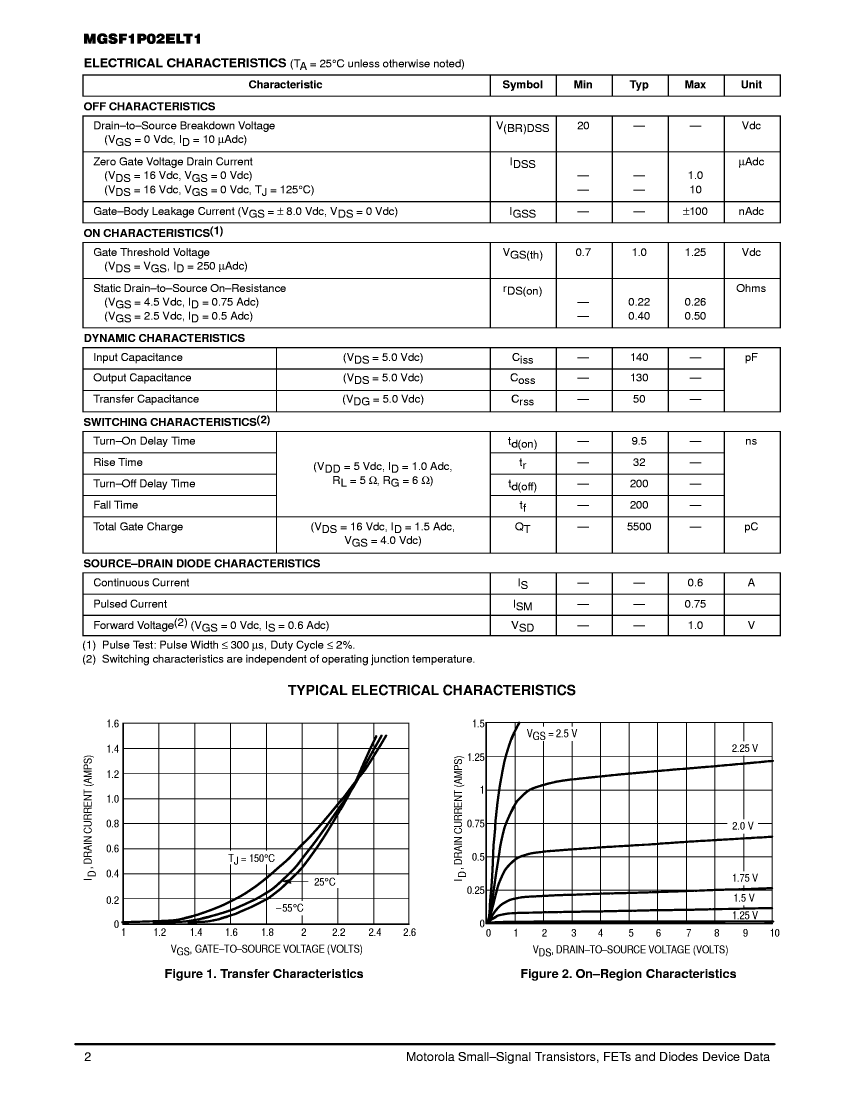

MGSF1P02ELT3 Overview

Small Signal Field-Effect Transistor, 0.75A I(D), 20V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-236AB

MGSF1P02ELT3 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionSMALL OUTLINE, R-PDSO-G3
Reach Compliance Codeunknown
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage20 V
Maximum drain current (Abs) (ID)0.75 A
Maximum drain current (ID)0.75 A

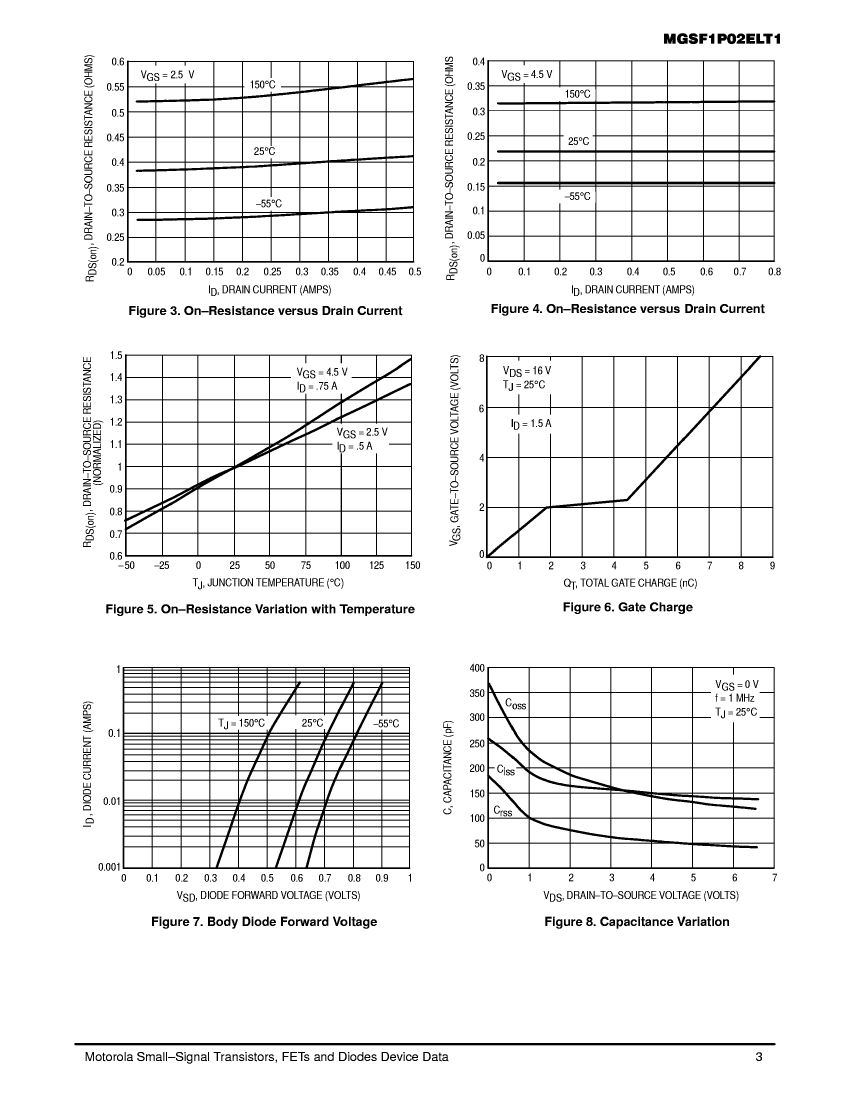

Maximum drain-source on-resistance0.26 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR

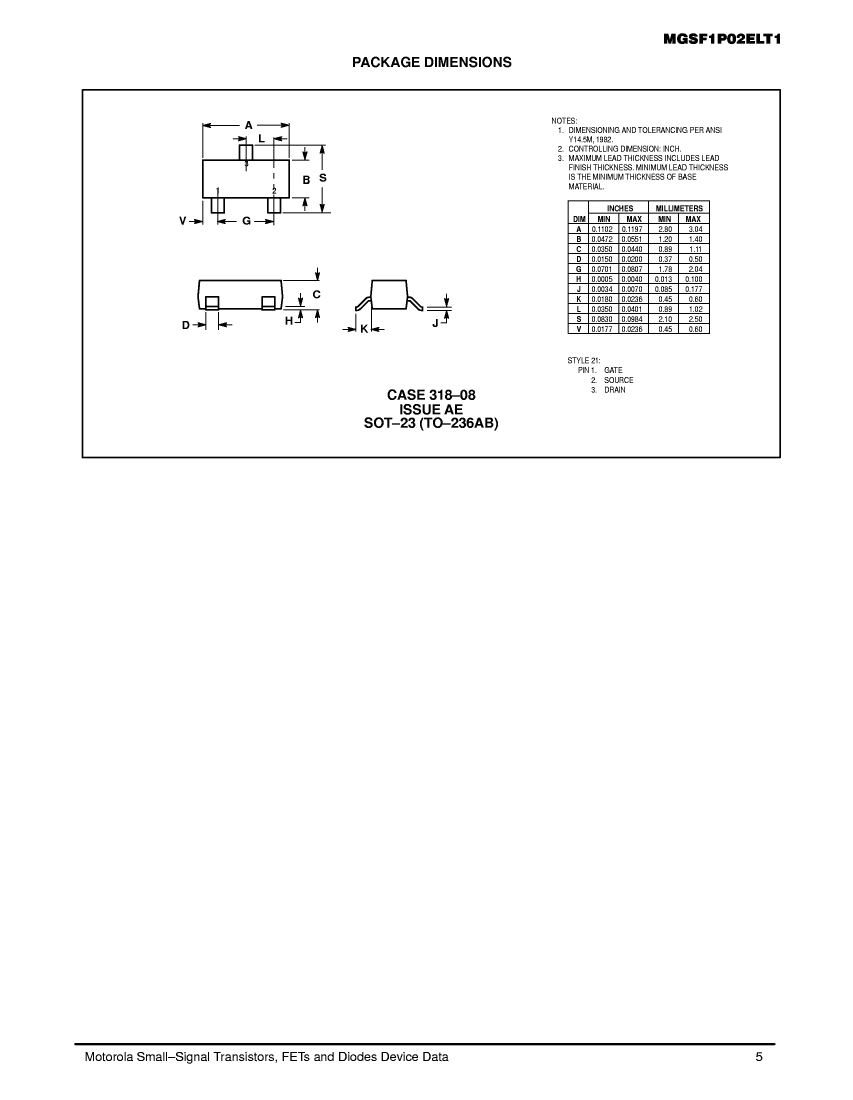

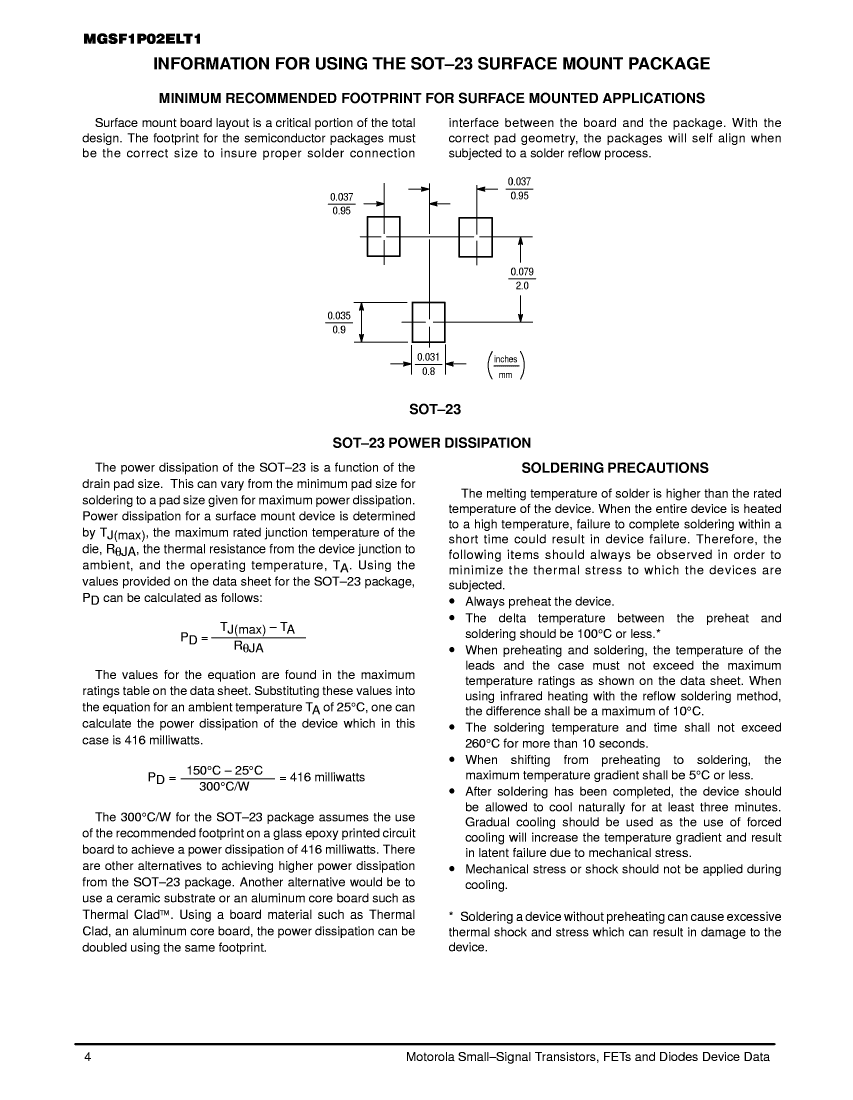

JEDEC-95 codeTO-236AB
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeP-CHANNEL
Maximum power dissipation(Abs)0.4 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
