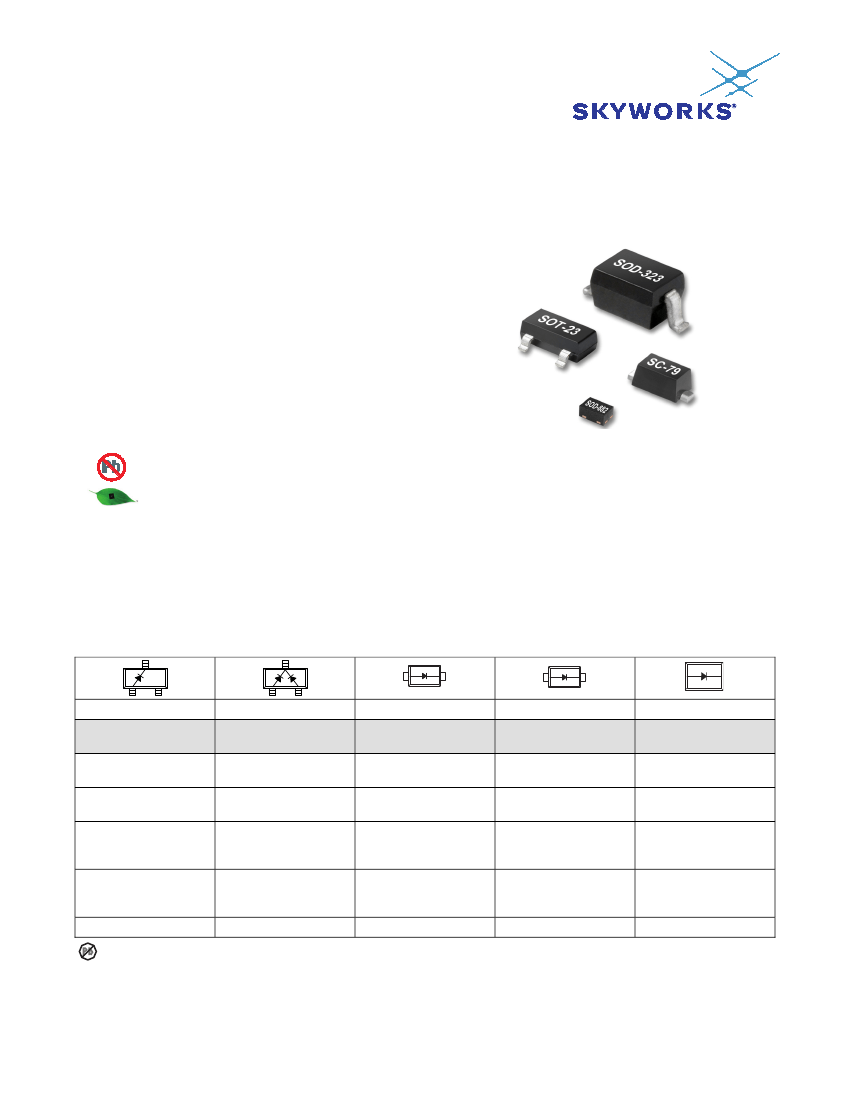

DATA SHEET
SMV2019 to SMV2023 Series: Hyperabrupt Junction Tuning
Varactors
Applications
Low phase noise VCOs in wireless systems
RF and microwave VCOs and phase shifters
Features
Low series resistance
High capacitance ratio at low reverse voltage
Packages rated MSL1, 260
°C
per JEDEC J-STD-020
Skyworks
Green™ products are compliant with
all applicable legislation and are halogen-free.
For additional information, refer to
Skyworks
Definition of Green™,
document number
SQ04-0074.
Description
The SMV2019 to SMV2023 series are silicon hyperabrupt junction
varactor diodes. The capacitance ratio and low series resistance
of these varactors make them attractive for low phase noise
Voltage-Controlled Oscillators (VCOs) in wireless systems.
Table 1 describes the various packages and markings of the
SMV2019 to SMV2023 series of varactors.
Table 1. Packaging and Marking
Single
SOT-23
Common Cathode
SOT-23
Single
SOD-323
Green™
Single
SC-79
Green™
SMV2019-079LF
Marking: Cathode and YX
SMV2020-079LF
Marking: Cathode and YY
Single
SOD-882
Green™
SMV2019-040LF
Marking: Z
SMV2022-004LF
Green™
Marking: DJ3
SMV2023-001LF
Green™
Marking: DK1
L
S
= 1.5 nH
SMV2023-004LF
Green™
Marking: DK3
L
S
= 1.5 nH
SMV2023-011LF
Marking: DK1
L
S
= 1.5 nH
L
S
= 0.7 nH
L
S
= 0.45 nH
The Pb-free symbol or “LF” in the part number denotes a lead-free, RoHS-compliant package unless otherwise noted as
Green™.
Tin/lead (Sn/Pb) packaging is not recommended
for new designs.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200074Q • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • August 7, 2015
1
DATA SHEET • SMV2019 TO SMV2023 VARACTORS
Electrical and Mechanical Specifications
The absolute maximum ratings of the SMV2019 to SMV2023
series of varactors are provided in Table 2. Electrical
specifications are provided in Table 3. The relationship between
capacitance and reverse voltage is illustrated in Figures 1, 2,
and 3. Table 4 summarizes the capacitance of the SMV2019 to
SMV2023 series.
The SPICE model for the SMV2019 to SMV2023 varactor series is
shown in Figure 4 and the associated model parameters are
provided in Table 5.
Package and Handling Information
Instructions on the shipping container label regarding exposure to
moisture after the container seal is broken must be followed.
Otherwise, problems related to moisture absorption may occur
when the part is subjected to high temperature during solder
assembly.
The SMV2019 to SMV2023 varactors are rated to Moisture
Sensitivity Level 1 (MSL1) at 260
C.
They can be used for lead or
lead-free soldering. For additional information, refer to the
Skyworks Application Note,
Solder Reflow Information,
document
number 200164.
Care must be taken when attaching this product, whether it is
done manually or in a production solder reflow environment.
Production quantities of this product are shipped in a standard
tape and reel format.
Package Dimensions
Package dimensions are provided in Figures 5 to 11 (odd
numbers), and tape and reel drawings are provided in Figures 6 to
12 (even numbers).
Table 2. SMV2019 to SMV2023 Absolute Maximum Ratings (Note 1)
Parameter
Reverse voltage
Forward current
Power dissipation
Operating temperature
Storage temperature
V
R
I
F
P
DIS
T
OP
T
STG
–55
–55
Symbol
Minimum
Maximum
22
20
250
+125
+150
Units
V
mA
mW
C
C
Note 1:
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other
parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
CAUTION:
Although this device is designed to be as robust as possible, electrostatic discharge (ESD) can damage this device. This device
must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body
or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times.
Table 3. SMV2019 to SMV2023 Electrical Specifications (Note 1) (Note 2)
(T
OP
= 25
C,
Unless Otherwise Noted)
C
T
@ 4 V
(pF)
Part Number
SMV2019
SMV2020
SMV2022
SMV2023
Minimum
0.65
1.20
2.50
4.40
Maximum
0.95
1.53
3.30
5.40
Minimum
0.26
0.30
0.60
0.90
C
T
@ 20 V
(pF)
Maximum
0.34
0.43
0.85
1.20
C
T
@ 4 V
C
T
@ 20 V
Ratio
Minimum
2.30
2.80
3.00
4.20
Q @ 4 V,
50 MHz
Typical
500
500
500
500
Note 1:
Performance is guaranteed only under the conditions listed in this table.
Note 2:
Reverse current, I
R
(V
R
= 16 V): 50 nA maximum.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
2
August 7, 2015 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 200074Q
DATA SHEET • SMV2019 TO SMV2023 VARACTORS
Typical Performance Characteristics
14
12
Capacitance (pF)
10
8
6
4
2
0
0
5
10
15
20
SMV2022
SMV2023
Reverse Voltage (V)
Figure 1. SMV2022 and SMV2023 Capacitance vs Reverse Voltage
2.5
2.0
Capacitance (pF)
1.5
1.0
0.5
0
0
2
4
6
8
10
12
14
16
18
20
Reverse Voltage (V)
Figure 2. SMV2019-079LF Capacitance vs Reverse Voltage
3.5
3.0
Capacitance (pF)
2.5
2.0
1.5
1.0
0.5
0
0
2
4
6
8
10
12
14
16
18
20
Reverse Voltage (V)
Figure 3. SMV2020-079LF Capacitance vs Reverse Voltage
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200074Q • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • August 7, 2015
3
