data sheet
SKY65045-70LF: 390–1500 MHz
Low Noise Power Amplifier Driver
Applications
l
l
l
l
l
l
l
Block Diagram
GND
4
UHF television
TETRA radio
GSM, AMPS, PCS, DCS, 2.5G, 3G
ISM band transmitters
Fixed WCS
802.16 WiMAX
3GPP long term evolution
1
2
GND
3
RF_OUT
S244
Features
l
l
l
l
l
l
l
l
Wideband frequency range: 390–1500 MHz
Low noise figure: 1.8 dB
High linearity: OIP3: 37.5 dBm
Output P
1 dB
: 25 dBm
High gain: 14 dB
Single DC supply: 5 V
On-chip bias circuit
SOT-89 (4-pin 2.4 x 4.5 mm) lead (Pb)-free package
(MSL1, 260 °C per JEDEC J-STD-0-20)
RF_IN
Functional Diagram
Active Bias
Description
Skyworks SKY65045-70LF is a high-performance, ultrawideband
Power Amplifier (PA) driver with superior output power, low noise,
linearity, and efficiency. The device provides a 1.6 dB Noise Figure
(NF) and an output power at 1 dB compression of 25 dBm, making
the SKY65045-70LF ideal for use in the driver stage of infra-
structure transmit chains. The SKY65045-70LF is fabricated with
Skyworks high reliability Heterojunction Bipolar Transistor (HBT)
process. The device uses low-cost Surface Mount Technology
(SMT) in the form of a 2.4 x 4.5 mm Small Outline Transistor
(SOT-89) package.
The module can operate over the temperature range of -40 °C to
+85 °C. A populated evaluation board is available upon request.
1
2
3
RF_IN
GND
RF_OUT
S669
NeW
Skyworks offers lead (Pb)-free, RoHS (Restriction of
Hazardous Substances)-compliant packaging.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200960 Rev. E • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • December 3, 2008
1
Data Sheet • SKY65045-70LF
Electrical Specifications
V
CC
= 5 V, Z
o
= 50
Ω,
T
C
= 25 °C, unless otherwise noted
Parameter
Test Frequency = 747 MHz
Frequency
Small signal gain
Input return loss
Output return loss
Reverse transmission loss
Output power at 1 dB compression
Operating current @ P
1 dB
Operating current
Power added efficiency
Input 3rd order intercept point
Output 3rd order intercept point
Noise figure
Quiescent current
Test Frequency = 897.5 MHz
Frequency
Small signal gain
Input return loss
Output return loss
Reverse transmission loss
Output power at 1 dB compression
Operating current @ P1dB
Operating current
Power added efficiency
Output 3rd order intercept point
Noise figure
Quiescent current
F
G
|S
11
|
|S
22
|
|S
12
|
P
1 dB
I
CC
_P
1 dB
I
CC
PAE
OIP3
NF
I
CCQ
P
IN
= -15 dBm
P
IN
= -15 dBm
P
IN
= -15 dBm
P
IN
= -15 dBm
CW
@ P
1 dB
P
OUT
= 17 dBm
@ P
1 dB
P
OUT
/tone = 17 dBm,
DF
= 1 MHz
Small signal
No RF
36
22.5
880
13
897.5
14
12.2
19.5
21
25
133
61
45
37.5
1.8
46
2.4
60
180
90
915
16
10
10
15
MHz
dB
dB
dB
dB
dBm
mA
mA
%
dBm
dB
mA
F
G
|S
11
|
|S
22
|
|S
12
|
P
1 dB
I
CC
_P
1 dB
I
CC
PAE
IIP3
OIP3
NF
I
CCQ
P
IN
= -15 dBm
P
IN
= -15 dBm
P
IN
= -15 dBm
P
IN
= -15 dBm
CW
@ P
1 dB
Pout = 17 dBm
@ P
1 dB
P
IN
/tone = -7 dBm,
DF
= 1 MHz
P
OUT
/tone = 8 dBm,
DF
= 1 MHz
Small signal
No RF
697
747
15
9
8
23
24
132
70
35
29
44
1.9
47
797
MHz
dB
dB
dB
dB
dBm
mA
mA
%
dBm
dBm
dB
mA
symbol
Condition
Min.
typ.
Max.
Unit
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
2
December 3, 2008 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • 200960 Rev. E
Data Sheet • SKY65045-70LF
Absolute Maximum Ratings
Characteristic
RF output power (P
OUT
)
Supply voltage (V
CC
)
Supply current (I
CC
)
Power dissipation (P
DISS
)
Operating case temperature (T
C
)
Storage temperature (T
ST
)
Junction temperature (T
J
)
Value
27 dBm
6V
215 mA
1.3 W
-40 °C to +85 °C
-55 °C to +125 °C
150 °C
Performance is guaranteed only under the conditions listed in the specifications table and is
not guaranteed under the full range(s) described by the Absolute Maximum specifications.
Exceeding any of the absolute maximum/minimum specifications may result in permanent
damage to the device and will void the warranty.
CAUTION:
Although this device is designed to be as robust as
possible, ESD (Electrostatic Discharge) can damage
this device. This device must be protected at all
times from ESD. Static charges may easily produce
potentials of several kilovolts on the human body or
equipment, which can discharge without detection.
Industry-standard ESD precautions must be employed
at all times.
Recommended operating Conditions
Parameter
Supply voltage
Operating frequency
Operating case temperature
symbol
V
CC
F
O
T
C
390
-40
+25
Min.
typ.
5.0
Max.
5.5
1500
+85
Unit
V
MHz
°C
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200960 Rev. E • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • December 3, 2008
3
Data Sheet • SKY65045-70LF

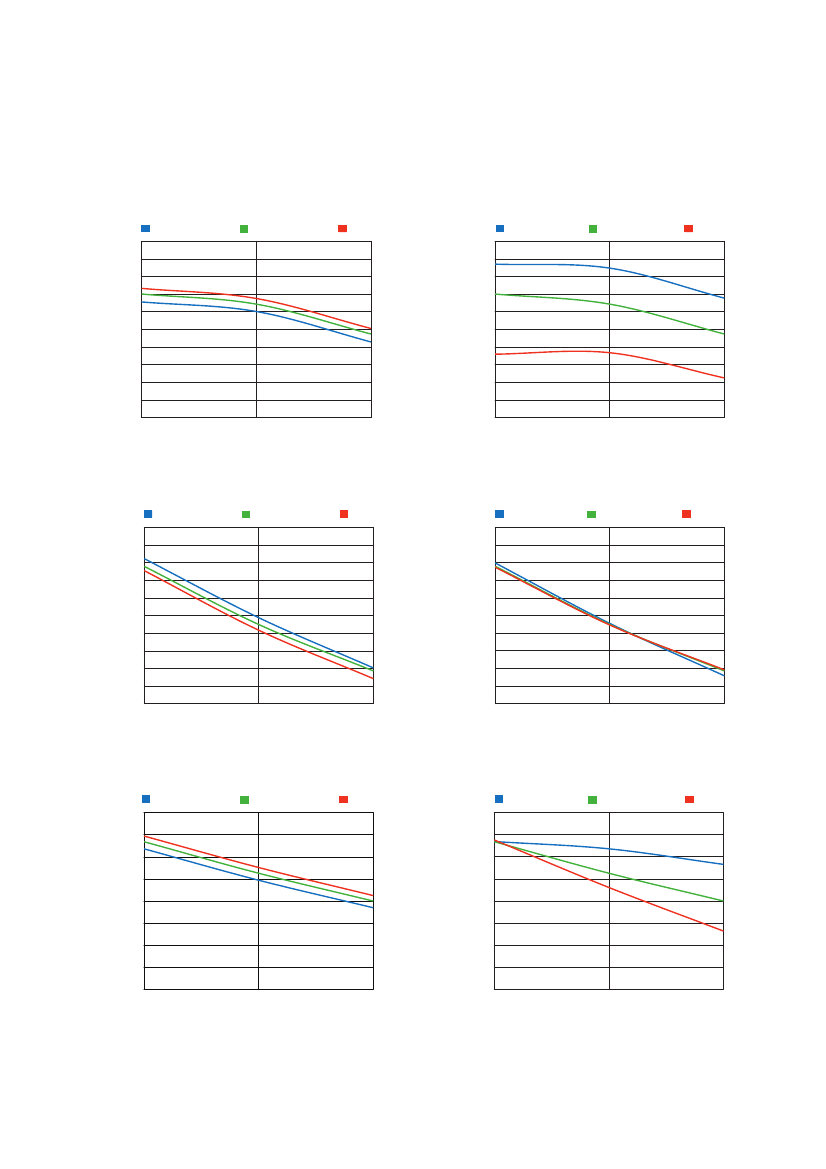

Typical Performance Data
V
CC
= 5 V, F = 747 MHz, CW, Z
o
= 50
Ω,
T
C
= 25 °C, unless otherwise noted
16.0
15.8
15.6
15.4
4.5 V
5.0 V
5.5 V
16.0
15.8
15.6
15.4
-40 °C
+25 °C
+85 °C
SS Gain (dB)
SS Gain (dB)
697
747
797
15.2
15.0
14.8
14.6
14.4
14.2
14.0
15.2
15.0
14.8
14.6
14.4
14.2
14.0
697
747
797
Frequency (MHz)
Frequency (MHz)
Small Signal Gain vs. Frequency across
V
CC
-6.0
-6.5
-7.0
-7.5
4.5 V
5.0 V
5.5 V
Small Signal Gain vs. Frequency across temperature
-40 °C
-6.0
-6.5
-7.0
-7.5
+25 °C
+85 °C
lS
11
l (dB)
-8.5
-9.0
-9.5
-10.0
-10.5
-11.0
697
747
797
lS
11
l (dB)
-8.0
-8.0
-8.5
-9.0
-9.5
-10.0
-10.5
-11.0
697
747
797
Frequency (MHz)
Frequency (MHz)
ls
11
l vs.
Frequency across
V
CC
-7.0
-7.5
-8.0
4.5 V
5.0 V
5.5 V
-7.0
-7.5
-8.0
ls
11
l vs.
Frequency across temperature
-40 °C
+25 °C
+85 °C
lS
22
l (dB)
-9.0
-9.5
-10.0
-10.5
-11.0
697
747
797
lS
22
l (dB)
-8.5
-8.5
-9.0
-9.5
-10.0
-10.5
-11.0
697
747
797
Frequency (MHz)
Frequency (MHz)
ls
22
l vs.
Frequency across
V
CC
ls
22
l vs.
Frequency across temperature
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
4
December 3, 2008 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • 200960 Rev. E
Data Sheet • SKY65045-70LF
Typical Performance Data
V
CC
= 5 V, F = 747 MHz, CW, Z
o
= 50
Ω,
T
C
= 25 °C, unless otherwise noted
-21.0
-21.5
-22.0
4.5 V
5.0 V
5.5 V
-21.0
-21.5
-22.0
-40 °C
+25 °C
+85 °C
lS
12
l (dB)
-22.5
-23.0
-23.5
-24.0
697
lS
12
l (dB)
-22.5
-23.0
-23.5
-24.0
697
747
797
747
797
Frequency (MHz)
Frequency (MHz)
ls
12
l vs.
Frequency across
V
CC
25.0
24.5
24.0
4.5 V
5.0 V
5.5 V
25.0
24.5
24.0
ls
12
l vs.
Frequency across temperature
-40 °C
+25 °C
+85 °C
P
1 dB
(dBm)
P
OUT
(dBm)
23.5
23.0
22.5
22.0
21.5
21.0
697
747
797
23.5
23.0
22.5
22.0
21.5
21.0
697
747
797
Frequency (MHz)
Frequency (MHz)
P
1 dB
vs.
Frequency across
V
CC
2.6
2.4
2.2
4.5 V
5.0 V
5.5 V
2.6
2.4
2.2
P
1 dB
vs.
Frequency across temperature
-40 °C
+25 °C
+85 °C
1.8
1.6
1.4
1.2
1.0
697
747
797
NF (dB)
2.0
2.0
1.8
1.6
1.4
1.2
1.0
697
747
797
Frequency (MHz)
Frequency (MHz)
Noise Figure vs. Frequency across
V
CC
Noise Figure vs. Frequency across temperature
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200960 Rev. E • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • December 3, 2008
5
