KS2605TTE18NJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> KS2605TTE18NJ

KS2605TTE18NJ: DescriptionGeneral Purpose Inductor, 0.018uH, 5%, 2 Element, Air-Core, SMD, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size84KB，3 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

KS2605TTE18NJ Overview

General Purpose Inductor, 0.018uH, 5%, 2 Element, Air-Core, SMD, CHIP, ROHS COMPLIANT

KS2605TTE18NJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
Reach Compliance Code	compliant
ECCN code	EAR99
core material	AIR
DC Resistance	0.02 Ω
Nominal inductance(L)	0.018 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	KS
Number of functions	2
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	100
Maximum rated current	2 A
self resonant frequency	3000 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	800 MHz
Tolerance	5%

Preview

Download Datasheet

View All

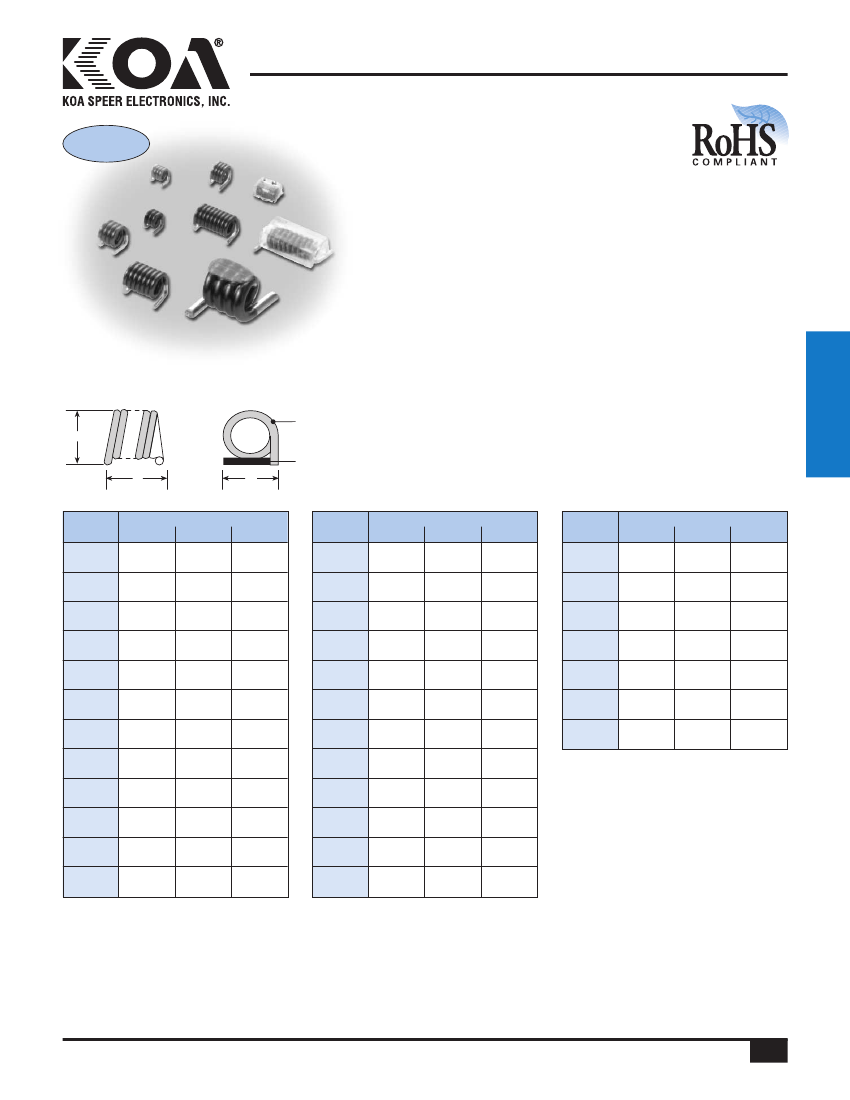

spring chip inductors

NEW

features

•

Low DC resistance and large allowable current

The small dimensions allow high density mounting

Mountable spring type inductors with extremely high Q

High SRF and excellent high frequency characteristics

Suitable for reflow soldering

Flat top processing in consideration of mountability is possible

Products with lead-free terminations meet

RoHS requirements

dimensions and construction

Magnetic

Wire

Solder Plating

Size

Code

Dimensions

inches

(mm)

Size

Code

2604 15

2605 10

2605 13

2605 15

2605 18

2606 20

2606 22

2606 24

2607 27

2609 24

2609 30

3004 10

Dimensions

inches

(mm)

.055±.004 .071±.004 .083±.004

(1.40±0.1) (1.80±0.1) (2.10±0.1)

.067±.004 .055±.004 .067±.004

(1.70±0.1) (1.40±0.1) (1.70±0.1)

.067±.004 .059±.004 .071±.004

(1.70±0.1) (1.50±0.1) (1.80±0.1)

.067±.004 .063±.004 .075±.004

(1.70±0.1) (1.60±0.1) (1.90±0.1)

.067±.004 .067±.004 .079±.004

(1.70±0.1) (1.70±0.1) (2.00±0.1)

.079±.004 .063±.004 .075±.004

(2.00±0.1) (1.60±0.1) (1.90±0.1)

.079±.004 .067±.004 .079±.004

(2.00±0.1) (1.70±0.1) (2.00±0.1)

.079±.004 .071±.004 .083±.004

(2.00±0.1) (1.80±0.1) (2.10±0.1)

.091±.004 .067±.004 .079±.004

(2.30±0.1) (1.70±0.1) (2.00±0.1)

.114±.004 .059±.004 .071±.004

(2.90±0.1) (1.50±0.1) (1.80±0.1)

.114±.004 .063±.004 .075±.004

(2.90±0.1) (1.60±0.1) (1.90±0.1)

.067±.004 .065±.004 .079±.004

(1.70±0.1) (1.65±0.1) (2.00±0.1)

Size

Code

3005 11

3006 15

3006 18

3006 22

3006 30

3007 16

3007 33

Dimensions

inches

(mm)

.079±.004 .061±.004 .075±.004

(2.00±0.1) (1.55±0.1) (1.90±0.1)

.091±.004 .061±.004 .075±.004

(2.30±0.1) (1.55±0.1) (1.90±0.1)

.091±.004 .065±.004 .079±.004

(2.30±0.1) (1.65±0.1) (2.00±0.1)

.091±.004 .073±.004 .087±.004

(2.30±0.1) (1.85±0.1) (2.20±0.1)

.091±.004 .081±.004 .095±.004

(2.30±0.1) (2.05±0.1) (2.40±0.1)

.104±.004 .061±.004 .075±.004

(2.65±0.1) (1.55±0.1) (1.90±0.1)

.104±.004 .077±.004 .091±.004

(2.65±0.1) (1.95±0.1) (2.30±0.1)

2004 5.6

.045±.004 .041±.004 .051±.004

(1.15±0.1) (1.05±0.1) (1.30±0.1)

2004 9.1

.045±.004 .049±.004 .059±.004

(1.15±0.1) (1.25±0.1) (1.50±0.1)

2004 10

2004 12

.045±.004 .053±.004 .063±.004

(1.15±0.1) (1.35±0.1) (1.60±0.1)

.045±.004 .057±.004 .067±.004

(1.15±0.1) (1.45±0.1) (1.70±0.1)

2603 3.6

.045±.004 .047±.004 .059±.004

(1.15±0.1) (1.20±0.1) (1.50±0.1)

2603 5.6

.045±.004 .055±.004 .067±.004

(1.15±0.1) (1.40±0.1) (1.70±0.1)

2604 5.1

.055±.004 .047±.004 .059±.004

(1.40±0.1) (1.20±0.1) (1.50±0.1)

.055±.004 .051±.004 .063±.004

2604 6.2

(1.40±0.1) (1.30±0.1) (1.60±0.1)

2604 7.5

.055±.004 .055±.004 .067±.004

(1.40±0.1) (1.40±0.1) (1.70±0.1)

2604 9.1

.055±.004 .059±.004 .071±.004

(1.40±0.1) (1.50±0.1) (1.80±0.1)

2604 11

2604 12

.055±.004 .063±.004 .075±.004

(1.40±0.1) (1.60±0.1) (1.90±0.1)

.055±.004 .067±.004 .079±.004

(1.40±0.1) (1.70±0.1) (2.00±0.1)

For further information on

packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/16/06

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.

223

inductors
