N728A-N-M-0 Overview

SP7T, 1000MHz Min, 18000MHz Max, 3.8dB Insertion Loss-Max

N728A-N-M-0 Parametric

Parameter Name	Attribute value
Maker	MITEQ Inc
Reach Compliance Code	unknown
Other features	SMA-F
structure	COAXIAL
Maximum insertion loss	3.8 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	1000 MHz
RF/Microwave Device Types	SP7T
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

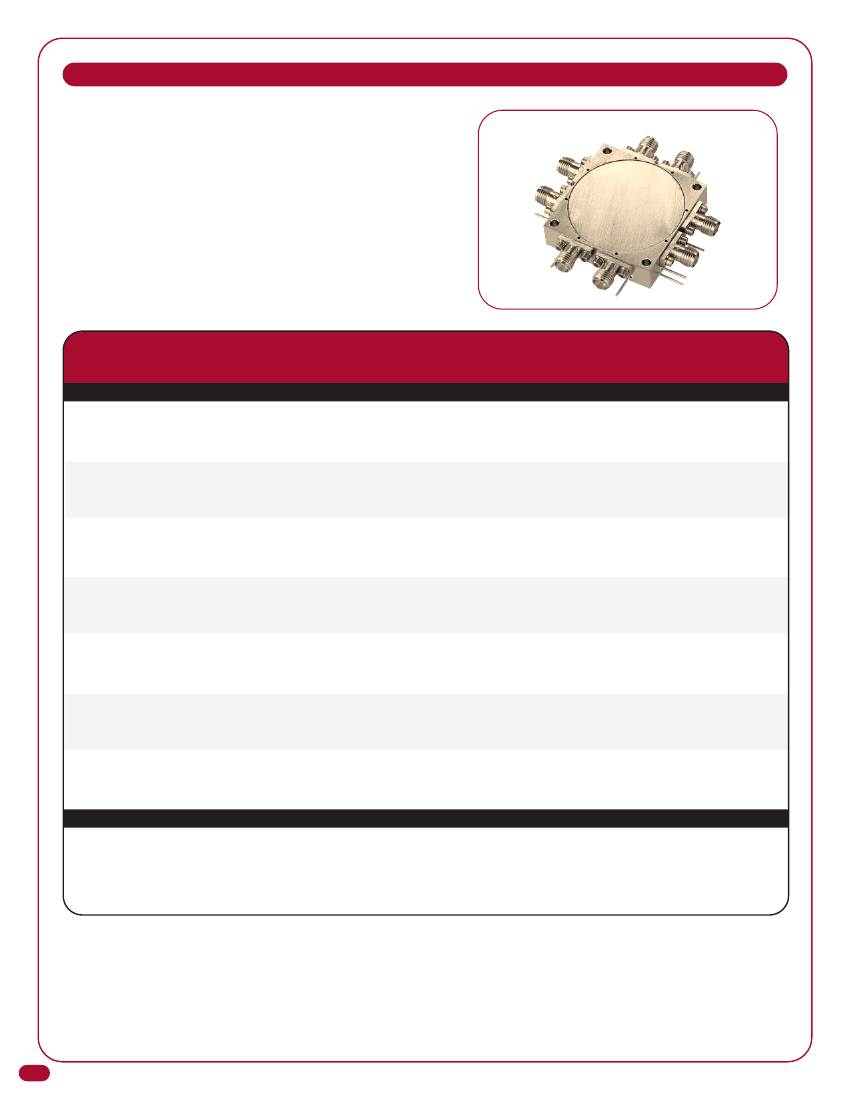

SINGLE-POLE SEVEN-THROW SWITCHES

FEATURES

•

Multioctave bands 0.2 to 18 GHz

Current and TTL control

Low loss

High isolation

Medium and high speed models

Drop-in models

Amplitude and phase tracking

Binary decoded logic

Frequency

Range

(GHz)

Model

Number

S703A

S703B

N703A

N703B

S713A

S713B

N713A

N713B

S736A

S736B

N736A

N736B

S747A

S747B

N747A

N747B

S738A

S738B

N738A

N738B

S728A

S728B

N728A

N728B

Insertion

Loss

(dB, Max.)

1.7

2.1

2.4

1.6

1.9

2.3

2.1

2.3

2.6

2.9

3.1

3.2

3.4

3.7

3.6

3.9

3.8

4.2

Isolation

(dB, Min.)

VSWR

(Max.)

1.7:1

1.8:1

2:1

Type

DC Power Consumption

(Reflective/ Pos. Supply Neg. Supply

Absorptive) (mA, Max.) (mA, Min.)

Ref

Abs

Ref

Abs

Ref

Abs

Ref

Abs

Ref

Abs

Ref

Abs

185

Outline

SP7T

Ordering

Options

1-5

Additional

Features

–

STANDARD, MULTIOCTAVE BAND MODELS

0.2–2

0.5–2

2–8

4–12

2–18

1–18

Electrical performance of multioctave models can be optimized over narrower bandwidths, or for a particular parameter. Electrical options include: Lower

insertion loss, lower VSWR, higher isolation, flat amplitude response, amplitude tracking. Mechanical/Control options include: Custom packaging, single

supply operation, fast switching time, single TTL control line. Examples of custom models previously shipped are shown below. Consult factory for options.

OPTIMIZED PERFORMANCE MODELS

1–1.5

127069

1.5

1.6:1

Abs

–

SP7T

2-3

15V, -15V 1ns

switch speed

*For reflective models, VSWR is not specified in the “OFF” state.

For absorptive models, VSWR in the “OFF” state is defined for port J2 only.
