H6F3RT03130000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> H6F3RT03130000

H6F3RT03130000: DescriptionRack and Panel Connector, 314 Contact(s), Female and Male, Crimp and Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size620KB，15 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

H6F3RT03130000 Overview

Rack and Panel Connector, 314 Contact(s), Female and Male, Crimp and Solder Terminal, Receptacle,

H6F3RT03130000 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-81659, POLARIZED
Body/casing type	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE AND MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	ALUMINUM ALLOY
JESD-609 code	e4
MIL compliance	YES
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Termination type	CRIMP AND SOLDER
Total number of contacts	314

Preview

Download Datasheet

View All

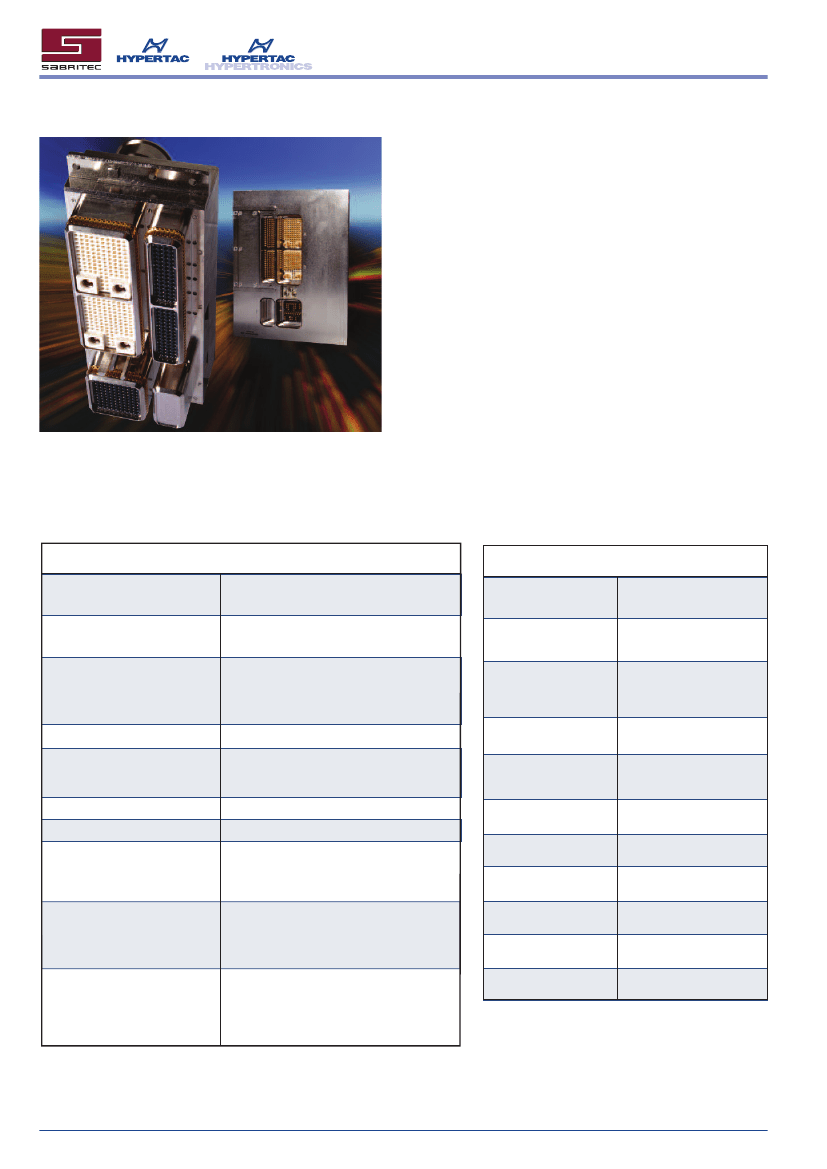

H6 Series

Arinc 600 Aerospace Standard

Rectangular Avionics Connectors

•

Signal, power, databus and coaxial contacts

•

Pin size/current: size 22, 20, 16 and 12 contacts

have 5A, 7.5A, 13.0A and 23.0A current rating

respectively

•

Approvals: conforms to MIL-C-81659 B, BACC 66

specifications

•

Custom filtering and lightning protection

Technical Characteristics

PERFORMANCE SPECIFICATION

Dielectric withstanding voltage

(DWV)

Contact continuous

current ratings

Contact resistance (max):

Size 22

Size 20

Size 16

Size 12

Insulation resistance

MATERIAL SPECIFICATION

Shells

1500 V rms

500 V rms @ 50,000 ft (15,240 m)

Size 22 - 5.0A ; Size 20 - 7.5A

Size 16 - 13.0A ; Size 12 - 23.0A

Initial

8.0 mΩ

7.0 mΩ

3.5 mΩ

2.0 mΩ

5.0 GΩ

min. @

500

Vdc

Shell size 1 - 27

lbs

(120N) max

Shell size 2 - 60

lbs

(267N) max

Shell size 3 - 105

lbs

(467N) max

500 cycles

min - mating

and

unmating

-65

deg

+ 125

deg

(1) Hydraulic

fluid to

Mil-PRF-5606

(2) Lubricating

oil

(synthetic)

Mil-PRF-23699

(3) 1:3 mix

of isopropyl alcohol and

mineral spirits

per FED, SPEC TT-I-735

and

TT-T291

respectively

MIL-Std-1344, method 2004.1, test condtion A:

Three shocks in each direction along each of 3 axes,

mutually perpendicular to each other. No visible

damage, breakage, cracking or loosening of parts and

no electrical discontinuities exceeding 1 micro-second

Mil - Std-1344, method 2005.1, condition value E,

random - 16.4g minimum severity, 8 hours in each

of 3 mutually perpendicular planes with 100 mA

electrical load. No visible damage, breakage, cracking

or loosening of parts, and no electrical discontinuities

exceeding 1 micro-second

After conditioning

1.0 mΩ

8.5 mΩ

5.0 mΩ

2.5 mΩ

Aluminium alloy

electroless nickel plate

Aluminium alloy

electroless nickel plate

Post – Stainless Steel

passivated

Keys – Aluminium Alloy,

Alodine 1200

Retaining plates

Polarising posts/keys

Inserts

Glass filled epoxy

Engagement / separation force

Inserts (metallic)

Aluminium alloy

electroless nickel plate

Mechanical endurance

Temperature range

Fluid immersion resistance

(Class E only)

Fixing screws

and washers

Contact bodies

Stainless steel, passivated

Copper alloy, gold over nickel

Contact retention clips

Beryllium copper

Fluorosilicone elastomer

to Mil-R-25988

Beryllium copper

Conductive Polymer

Shock

Seals and grommets

EMI springs

Vibration

Protection covers

JULY

2007

207
