SSLDL-LVQ-20T datasheet, PDF - EEWORLD Datasheet

SSLDL-LVQ-20T: DescriptionActive Delay Line, 1-Func, 1-Tap, True Output, Hybrid, TUCKED LEAD, MODULE-8/4; Categorylogic logic; File Size1MB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

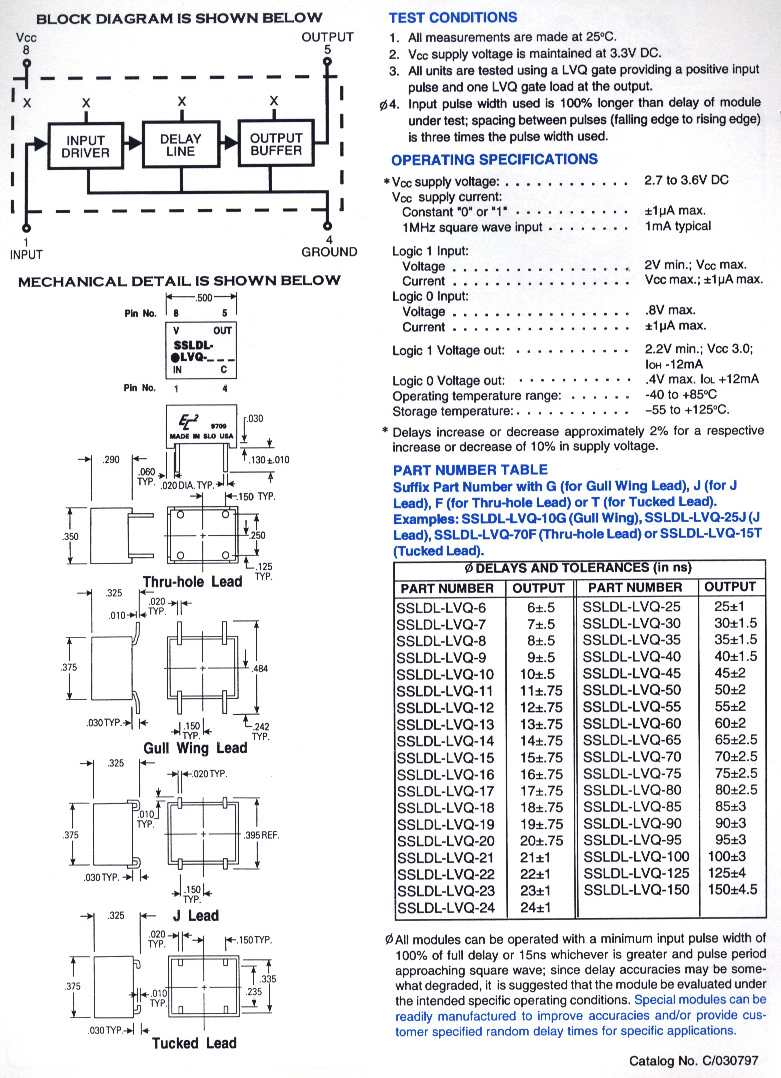

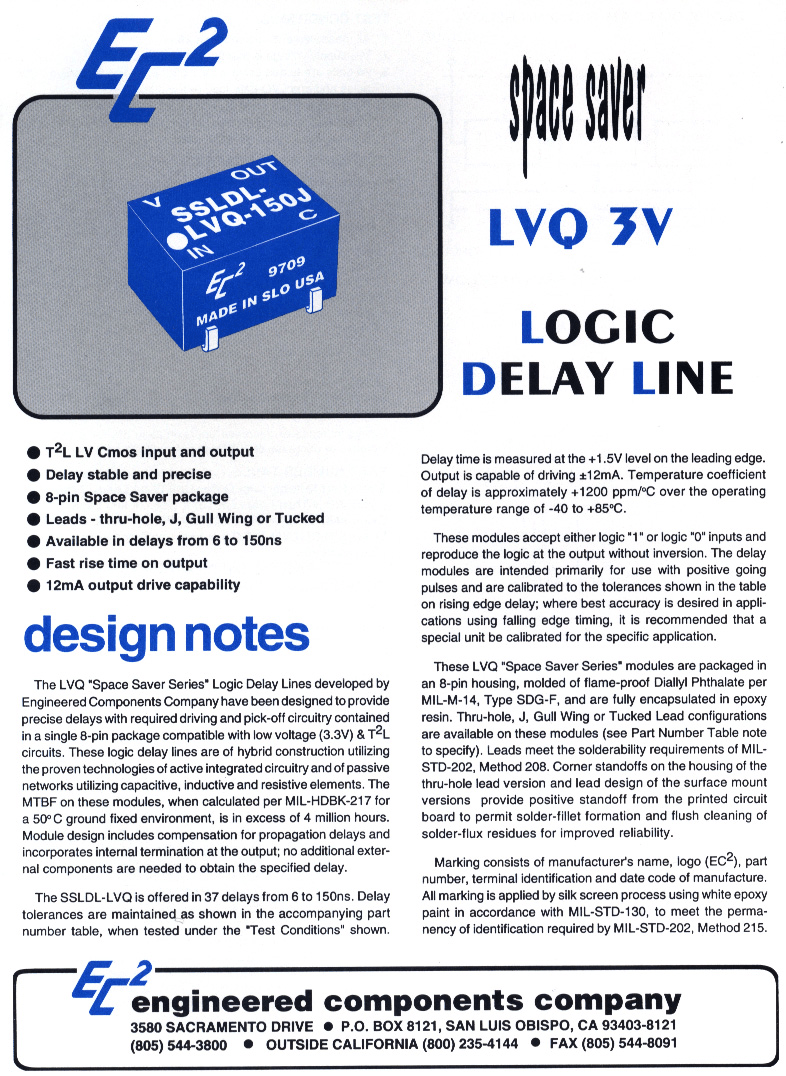

SSLDL-LVQ-20T Overview

Active Delay Line, 1-Func, 1-Tap, True Output, Hybrid, TUCKED LEAD, MODULE-8/4

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	SOIC
package instruction	SOL, SMDIP4/8,.33
Contacts	4
Reach Compliance Code	unknown
JESD-30 code	R-XDSO-L4
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOL
Encapsulate equivalent code	SMDIP4/8,.33
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3/3.3 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	20.75 ns
Certification status	Not Qualified
Maximum seat height	8.255 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	L BEND
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	20 ns
