Power Inductor

CDMPIH Series

■

Features

◎

Magnetically shielded construction.

◎

Storage temperature range: -40℃~+105℃.

◎

Operating temperature range: -40℃~+125℃

(including coil’s self-heat).

◎

RoHS Compliance.

■

Applications

Ideally used in Car navigation、automobile’s MPV equipment and

D-Amp. ,etc.

■

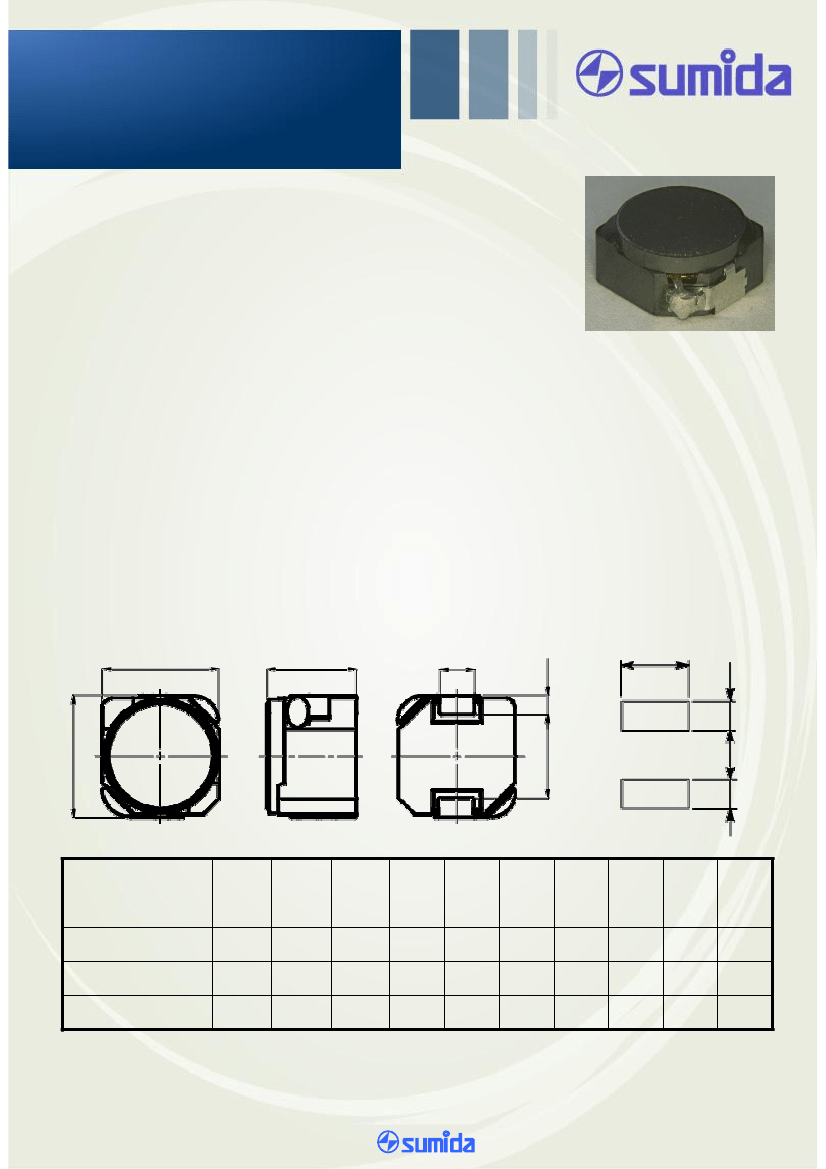

Shapes and Dimensions/Recommended Land Patterns(mm)

◆

Dimensions

B

C

D

E

◆

Land pattern

G

A

F

Type name

A

Max.

6.6

8.1

10.7

B

Max.

6.2

7.7

10.3

C

Max.

5.0

4.5

5.0

D

E

F

G

H

I

J

CDMPIH60D48/T125

CDMPIH75D43/T125

CDMPIH10D48/T125

1.8

2.1

3.4

1.0

1.5

1.6

4.3

5.0

7.2

2.2

3.15

3.95

1.8

3.3

4.2

3.6

1.8

1.5

1.8

2.8

3.5

I

H

1
