BQ2058TFSNXXXX

Description
Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16
CategoryPower/power management    The power supply circuit
File Size382KB，12 Pages
ManufacturerBenchmarq Microelectronics Inc
Download Datasheet Parametric Compare View All

BQ2058TFSNXXXX Overview

Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16

BQ2058TFSNXXXX Parametric

Parameter NameAttribute value
MakerBenchmarq Microelectronics Inc
package instructionSOIC-16
Reach Compliance Codeunknown
Adjustable thresholdNO
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeR-PDSO-G16
Number of channels2
Number of functions1
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature-30 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum supply voltage (Vsup)9 V
Minimum supply voltage (Vsup)4 V
surface mountYES
Temperature levelOTHER
Terminal formGULL WING
Terminal locationDUAL

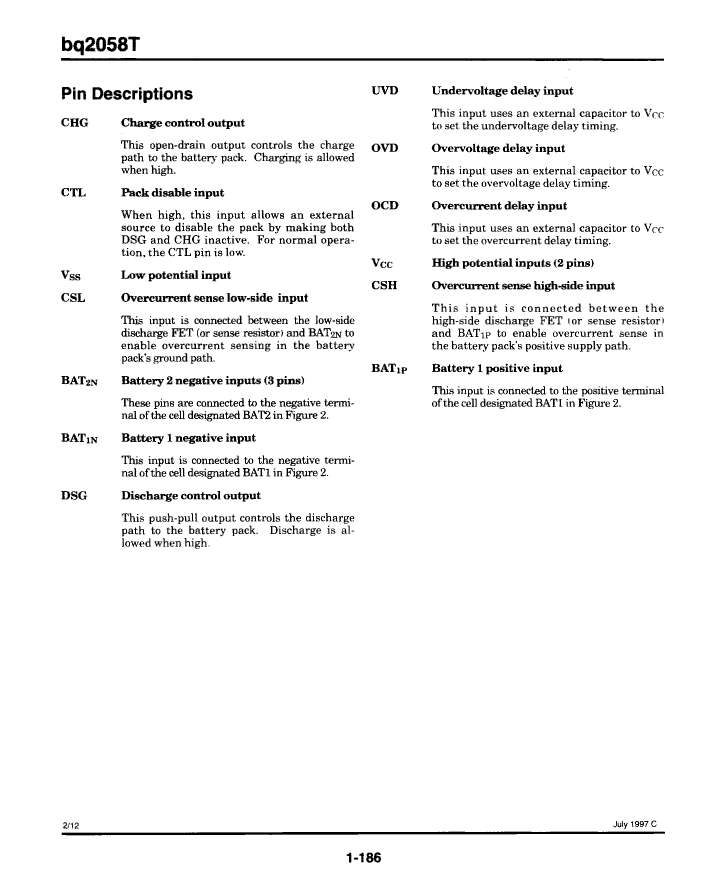

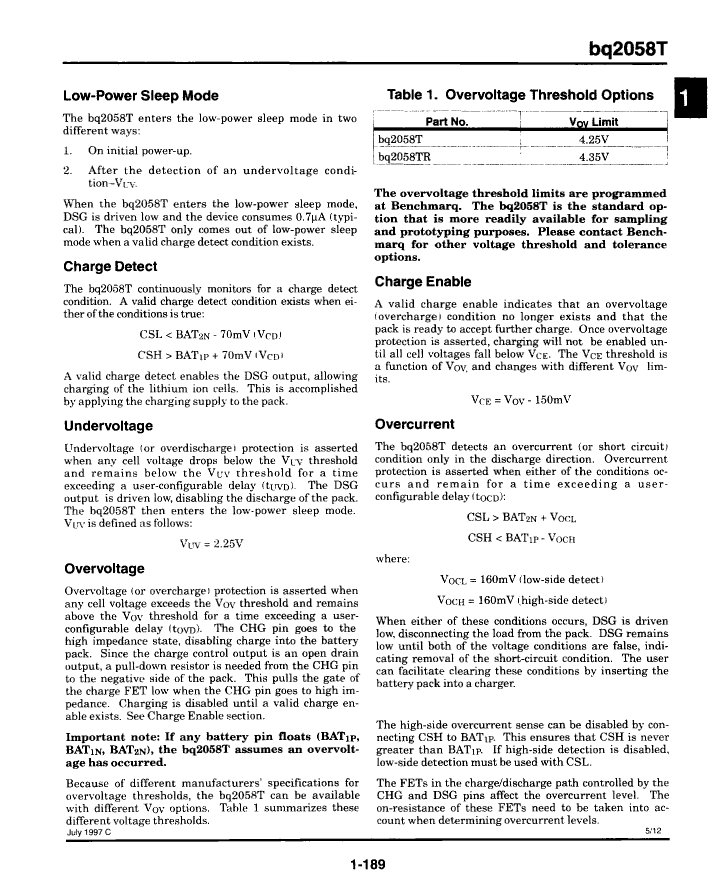

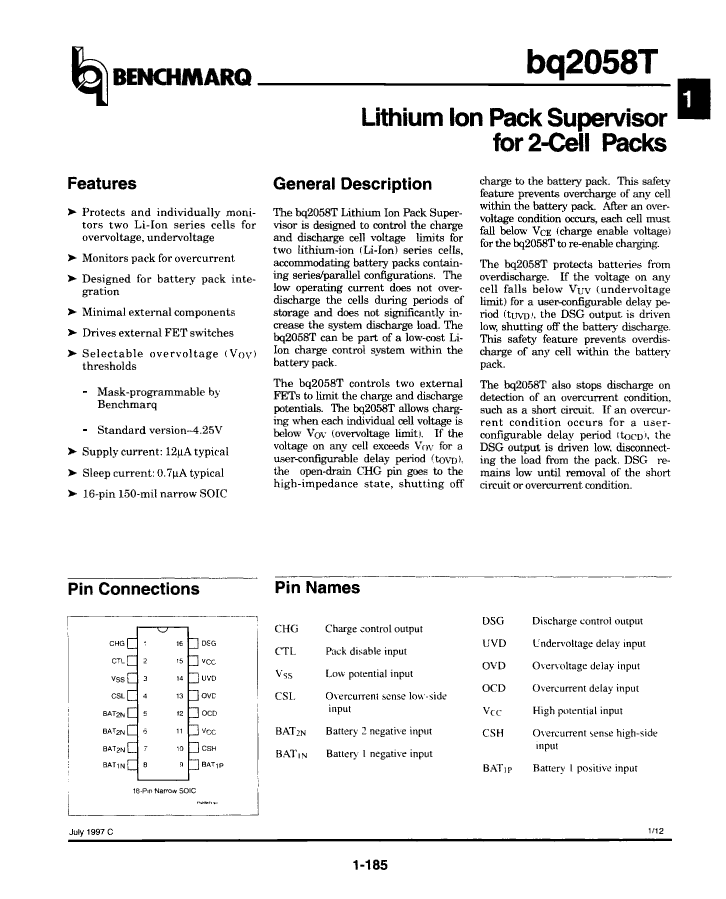

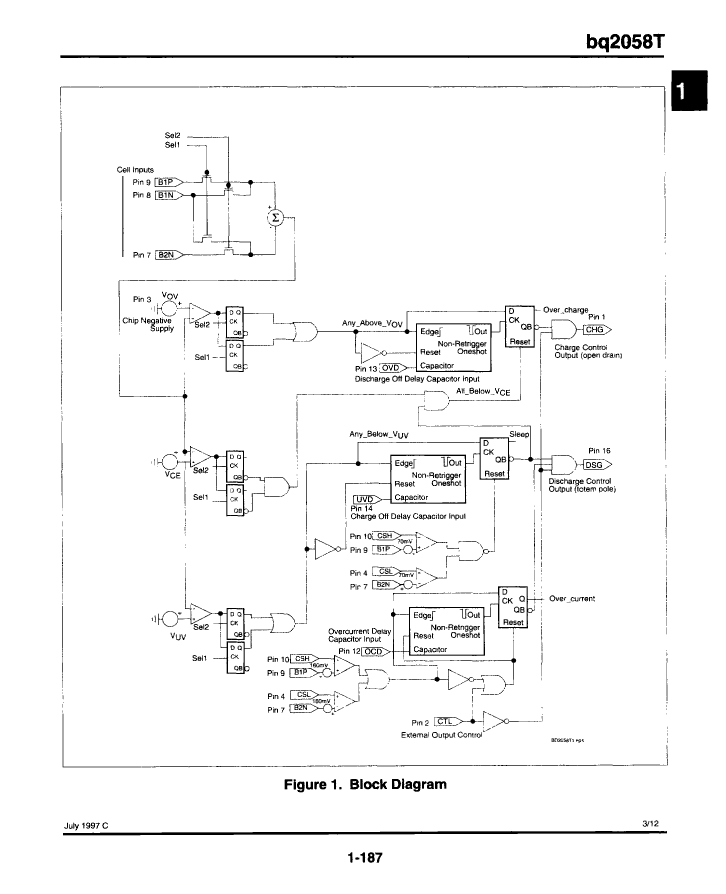

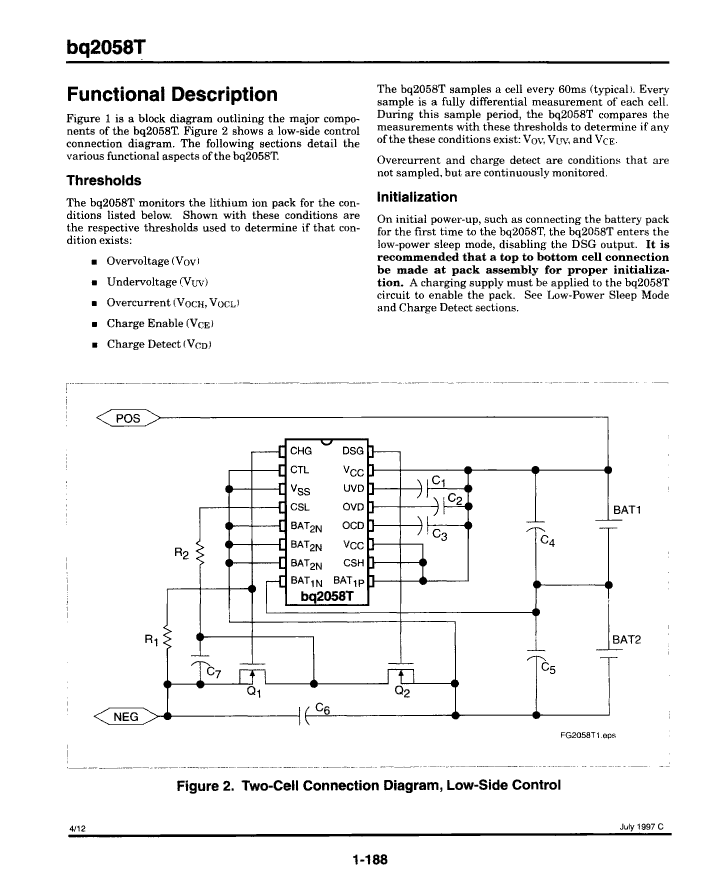

Preview

Download Datasheet

BQ2058TFSNXXXX Related Products

BQ2058TFSNXXXX BQ2058TJSNXXXX BQ2058TMSNXXXX BQ2058TDSNXXXX BQ2058TKSNXXXX
Description Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16 Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16 Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16 Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16 Power Supply Support Circuit, Fixed, 2 Channel, PDSO16, SOIC-16
Maker Benchmarq Microelectronics Inc Benchmarq Microelectronics Inc Benchmarq Microelectronics Inc Benchmarq Microelectronics Inc Benchmarq Microelectronics Inc
package instruction SOIC-16 SOIC-16 SOIC-16 SOIC-16 SOIC-16
Reach Compliance Code unknown unknown unknown unknown unknown
Adjustable threshold NO NO NO NO NO
Analog Integrated Circuits - Other Types POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code R-PDSO-G16 R-PDSO-G16 R-PDSO-G16 R-PDSO-G16 R-PDSO-G16
Number of channels 2 2 2 2 2
Number of functions 1 1 1 1 1
Number of terminals 16 16 16 16 16
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C -30 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 9 V 9 V 9 V 9 V 9 V
Minimum supply voltage (Vsup) 4 V 4 V 4 V 4 V 4 V
surface mount YES YES YES YES YES
Temperature level OTHER OTHER OTHER OTHER OTHER
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL
