BU4053BCF-E1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BU4053BCF-E1

BU4053BCF-E1: DescriptionSPDT, 3 Func, 1 Channel, CMOS, PDSO16, SOP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size164KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

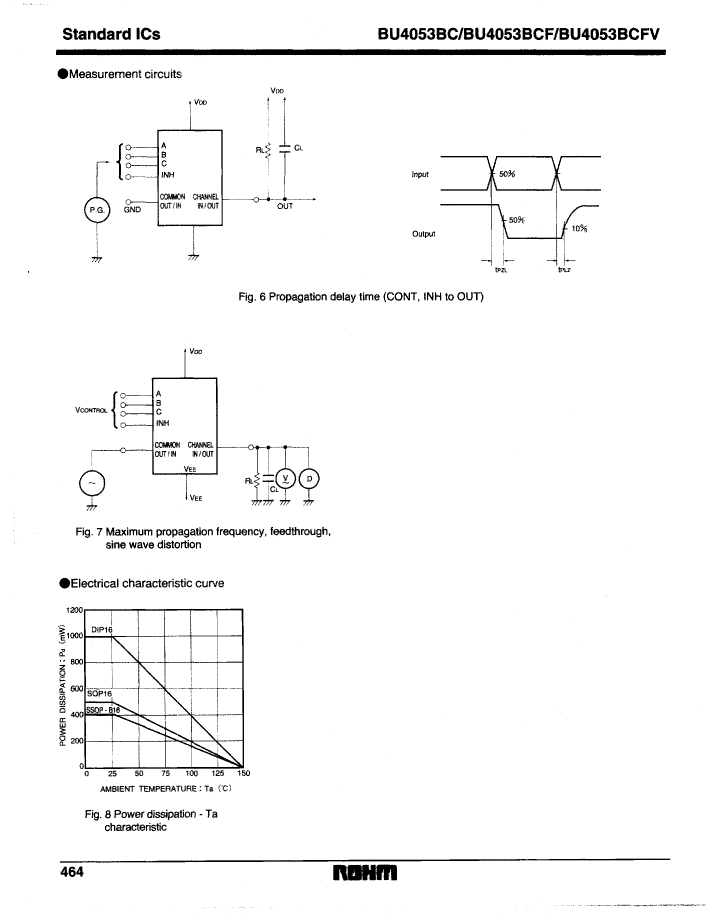

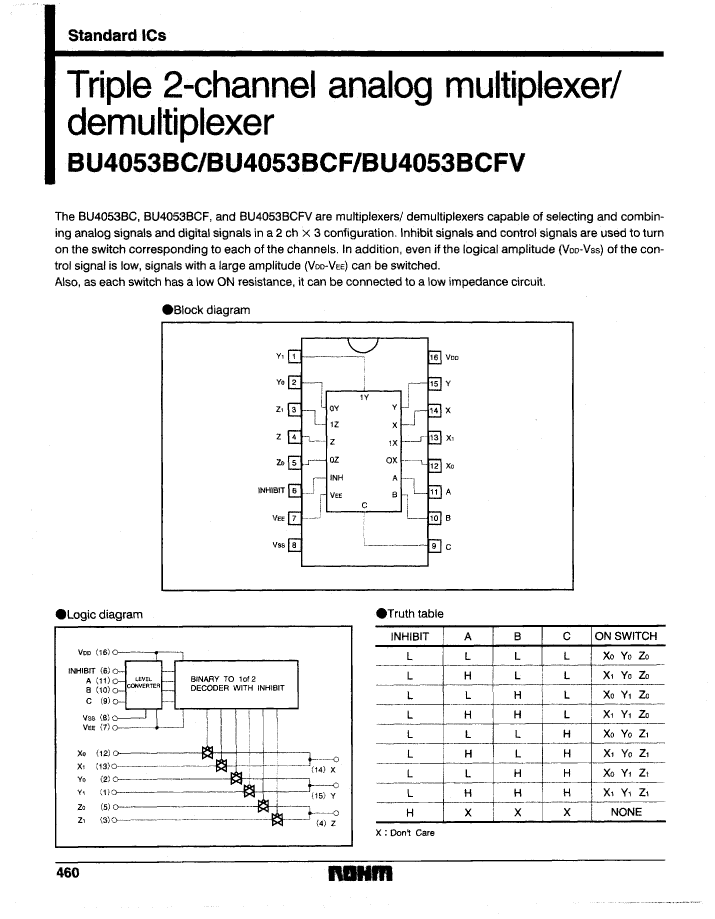

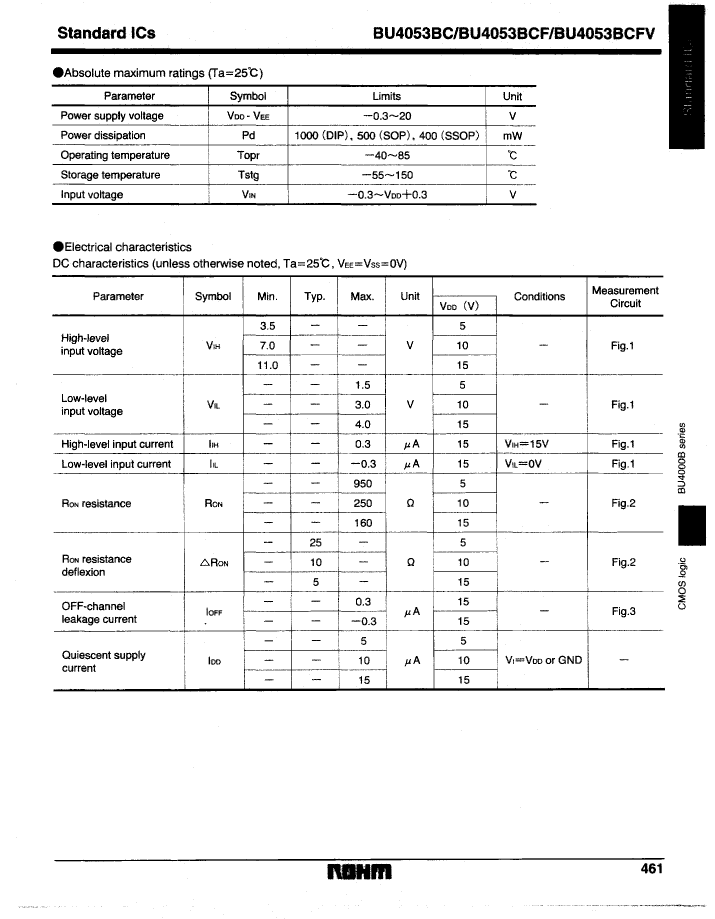

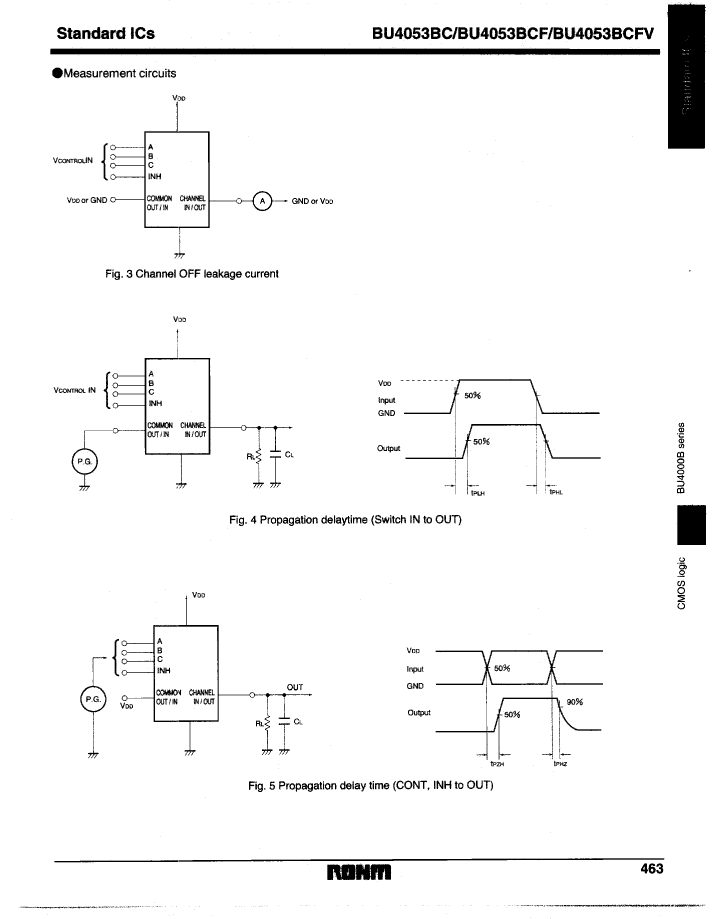

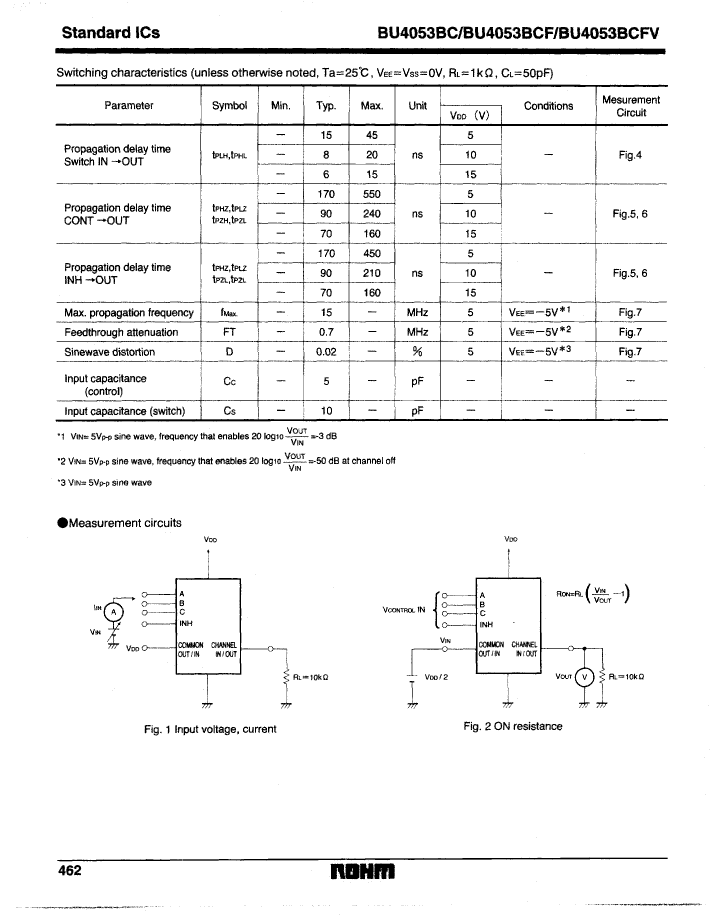

BU4053BCF-E1 Overview

SPDT, 3 Func, 1 Channel, CMOS, PDSO16, SOP-16

BU4053BCF-E1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP, SOP16,.25
Contacts	16
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-PDSO-G16
JESD-609 code	e2
length	10 mm
Number of channels	1
Number of functions	3
Number of terminals	16
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	950 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply current (Isup)	0.015 mA
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	5 V
surface mount	YES
Maximum disconnect time	550 ns
Maximum connection time	550 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

Preview

Download Datasheet

View All

BU4053BCF-E1 Related Products

	BU4053BCF-E1	BU4053BCFV-T1	BU4053BCFV-E1	BU4053BCF-T1	BU4053BCF-T2
Description	SPDT, 3 Func, 1 Channel, CMOS, PDSO16, SOP-16	SPDT, 3 Func, 1 Channel, PDSO16, SSOP-16	SPDT, 3 Func, 1 Channel, CMOS, PDSO16, SSOP-16	SPDT, 3 Func, 2 Channel, PDSO16, SOP-16	SPDT, 3 Func, 1 Channel, PDSO16, SOP-16
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP, SOP16,.25	SSOP-16	LSSOP, TSSOP16,.25	SOP-16	SOP-16
Contacts	16	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SPDT	SPDT	-	SPDT	SPDT
JESD-30 code	R-PDSO-G16	R-PDSO-G16	-	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e2	e2	-	e2	e2
length	10 mm	5 mm	-	10 mm	10 mm
Number of channels	1	1	-	2	1
Number of functions	3	3	-	3	3
Number of terminals	16	16	-	16	16
On-state resistance matching specifications	5 Ω	5 Ω	-	25 Ω	5 Ω
Maximum on-state resistance (Ron)	950 Ω	950 Ω	-	950 Ω	950 Ω
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSSOP	-	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	-	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260	260	-	260	260
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.35 mm	-	1.7 mm	1.7 mm
Maximum supply voltage (Vsup)	15 V	15 V	-	-	15 V
Minimum supply voltage (Vsup)	5 V	5 V	-	-	5 V
surface mount	YES	YES	-	YES	YES
Maximum disconnect time	550 ns	550 ns	-	550 ns	550 ns
Maximum connection time	550 ns	550 ns	-	550 ns	550 ns
Temperature level	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)	TIN COPPER	-	TIN COPPER	TIN COPPER
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	-	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	-	10	10
width	4.4 mm	4.4 mm	-	4.4 mm	4.4 mm
