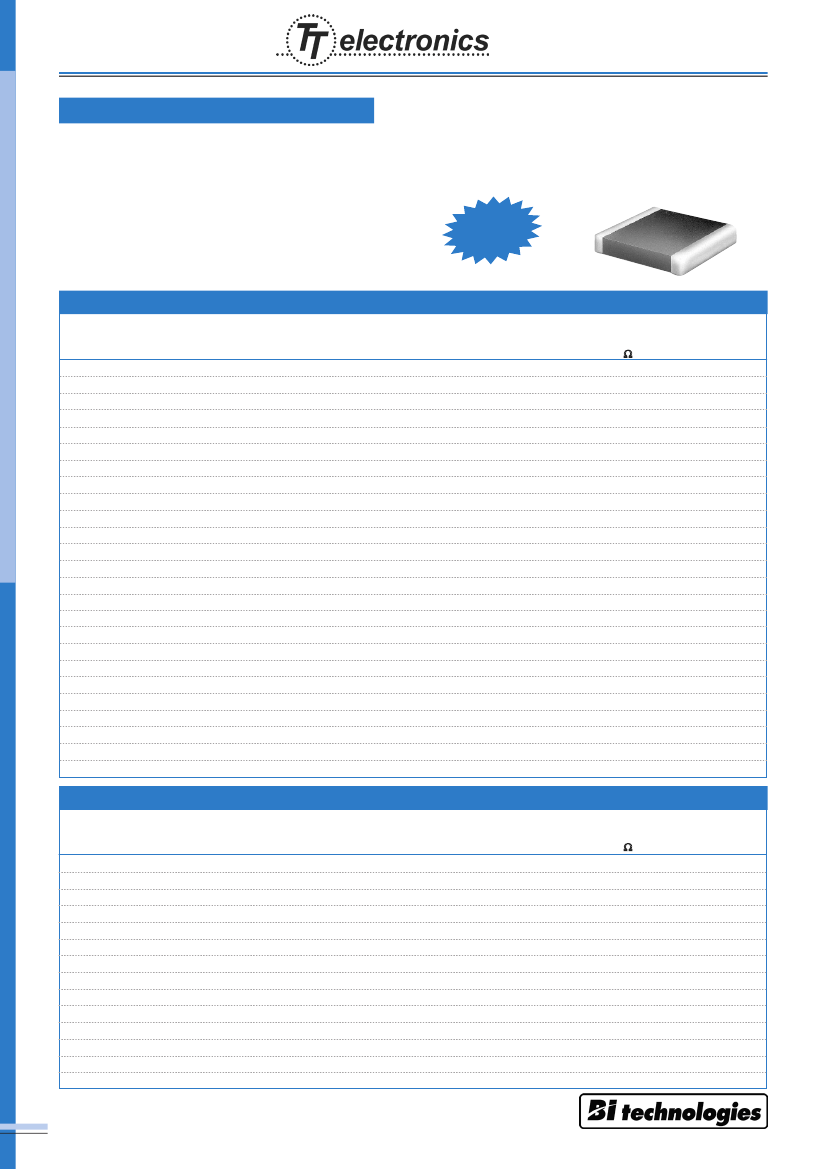

Electrical / Environmental
•
•
•
•
Inductance Range
Standard Tolerance
Operating Temperature Range
Resistance to Solder Heat
1.0nH to 270nH
±10%
-55°C to +125°C
260°C for 10 sec
Surface Mount Multilayer
High Frequency Ceramic Chip Inductors
0402 - 0805 Industry Sizes
BMC
S
RoH
liant
mp
Co
0402 Specifications
Part
Number
BMC0402HF-1N0SLF
BMC0402HF-1N2SLF
BMC0402HF-1N5SLF
BMC0402HF-1N8SLF
BMC0402HF-2N2SLF
BMC0402HF-2N7SLF
BMC0402HF-3N3KLF
BMC0402HF-3N9KLF
BMC0402HF-4N7KLF
BMC0402HF-5N6KLF
BMC0402HF-6N8KLF
BMC0402HF-8N2KLF
BMC0402HF-10NKLF
BMC0402HF-12NKLF
BMC0402HF-15NKLF
BMC0402HF-18NKLF
BMC0402HF-22NKLF
BMC0402HF-27NKLF
BMC0402HF-33NKLF
BMC0402HF-39NKLF
BMC0402HF-47NKLF
BMC0402HF-56NKLF
BMC0402HF-68NKLF
BMC0402HF-82NKLF
BMC0402HF-R10KLF
Inductance
nH
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
(1)
Q (Typical)
@ 100/800MHz
10/26
10/26
11/30
11/30
10/28
10/25
10/27
10/24
10/23
10/25
10/23
10/26
10/21
10/22
10/22
10/24
10/25
10/25
10/21
10/23
10/18
11/17
11/17
11/15
11/10
SRF
Min./Typ.
MHz
10000/18000
10000/17000
6000/11000
6000/11000
6000/8700
6000/7800
6000/6400
4000/5800
4000/5100
4000/4700
3900/4200
3600/3800
3200/3200
2700/2900
2300/2500
2100/2400
1900/2200
1600/2000
1300/1800
1200/1600
1000/1500
750/1300
750/1250
600/1100
600/1000
SRF
Min./Typ.
MHz
6000/13000
6000/11000
6000/10000
6000/7000
4000/5900
3500/4500
3500/4500
3500/4000
3000/3600
3000/3500
2800/3000
2000/2500
2000/2200
1800/2000
DCR
Max.
W
0.12
0.12
0.13
0.14
0.16
0.17
0.19
0.22
0.24
0.27
0.32
0.37
0.42
0.50
0.55
0.65
0.80
0.90
1.00
1.20
1.30
1.40
1.40
2.20
2.60
DCR
Max.
W
Rated
Current
mA
300
300
300
300
300
300
300
300
300
300
250
250
250
250
250
200
200
200
200
150
150
150
150
100
100
Rated
Current
mA
300
300
300
300
300
300
300
300
300
300
300
300
300
300
0603 Specifications
Part
Number
BMC0603HF-1N5SLF
BMC0603HF-1N8SLF
BMC0603HF-2N2SLF
BMC0603HF-2N7SLF
BMC0603HF-3N3KLF
BMC0603HF-3N9KLF
BMC0603HF-4N7KLF
BMC0603HF-5N6KLF
BMC0603HF-6N8KLF
BMC0603HF-8N2KLF
BMC0603HF-10NKLF
BMC0603HF-12NKLF
BMC0603HF-15NKLF
BMC0603HF-18NKLF
Inductance
nH
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
(1)
Q (Typical)
@ 100/800MHz
11/35
10/31
14/44
12/37
16/51
11/31
11/33
15/44
15/44
13/37
15/40
12/30
15/34
15/31
0.10
0.10
0.10
0.10
0.12
0.14
0.16
0.18
0.22
0.24
0.26
0.28
0.32
0.35
142
MAGNETIC COMPONENTS SELECTOR GUIDE 2009/10 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com
0603 Specifications (Cont’d)
Part
Number
BMC0603HF-22NKLF
BMC0603HF-27NKLF
BMC0603HF-33NKLF
BMC0603HF-39NKLF
BMC0603HF-47NKLF
BMC0603HF-56NKLF
BMC0603HF-68NKLF
BMC0603HF-82NKLF
BMC0603HF-R10KLF
BMC0603HF-R12KLF
BMC0603HF-R15KLF
BMC0603HF-R18KLF
BMC0603HF-R22KLF
Inductance
nH
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0 @ 50MHz
150.0 @ 50MHz
180.0 @ 50MHz
220.0 @ 50MHz
(1)
Q (Typical)
@ 100/800MHz
17/37
15/32
15/28
14/28
17/28
19/26
17/20
16/18
18/3
17/-
19/-
18/-
18/-
SRF
Min./Typ.
MHz
1800/1900
1500/1700
1200/1500
1100/1300
900/1300
900/1200
700/1000
600/1000
600/800
500/800
500/700
400/600
400/500
DCR
Max.
W
0.40
0.45
0.55
0.60
0.70
0.75
0.85
0.95
1.00
1.20
1.20
1.30
1.50
Rated
Current
mA
300
300
300
300
300
300
300
300
300
300
300
300
300
0805 Specifications
Part
Number
BMC0805HF-1N5SLF
BMC0805HF-1N8SLF
BMC0805HF-2N2SLF
BMC0805HF-2N7SLF
BMC0805HF-3N3KLF
BMC0805HF-3N9KLF
BMC0805HF-4N7KLF
BMC0805HF-5N6KLF
BMC0805HF-6N8KLF
BMC0805HF-8N2KLF
BMC0805HF-10NKLF
BMC0805HF-12NKLF
BMC0805HF-15NKLF
BMC0805HF-18NKLF
BMC0805HF-22NKLF
BMC0805HF-27NKLF
BMC0805HF-33NKLF
BMC0805HF-39NKLF
BMC0805HF-47NKLF
BMC0805HF-56NKLF
BMC0805HF-68NKLF
BMC0805HF-82NKLF
BMC0805HF-R10KLF
BMC0805HF-R12KLF
BMC0805HF-R15KLF
BMC0805HF-R18KLF
BMC0805HF-R22KLF
BMC0805HF-R27KLF
Note:
Inductance
nH
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0 @ 50MHz
150.0 @ 50MHz
180.0 @ 50MHz
220.0 @ 50MHz
270.0 @ 50MHz
(1)
Q (Typical)
@ 100/800MHz
16/55
16/55
16/51
16/55
19/65
19/65
19/65
19/62
19/55
19/53
20/60
20/40
20/48
20/54
20/38
20/38
20/28
20/21
21/17
21/12
21/9
22/4
22/16
22/20
22/-
21/-
20/-
24/-
SRF
Min./Typ.
MHz
4000/7000
4000/7000
4000/7000
4000/6500
4000/5500
3000/4400
3000/3500
3000/3500
2500/3300
2000/2600
2000/2300
1500/2000
1500/1800
1300/1700
1200/1400
1000/1300
1000/1200
800/1100
800/1000
700/900
600/800
500/700
500/700
400/600
300/600
300/500
300/500
200/400
DCR
Max.
W
0.10
0.10
0.10
0.10
0.13
0.15
0.20
0.23
0.25
0.28
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.90
0.90
0.95
1.00
1.10
1.20
1.30
Rated
Current
mA
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
(1) Inductance is measured at 100MHz without DC Current
www.bitechnologies.com
2009/10 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE
143
We reserve the right to change specifications without prior notice.

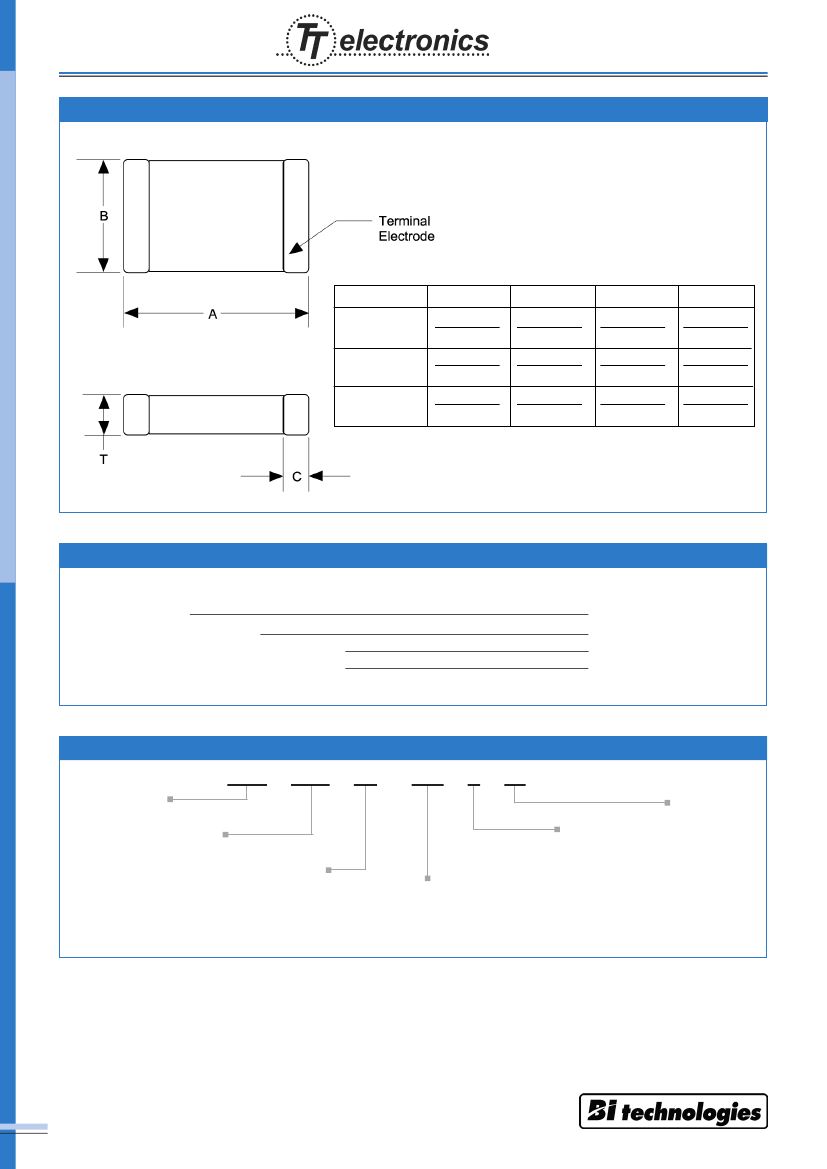

Outline Dimensions (Inches/mm)
Part #
BMC0402HF
(1005)
BMC0603HF
(1608)
BMC0805HF
(2012)
A Dim.
0.040±0.004
1.00±0.100
0.063±0.006
1.60±0.150
0.079±0.008
2.00±0.200
B Dim.
0.02±0.004
0.50±0.100
0.031±0.006
0.80±0.150
0.049±0.008
1.25±0.200
C Dim.
0.01±0.004
0.25±0.100
0.012±0.008
0.30±0.200
0.020±0.012
0.50±0.300
T Dim.
0.02±0.004
0.50±0.100
0.031±0.006
0.80±0.150
0.035±.008
0.90±0.200
Packaging
Standard:
Tape & Reel
Reel:
Diameter:
Capacity:
BMC0402 HF
BMC0603 HF
BMC0805 HF
=
=
=
=
7” (177.8mm)
10,000 Units
4,000 Units
4,000 Units
Ordering Information
Model Series
Body Dimensions:
Length x Width
High Frequency
Inductance Code:
2 digits are significant.
For values below 10nH, “N”
denotes the decimal point.
BMC
0805
HF - 4N7
K
LF
Lead-Free
Inductance
Tolerance:
J = ±5%
K = ±10%
S = ±0.3nH
144
MAGNETIC COMPONENTS SELECTOR GUIDE 2009/10 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com
