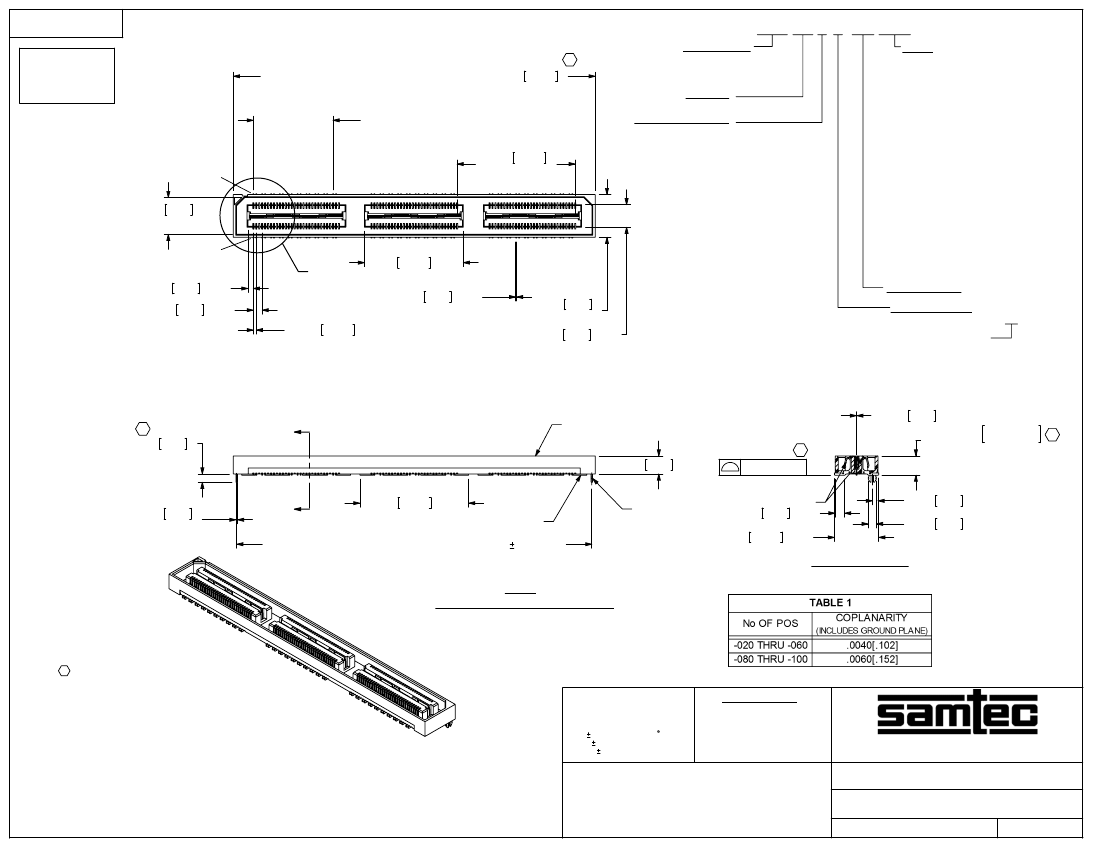

REVISION AJ
DO NOT
SCALE FROM
THIS PRINT
C
{(No OF POS / 20) x .7875[20.003]} + .050[1.27] REF 61.28
QSH-XXX-XX-X-D-DP-XXX
No OF POSITIONS
-020, -040, -060,
**-080, **-100
(PER ROW)
LEAD STYLE
-01: .1280 [3.251]
OPTION
-A: ALIGNMENT PINS
(USE QSH-30-01-D-XX-A,
SEE FIG 2)
-GP: GUIDE POSTS
(USE QSH-30-01-D-XX-GP,
SEE FIG 4)
-LC: LOCKING CLIPS(SEE NOTE 12)
(USE LC-08-TM-01, SEE FIG 1)
-K: POLYIMIDE FILM PAD
(USE
K-DOT-.325-.450-.005,
SEE FIG. 3)
-TR: TAPE & REEL (60 POS MAX)
-TY: TRAY PACKAGING
(NOT AVAILABLE WITH -TR)
-FL: FRICTION LOCKS
(SEE FIG 5, SHEET 3)
(NOT AVAILABLE WITH -GP)
-RT1: RETENTION (MUST USE -A OPTION)
(USE QSH-30-01-D-XX-A-RT1
& SUB-SC-05-01-FF) (SEE FIG 6, SHEET 3)
(NOT AVAILABLE WITH -LC, -GP, OR -FL)
(NOT AVAILABLE WITH -080 & -100 POS)
-L: LATCHING
(SEE FIG 7, SHEET 4)
(USE QSH-30-01-D-XX-A-L)
(NOT AVAILABLE WITH -LC, -GP, -FL, OR -RT1)
DIFFERENTIAL PAIRS
9 EQ SPACES @ .059 [1.50] REF
.7875 20.00
(TYP)
02
.245 6.22
REF
01
PLATING SPECIFICATION
(SEE NOTE 11)
-F: 3µ" FLASH SELECTIVE IN CONTACT AREA,
MATTE TIN ON TAIL
(USE T-1G2-01-F) (SEE NOTE 9)
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
(USE T-1G2-01-L) (SEE NOTE 9)
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
(USE T-1G2-01-G)
-C: 50µ" ELECTRO-POLISHED SELECTIVE GOLD
IN CONTACT AREA, MATTE TIN ON TAIL
(USE T-1G2-01-L) (SEE NOTE 9)
'A'
.036 0.92 REF
.059 1.50 REF
.659 16.73 REF
.006 0.15 REF
.0197 0.500 REF
.285 7.24
REF
.150 3.81 REF
C-126-01-X CAN BE SUBBED
FOR C-126-21-X
** = SEE NOTE 10
ROW SPECIFICATION
-D: DOUBLE (USE QSH-30-01-D-XX)
No OF BANKS
C
.055 1.40
"A"
QSH-30-01-D-XX
C
.120 3.05 REF
.725 18.42 REF
T-1G2-01-X
SEE TABLE 1
C-126-21-X
* SEE NOTE 11
.064 1.62 REF
.2950 7.493 REF
.0030 0.08 REF
.1280
- .0010
3.251
- 0.025
(SEE NOTE 2 & 5)
+.0030
+0.076
C
.010 0.25
REF
"A"
LC-08-TM-01
.038 0.95 REF
.056 1.42 REF
({(No OF POS / 20) x .7875[20.003]} + .005[.13]) .005[.13]
SECTION "A"-"A"
-LC: LOCKING CLIP OPTION SHOWN
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAX VARIANCE: .002 [0.05]
3. MAX BURR ALLOWANCE: .0015 [0.038]
4. MINIMUM PUSHOUT FORCE: 4 OZ
5. DIM APPLIES TO GROUND PLANE AND CONTACT.
6. MINIMUM GROUND PLANE RETENTION: 8 OZ
7. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
8. SUB-SC-05-01-XX RETENTION TO BE 1.0 LBF IN BODY.
9. MAY SUB C-126-01-X for C-126-21-X.
10. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS PLEASE
CONTACT SAMTEC INTERCONNECT PROCESSING GROUP.
11. FOR -80, -100 POSITIONS USE C-269-11-X. DO NOT SUB C-126.
12. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION."
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
DECIMALS
ANGLES
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
PROPRIETARY NOTE
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
INSULATOR: BLACK, LCP
FLAMMABILITY RATING: UL94VO
TERMINAL: PHOS BRONZE
GROUND PLANE: PHOS BRONZE
c:\enterprisevault\DWG\MISC\MKTG\QSH-XXX-XX-X-D-DP-XXX-MKT.SLDDRW
.5mm DIFFERENTIAL PAIRS HS SOCKET ASSEMBLY
DWG. NO.
BY:
KEVIN B
QSH-XXX-XX-X-D-DP-XXX
06/13/00
SHEET
1
OF
4

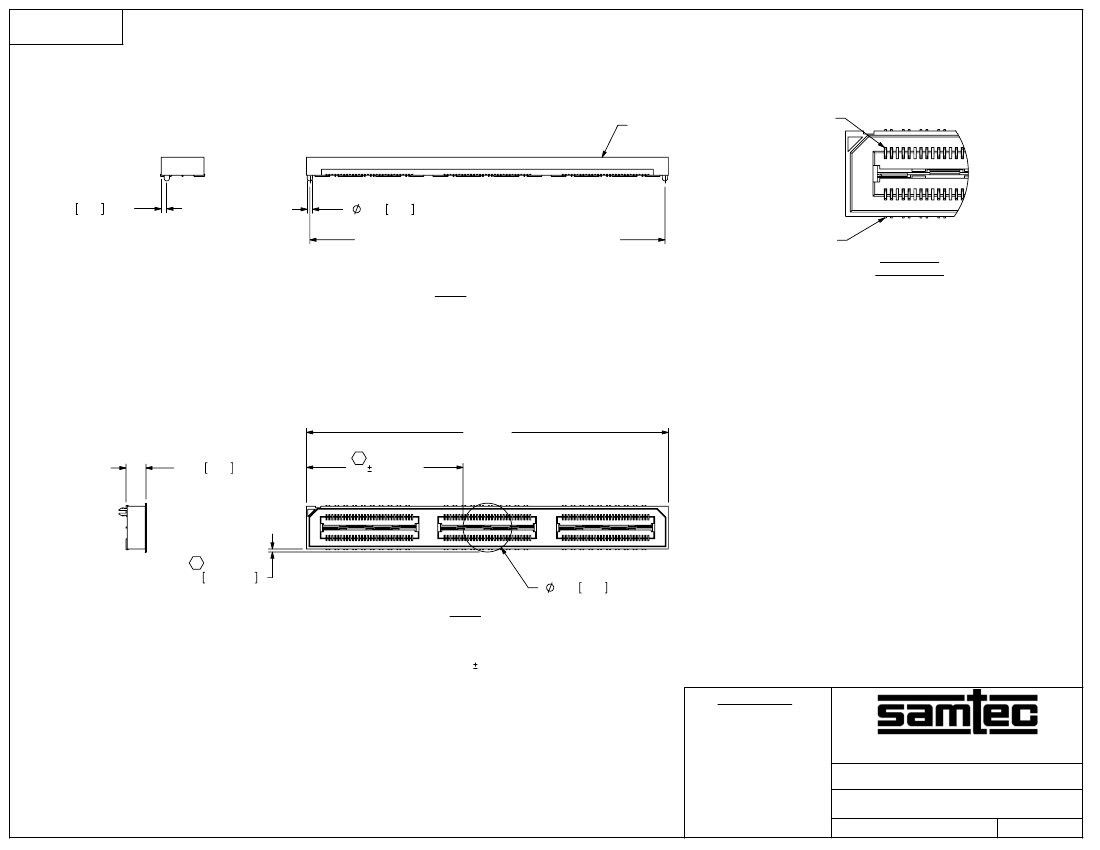

REVISION AJ
QSH-30-01-D-XX-A
02
.038 0.95 REF
.035 0.89 REF
((No OF POS / 20) x .7875[20.003]) + .005[0.13] REF
01
DETAIL 'A'
SCALE 3 : 1
-A: ALIGNMENT PIN OPTION SHOWN
FIG 2
"R" REF
.133 3.38
C
"S" .020[.51]
C
.020±.010 0.51±0.25
.325 8.26
-K: POLYIMIDE FILM PAD
NOTE: "R" = ((No OF POSITIONS / 20) x .7875[20.003]) + .050[1.27]
"S" = (("R" - .325[8.26]) /2) .020[.51]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 3
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
.5mm DIFFERENTIAL PAIRS HS SOCKET ASSEMBLY
BY:
KEVIN B
c:\enterprisevault\DWG\MISC\MKTG\QSH-XXX-XX-X-D-DP-XXX-MKT.SLDDRW
QSH-XXX-XX-X-D-DP-XXX
06/13/00
SHEET
2
OF
4

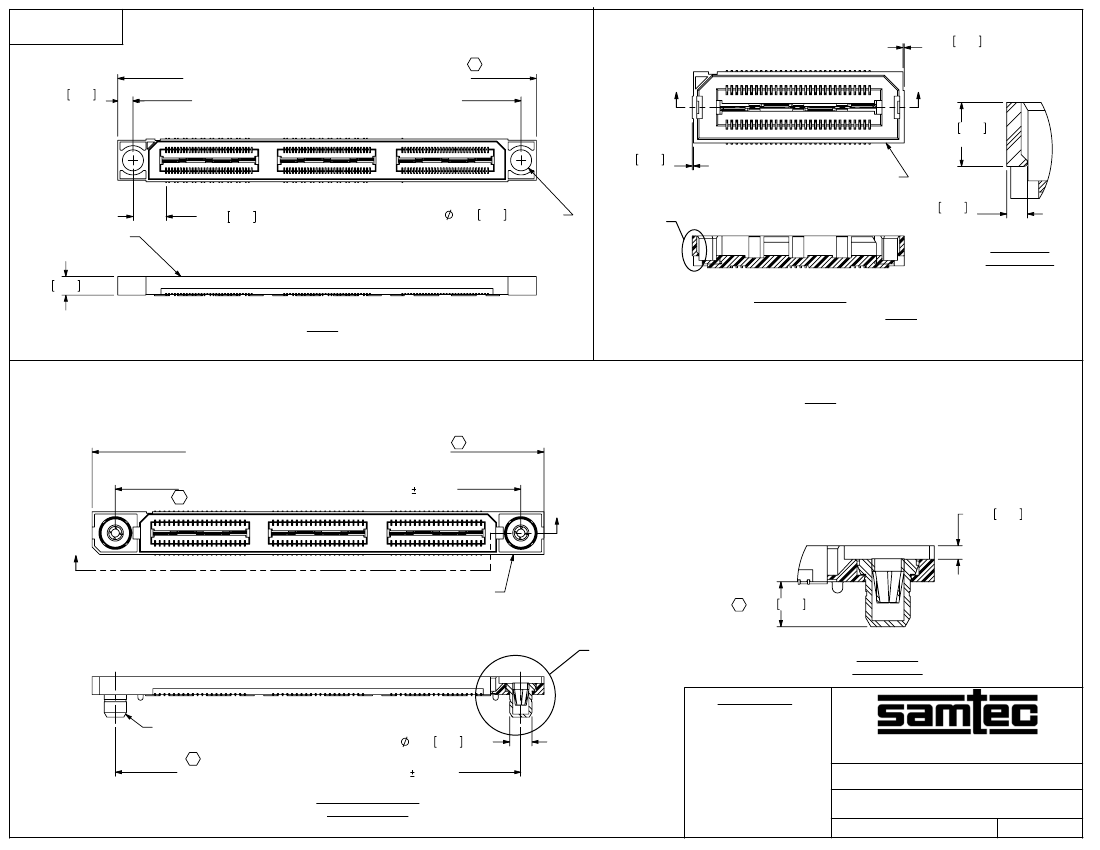

REVISION AJ
C
((No OF POS / 20) X .7875[20.003]) + .4285[10.884] REF
.134 3.41
REF
((No OF POS / 20) X .7875[20.003]) + .225[5.72] REF
"B"
"B"
.005 0.13
REF
.080 2.03
REF (TYP)
.005 0.13
REF
QSH-30-01-D-XX-FL
.026 0.66
REF (TYP)
.221 5.61
QSH-30-01-D-XX-GP
.140 3.56 THRU REF
'A'
DETAIL 'A'
SCALE 8 : 1
SECTION "B"-"B"
FIG 4
-GP: GUIDE POST OPTION SHOWN
.124 3.15 REF
-FL: FRICTION LOCKS
(NOT AVAILABLE WITH -GP OPTION)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 5
FIG 6
C
-RT1: RETENTION OPTION
(MUST USE -A OPTION)
(NOT AVAILABLE WITH -LC, -GP, OR -FL OPTIONS)
(NOT AVAILABLE WITH -080 & -100 POS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
((No OF BANKS) x .7875[20.003]) + .650[16.51] REF
((No OF BANKS) x .7875[20.003]) + .341[8.66]
C4
.003[0.08]
.004[0.10]
"D"
.045 1.14 REF
"D"
QSH-30-01-D-XX-A-RT1
C .150 3.81
'E'
DETAIL 'E'
SCALE 3 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
SUB-SC-05-01-FF (2 PLCS)
C
((No OF BANKS) x .7875[20.003]) + .341[8.66]
.148 3.76 REF
.003[0.08]
.004[0.10]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.25:1
SECTION "D"-"D"
SCALE 1.5 : 1
c:\enterprisevault\DWG\MISC\MKTG\QSH-XXX-XX-X-D-DP-XXX-MKT.SLDDRW
.5mm DIFFERENTIAL PAIRS HS SOCKET ASSEMBLY
BY:
KEVIN B
QSH-XXX-XX-X-D-DP-XXX
06/13/00
SHEET
3
OF
4
REVISION AJ
((No. OF POSITIONS /20) x .7875[20.003]) + .2600[6.604] REF
.0300 0.762 REF
((No. OF POSITIONS / 20) x .7875[20.003]) + .1093[2.776]
C
QSH-30-01-D-XX-A-L
.160 4.06
REF
.053±.002 1.35±0.05
C
.025 0.64 REF
WT-56-01-T
((No. OF POSITIONS /20) x .7875[20.003]) + .1715[4.356]
C
.010 0.25
REF (TYP)
FIG 7
-L: RETENTION OPTION
(NOT AVAILABLE WITH -LC, -GP, -FL, OR -RT1 OPTIONS)
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.5mm DIFFERENTIAL PAIRS HS SOCKET ASSEMBLY
BY:
KEVIN B
c:\enterprisevault\DWG\MISC\MKTG\QSH-XXX-XX-X-D-DP-XXX-MKT.SLDDRW
QSH-XXX-XX-X-D-DP-XXX
06/13/00
SHEET
4
OF
4
