BFT61.MODE1: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, HERMETIC SEALED, METAL, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size106KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BFT61.MODE1 Overview

Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-205AD, HERMETIC SEALED, METAL, TO-39, 3 PIN

BFT61.MODE1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	HERMETIC SEALED, METAL, TO-39, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN SILVER COPPER
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz

Preview

Download Datasheet

View All

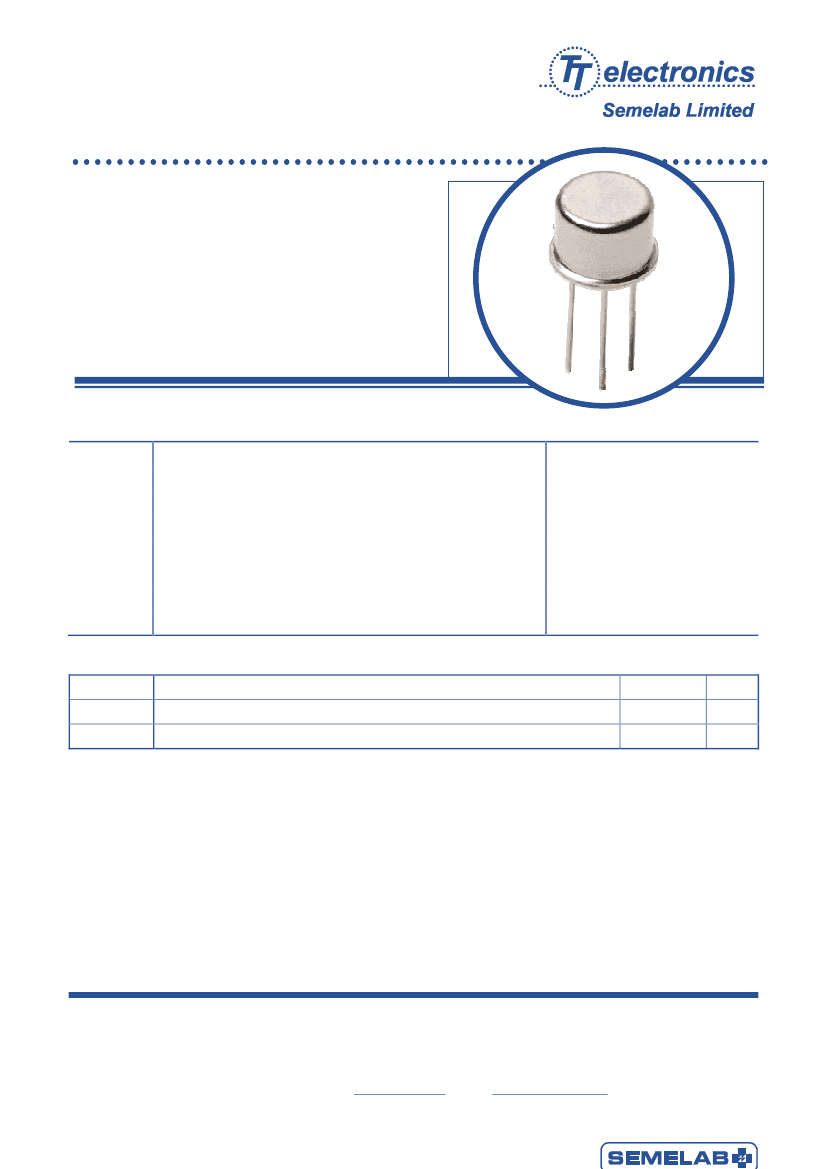

SILICON EPITAXIAL

PNP TRANSISTOR

BFT61

•

Hermetic TO-39 Metal Package

Designed For General Purpose Amplifiers, and Audio Driver

Applications

Screening Options Available

ABSOLUTE MAXIMUM RATINGS

(TA = 25°C unless otherwise stated)

VCBO

VCEO

VEBO

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

TA = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

-60V

-30V

-6V

-1.0A

800mW

5mW/°C

-55 to +200°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

θJA

θJC

Parameters

Thermal Resistance, Junction To Ambient

Thermal Resistance, Junction To Case

Max

195

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Semelab Limited

Telephone +44 (0) 1455 556565 Fax +44 (0) 1455 552612 Email:

sales@semelab-tt.com

Website:

http://www.semelab-tt.com

Document Number 10053

Issue 1

Page 1 of 3
