MWDM4L-9PCBRT-.150 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MWDM4L-9PCBRT-.150

MWDM4L-9PCBRT-.150: DescriptionD Microminiature Connector, 9 Contact(s), Male, Solder Terminal, Locking,; CategoryThe connector The connector; File Size228KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MWDM4L-9PCBRT-.150 Overview

D Microminiature Connector, 9 Contact(s), Male, Solder Terminal, Locking,

MWDM4L-9PCBRT-.150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
body width	0.31 inch
subject depth	0.425 inch
body length	0.787 inch
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn60Pb40)
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	32 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
JESD-609 code	e0
MIL compliance	YES
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	ANODIZED BLACK
Shell material	ALUMINUM ALLOY
Housing size	A
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

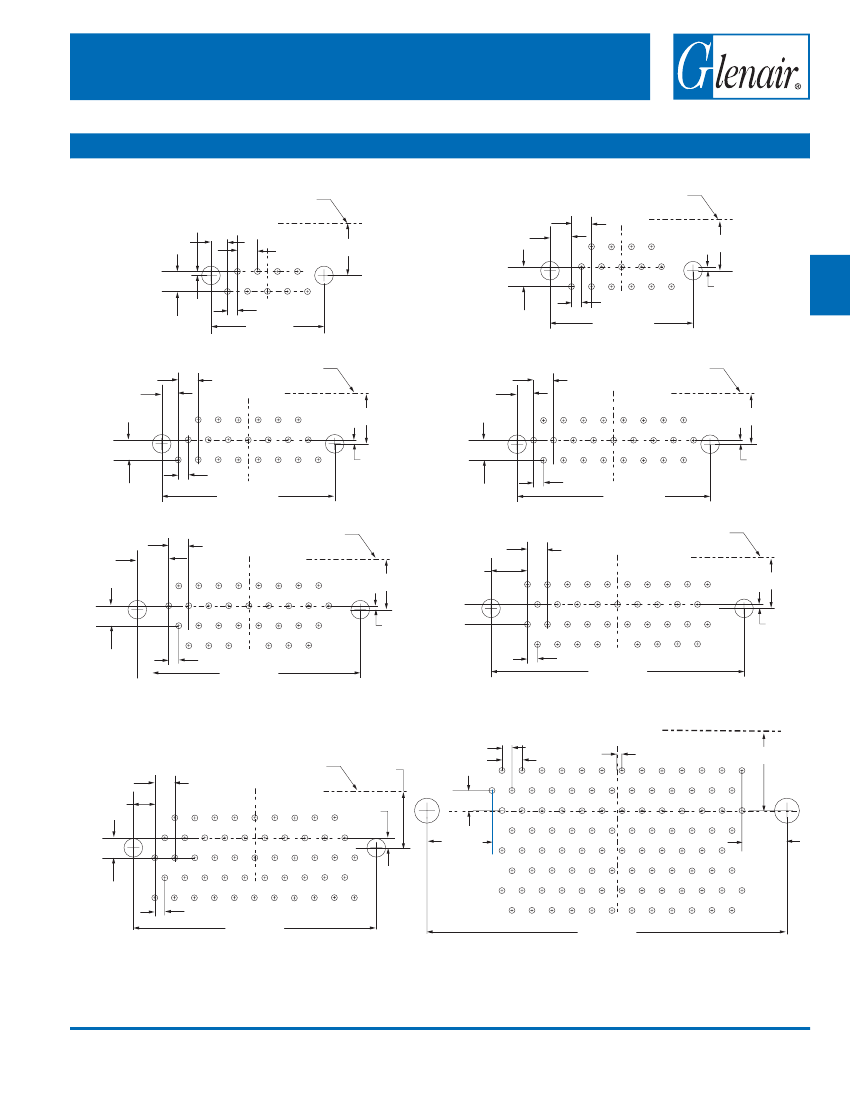

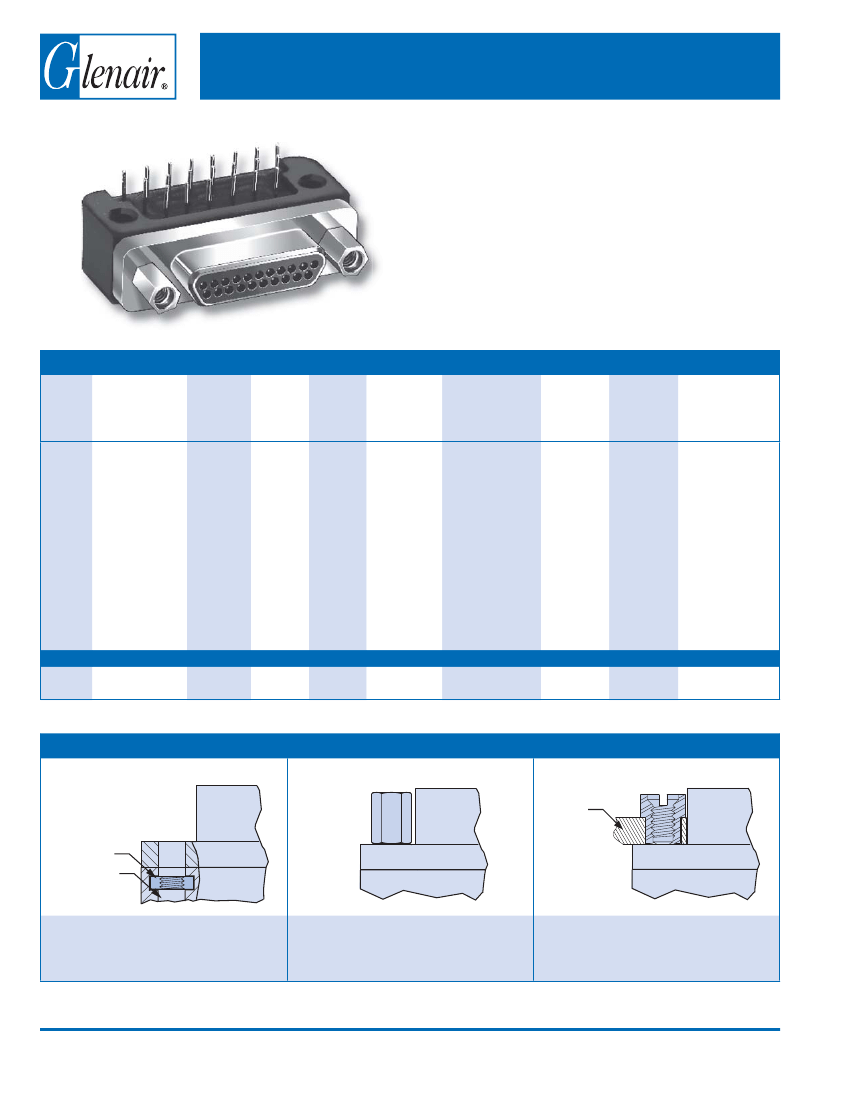

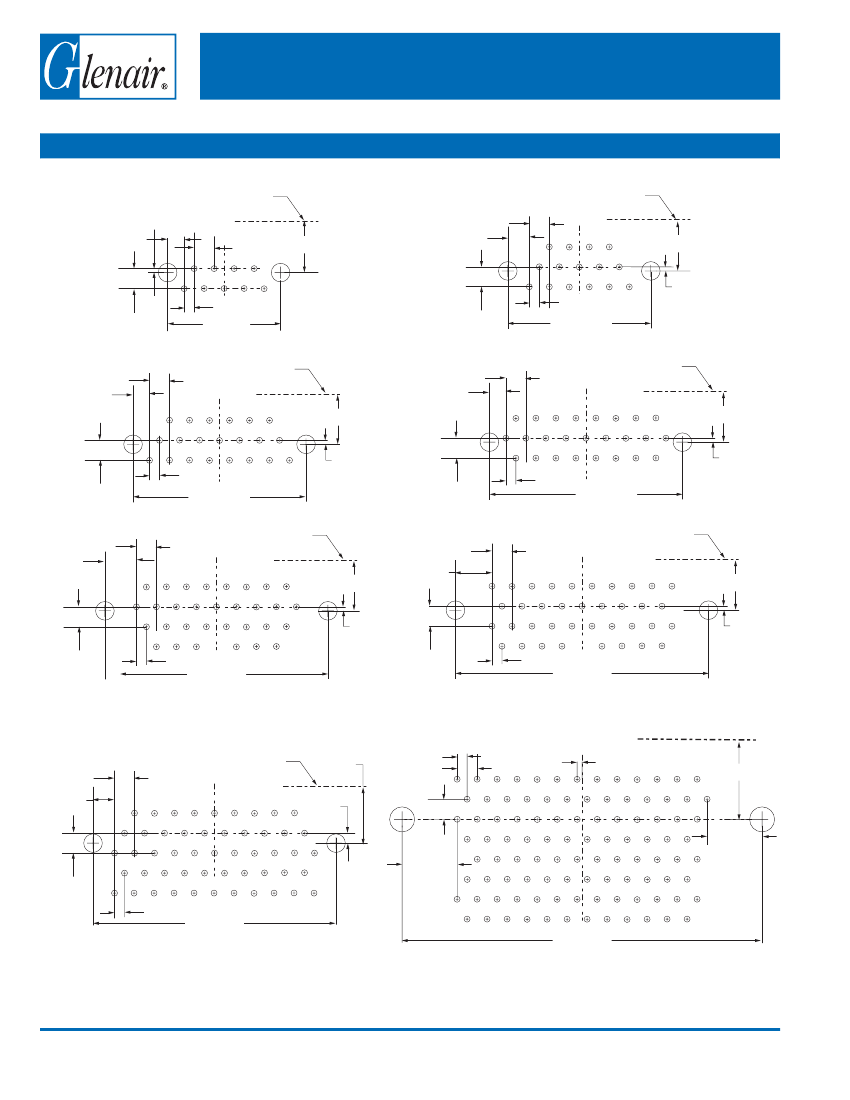

Micro-D Metal Shell Printed Circuit Board Connectors

CBR Style Right Angle Thru-Hole

High Performance

– These connectors feature gold-plated

TwistPin contacts for best performance. PC tails are

.020 inch diameter. Specify nickel-plated shells or

cadmium plated shells for best availability.

Solder-Dipped

– Terminals are coated with SN63/Pb37 tin-

lead solder for best solderability. Optional gold-plated

terminals are available for RoHS compliance.

Front Panel or Rear Mountable

– Can be installed

through panels up to .125 inch thick. Specify rear panel

mount jackposts.

HOW TO ORDER CBR STYLE PCB MICRO-D CONNECTORS

Shell Material

and Finish

Aluminum Shell

–

Cadmium

–

Nickel

Series

MWDM

Insulator Contact Contact Termination

Material Layout

Type

– LCP

30% Glass-

Filled Liquid

Crystal

Polymer

Jackpost

Option

(Omit for None)

–

Jackpost

Jackposts for

Rear Panel

Mounting

Threaded Terminal

Length In

Insert

Inches

Option

Threaded

Insert In

Board Mount

Hole

(Omit for

Thru-Hole)

Gold-Plated

Terminal Mod

Code

These

connectors are

solder-dipped in

63/37 tin-lead

solder.

To delete the

solder dip

and change

to gold-plated

terminals, add

code 513

–

Black

Anodize

–

Gold

–

Chem Film

100

CBR

Condensed

Board Right

Angle

Socket

Stainless Steel

Shell

–

Passivated

–

.032” Panel

.047” Panel

.062” Panel

.093” Panel

.080

.110

.125

.140

.150

.172

.190

.250

–

.125” Panel

Sample Part Number

MWDM

– 15

CBR

– .110

MICRO-D JACKPOST OPTIONS

No Designator

Panel

R1 Thru R5

HEX NUT

EPOXY FILL

Thru-Hole

For use with Glenair jackposts only. Order

hardware separately. Install with threadlocking

compound.

Standard Jackpost

Factory installed, not intended for removal.

Jackpost for Rear Panel Mounting

Shipped loosely installed. Install with permanent

threadlocking compound.

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

C-2

E-Mail: sales@glenair.com
