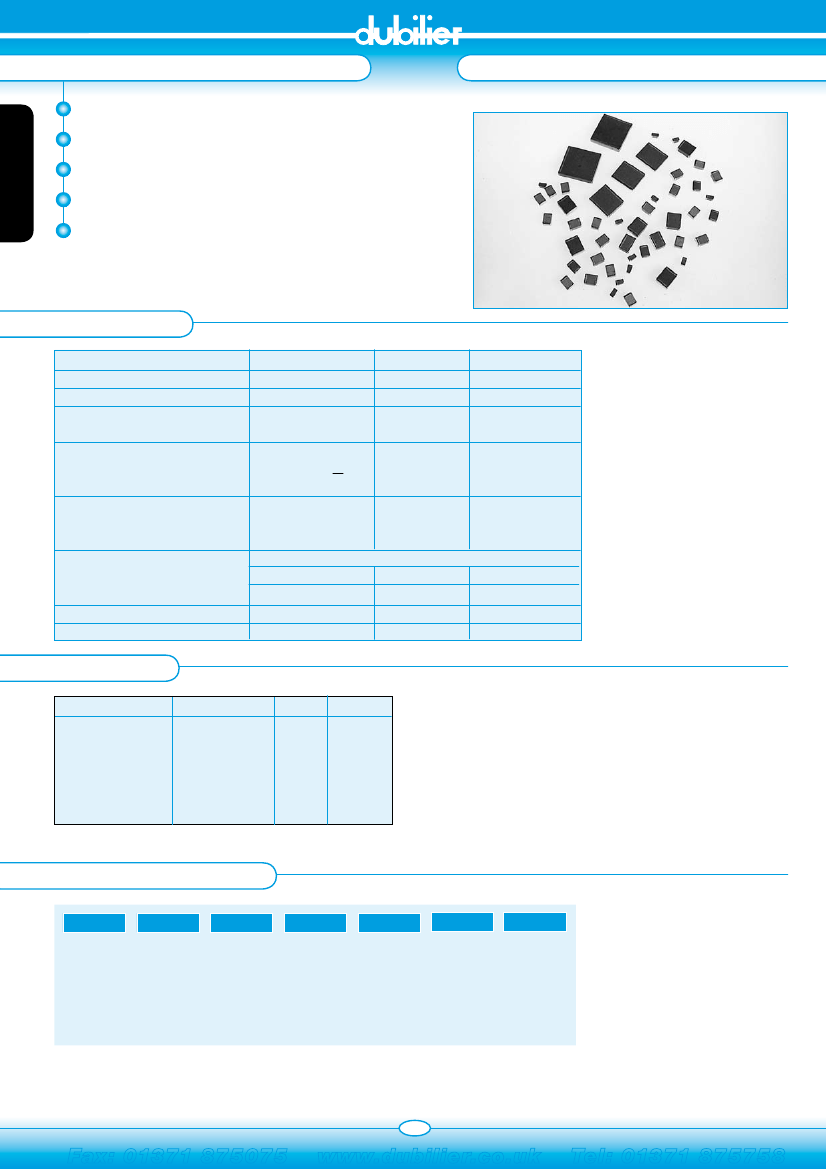

SURFACE MOUNT
Available up to 5kV
COG(NPO), X7R and Z5U Dielectrics
Higher voltages possible
For applications including small modular power supplies
Excellent for surface mount placement machines
SECTION 1
CERAMIC SMD MULTI - LAYER HIGH VOLTAGE DSHV
SPECIFICATION
Dielectric classification
Rated temperature range
Max. capacitance change over temp. range.
No DC voltage supplied
Tangent of loss angle (tan∂)
COG
COG (NPO)
-55˚C to +125˚C
0 ± 30ppm/˚C
Cr>50pF≤0.0010
Cr≤50pF=0.0010 (15 +0.7)
Cr
X7R
X7R
-55˚C to +125˚C
±15%
≤0.025
Z5U
Z5U
-25˚C to +85˚C
+22-56%
≤0.030
Insulation resistance (Ri)
Time constant (Ri X Cr)
(whichever is less)
Dielectric strength
500V
≥1KV
Climate category
Ageing characteristics (Typical)
100GΩ or
1000s
100GΩ or
1000s
10GΩ or
100s
Voltage applied for 5 seconds. Charging current limited to 50mA maximum.
1.5 times
1.5 times
1.5 times
1.5 times
1.25 times
-
55/125/56
55/125/56
25/085/56
Zero
1% per time decade
6% per time decade
TOLERANCES
Dielectric
Capacitance Tolerance
COG
± 0.25pF (C)
± 0.50pF (D)
Cr≥10pF ± 1% (F)
± 2% (G)
± 5% (J)
± 10% (K)
X7R
Z5U
± 5% (J) ± 20% (M)
± 10% (K) -20+80% (Z)
± 20% (M)
ORDERING INFORMATION
DSHV
Range
J
Voltage
J = 500V
M = 1KV
P = 2KV
R = 3KV
T = 4KV
V = 5KV
10
Size
1206
1210
1812
2220
C
Dielectric
C = COG (NPO)
R = X7R
W = Z5U
70
Value
Example
101 = 100pF
102 = 1nF
103 = 10nF
104 = 100nF
J
Tolerance
See Above
for code
N
Plating
N = Nickel
Barrier
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
SURFACE MOUNT
CERAMIC SMD MULTI - LAYER HIGH VOLTAGE DSHV
SECTION 1

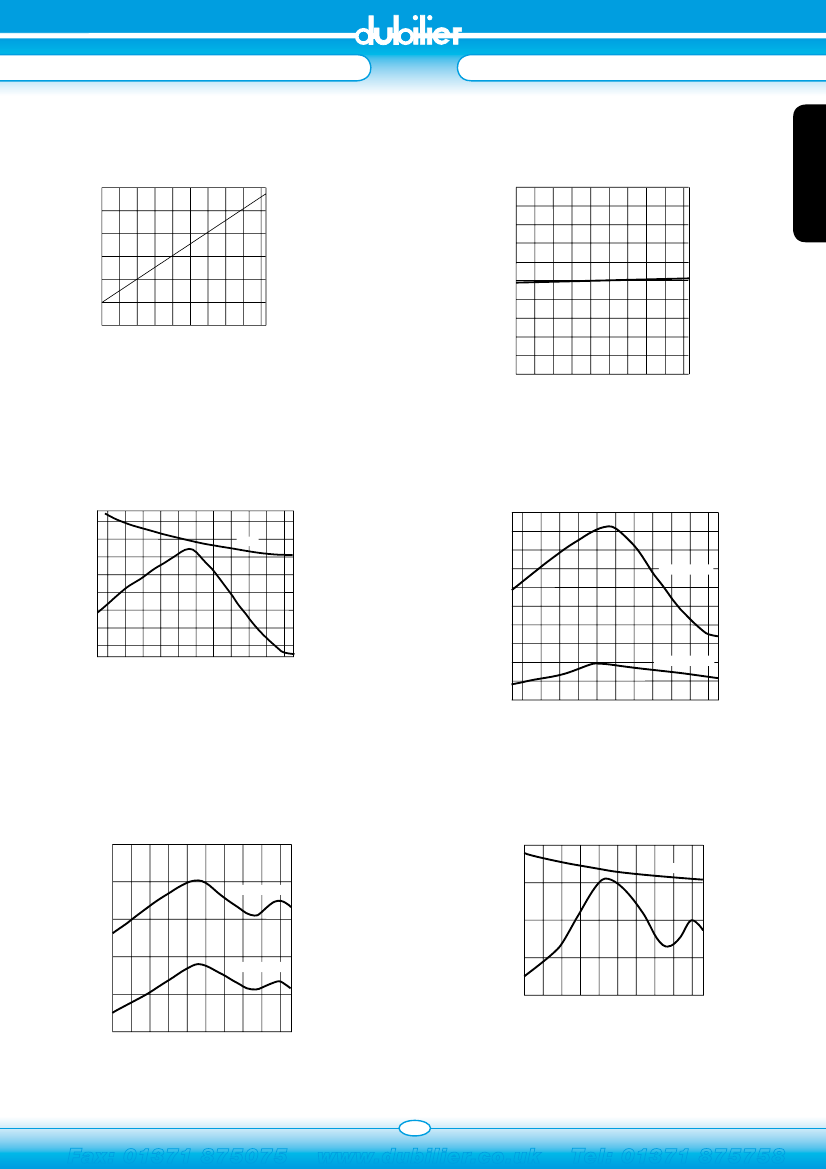

CAPACITANCE Vs TEMPERATURE - COG
0.15
0.10
0.05
TEMPERATURE/VOLTAGE CHARACTERISTICS - COG
5
4
3
2
1
0
%½C
%½C
0
-0.5
-0.10
-0.15
-55 -40 -20
0
20 40 60 80 100 120
-1
-2
-3
-4
-5
-55 -40 -20
0
20 40 60 80 100 120
Temperature
˚C
Temperature
˚C
CAPACITANCE & TAN Vs TEMPERATURE - Z5U
20
10
0
%½C
TEMPERATURE/VOLTAGE CHARACTERISTICS - Z5U
10
0
-10
-20
-30
%½C
Tan
∂
-10
-20
-30
-40
-50
-20 -10
0
10 20 30 40 50 60
Temperature
˚C
70 80
C
Zero Voltage
-40
-50
-60
-70
-80
-90
-20 -10
0
10 20 30 40 50 60
Temperature
˚C
70 80
Rated Voltage
TEMPERATURE/VOLTAGE CHARACTERISTICS - X7R
10
0
-10
%½C
CAPACITANCE & TAN Vs TEMPERATURE - X7R
5
0
%½C
Tan
∂
Zero Voltage
-5
-10
-15
C
-20
-30
-40
Rated Voltage
-55 -40 -20
0 20 40 60 80 100 120
Temperature
˚C
-55 -40 -20
0 20 40 60 80 100 120
Temperature
˚C
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
SURFACE MOUNT

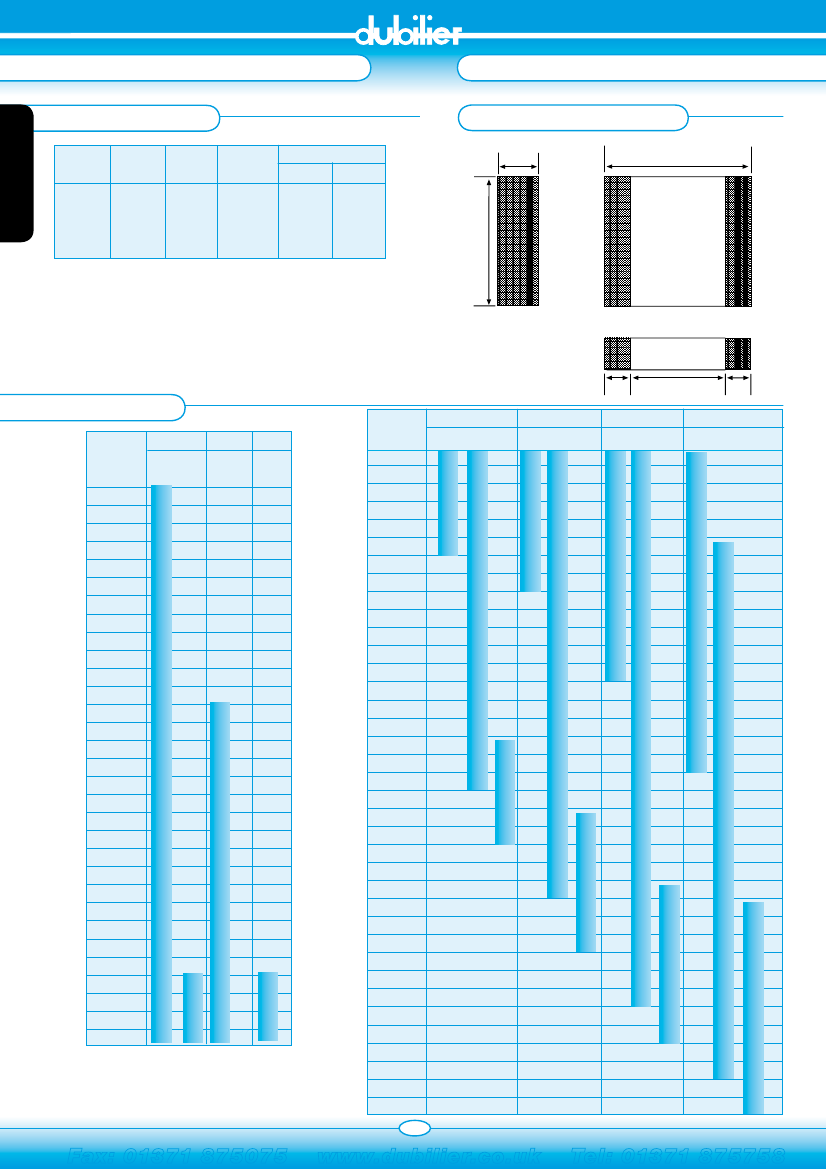

DIMENSIONS (mm)
SECTION 1
Size Code
1206
1210
1812
2220
L (mm)
3.2±0.3
3.2±0.3
4.5±0.35
5.7±0.4
W (mm)
1.6±0.2
2.5±0.3
3.2±0.3
5.0±0.4
T max (mm)
1.6
2
2.5
2.5
min (mm)
0.25
0.25
0.25
0.25
P
max (mm)
0.75
0.75
0.75
0.75
CERAMIC SMD MULTI - LAYER HIGH VOLTAGE DSHV
OUTLINE DRAWING
T
L
W
P
C
P
RANGE - 500V
Capacitance
10
COG X7R
110
COG
11
COG
Capacitance
390pF
470
560
680
820
1.0nF
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10nF
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
10
COG X7R Z5U
110
COG X7R Z5U
11
COG X7R Z5U
0
COG X7R Z5U
1.0pF
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
SURFACE MOUNT
CERAMIC SMD MULTI - LAYER HIGH VOLTAGE DSHV
SECTION 1
RANGE - 1KV, 2KV
Capacitance
10
COG
1KV
110
COG
1KV
11
0
COG
X7R
COG
X7R
1KV 2KV 1KV 2KV 1KV 2KV 1KV 2KV
Capacitance 1812
X7R
X7R
1KV
10
12
15
18
22
27
33
39
47
56
2220
X7R
1KV 2KV
1.0pF
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10pF
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1.0nF
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
5
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
SURFACE MOUNT
CERAMIC SMD MULTI - LAYER HIGH VOLTAGE DSHV
SECTION 1

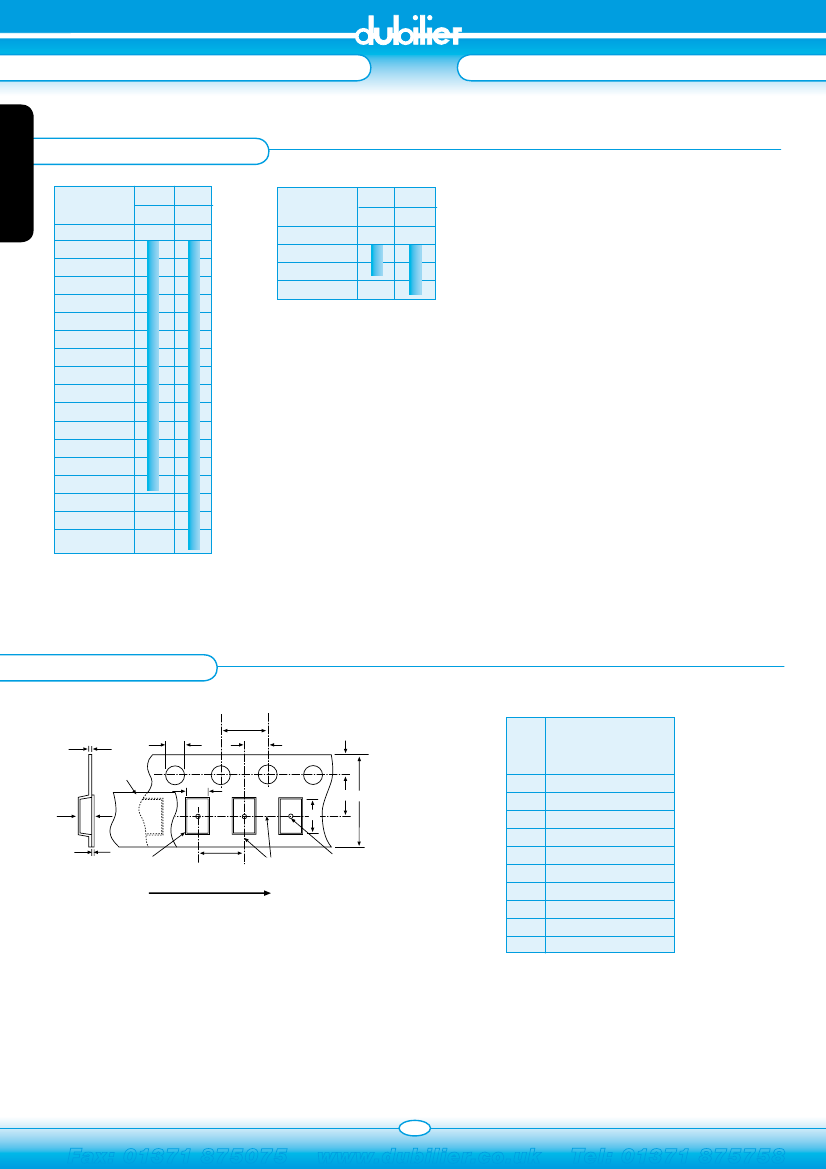

RANGE - 3KV, 4KV & 5KV
Capacitance
10pF
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
1812
COG
3KV
2220
COG
3KV
Capacitance
220
270
330
2220
COG
3KV
2225
COG
3KV
TAPE DIMENSIONS
P
0
T
Sealing
Tape
K
0
D
0
P
2
E
A
0
B
0
F W
T
2
Embossment
P
1
Feed Direction
Cavity centre
lines
D
1
A
0
B
0
K
0
W
F
E
P
1
P
2
P
0
D
0
D
1
T
T
2
Dependant on chip
size to minimise
rotation
8±0.2
3.5±0.05
1.75±0.1
4±0.1
2±0.05
4±0.1
1.5+0.1-0
1+0.1-0
0.3±0.1
0.1 max.
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
