CRZ36P datasheet, PDF - EEWORLD Datasheet

CRZ36P: DescriptionD Type Connector, 36 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

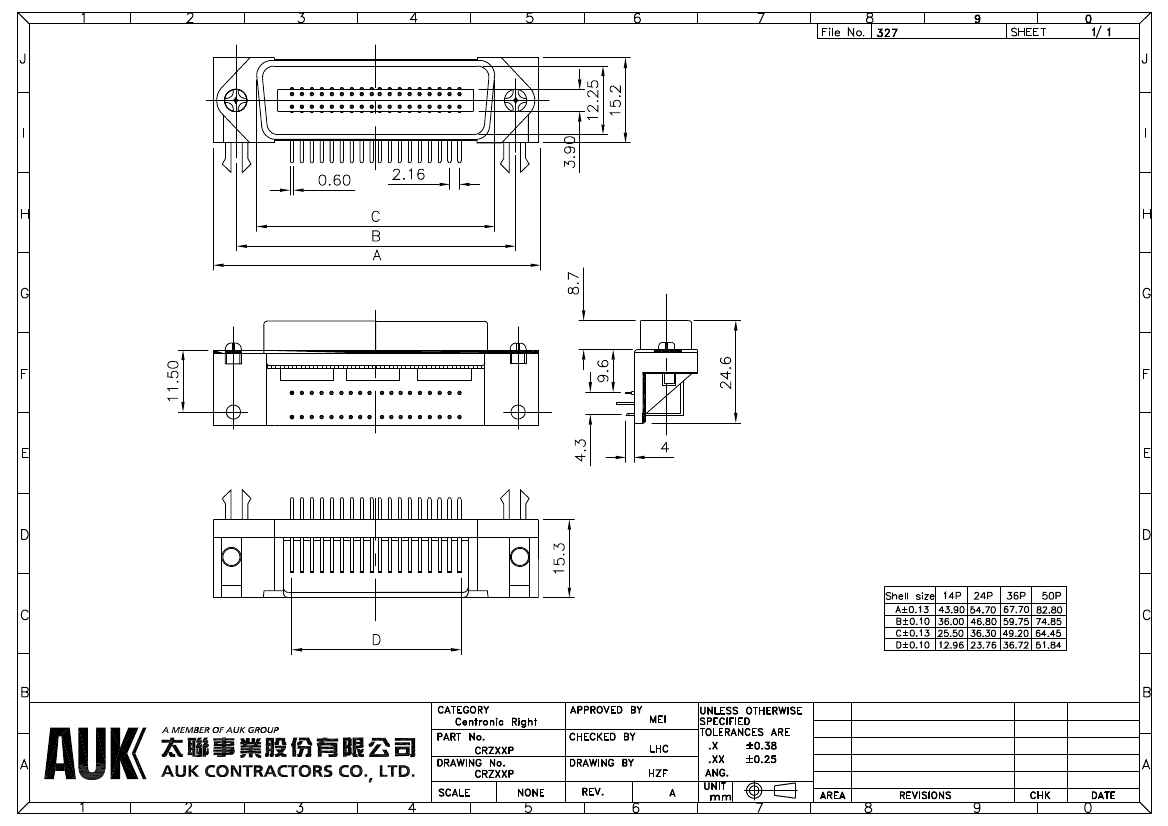

CRZ36P Overview

D Type Connector, 36 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AUK Contractors Co., Ltd.
Reach Compliance Code	unknown
body width	0.598 inch
subject depth	0.626 inch
body length	2.665 inch
Body/casing type	RECEPTACLE
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	CENTRONIC
Manufacturer's serial number	CR
Plug contact pitch	0.085 inch
Installation option 1	LOCKING
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	36

	CRZ36P	CRZ24P
Description	D Type Connector, 36 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 24 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	incompatible	incompatible
Maker	AUK Contractors Co., Ltd.	AUK Contractors Co., Ltd.
Reach Compliance Code	unknown	unknown
body width	0.598 inch	0.598 inch
subject depth	0.626 inch	0.626 inch
body length	2.665 inch	2.154 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC
Manufacturer's serial number	CR	CR
Plug contact pitch	0.085 inch	0.085 inch
Installation option 1	LOCKING	LOCKING
Installation option 2	SCREW	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	2	2
Number of rows loaded	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.157 inch	0.157 inch
Terminal pitch	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER
Total number of contacts	36	24
