R2520-FREQ1-S-3030-TR: DescriptionSeries - Fundamental Quartz Crystal, 16MHz Min, 29.9MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components Crystal/resonator; File Size379KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

R2520-FREQ1-S-3030-TR Overview

Series - Fundamental Quartz Crystal, 16MHz Min, 29.9MHz Max, ROHS COMPLIANT PACKAGE-4

R2520-FREQ1-S-3030-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.003%
frequency tolerance	30 ppm
Manufacturer's serial number	R2520
Installation features	SURFACE MOUNT
Maximum operating frequency	29.9 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L2.5XB2.0XH0.5 (mm)/L0.098XB0.079XH0.02 (inch)
Series resistance	100 Ω
surface mount	YES

Preview

Download Datasheet

View All

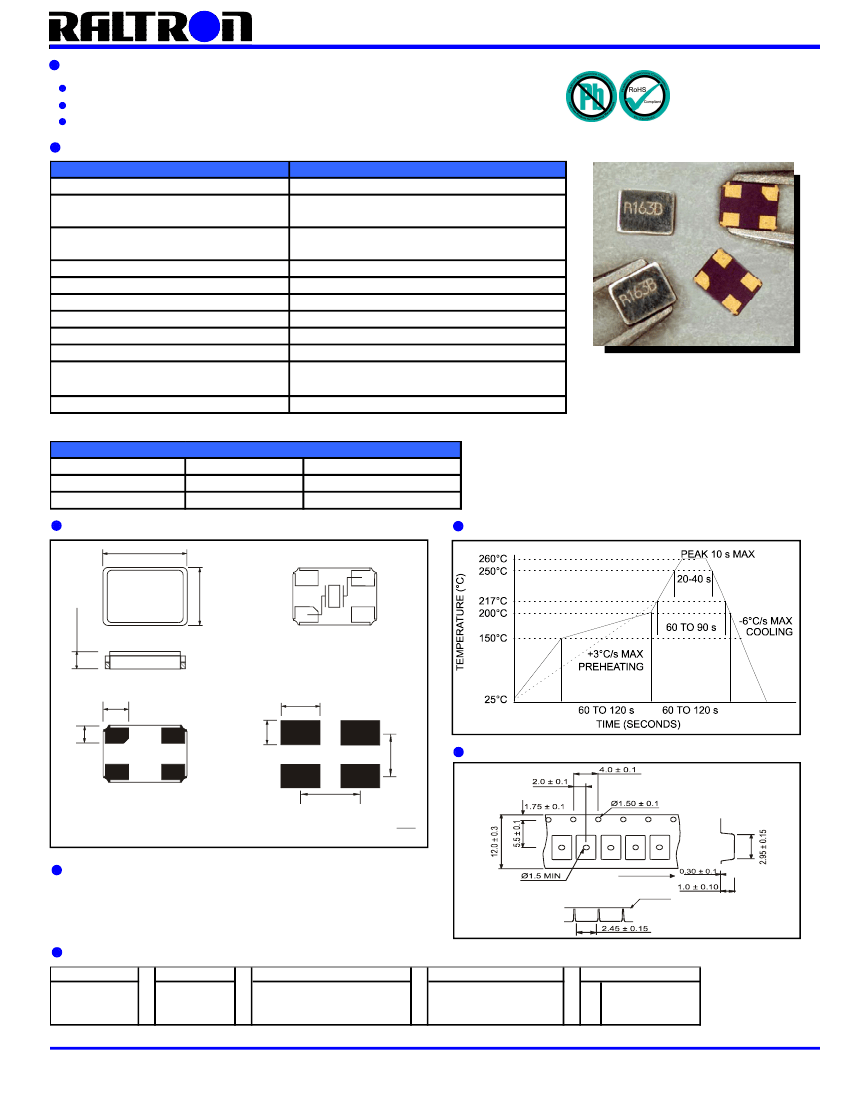

SURFACE MOUNT MICROPROCESSOR CRYSTAL

FEATURES

COMPACT DESIGN

HIGH ACCURACY

EXCELLENT FOR HIGH DENSITY SURFACE MOUNTING

SERIES R2520

SPECIFICATIONS

PARAMETER

FREQUENCY RANGE

FREQUENCY TOLERANCE AT 25ºC

FREQUENCY STABILITY OVER

TEMPERATURE

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

EQUIVALENT SERIES RESISTANCE

LOAD CAPACITANCE

SHUNT CAPACITANCE

DRIVE LEVEL

SHOCK RESISTANCE

REFLOW CONDITIONS

VALUE

16.00 MHz TO 55.00 MHz

±50 PPM MAXIMUM

(±10 PPM, ±20 PPM AND ±30 PPM**)

±50 PPM MAXIMUM

(±10 PPM, ±20 PPM AND ±30 PPM**)

-10ºC TO +60ºC, (-40°C TO +85°C**)

-55ºC TO +125ºC

SEE TABLE 1

10 pF TO 32 pF OR SERIES

7.0 pF MAXIMUM

500 µW MAX

±5 PPM MAXIMUM 75 cm DROP TEST IN

3 AXES ON TO A HARD SURFACE

260ºC FOR 10s MAXIMUM

Available in some cases. Consult Raltron for specific requirements

FREQUENCY (MHz)

16.00 TO 29.9

30.00 TO 55.00

TABLE 1

MODE

FUND

MAXIMUM ESR (OHMS)

100

OUTLINE DRAWING

2.5 ± 0.2

.098 ± .008

TOP VIEW

GND

SOLDER REFLOW PROFILE

MARKING

AREA

0.50 MAX

.020 MAX

2.0 ± 0.2

.079 ± .008

GND

LAND PATTERN

0.8

.031

1.0

.040

.65

.026

0.8

.031

BOTTOM VIEW

1.8

.070

Scale none. Dimensions in

inch

178 mm REEL DIAMETER

8 mm TAPE WIDTH, 4 mm PITCH

QUANTITY: 1000 PIECES PER REEL

PACKAGING

1.4

.055

CARRIER TAPE DIMENSIONS

Direction of Feed

Cover Tape

PART NUMBERING SYSTEM

HOLDER TYPE

R2520

FREQUENCY

IN MHz

LOAD CAPACITANCE

10 TO 32 pF FOR PARALLEL

S FOR SERIES

TOLERANCE / STABILITY

±10/±10 : 1010

±20/±20 : 2020

±30/±30 : 3030

OPTION

TR TAPE AND REEL

PART NUMBER EXAMPLE: R2520-40.000-10-2050-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
