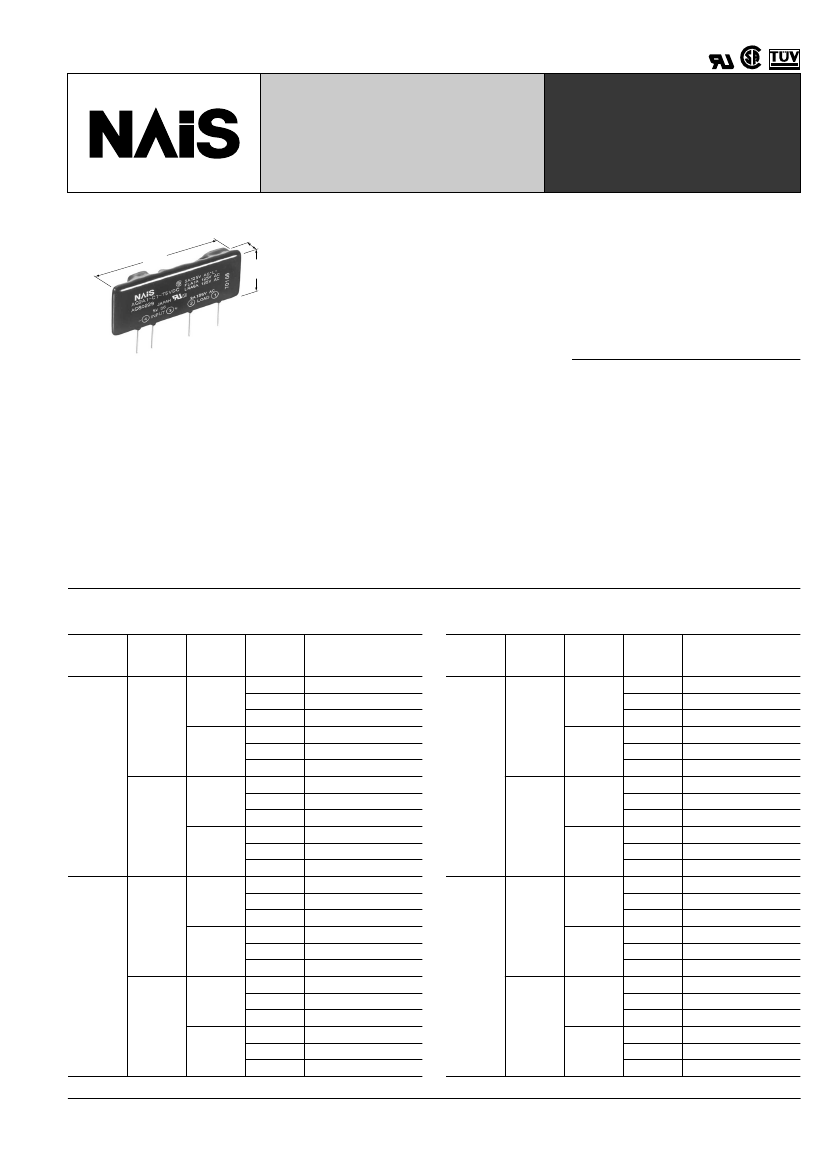

SOLID STATE RELAY
AQ8-RELAYS
5. High dielectric strength: 3,000 V AC
(between input and output)
6. Two kinds of terminals distance are
available. (5.08 mm and 7.62 mm)
(.200
and .300 inch)
7. High reliability, long life and mainte-
nance-free
FEATURES
9
.354
45
1.772
24
.945
mm
inch
1. So slim with 9 mm .354 inch thickness
The thin type (45 mm long
×
24 mm high
×
9 mm wide)
(1.772×.945×.354 inch)
permits high density mounting.
2. Excellent in noise resistance
Since the input and output are insulated
by the photo TRIAC coupler, the noise on
the output side is not fed back to the input
side.
3. Snubber circuit integrated
The snubber circuit is integrated to pre-
vent malfunction caused by the rapid rise
of the voltage on the output side, such as
inductive load and noise.
4. Zero-cross and nonzero-cross types
are available.
The zero-cross type generates minimal
noise by suppressing occurrence of radio
frequency interference (RFI) and electro-
magnetic interference (EMI).
The nonzero-cross type features a short
operation time which permits phase control.
TYPICAL APPLICATIONS
Most suitable as drivers for small size AC
motors, solenoids, solenoid valves and so
on.
1. Copying equipment
2. Air conditioners
3. Industrial equipment such as NC ma-
chines, sequencers, robots and so on
TYPES
1. Zero-cross type
Input ter-
minals
distance
Max. load
current
Load volt- Input volt-
age
age
75 to 125
V AC
2A
5.08 mm
.200 inch
type
3A
75 to 250
V AC
75 to 125
V AC
2A
7.62 mm
.300 inch
type
3A
75 to 250
V AC
75 to 250
V AC
75 to 125
V AC
75 to 250
V AC
75 to 125
V AC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
Part No.
AQ2A1-C1-ZT5VDC
AQ2A1-C1-ZT12VDC
AQ2A1-C1-ZT24VDC
AQ2A2-C1-ZT5VDC
AQ2A2-C1-ZT12VDC
AQ2A2-C1-ZT24VDC
AQ3A1-C1-ZT5VDC
AQ3A1-C1-ZT12VDC
AQ3A1-C1-ZT24VDC
AQ3A2-C1-ZT5VDC
AQ3A2-C1-ZT12VDC
AQ3A2-C1-ZT24VDC
AQ2A1-C2-ZT5VDC
AQ2A1-C2-ZT12VDC
AQ2A1-C2-ZT24VDC
AQ2A2-C2-ZT5VDC
AQ2A2-C2-ZT12VDC
AQ2A2-C2-ZT24VDC
AQ3A1-C2-ZT5VDC
AQ3A1-C2-ZT12VDC
AQ3A1-C2-ZT24VDC
AQ3A2-C2-ZT5VDC
AQ3A2-C2-ZT12VDC
AQ3A2-C2-ZT24VDC
2. Nonzero-cross type
Input ter-
minals
distance
Max. load
current
Load volt- Input volt-
age
age
75 to 125
V AC
2A
5.08 mm
.200 inch
type
3A
75 to 250
V AC
75 to 125
V AC
2A
7.62 mm
.300 inch
type
3A
75 to 250
V AC
75 to 250
V AC
75 to 125
V AC
75 to 250
V AC
75 to 125
V AC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
5 V DC
12 V DC
24 V DC
Part No.
AQ2A1-C1-T5VDC
AQ2A1-C1-T12VDC
AQ2A1-C1-T24VDC
AQ2A2-C1-T5VDC
AQ2A2-C1-T12VDC
AQ2A2-C1-T24VDC
AQ3A1-C1-T5VDC
AQ3A1-C1-T12VDC
AQ3A1-C1-T24VDC
AQ3A2-C1-T5VDC
AQ3A2-C1-T12VDC
AQ3A2-C1-T24VDC
AQ2A1-C2-T5VDC
AQ2A1-C2-T12VDC
AQ2A1-C2-T24VDC
AQ2A2-C2-T5VDC
AQ2A2-C2-T12VDC
AQ2A2-C2-T24VDC
AQ3A1-C2-T5VDC
AQ3A1-C2-T12VDC
AQ3A1-C2-T24VDC
AQ3A2-C2-T5VDC
AQ3A2-C2-T12VDC
AQ3A2-C2-T24VDC
Remark: Standard packing Carton: 20 pcs.; Case: 200 pcs.
57
AQ8
RATINGS
1. Rating
(Ambient temperature: 20°C,
68°F;
Voltage ripple on the input side: 1% or less)
1) Zero-cross type
• 2 A type
Item
Input side
Part No.
AQ2A1-C1-ZT5VDC AQ2A1-C1-ZT12VDC AQ2A1-C1-ZT24VDC AQ2A2-C1-ZT5VDC AQ2A2-C1-ZT12VDC AQ2A2-C1-ZT24VDC
AQ2A1-C2-ZT5VDC AQ2A1-C2-ZT12VDC AQ2A1-C2-ZT24VDC AQ2A2-C2-ZT5VDC AQ2A2-C2-ZT12VDC AQ2A2-C2-ZT24VDC
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
24 V DC
(21.6 to 26.4V)
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
Remarks
Control voltage
The parenthesized
24 V DC
values represent the
(21.6 to 26.4V)
allowable voltage ranges
Input impedance Approx. 0.18 k
Ω
Approx. 0.55 k
Ω
Approx. 1.4 k
Ω
Approx. 0.18 k
Ω
Approx. 0.55 k
Ω
Approx. 1.4 k
Ω
Drop-out voltage
min. 0.5 V
min. 1.2 V
min. 2.4 V
min. 0.5 V
min. 1.2 V
min. 2.4 V
Max. load current
Load voltage
Frequency
Repetitive peak
OFF voltage
Non-repetitive
surge current
Max. "OFF-state"
leakage current
Max. "ON-state"
voltage drop
Min. load current
OFF state dV/dt
75 to 125 V AC
45 to 65 Hz
400 V
30 A*
2
2.5 mA/100 V applied
1.6 V
25 mA*
3
50 V/µs
50 mA*
3
5 mA/200 V applied
600 V
In one cycle at 60 Hz
2 A*
1
75 to 250 V AC
At ambient temperature
of 30°C or less
Load side
at max. carrying current
At ambient temperature
of 80°C
• 3 A type
Item
Input side
Part No.
AQ3A1-C1-ZT5VDC AQ3A1-C1-ZT12VDC AQ3A1-C1-ZT24VDC AQ3A2-C1-ZT5VDC AQ3A2-C1-ZT12VDC AQ3A2-C1-ZT24VDC
AQ3A1-C2-ZT5VDC AQ3A1-C2-ZT12VDC AQ3A1-C2-ZT24VDC AQ3A2-C2-ZT5VDC AQ3A2-C2-ZT12VDC AQ3A2-C2-ZT24VDC
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
24 V DC
(21.6 to 26.4V)
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
Remarks
The parenthesized
24 V DC
values represent the
(21.6 to 26.4V)
allowable voltage ranges
Input impedance Approx. 0.18 k
Ω
Approx. 0.55 k
Ω
Approx. 1.4 k
Ω
Approx. 0.18 k
Ω
Approx. 0.55 k
Ω
Approx. 1.4 k
Ω
Control voltage
Drop-out voltage
Max. load current
Load voltage
Frequency
Repetitive peak
OFF voltage
Non-repetitive
surge current
Max. "OFF-state"
leakage current
Max. "ON-state"
voltage drop
Min. load current
OFF state dV/dt
min. 0.5 V
min. 1.2 V
min. 2.4 V
3 A*
1
min. 0.5 V
min. 1.2 V
min. 2.4 V
At ambient temperature
of 30°C or less
75 to 250 V AC
75 to 125 V AC
45 to 65 Hz
400 V
80 A*
2
2.5 mA/100 V applied
1.6 V
25 mA*
3
50 V/µs
600 V
In one cycle at 60 Hz
5 mA/200 V applied
Load side
at max. carrying current
50 mA*
3
At ambient temperature
of 80°C
Notes: *1) Refer REFERENCE DATA 1, characteristics of load current vs. ambient temperature.
*2) Refer to REFERENCE DATA 2, characteristics of non-repetitive surge current vs. carrying time.
*3) When the load current is less than the min. load current, refer to "NOTES (Page 62)".
58
AQ8
2) Non zero-cross type
• 2 A type
Item
Input side
Part No.
AQ2A1-C1-T5VDC AQ2A1-C1-T12VDC AQ2A1-C1-T24VDC AQ2A2-C1-T5VDC AQ2A2-C1-T12VDC AQ2A2-C1-T24VDC
AQ2A1-C2-T5VDC AQ2A1-C2-T12VDC AQ2A1-C2-T24VDC AQ2A2-C2-T5VDC AQ2A2-C2-T12VDC AQ2A2-C2-T24VDC
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
24 V DC
(21.6 to 26.4V)
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
Remarks
Control voltage
Input impedance
Drop-out voltage
Max. load current
Load voltage
Frequency
Repetitive peak
OFF voltage
Non-repetitive
surge current
Max. "OFF-state"
leakage current
Max. "ON-state"
voltage drop
Min. load current
OFF state dV/dt
The parenthesized
24 V DC
values represent the
(21.6 to 26.4V)
allowable voltage ranges
Approx. 0.3 k
Ω
Approx. 0.8 k
Ω
Approx. 1.8 k
Ω
Approx. 0.3 k
Ω
Approx. 0.8 k
Ω
Approx. 1.8 k
Ω
min. 0.5 V
min. 1.2 V
min. 2.4 V
2 A*
1
75 to 125 V AC
45 to 65 Hz
400 V
30 A*
2
2.5 mA/100 V applied
1.6 V
25 mA*
3
50 V/µs
50 mA*
3
5 mA/200 V applied
600 V
In one cycle at 60 Hz
75 to 250 V AC
min. 0.5 V
min. 1.2 V
min. 2.4 V
At ambient temperature
of 30°C or less
Load side
at max. carrying current
At ambient temperature
of 80°C
• 3 A type
Item
Input side
Part No.
AQ3A1-C1-T5VDC AQ3A1-C1-T12VDC AQ3A1-C1-T24VDC AQ3A2-C1-T5VDC AQ3A2-C1-T12VDC AQ3A2-C1-T24VDC
AQ3A1-C2-T5VDC AQ3A1-C2-T12VDC AQ3A1-C2-T24VDC AQ3A2-C2-T5VDC AQ3A2-C2-T12VDC AQ3A2-C2-T24VDC
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
24 V DC
(21.6 to 26.4V)
5 V DC
(4 to 6V)
12 V DC
(9.6 to 14.4V)
Remarks
Control voltage
Input impedance
Drop-out voltage
Max. load current
Load voltage
Frequency
Repetitive peak
OFF voltage
Non-repetitive
surge current
Max. "OFF-state"
leakage current
Max. "ON-state"
voltage drop
Min. load current
OFF state dV/dt
The parenthesized
24 V DC
values represent the
(21.6 to 26.4V)
allowable voltage ranges
Approx. 0.3 k
Ω
Approx. 0.8 k
Ω
Approx. 1.8 k
Ω
Approx. 0.3 k
Ω
Approx. 0.8 k
Ω
Approx. 1.8 k
Ω
min. 0.5 V
min. 1.2 V
min. 2.4 V
min. 0.5 V
min. 1.2 V
min. 2.4 V
3 A*
1
75 to 125 V AC
45 to 65 Hz
400 V
80 A*
2
2.5 mA/100 V applied
1.6 V
25 mA*
3
50 V/µs
50 mA*
3
5 mA/200 V applied
600 V
75 to 250 V AC
At ambient temperature
of 30°C or less
Load side
In one cycle at 60 Hz
at max. carrying current
At ambient temperature
of 80°C
Notes: *1) Refer REFERENCE DATA 1, characteristics of load current vs. ambient temperature.
*2) Refer to REFERENCE DATA 2, characteristics of non-repetitive surge current vs. carrying time.
*3) When the load current is less than the min. load current, refer to "NOTES (Page 62)".
2. Characteristics
(Amdient temperature: 20°C
68°F;
Input voltage ripple: 1% or less)
Type
Item
Operate time, max.
Release time, max.
Insulation resistance, min.
Breakdown voltage
Functional
Destructive
Functional
Shock
resistance
Destructive
Ambient temperature
Storage temperature
Operational method
Vibration
resistance
Zero-cross type
1/2 cycle of voltage sine wave + 1 ms
1/2 cycle of voltage sine wave + 1 ms
10
9
Ω
between input and output
3,000 V AC between input and output
10 to 55 Hz at double amplitude of 3 mm
10 to 55 Hz at double amplitude of 3 mm
Min. 980 m/s
2
{100 G}
Min. 980 m/s
2
{100 G}
–30°C to +80°C
–22°F to +176°F
–30°C to +100°C
–22°F to +212°F
Zero-cross (Turn ON and Turn OFF)
Random turn ON, zero-cross turn OFF
Non-zero-cross type
1 ms
at 500 V DC
For 1 minute
10 min. for X, Y, Z axis
1 hour for X, Y, Z axis
4 times each for X, Y, Z axis
5 times each for X, Y, Z axis
Remarks
59
AQ8
DIMENSIONS
(Common for zero-cross and nonzero-cross types)
1. Input terminals distance 5.08 mm
.200 inch
1) 2 A type
Mounting hole location (Bottom view)
45 max.
1.772
9 max.
.354
Terminal 4
24 max.
.945
3
27.94
1.100
2
2.54×5
.100×5
Copper foil
1
2.54×4
.100×4
4-1.2 dia.
4-.047
mm
inch
2.54×2
.100×2
–
4
INPUT
3
+
2
LOAD
1
8 min.
.315
5.08
.200
10.16
.400
Tolerance:±0.1
±.004
Schematic
5.08
.200
12.7
.500
4-0.8 dia.
4-.031
2.5
.098
INPUT
4 3
LOAD
2 1
4
3
2
1
– +
Load
Input
Load
power source power source
General tolerance:±0.5
±.020
2) 3 A type
43 max.
1.693
9 max.
.354
Mounting hole location (Bottom view)
27.94
1.100
2
2.54×5
.100×5
Copper foil
1
2.54×4
.100×4
4-1.2 dia.
4-.047
Terminal 4
3
32 max.
1.259
2.54×2
.100×2
Tolerance:±0.1
±.004
–
4
INPUT
3
+
2
LOAD
1
8 min.
.315
Schematic
5.08
.200
12.7
.500
5.08
.200
10.16
.400
4-0.8 dia.
4-.031
2.5
.098
INPUT
4 3
LOAD
2 1
4
3
2
1
General tolerance:±0.5
±.020
– +
Load
Input
Load
power source power source
2. Input terminals distance 7.62 mm .300
inch

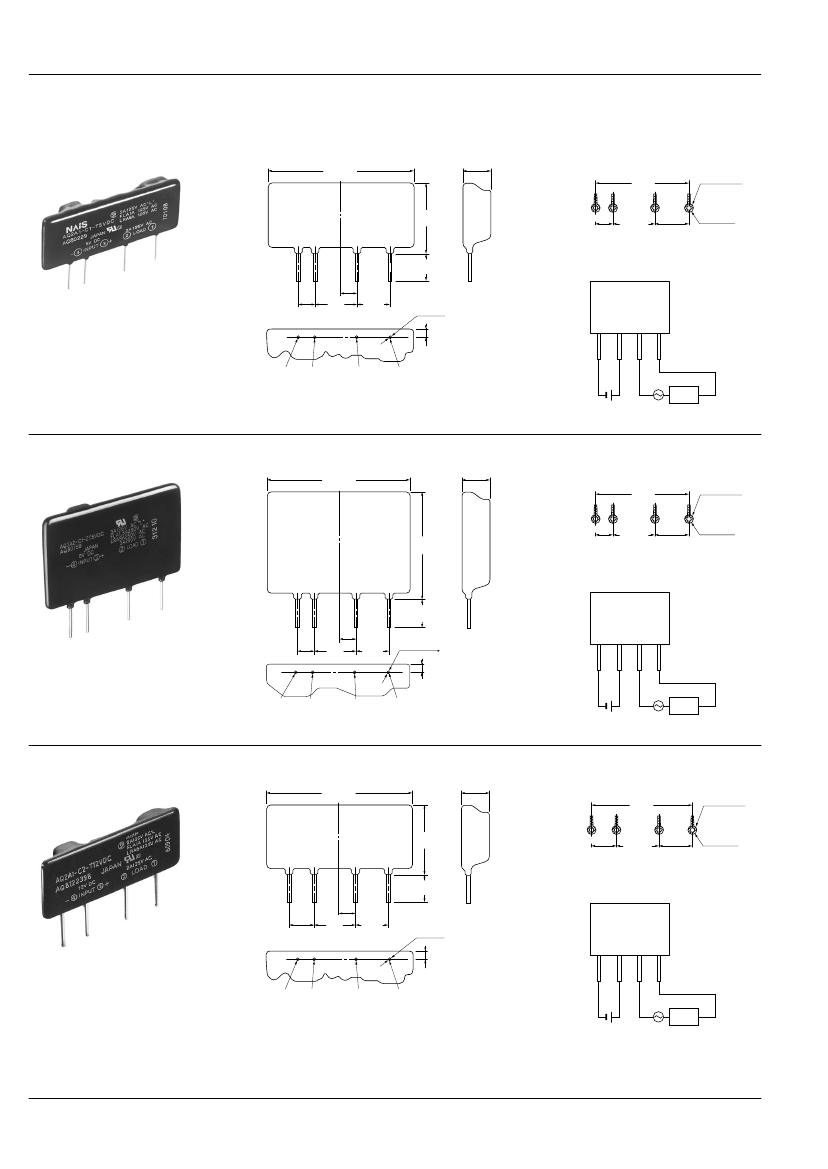

1) 2A type
45 max.
1.772
9 max.
.354
Mounting hole location (Bottom view)
30.48
1.200
2
2.54×5
.100×5
Copper foil
1
2.54×4
.100×4
4-1.2 dia.
4-.047
Terminal 4
24 max.
.945
3
2.54×3
.100×3
–
4
INPUT
3
+
2
LOAD
1
8 min.
.315
5.08
.200
10.16
.400
Tolerance:±0.1
±.004
Schematic
7.62
.300
12.7
.500
4-0.8 dia.
4-.031
2.5
.098
INPUT
4 3
LOAD
2 1
4
3
2
1
– +
Load
Input
Load
power source power source
General tolerance:±0.5
±.020
60
AQ8
2) 3A type
43 max.
1.693
9 max.
.354
Terminal 4
3
2.54×3
.100×3
mm
inch
Mounting hole location (Bottom view)
30.48
1.200
2
2.54×5
.100×5
Copper foil
1
2.54×4
.100×4
4-1.2 dia.
4-.047
32 max.
1.259
Tolerance:±0.1
±.004
–
4
INPUT
3
+
Schematic
2
LOAD
1
8 min.
.315
5.08
.200
10.16
.400
INPUT
4 3
4-0.8 dia.
4-.031
2.5
.098
– +
Load
Input
Load
power source power source
LOAD
2 1
7.62
.300
12.7
.500
4
3
2
1
General tolerance:±0.5
±.020

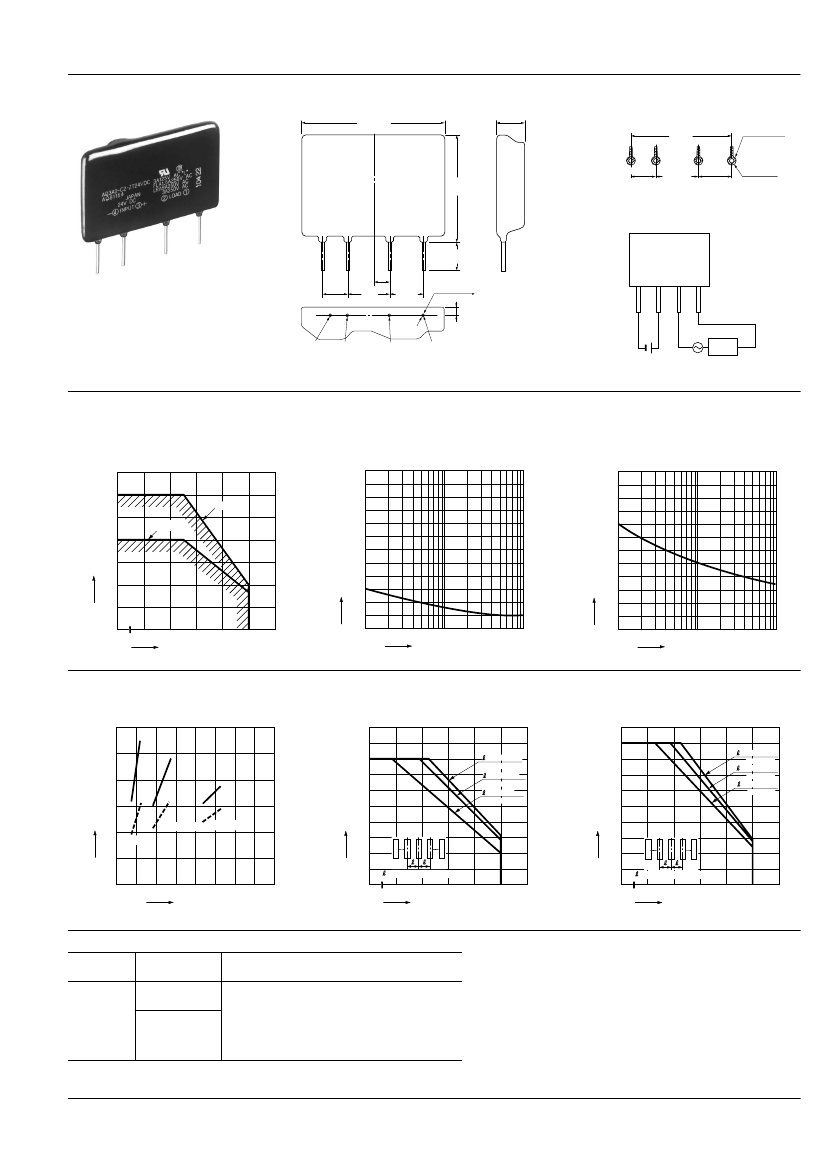

REFERENCE DATA
1. Characteristics of load current vs. ambient
temperature
Conditions: Natural cooling
2. Characteristics of non-repetitive surge current vs. carrying time
(2 A type)
Non-repetitive surge current, A
(3 A type)
Non-repetitive surge current, A
5
10
50
No. of cycles at 60 Hz
100
3.0
3 A type
Load current, A
2.5
2 A type
2.0
1.5
1.0
0.5
0
–30
0
20
40
60
80
Ambient temperature,
°C
100
80
60
40
20
0
100
80
60
40
20
0
5
10
50
No. of cycles at 60 Hz
100
3. Characteristics of input current vs. input
voltage
—zero-cross type ---Nonzero-cross type
30
25
Input current, mA
4. Characteristics of load current vs. ambient temperature for adjacent mounting
Conditions: Natural cooling
(2 A type)
2.5
3.0
2.0
Load current, A
=20.32 mm
.800 inch
=12.7 mm
.500 inch
=9.0 mm
.354 inch
=20.32 mm
.800 inch
=12.7 mm
.500 inch
=9.0 mm
.354 inch
(3 A type)
20
15
10
5
0
(12 V type)
(5 V type)
(24 V type)
1.5
Load current, A
2.0
1.0
1.0
0.5
=Adjacent mounting pitch
=Adjacent mounting pitch
0
10
20
30
Input voltage, V
0
–30
0
20
40
60
80
Ambient temperature,
°C
0
–30
0
20
40
60
80
Ambient temperature,
°C
Approved standards list
Product
name
File No.
UL
E95895
AQ8
CSA
LR26550
Qualified ratings
2A type: 2 A 125, 250 V AC
2 A 125 V AC (Tungsten)
FLA 1 A, LRA 6 A 125, 250 V AC
3A type: 3 A 125, 250 V AC
3 A 125 V AC (Tungsten)
FLA 1.5 A, LRA 9 A 125, 250 V AC
61
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
