CAPACITORS
Miniature sizes
Self-healing
Low losses
Low inductance
Low series resistance
Designed as a miniature general purpose decoupling capacitor,
particularly for high-speed circuits.
The housing is an insulated thermoplastic moulding
incorporating stand-off lugs for easy removal of solder flux.
Flame retardant case and resin in accordance with UL 94VO.
5mm BOX POLYESTER MMP
SECTION 1
SPECIFICATION
Temperature Range
Capacitance Stability
Loss angle
-55 to +100°C
≤ 5% after 1000 hours @ 85°C
≤ 80 x 10 -4
Rated Voltage
Test Voltage
63Vdc, 40Vrms @ 50Hz
1.4 x Vd.c. for 1 minute

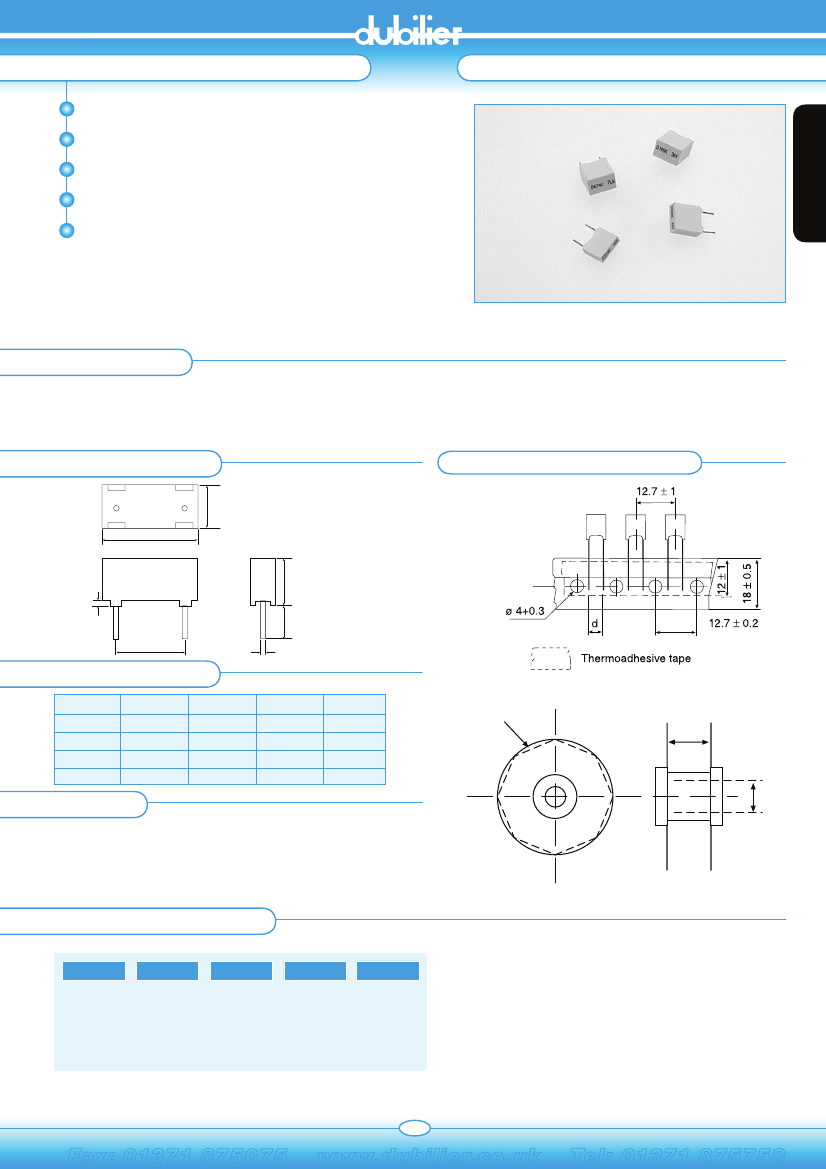

OUTLINE DRAWING
E max
7.5 max
All Dims
in mm
H max
0.4 min
5.08
Value/nf
1-220
270-330
390-1000
1500-2200
H max/mm
6.5
8.0
8.0
12
is
DIMENSIONS (63v)
E max/mm
2.5
3.2
5.0
6.0
co
0.6
Reel Qty
2500
1800
1200
900
nt
4 min
in
F (mm)
43
48
48
48
ø360
D
ue
d
TAPING SPECIFICATIONS
F
MARKING
Nominal capacitance value and tolerance in accordance with IEC 62.
C voltage rating 63. The top face of the capacitor is used for marking
in order to facilitate easy recognition on high component density
boards.
ø31
Dimensions (mm)
ORDERING INFORMATION
MMP
Style
10
10 = 100V
25 = 250V
40 = 400V
Blank 63V
standard
470N
Value
nf
K
Tolerance
J = 5%
k = 10%
TR
Options:
TA = Tape/
Ammo-box
TR = Tape/Reel
Blank = Loose
87
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
CAPACITORS
CHARACTERISTICS
SECTION 1
Climatic Category
Capacitance Range
Tolerances on CR
Nominal Voltages
55/100/56 - Performance class 2
CR 1 nF to 2.2 µF (E12)
± 5% ± 10% ± 20% other values on request
VR- 63/100/250/400 V
VR~ 40/63/160/200 V
Category Voltage
VC = 0.8 VR- at 100˚C
Test Voltage
VE = 1.6 VR-/2s at 25˚C
Tangent of Loss Angle
tg ∂
Insulation Resistance
Ri
5mm BOX POLYESTER MMP
MAX VOLTAGE GRADIENT
VR- (V)
(dv/dt)R max
63
38
100
40
250
110
400
270

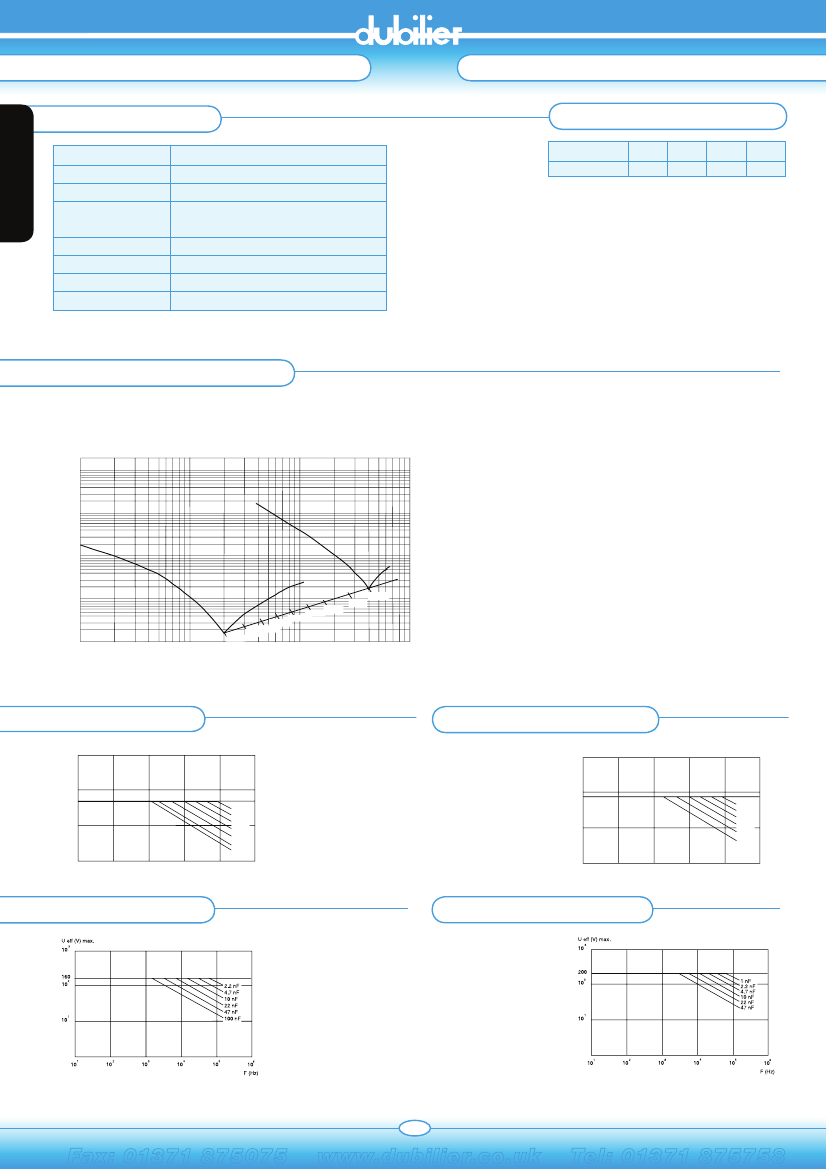

CHARACTERISTICS CURVES
Z
(½ )
100
10
1.0
co
10
0.1
0.01
1.5
½F
47 nF 22 nF
100 nF
220 nF
470 nF
1
½F
0.1
1.0
is
nt
10 nF
4.7 nF
F (MHz)
D
Nominal RMS voltage versus frequency (room temperature) allowing a 10˚C increase of the external temperature of the box.
in
100
CASES UR- : 63 V
U eff (V) max.
10
3
ue
CASES UR- : 100 V
U eff (V) max.
10
3
10
40
2
d
10
63
2
Influence of the frequency on the impedance (room temperature).
10
1
22 nF
47 nF
100 nF
220 nF
470 nF
1 F
1.5 F
10
1
10
1
10 nF
22 nF
47 nF
100 nF
220 nF
470 nF
10
2
10
3
10
4
10
5
F (Hz)
10
6
10
1
10
2
10
3
10
4
10
5
F (Hz)
10
6
CASES UR- : 250 V
CASES UR- : 400 V
88
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
