Compact Technology
1N5391 thru 1N5399
REVERSE VOLTAGE
- 50
to
1000
Volts
FORWARD CURRENT
- 1.5
Amperes
PLASTIC SILICON RECTIFIERS
FEATURES
Low cost
Diffused junction
Low forward voltage drop
Low reverse leakage current
High current capability
The plastic material carries UL recognition 94V-0
A
DO-41
B
A
C
D
MECHANICAL DATA
Case : JEDEC DO-41 molded plastic
Polarity : Color band denotes cathode
Weight : 0.012 ounces, 0.34 grams
Mounting position : Any
Dim.
A
B
Min.
25.4
4.20
0.70
2.00
DO-41
Max.
-
5.20
0.90
C
2.70
D
All Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
1N
5391
50
35
50
1N
5392
100
70
100
1N
5393
200
140
200
1N
5394
300
210
300
1N
5395
400
280
400
1.5
1N
5396
500
350
500
1N
1N
5397 5398
600
800
420
560
600
800
1N
UNIT
5399
V
1000
V
700
1000
V
A
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Lengths
@T
L
=
70 C
Peak Forward Surge Current
8.3ms single half sine-wave
super imposed on rated load (JEDEC Method)
Maximum forward Voltage at 1.5A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Junction
Capacitance (Note 1)
Typical Thermal Resistance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
AV)
I
FSM
V
F
I
R
35
1.1
5.0
50
15
A
V
uA
pF
C/W
@T
J
=25 C
@T
J
=100 C
C
J
R
0JL
50
-55 to +150
-55 to +150
T
J
T
STG
C
C
NOTES : 1.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2.Thermal Resistance Junction to Lead .
CTC0142
Ver.
2.0
1
of 2
1N5391 thru 1N5399
Compact Technology
1N5391 thru 1N5399

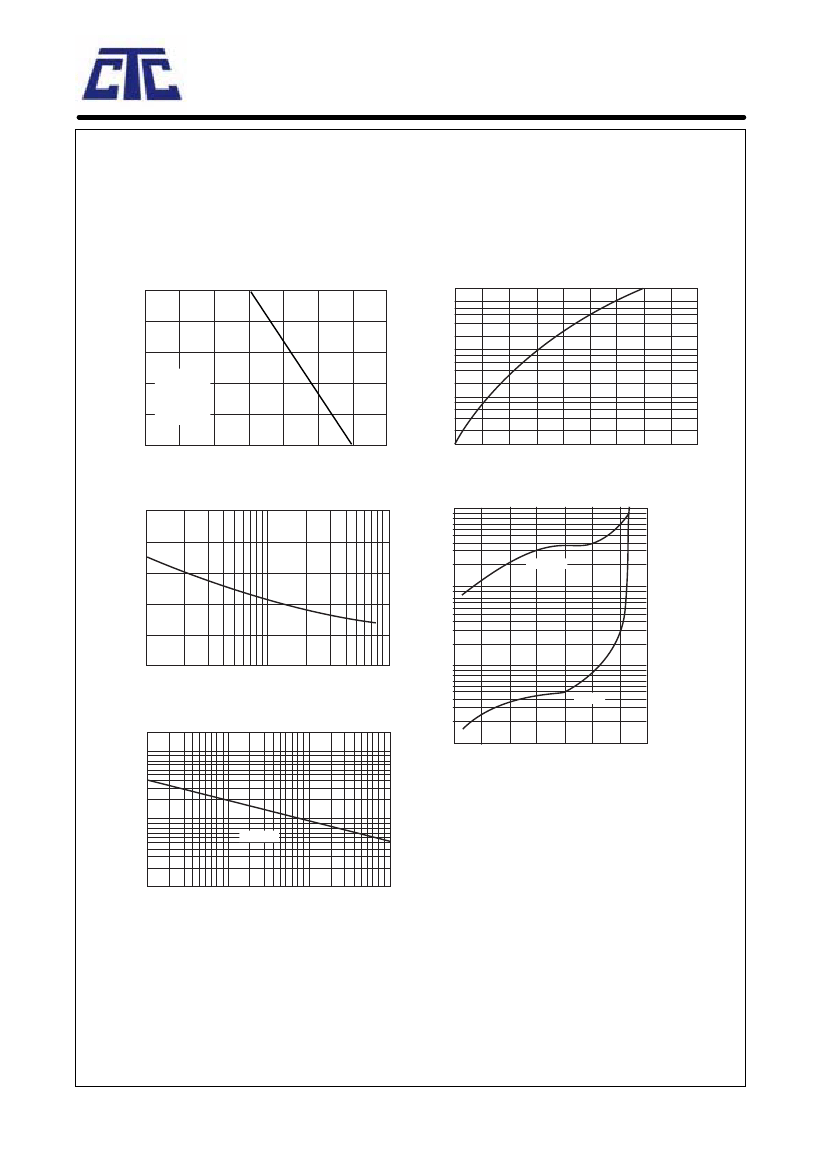

RATINGS AND CHARACTERISTIC CURVES
AVERAGE FORWARD RECTIFIED CURRENT (A)
1.5
1.2
.9
.6
.3
0
0
25
50
75
100
125
O
AMBIENT TEMPERATURE. ( C)
150
175
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
0.375" (9.5mm)
Lead Length
INSTANTANEOUS FORWARD CURRENT. (A)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
FIG.2- TYPICAL FORWARD CHARACTERISTICS
20
10
2
1.0
.4
.2
.1
.04
.02
.01
.6
.8
1.0
1.2
FORWARD VOLTAGE. (V)
1.4
1.5
PEAK FORWARD SURGE CURRENT. (A)
FIG.3- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
50
40
30
20
10
0
INSTANTANEOUS REVERSE CURRENT. (uA)
FIG.4- TYPICAL REVERSE CHARACTERISTICS
10
4
Tj=100
O
C
1.0
.4
1
2
4 6 8 10
20
40 6 0 80 100
NUMBER OF CYCLES AT 60Hz
.1
Tj=25
O
C
.04
FIG.5- TYPICAL JUNCTION CAPACITANCE
JUNCTION CAPACITANCE.(pF)
100
60
40
20
10
6
4
2
1
.1
.2
.4
1.0 2
4
10
REVERSE VOLTAGE. (V)
20
40
100
Tj=25
O
C
.01
0
20
40
60
80
100 120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
CTC0142
Ver.
2.0
2
of 2
1N5391 thru 1N5399
