: Epoxy case with heat sink laterally mounted in the bridge encapsulation
: Plated leads solderable per MIL-STD-202, Method 208
: As Marked on Body
: 20 grams (approx.)
: Bolt down on heatsink with silicone thermal compound between bridge and mounting surface for maxi-
mum heat transfer efficiency.
: 20 in lbs. Max.
Maximum Ratings And Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Voltage Ratings
Characteristics
Peak Repetitive Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Peak Non-Repetitive Reverse Voltage
RMS Reverse Voltage
Forward Conduction
Characteristics
Maximum Average Forward
Rectified Current @T
c
= 60°C
Non-Repetitive Peak Forward Surge Current
(No Voltage Reapplied t=8.3ms at 60Hz)
(No Voltage Reapplied t=10ms at 50Hz)
(100% V
rrm
Reapplied t=8.3ms at 60Hz)
(100% V
rrm
Reapplied t=10ms at 50Hz)
I
2
t Rating for fusing
(No Voltage Reapplied t=8.3ms at 60Hz)
(No Voltage Reapplied t=10ms at 50Hz)
(100% V
rrm
Reapplied t=8.3ms at 60Hz)
(100% V
rrm
Reapplied t=10ms at 50Hz)
Symbol
SBR3500
SBR3501
SBR3502
SBR3504
SBR3506
SBR3508
SBR3510
SBR3512
SBR3514
SBR3516
Unit
V
rrm
V
rwm
V
r
V
rsm
V
R(RMS)
Symbol
50
75
35
100
150
70
200
275
140
400
500
280
600
725
420
800
900
560
1000 1200 1400 1600
1100 1300 1500 1700
700
840
980
1120
Unit
V
SBR25 Series
35
500
475
420
400
1030
1130
730
800
I
o
I
fsm
A
I
2
t
A
2
S
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
10/09/19
V1.0
Silicon Passivated
Three Phase Bridge Rectifier
Characteristics
Maximum Forward Voltage drop per element
at 12.5A/17.5A Peak
Peak Reverse Current (per leg) @T
j
=25°C
At Rated DC Blocking Voltage @T
j
=125°C
RMS lsolation Voltage from Case to Lead
Thermal Characteristics
Operating Temperature Range
Symbol
SBR25 Series
1.2
10
5
2,500
Unit
V
μA
mA
V
V
f
I
r
V
Iso
T
j
T
sTg
r
θjc
R
θCS
Storage Temperature Range
Thermal Resistance Junction to Case at
DC Operation per Bridge
Thermal Resistance Case to Heatsink Mount-
ing Surface, Smooth, Flat and Greased
-55 to +150
1.16
0.2
°C
k/W

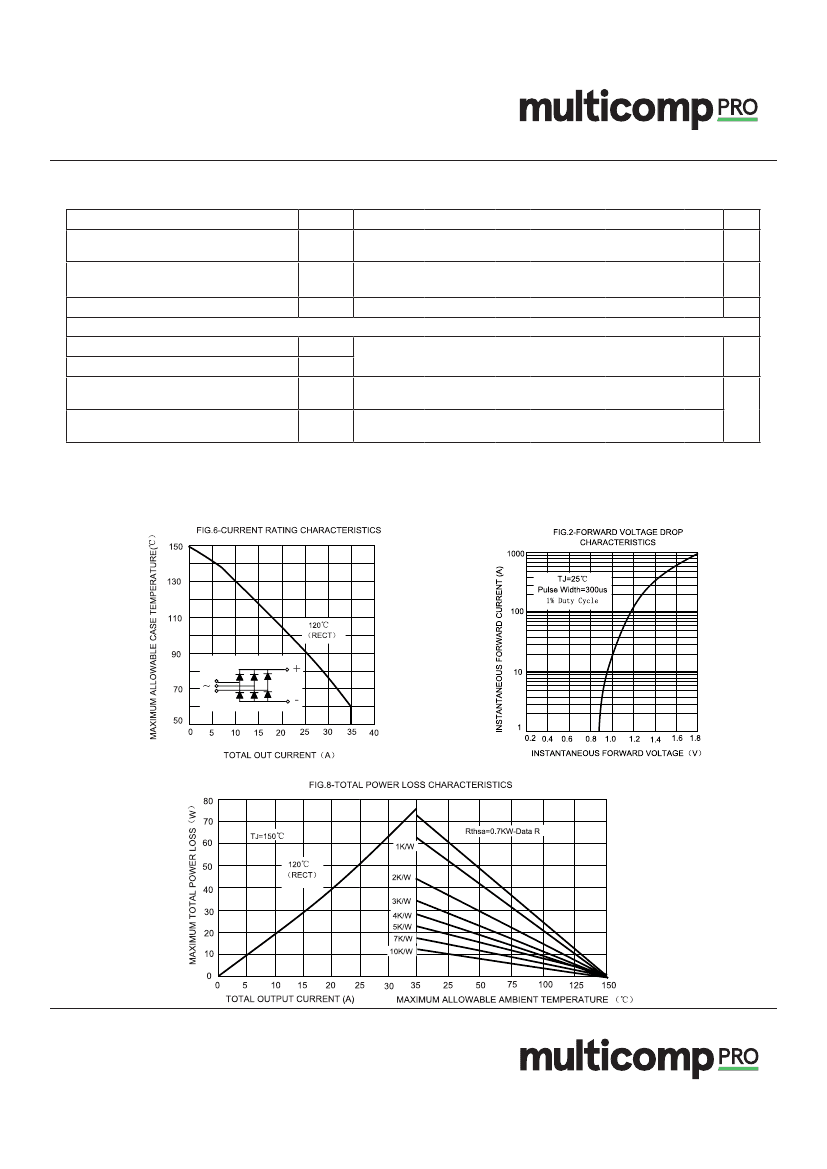

Rating and Characteristic Curves
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <2>
10/09/19
V1.0

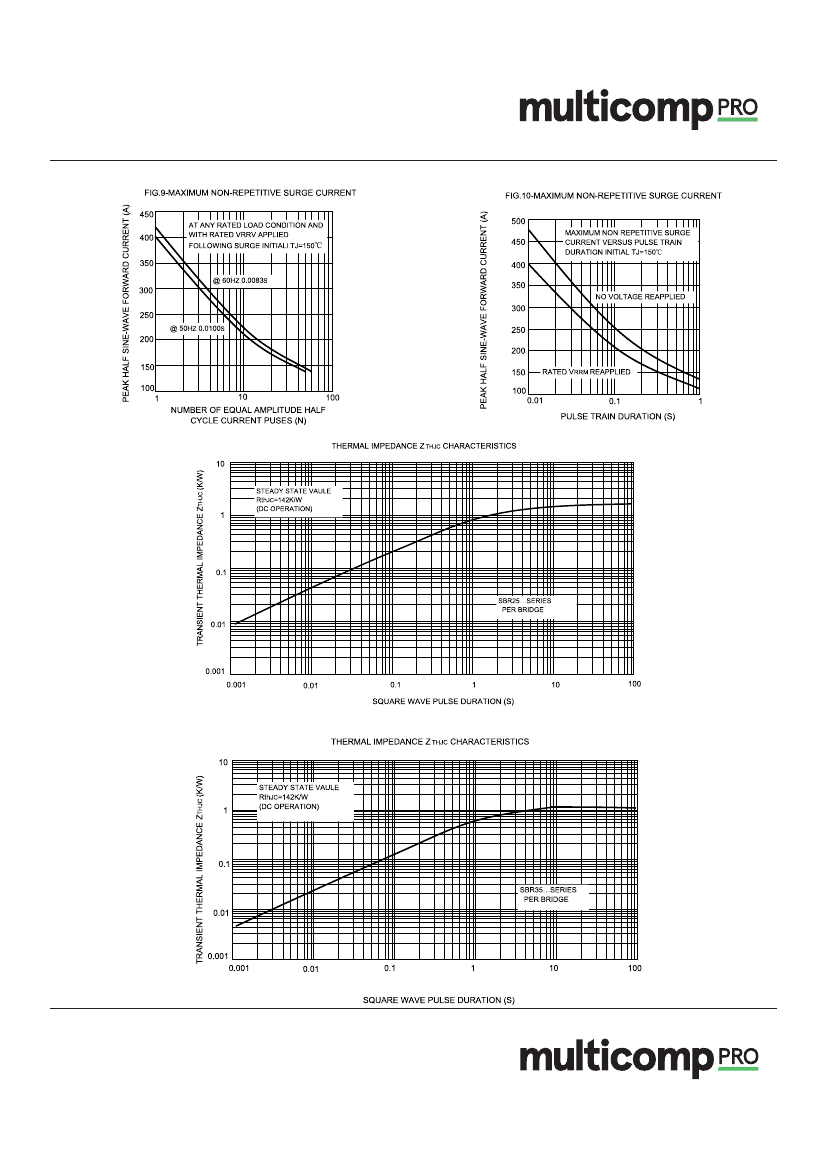

Silicon Passivated
Three Phase Bridge Rectifier
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <3>
10/09/19
V1.0
Silicon Passivated
Three Phase Bridge Rectifier

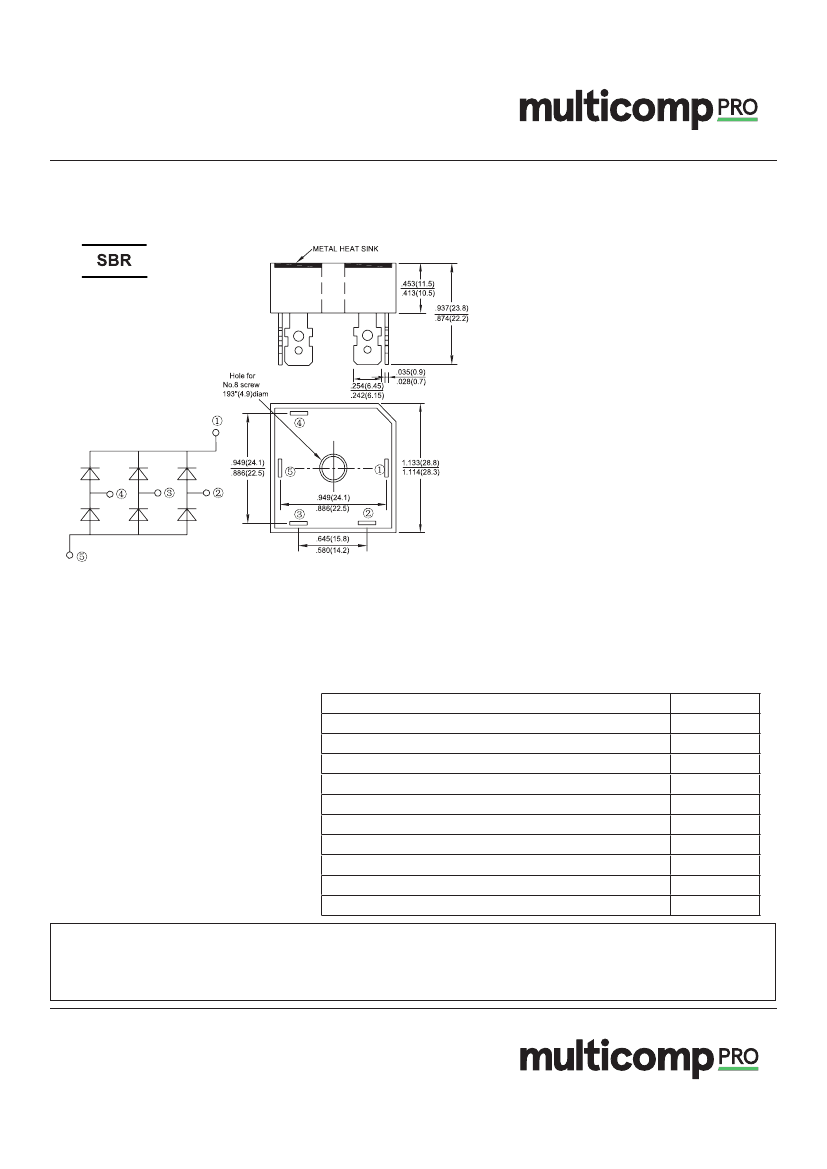

Dimension:
Dimensions : Inches (Millimetres)
Part Number Table
Description
Three Phase Bridge 35A 50V Faston Lead SBR Package
Three Phase Bridge 35A 100V Faston Lead SBR Package
Three Phase Bridge 35A 200V Faston Lead SBR Package
Three Phase Bridge 35A 400V Faston Lead SBR Package
Three Phase Bridge 35A 600V Faston Lead SBR Package
Three Phase Bridge 35A 800V Faston Lead SBR Package
Three Phase Bridge 35A 1000V Faston Lead SBR Package
Three Phase Bridge 35A 1200V Faston Lead SBR Package
Three Phase Bridge 35A 1400V Faston Lead SBR Package
Three Phase Bridge 35A 1600V Faston Lead SBR Package
Part Number
SBR3500
SBR3501
SBR3502
SBR3504
SBR3506
SBR3508
SBR3510
SBR3512
SBR3514
SBR3516
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for
the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,
any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make
any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or
where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its
negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
