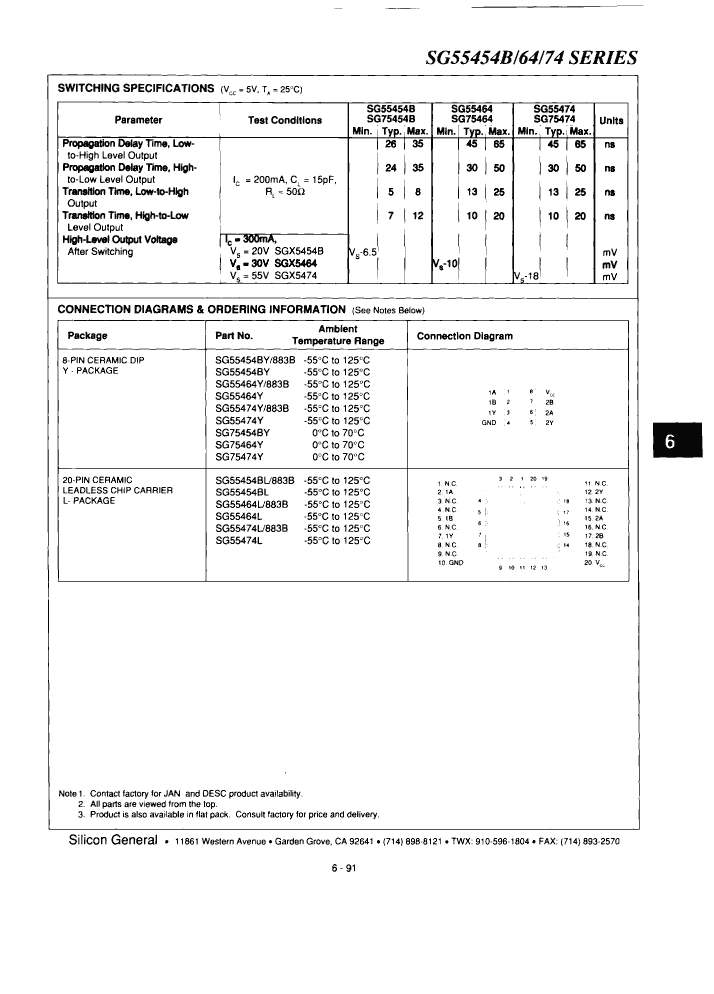

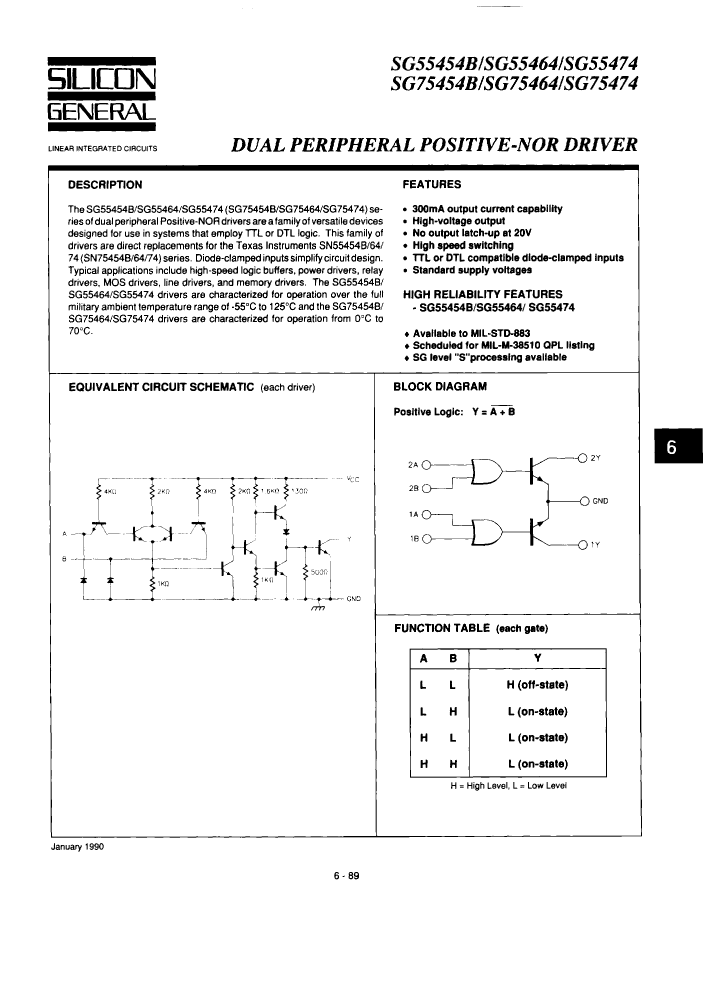

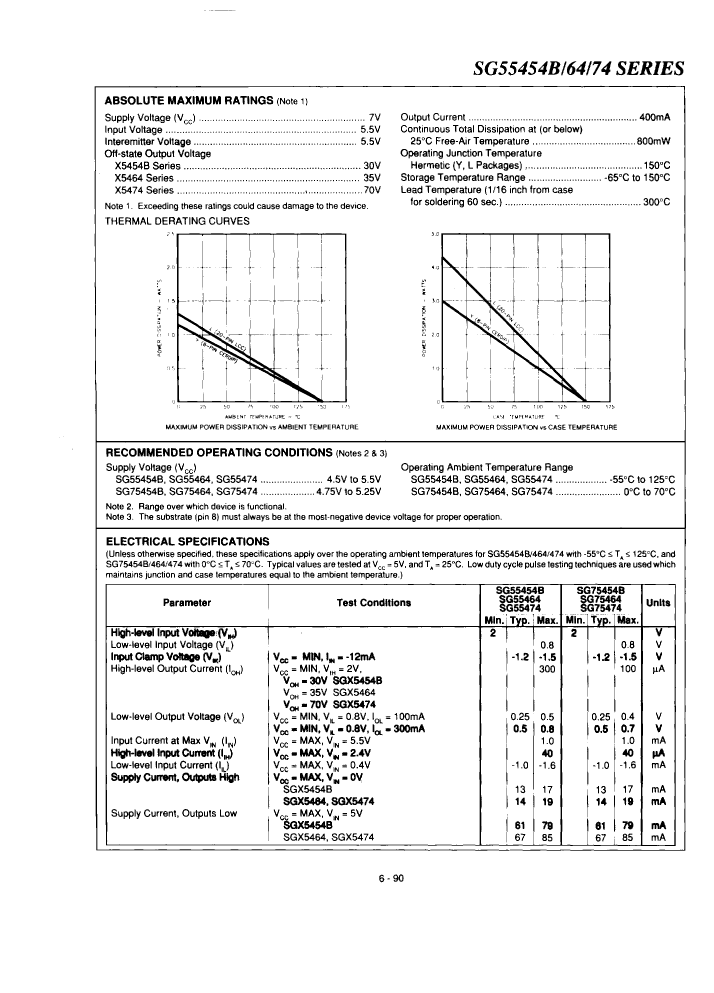

Preview

SG55464F/883B: DescriptionNOR Gate Based Peripheral Driver, 0.4A, BIPolar; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size107KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SG55464F/883B Overview

NOR Gate Based Peripheral Driver, 0.4A, BIPolar

SG55464F/883B Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	NOR GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-CDFP-F
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Nominal output peak current	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	85 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Disconnect time	0.065 µs
connection time	0.05 µs

Preview

Download Datasheet

View All

SG55464F/883B Related Products

	SG55464F/883B	SG75474F	SG55464F	SG55454BF	SG55454BF/883B	SG55474F/883B	SG55474F
Description	NOR Gate Based Peripheral Driver, 0.4A, BIPolar	NOR Gate Based Peripheral Driver, 0.4A, BIPolar	NOR Gate Based Peripheral Driver, 0.4A, BIPolar	NOR Gate Based Peripheral Driver, 0.4A, BIPolar	NOR Gate Based Peripheral Driver, 0.4A, BIPolar	NOR Gate Based Peripheral Driver, 0.4A, BIPolar	NOR Gate Based Peripheral Driver, 0.4A, BIPolar
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	NOR GATE BASED PERIPHERAL DRIVER	NOR GATE BASED PERIPHERAL DRIVER	NOR GATE BASED PERIPHERAL DRIVER	NOR GATE BASED PERIPHERAL DRIVER	NOR GATE BASED PERIPHERAL DRIVER	NOR GATE BASED PERIPHERAL DRIVER	NOR GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F
Number of functions	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK	SINK	SINK	SINK	SINK	SINK
Nominal output peak current	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	85 mA	85 mA	85 mA	79 mA	79 mA	85 mA	85 mA
Maximum supply voltage	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Disconnect time	0.065 µs	0.065 µs	0.065 µs	0.035 µs	0.035 µs	0.065 µs	0.065 µs
connection time	0.05 µs	0.05 µs	0.05 µs	0.035 µs	0.035 µs	0.05 µs	0.05 µs
