A6R

Description
ROTARY CODED SWITCH-10POSITIONS, SP10T, LATCHED, 0.025A, 24VDC, THROUGH HOLE-STRAIGHT
Categoryunclassified
File Size1MB,6 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Parametric Compare View All

A6R Overview

ROTARY CODED SWITCH-10POSITIONS, SP10T, LATCHED, 0.025A, 24VDC, THROUGH HOLE-STRAIGHT

A6R Parametric

Parameter NameAttribute value
Maximum DC contact current0.0250 A
Maximum DC contact voltage24 V
Maximum operating temperature80 Cel
Minimum operating temperature-25 Cel
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
sealDUST PROOF
Electrical life5000 Cycle(s)
switch functionSP10T
terminal coatingNOT SPECIFIED
Manufacturer SeriesA6R
Control valveFLAT TYPE
width9.8 mm
high4.5 mm
length or diameter9.9 mm
Installation featuresStraight hole
Number of directions10
Number of switches1
Switch actionlocking
Switch typeRotary coding switch
Terminal typewelding

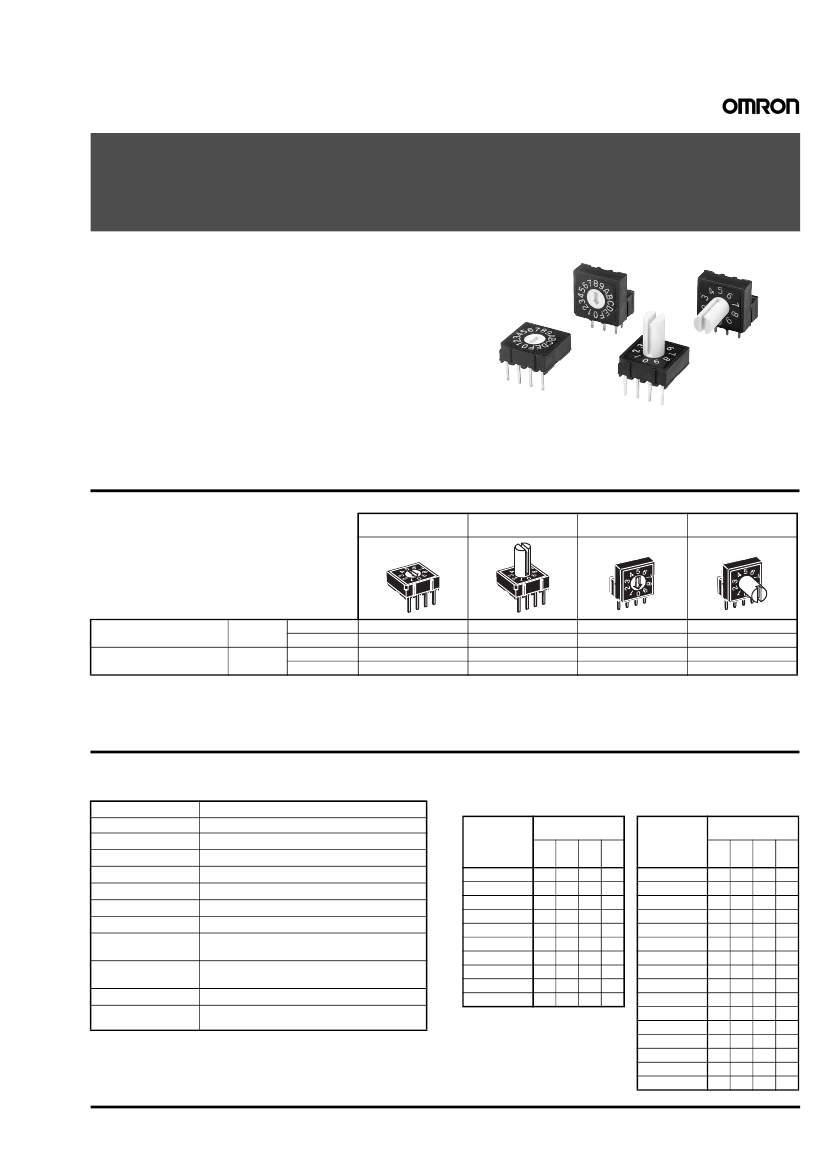

Rotary DIP Switch
A6R/A6RV
Low-Cost Rotary DIP Switches
• Series includes top-actuated, side-actuated, flat, and
extended-shaft models.
• The rotor has an O-ring sealed construction that prevents
the ingress of dirt and dust.
• Two different types of terminal arrangements are available
for each model to allow flexibility of circuit design.
• RoHS Compliant.
Ordering Information
Top-actuated
flat
Top-actuated
extended shaft
Side-actuated
flat
Side-actuated
extended shaft
Output code
BCD 1-2-4-8
BCD Hexadecimal 1-2-4-8
Number of
positions
10
16
Terminal
arrangement
4
×
1
3
×
3
4
×
1
3
×
3
A6R-101RF
A6R-102RF
A6R-161RF
A6R-162RF
A6R-101RS
A6R-102RS
A6R-161RS
A6R-162RS
A6RV-101RF
A6RV-102RF
A6RV-161RF
A6RV-162RF
A6RV-101RS
A6RV-102RS
A6RV-161RS
A6RV-162RS
Note:
Switches are delivered in units of 48 per tube. Order in multiples of 48.
Specifications
Ratings/Characteristics
Switching Capacity
Contact resistance
Insulation resistance
Dielectric strength
Operating torque
Vibration resistance
Shock resistance
Ambient operating
temperature
Ambient operating
humidity
Electrical service life
Weight (See note 2)
25 mA at 24 VDC
200 mΩ max.
100 MΩ min. (at 250 VDC)
250 VAC for 1 minute between terminals
200 g-cm max. (1.96
x
10
−2
N·m max.)
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Malfunction: 300 m/s
2
(30G) min.
−25
to 80°C at 60% RH max.
(with no icing or condensation)
35% to 95% (at 5 to 35°C)
5,000 steps min.
Top-actuated:
Side-actuated:
Approx. 0.6 g
Approx. 0.8 g
Note:
“●” indicates that the internal
switch is ON.
Min. Permissible Load
10
μA
at 3.5 VDC
Output Codes
10-position Models
Type
Terminal No.
Position
0
1
2
3
4
5
6
7
8
9
1
BCD
1-2-4-8
2
4
8
16-position Models
Type BCD/hexadecimal
1-2-4-8
Terminal No.
1
2
4
8
Position
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Note: 1.
Data shown are of initial value.
2.
Add 0.13 g for the extended-shaft version of each model
3.
Switches cannot be water washed

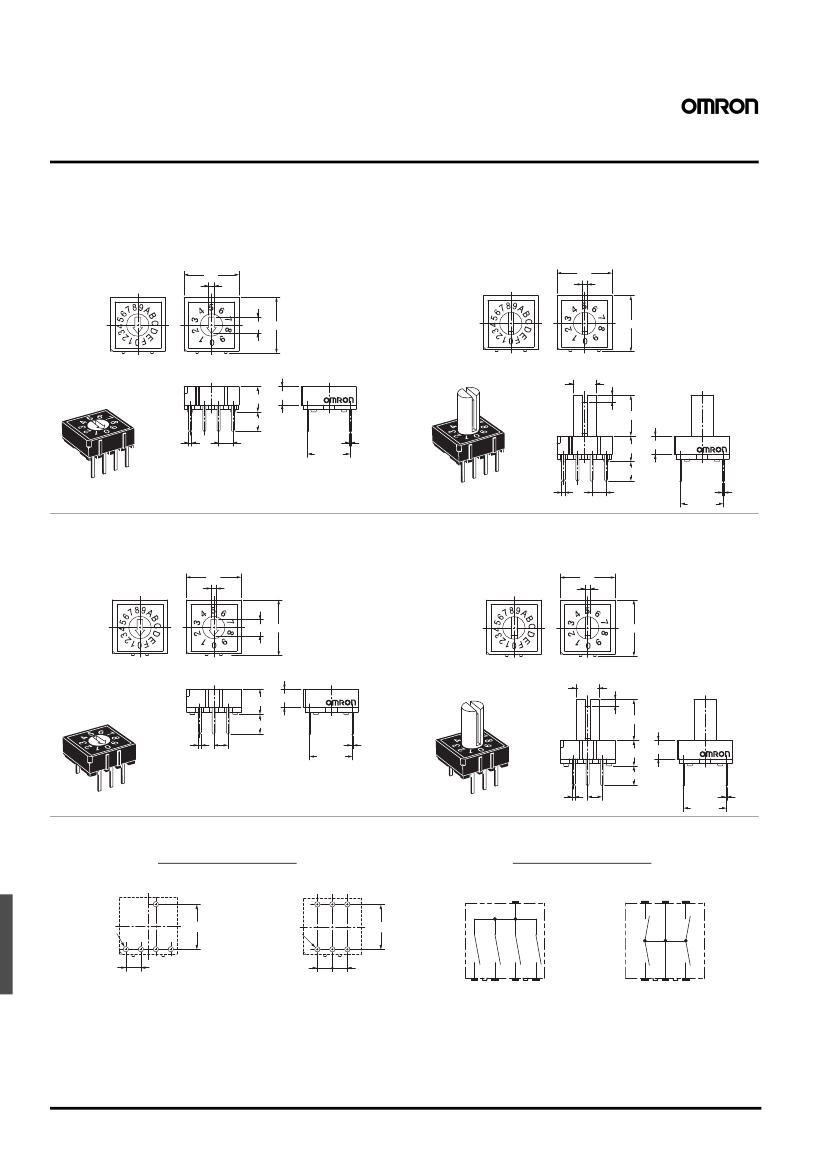

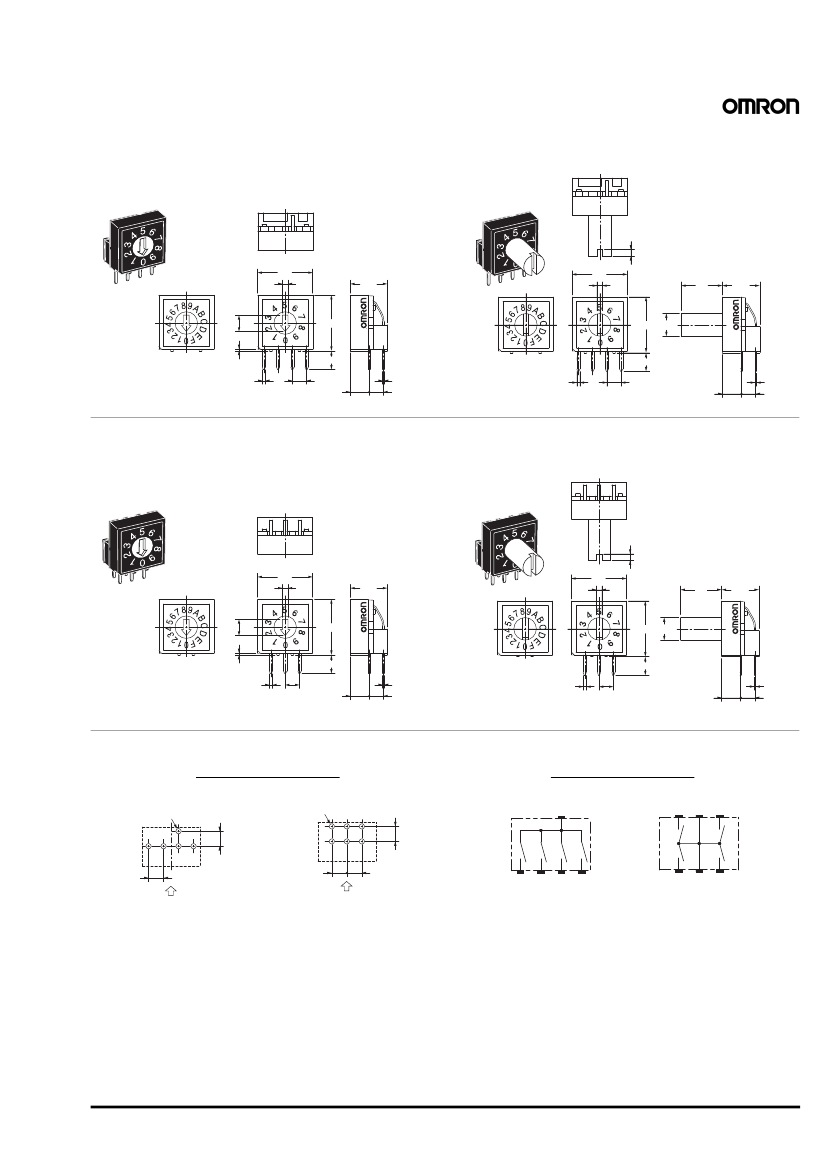

Rotary DIP Switch
A6R/A6RV
303

A6R Related Products

A6R A6RV
Description ROTARY CODED SWITCH-10POSITIONS, SP10T, LATCHED, 0.025A, 24VDC, THROUGH HOLE-STRAIGHT ROTARY CODED SWITCH-10POSITIONS, SP10T, LATCHED, 0.025A, 24VDC, THROUGH HOLE-STRAIGHT
Maximum DC contact current 0.0250 A 0.0250 A
Maximum DC contact voltage 24 V 24 V
Maximum operating temperature 80 Cel 80 Cel
Minimum operating temperature -25 Cel -25 Cel
Processing package description ROHS COMPLIANT ROHS COMPLIANT
Lead-free Yes Yes
EU RoHS regulations Yes Yes
state ACTIVE ACTIVE
seal DUST PROOF DUST PROOF
Electrical life 5000 Cycle(s) 5000 Cycle(s)
switch function SP10T SP10T
terminal coating NOT SPECIFIED NOT SPECIFIED
Manufacturer Series A6R A6R
Control valve FLAT TYPE FLAT TYPE
width 9.8 mm 9.8 mm
high 4.5 mm 4.5 mm
length or diameter 9.9 mm 9.9 mm
Installation features Straight hole Straight hole
Number of directions 10 10
Number of switches 1 1
Switch action locking locking
Switch type Rotary coding switch Rotary coding switch
Terminal type welding welding
