REF-01DN datasheet, PDF - EEWORLD Datasheet

REF-01DN: DescriptionThree Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, PDIP8,; CategoryPower/power management The power supply circuit; File Size304KB，7 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric View All

REF-01DN Overview

Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, PDIP8,

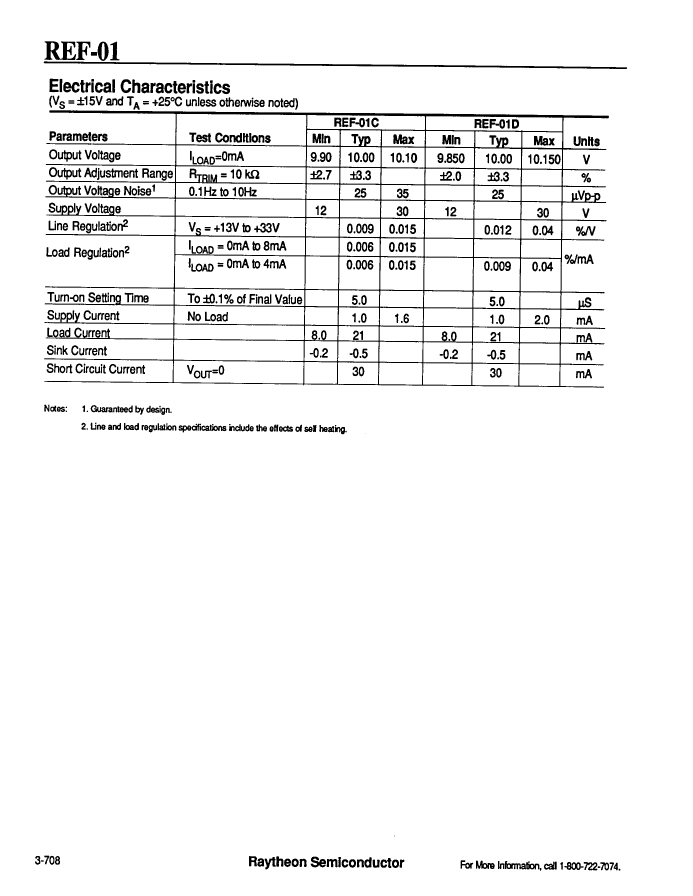

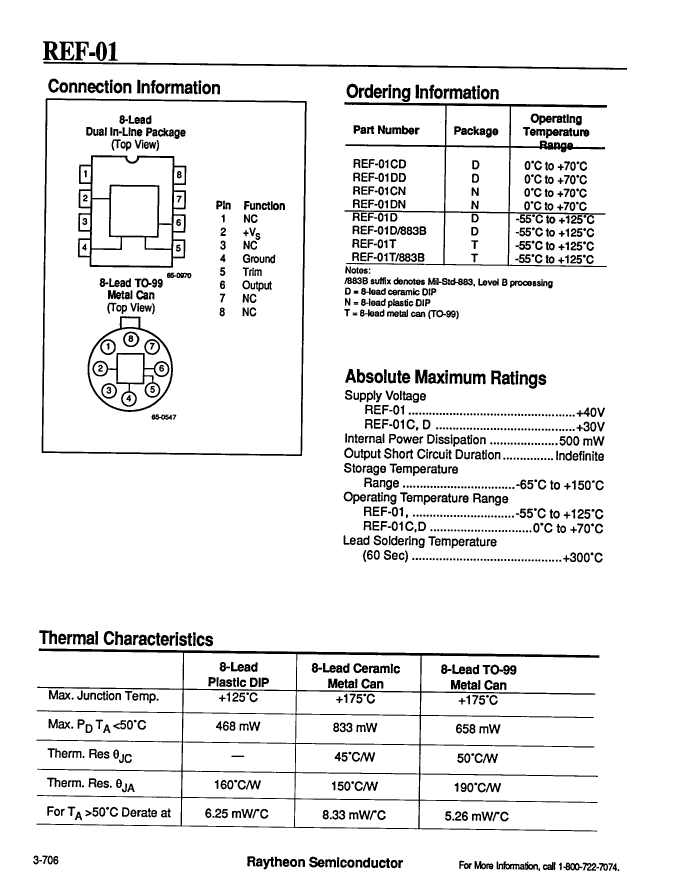

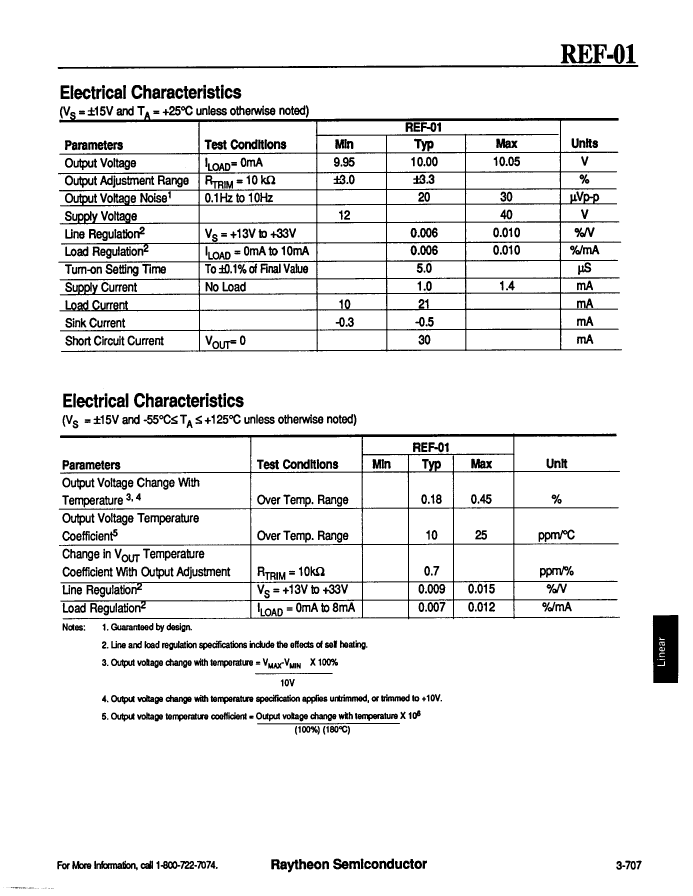

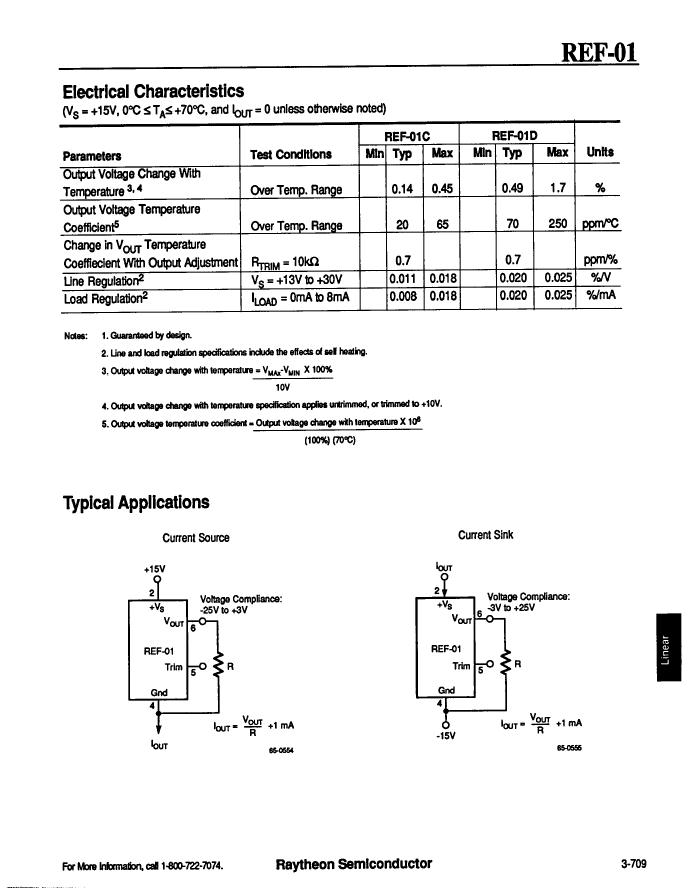

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	10.15 V
Minimum output voltage	9.85 V
Nominal output voltage	10 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	2 mA
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	13 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	250 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	1.5%
