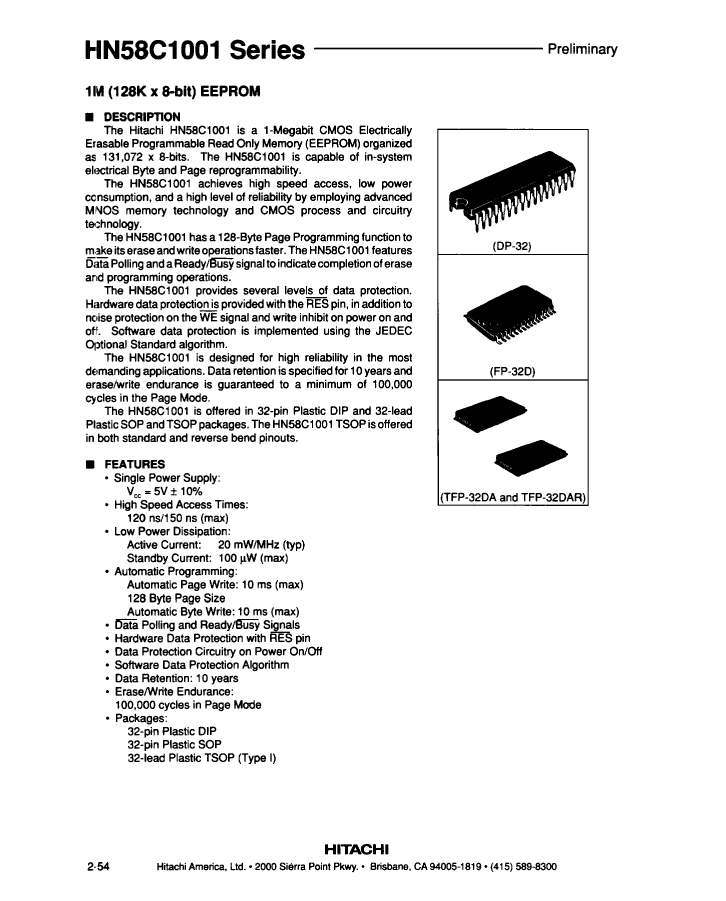

Preview

HN58C1001FP-12: Description128KX8 EEPROM 5V, 120ns, PDSO32, PLASTIC, SOP-32; Categorystorage storage; File Size309KB，16 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HN58C1001FP-12 Overview

128KX8 EEPROM 5V, 120ns, PDSO32, PLASTIC, SOP-32

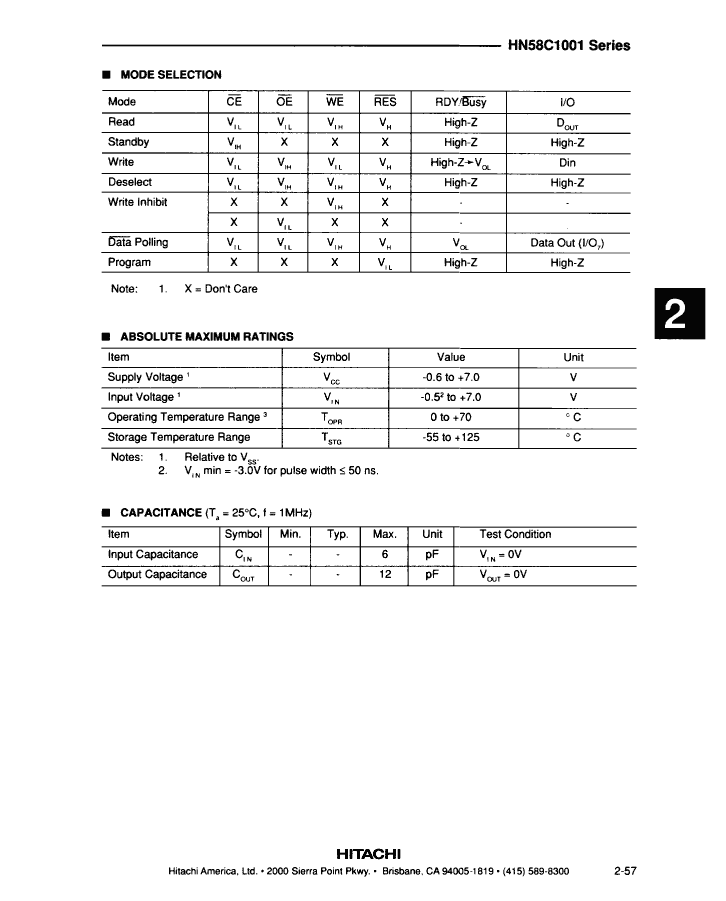

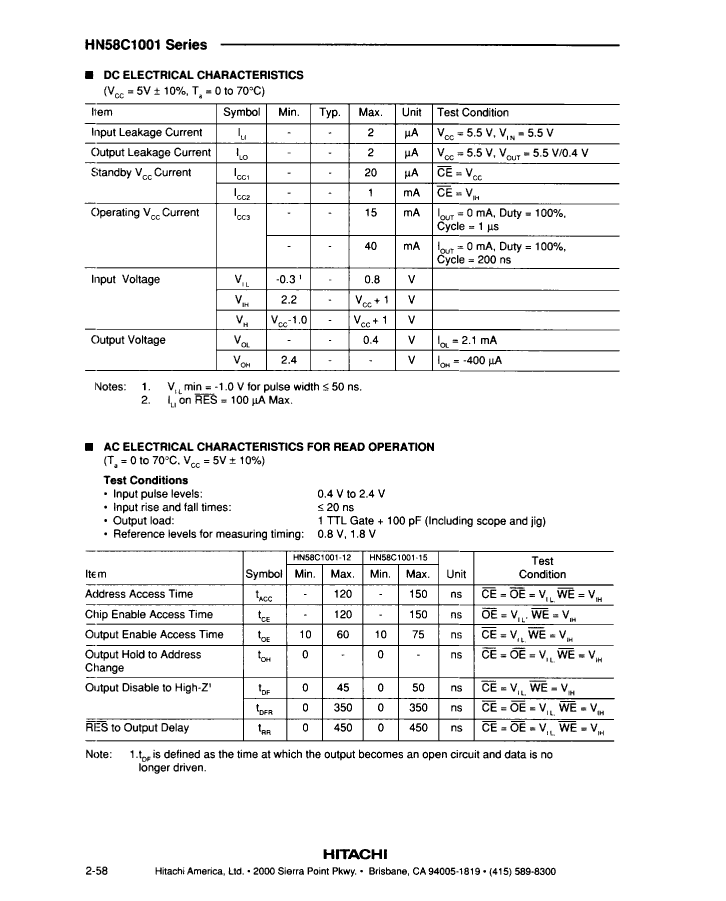

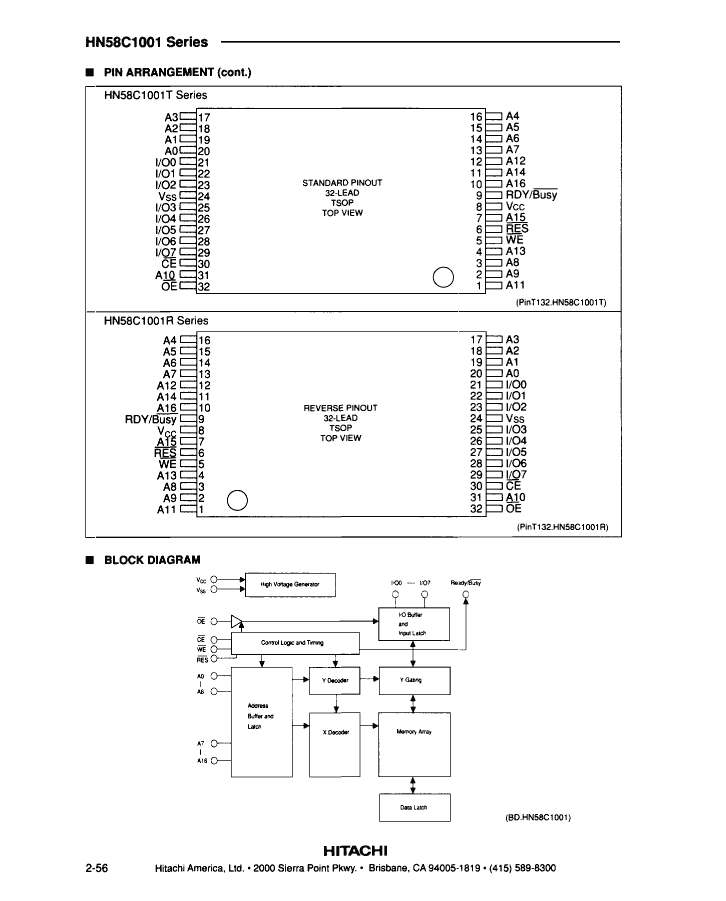

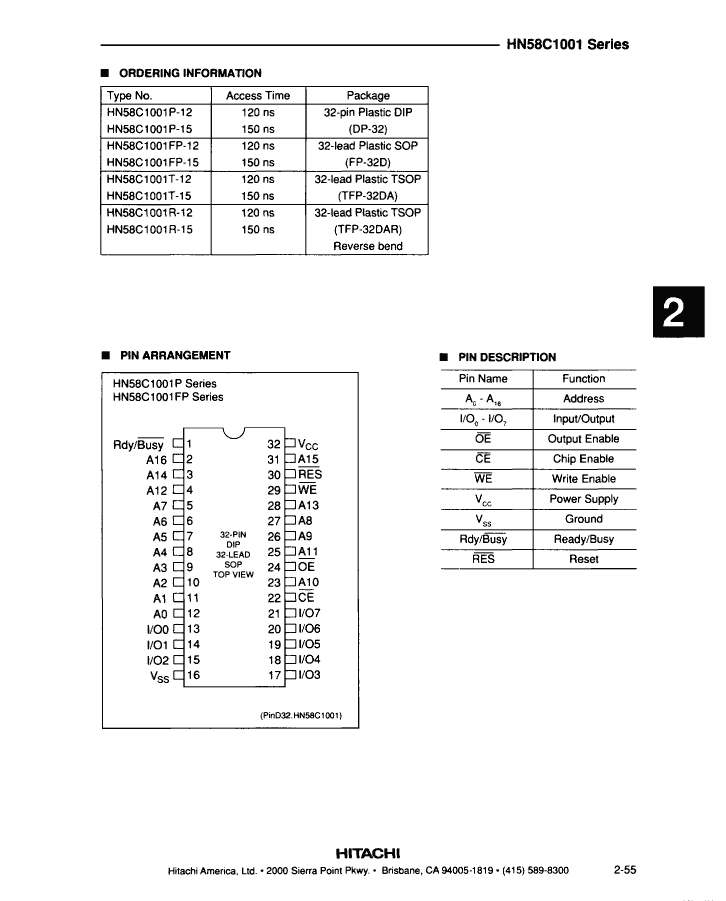

HN58C1001FP-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-32
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	120 ns
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	20.45 mm
memory density	1048576 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

HN58C1001FP-12 Related Products

	HN58C1001FP-12	HN58C1001P-12	HN58C1001R-12	HN58C1001T-12
Description	128KX8 EEPROM 5V, 120ns, PDSO32, PLASTIC, SOP-32	128KX8 EEPROM 5V, 120ns, PDIP32, PLASTIC, DIP-32	128KX8 EEPROM 5V, 120ns, PDSO32, PLASTIC, REVERSE, TSOP1-32	128KX8 EEPROM 5V, 120ns, PDSO32, PLASTIC, TSOP1-32
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	DIP	TSOP1	TSOP1
package instruction	PLASTIC, SOP-32	DIP,	PLASTIC, REVERSE, TSOP1-32	PLASTIC, TSOP1-32
Contacts	32	32	32	32
Reach Compliance Code	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	120 ns	120 ns	120 ns
JESD-30 code	R-PDSO-G32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32
length	20.45 mm	41.9 mm	12.4 mm	12.4 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	TSOP1-R	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.05 mm	5.08 mm	1.2 mm	1.27 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible
JESD-609 code	e0	-	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	-	15.24 mm	8 mm	8 mm
