Compact Technology
B220A thru B2200A
REVERSE VOLTAGE -
20
to
200
Volts
FORWARD CURRENT -
2.0
Amperes
SCHOTTKY BARRIER RECTIFIERS
FEATURES
Metal-Semiconductor junction with guard ring
Epitaxial construction
Low forward voltage drop
High current capability
The plastic material carries UL recognition 94V-0
For use in low voltage,high frequency inverters,free
wheeling,and polarity protection applications
B
SMA
SMA
DIM.
A
A
B
C
C
D
E
F
F
E
D
G
H
MIN.
3.99
2.54
1.32
0.15
4.93
0.05
1.98
0.76
MAX.
4.50
2.79
1.47
0.31
5.28
0.127
2.29
1.52
MECHANICAL DATA
Case : JEDEC SMA molded plastic
Polarity : Color band denotes cathode
Weight : 0.062 grams
Mounting position : Any
G
H
All Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3ms single half
sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage @ 2.0A
Maximum DC Reverse Current @ TA=25°C
at Rated DC Blocking Voltage @ TA=100°C
Typical Junction Capacitance
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RR M
V
RM S
V
D C
I
F
I
FSM
V
F
I
R
C
J
R
JA
T
J
T
STG
B220A B230A
B240A B250A B260A
B280A B2100A B2150A B2200A
UNIT
V
V
V
A
A
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
2.0
50.0
80
56
80
100
70
100
150
105
150
200
140
200
0.50
0.5
10.0
120
0.70
0.85
0.2
5.0
0.87
0.90
V
mA
pF
°C/W
°C
°C
70
70
-55 to +125
-55 to +150
1
of 2
B220A thru B2200A
Compact Technology
B220A thru B2200A

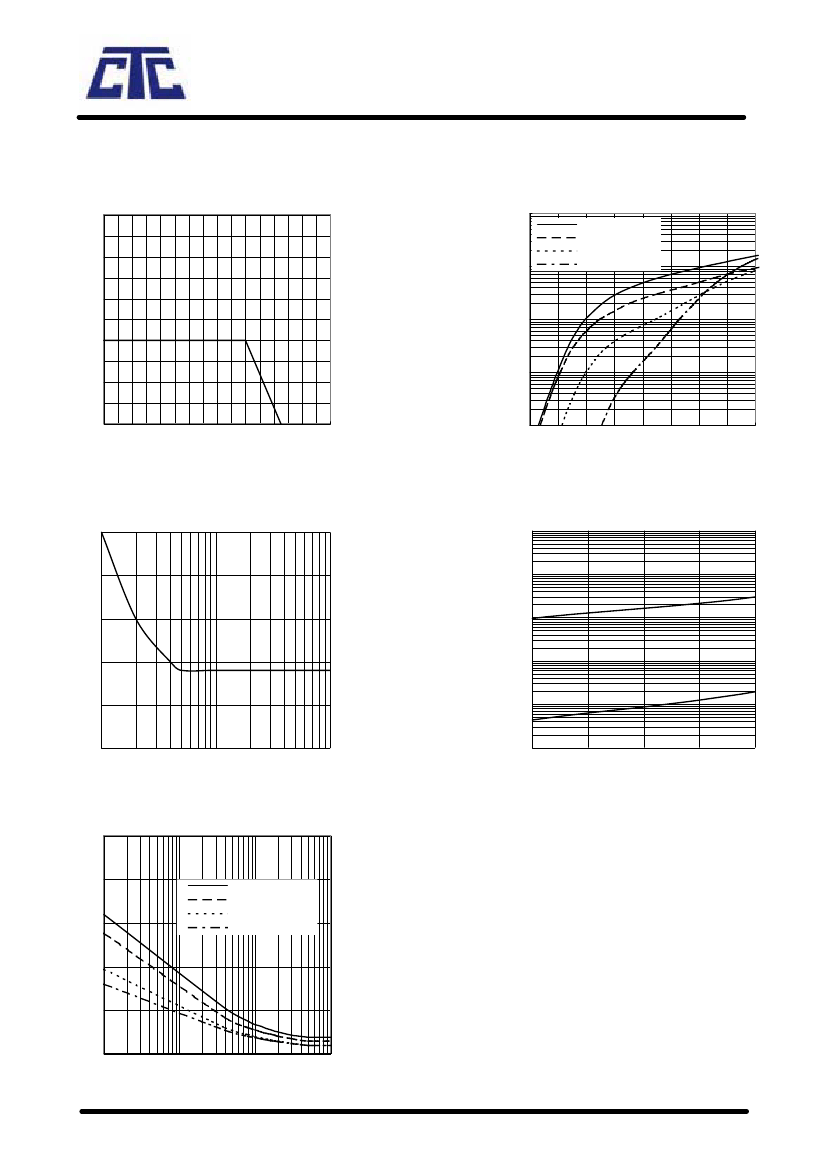

FIG. 1-TYPICAL FORWARD CURRENT DERATING CURVE
5.0
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 2-TYPICAL FORWARD CHARACTERISTICS
100.00
B220A~B240A
B250A~B260A
B280A~B2100A
10.00
AVERAGE FORWARD CURRENT,(A)
4.0
B2150A~B2200A
3.0
1.00
2.0
0.10
1.0
0.0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE ( )
0.01
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
FORWARD VOLTAGE (V)
FIG. 3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT
50
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
100.000
PEAK FORWARD SURGE CURRENT (A)
REVERSE LEAKAGE CURRENT (mA)
40
10.000
100
1.000
30
20
0.100
10
0.010
25
0
1
10
NUMBER OF CYCLES AT 60Hz
100
0.001
20%
40%
60%
80%
100%
PERCENTAGE RATED PEAK REVERSE VOLTAGE (%)
FIG. 5-TYPICAL JUNCTION CAPACITANCE
500
JUNCTION CAPACITANCE (pF)
400
B220A~B240A
B250A~B260A
B280A~B2100A
300
B2150A~B2200A
200
100
0
0
1
10
100
REVERSE VOLTAGE (V)
2
of 2
B220A thru B2200A
