HN613128FP datasheet, PDF - EEWORLD Datasheet

HN613128FP: DescriptionMASK ROM, 16KX8, 250ns, CMOS, PQFP54; Categorystorage storage; File Size70KB，2 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

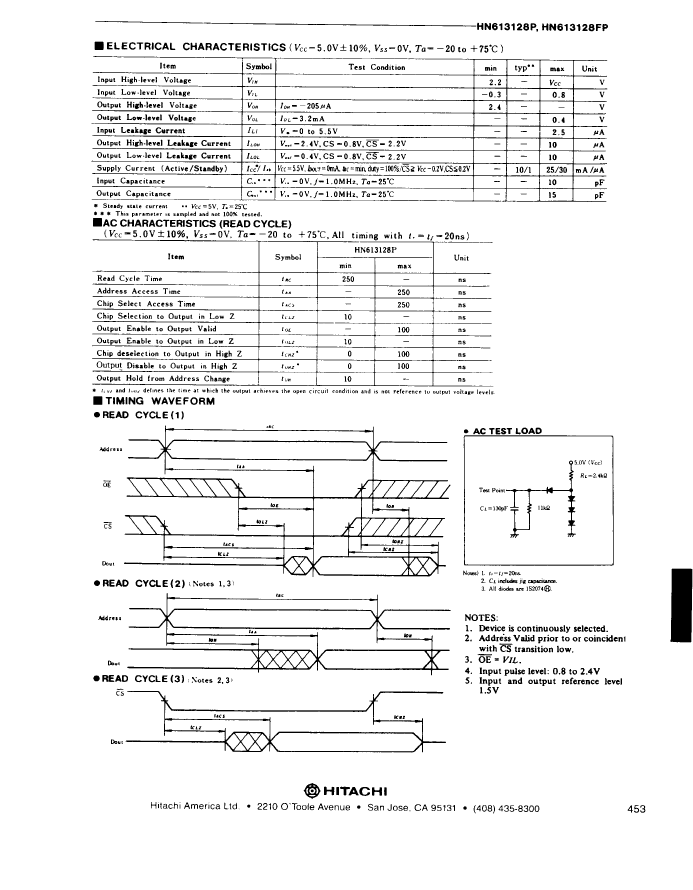

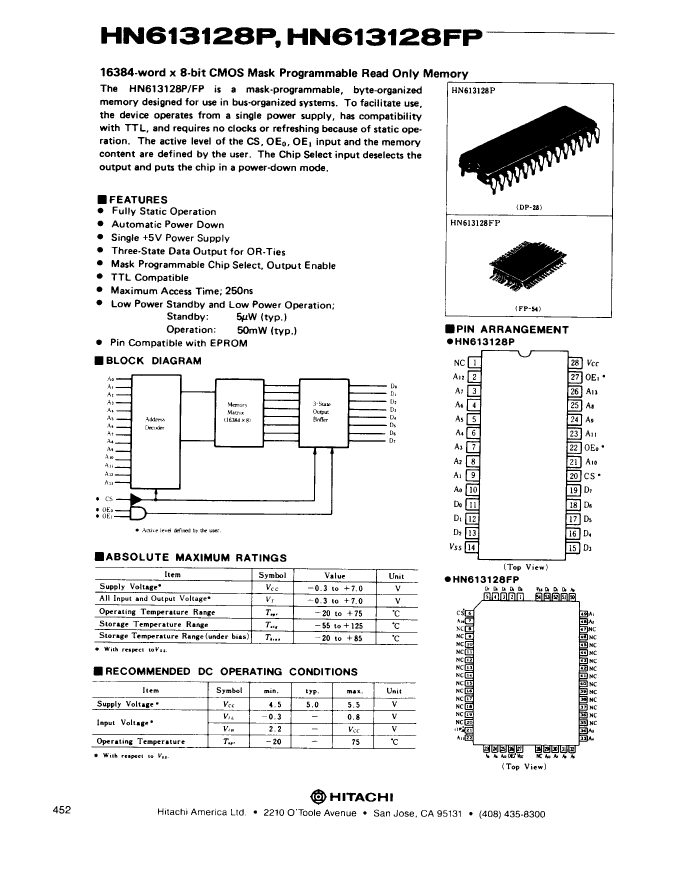

HN613128FP Overview

MASK ROM, 16KX8, 250ns, CMOS, PQFP54

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
package instruction	QFP, QFP54,.77X1.0,40
Reach Compliance Code	unknown
Maximum access time	250 ns
JESD-30 code	R-PQFP-G54
JESD-609 code	e0
memory density	131072 bit
Memory IC Type	MASK ROM
memory width	8
Number of terminals	54
word count	16384 words
character code	16000
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
organize	16KX8
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP54,.77X1.0,40
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.00003 A
Maximum slew rate	0.025 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD

	HN613128FP	HN613128P
Description	MASK ROM, 16KX8, 250ns, CMOS, PQFP54	MASK ROM, 16KX8, 250ns, CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
package instruction	QFP, QFP54,.77X1.0,40	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown
Maximum access time	250 ns	250 ns
JESD-30 code	R-PQFP-G54	R-PDIP-T28
JESD-609 code	e0	e0
memory density	131072 bit	131072 bit
Memory IC Type	MASK ROM	MASK ROM
memory width	8	8
Number of terminals	54	28
word count	16384 words	16384 words
character code	16000	16000
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
organize	16KX8	16KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP
Encapsulate equivalent code	QFP54,.77X1.0,40	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.00003 A	0.00003 A
Maximum slew rate	0.025 mA	0.025 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1 mm	2.54 mm
Terminal location	QUAD	DUAL
