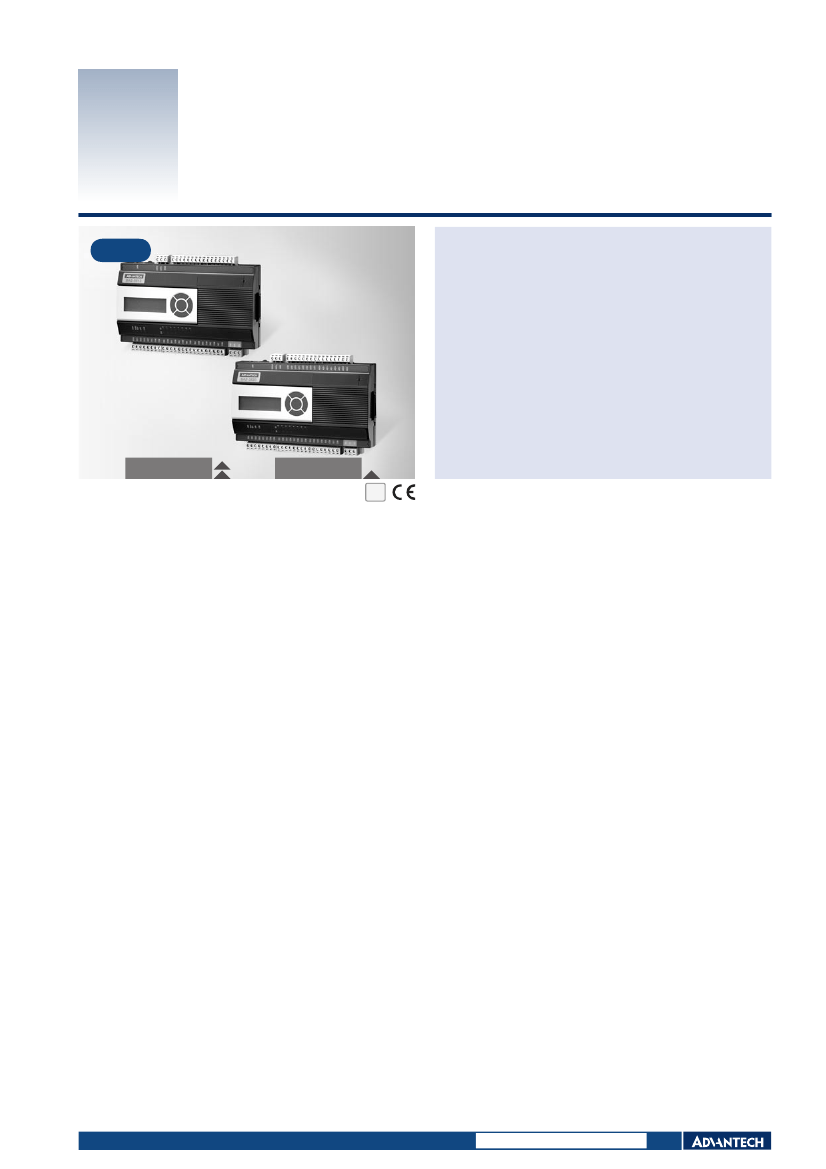

BAS-3512
BAS-3520
NEW
12-ch Web-enabled DDC Controller
20-ch Web-enabled DDC Controller
Features
Standalone programmable controller
BASPro programming software provides BA domain function (scheduler,
HVAC calculation, sequence…)
Auto-tuning PID control
Calendar schedule control
Alarm and event notifications
Provides RS-485 to connect with remote I/O devices
Up to 3 local I/O expansion modules
Remote programming and maintenance through Ethernet
LCM display (optional)
BAS-3512
BAS-3520
RoHS
2002/95/EC
COMPLIANT
Introduction
BAS-3512/3520 is a standalone programmable controller specially designed for building automation applications. Designed as a typical DDC (Direct Digital Controller), BAS-3512/3520
delivers various of onboard I/O including universal input, analog output, digital input and digital output, providing flexible options to satisfy versatile application requirements. It also
features powerful BASPro programming tool for engineers to quickly develop their application. BASPro delivers many function blocks suitable for BA application, such as scheduler,
HVAC calculation, sequential control, PID control, alarm, and event. Its compact size makes it an ideal solution to fulfill BA installation environment. The I/O expansion modules
(BAS-3018, BAS-3024, BAS-3050 and BAS-3051) provide more I/O points and make the system a scalable solution.
Specifications
General
Dimension (W x H x D)
Enclosure
Power Input
Power Consumption
Real-time Clock
Watchdog Timer
I/O Isolation Protection
CPU
Flash Memory
RAM
Battery backup SRAM
176 x 120 x 44 mm
ABS + PC
24 V
DC
/24 V
AC
10 W @ 24 V
DC
Yes
Yes
3,000 V
DC
32-bit CPU 312 MHz
32 MB
64 MB SDRAM
512 KB
Analog Output (BAS-3520 only)
Channels
Resolution
Accuracy
Range
4
12-bit
±0.1% of FSR
0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Digital Input
Channels
Dry Contact
8
Logic High: Close
Logic Low: Open
Supports 1 kHz Counter Input (2 channels)
Supports 1 kHz Frequency Input (2 channels)
Hardware
Digital Output
Channels
4 (Source Type)
Vcc: 10 ~ 35 V
DC
, Current: 1 A (per channel)
PWM output (2 channels)
Minimum Period
1 second (for PWM output)
Minimum Pulse Width
0.1 second (for PWM output)
Communication
LAN
1 x 10/100Base-T (RJ-45)
RS-485
1 (isolated)
Communication Protocol
Modbus/TCP, Modbus/RTU
LCM Operation Unit (Optional)
2 line x 8 char, backlit LCD
5 button keypad
Hot swap capable
Universal Input (BAS-3520 only)
Channels
Resolution
Sample Rate
Accuracy
Type and Range
Analog Input
4
16-bit
10 Hz (Total)
±0.1% of FSR (Voltage, Current)
Environment
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
-10 ~ 60° C
-20 ~ 80° C
20 ~ 95% (Non-condensing)
0 ~ 95% (Non-condensing)
0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, Pt-100 RTD,
Pt-1000 RTD, Thermistor (3 k, 10 k)
Digital Input
Logic High: Close
(Dry Contact)
Logic Low: Open
Over Voltage Protection
±35 V
Span Drift
±25 ppm/° C
Zero Drift
±6 μV/° C
Ordering Information
BAS-3512-AE
BAS-3520-AE
BAS-3595-AE
12-ch Web-enabled DDC Controller
20-ch Web-enabled DDC Controller
LCM operation unit (Optional)
Online Download
www.advantech.com/products
