B84110-A-A60 datasheet, PDF - EEWORLD Datasheet

B84110-A-A60: DescriptionSingle Phase EMI Filter, 250V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size329KB，11 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84110-A-A60 Overview

Single Phase EMI Filter, 250V, 50/60HzHz,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compliant
Other features	INDUCTANCE 1.9 MILLI HENRY
Certification	ENEC-10
filter type	SINGLE PHASE EMI FILTER
high	23 mm
high potential	2700 V
JESD-609 code	e3
Maximum leakage current	0.5 mA
length	56 mm
Manufacturer's serial number	B84110A
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
physical size	L56.0XB30.0XH23.0 (mm)/L2.205XB1.181XH0.906 (inch)
Rated current	6 A
Rated voltage	250 V
Terminal surface	Tin (Sn)
width	30 mm

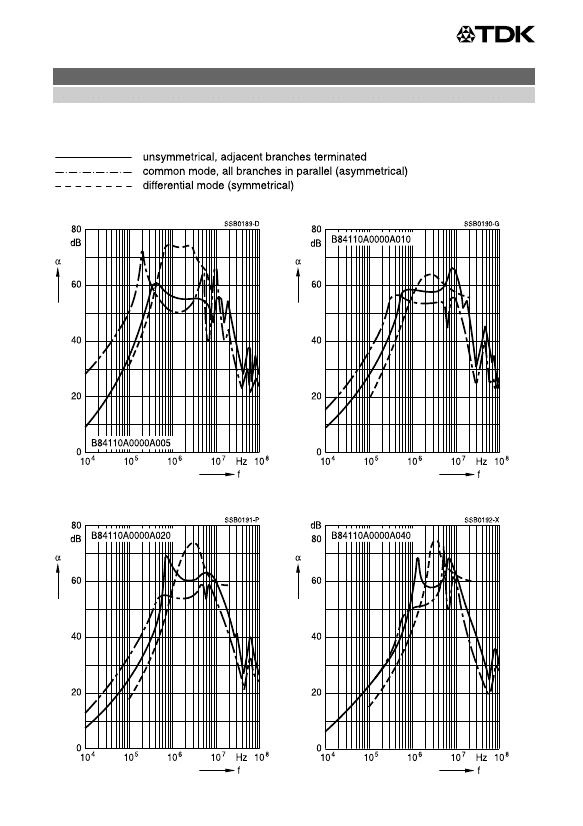

EMC filters

2-line filters

for PCB mounting

Series/Type:

Date:

B84110A

January 2015

information contained therein without EPCOS' prior express consent is prohibited.

	B84110-A-A60	B84110-A-A10	B84110-A-A20
Description	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,
Is it Rohs certified?	conform to	conform to	conform to
Maker	TDK Corporation	TDK Corporation	TDK Corporation
Reach Compliance Code	compliant	compliant	compliant
Other features	INDUCTANCE 1.9 MILLI HENRY	INDUCTANCE 10 MILLI HENRY	INDUCTANCE 5.6 MILLI HENRY
Certification	ENEC-10	UL; CSA; ENEC-10	UL; CSA; ENEC-10
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	23 mm	23 mm	23 mm
high potential	2700 V	2700 V	2700 V
JESD-609 code	e3	e3	e3
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
length	56 mm	56 mm	56 mm
Manufacturer's serial number	B84110A	B84110A	B84110A
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L56.0XB30.0XH23.0 (mm)/L2.205XB1.181XH0.906 (inch)	L56.0XB30.0XH23.0 (mm)/L2.205XB1.181XH0.906 (inch)	L56.0XB30.0XH23.0 (mm)/L2.205XB1.181XH0.906 (inch)
Rated current	6 A	1 A	2 A
Rated voltage	250 V	250 V	250 V
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
width	30 mm	30 mm	30 mm
