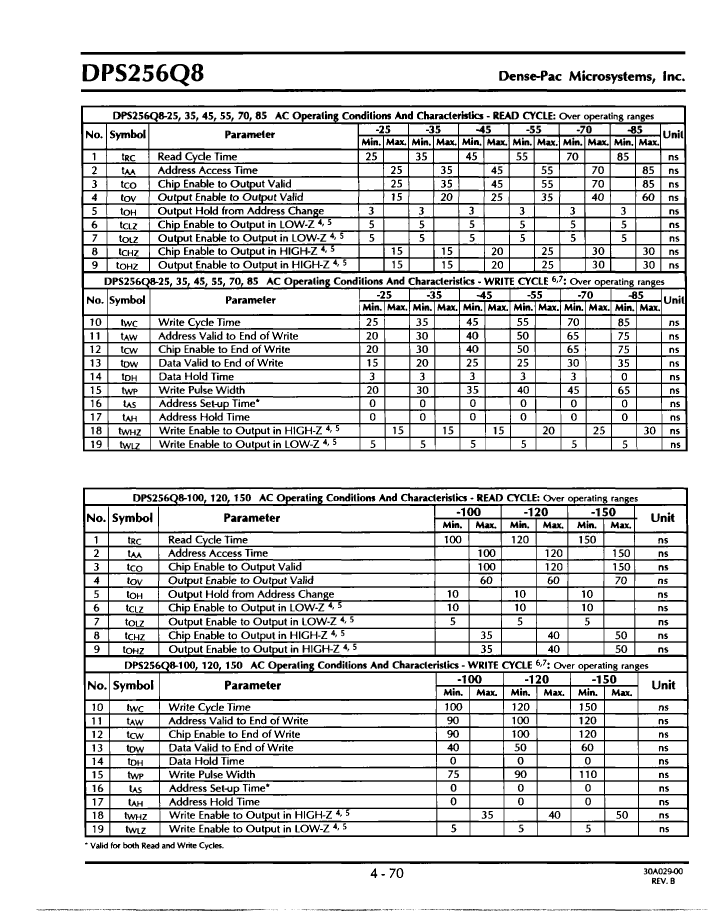

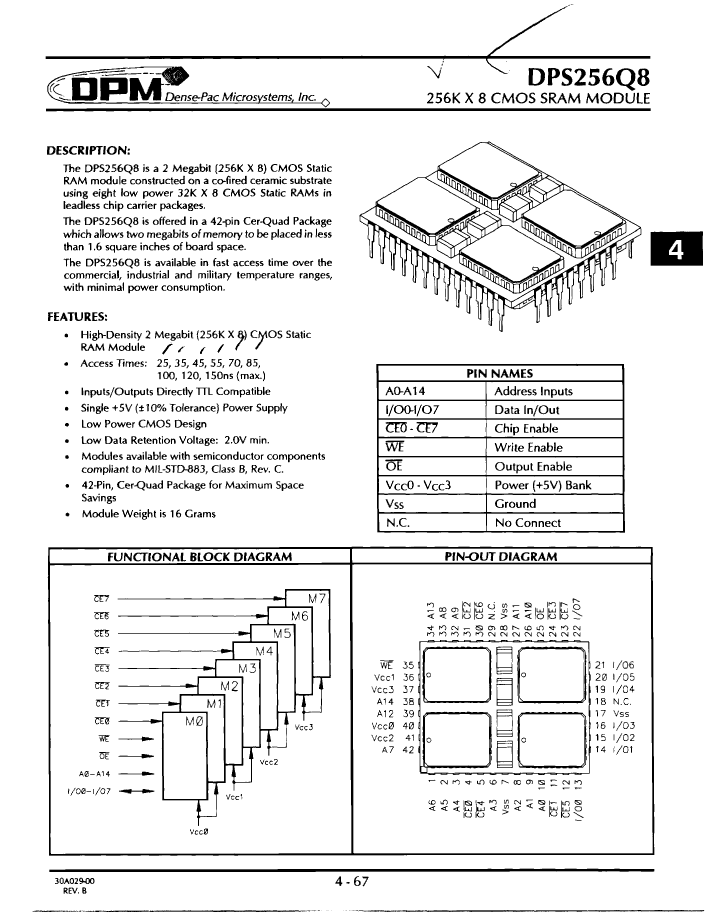

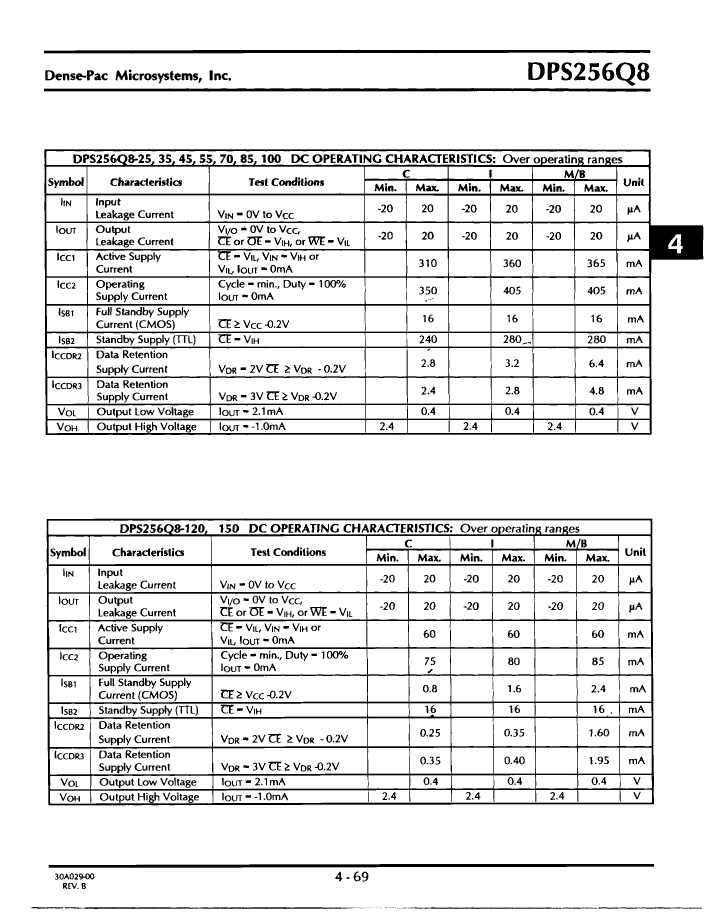

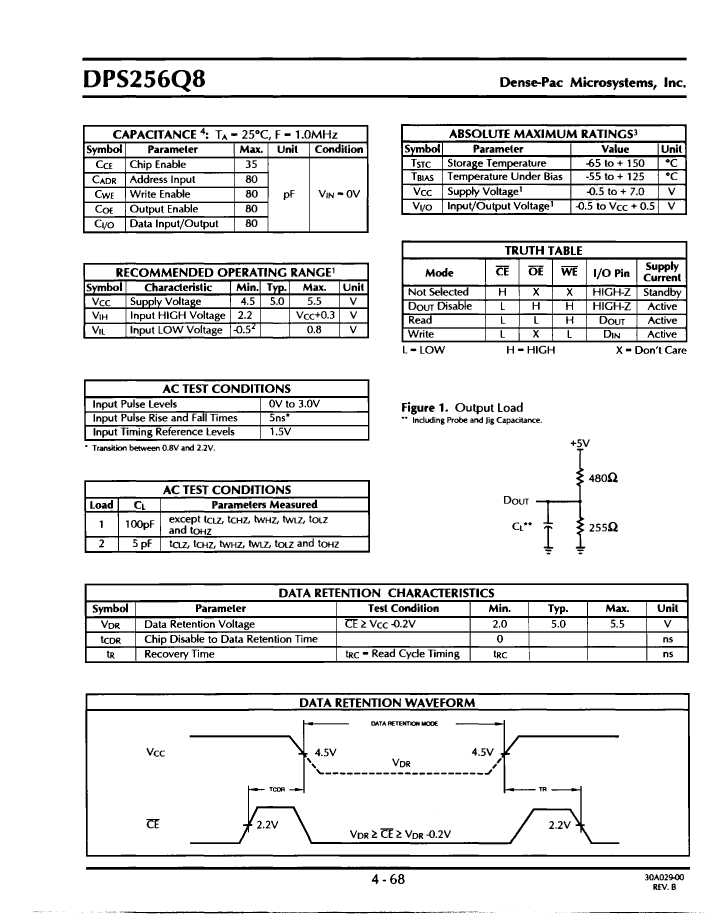

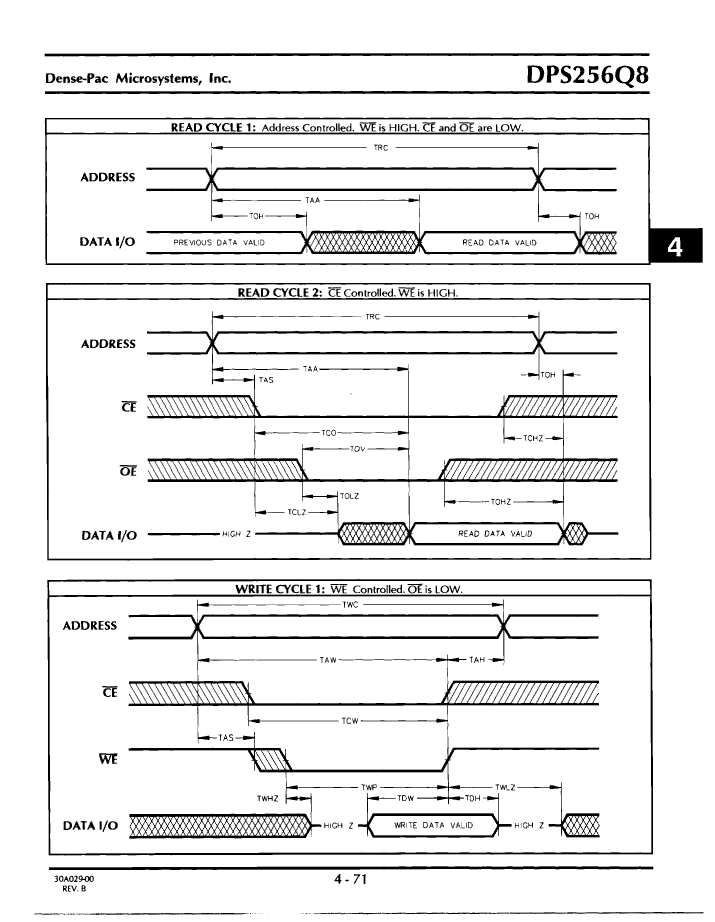

DPS256Q8-70I datasheet, PDF - EEWORLD Datasheet

DPS256Q8-70I: DescriptionSRAM Module, 256KX8, 70ns, CMOS, CQIP42, CERQUAD-42; Categorystorage storage; File Size224KB，7 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric View All

DPS256Q8-70I Overview

SRAM Module, 256KX8, 70ns, CMOS, CQIP42, CERQUAD-42

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	B&B Electronics Manufacturing Company
Parts packaging code	QFP
package instruction	QIP, QUAD42,1.1X1.4
Contacts	42
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-CQIP-T42
JESD-609 code	e0
length	35.56 mm
memory density	2097152 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	42
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Encapsulate equivalent code	QUAD42,1.1X1.4
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	6.604 mm
Maximum standby current	0.0032 A
Minimum standby current	2 V
Maximum slew rate	0.405 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	QUAD
width	27.94 mm
