BMB1812-P1A-121LF: DescriptionFerrite Chip, 1 Function(s), 3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812; CategoryAnalog mixed-signal IC filter; File Size224KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

BMB1812-P1A-121LF Overview

Ferrite Chip, 1 Function(s), 3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 1812

BMB1812-P1A-121LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.04 Ω
filter type	FERRITE CHIP
high	1.5 mm
JESD-609 code	e3
length	4.5 mm
Manufacturer's serial number	BMB
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L4.5XB3.2XH1.5 (mm)/L0.177XB0.126XH0.059 (inch)
Rated current	3 A
Terminal surface	Matte Tin (Sn)
width	3.2 mm

Preview

Download Datasheet

View All

Electrical / Environmental

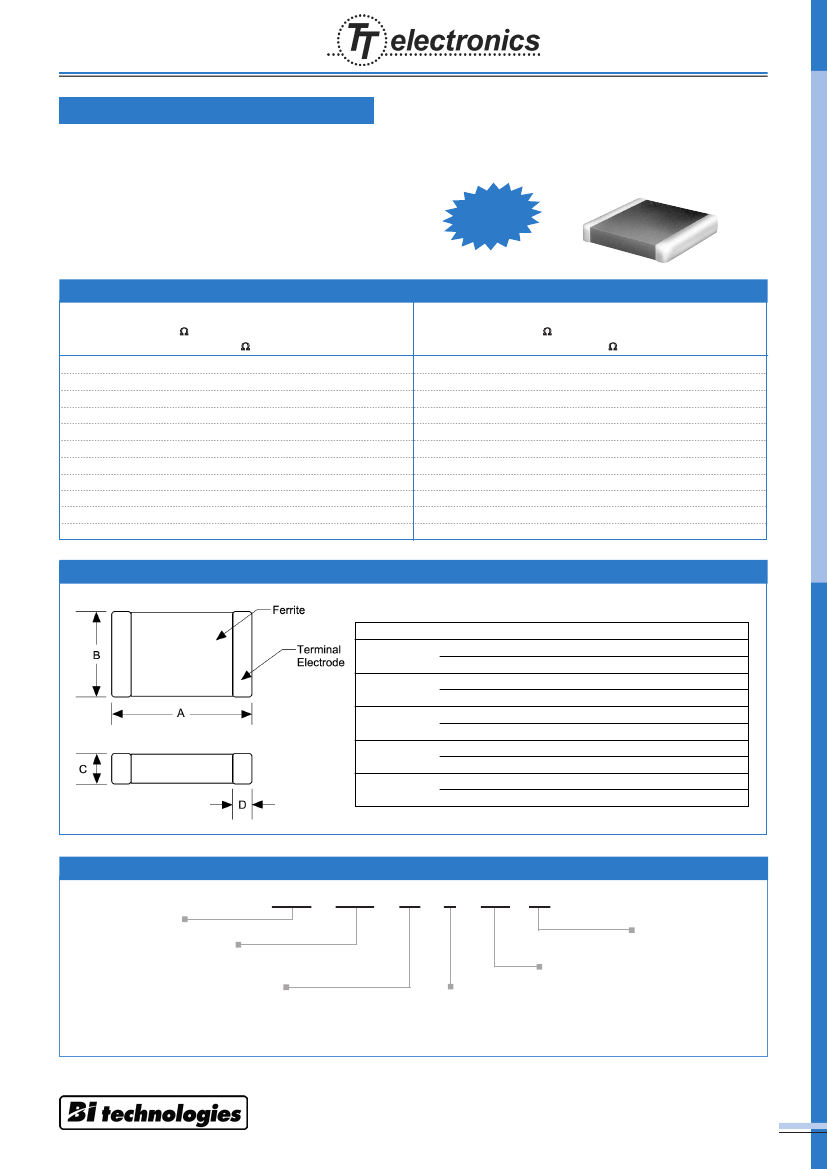

High Current Surface Mount Multilayer Chip Beads,

0603 - 1812 Industry Sizes

• Operating Temperature Range

• Resistance to Solder Heat

-55°C to +125°C

260°C for 10 sec.

BMB

S

RoH

liant

mp

Co

Specifications / Packaging

Part

Number

Impedance

Z

W

±

25%

@ 100 MHz

30

60

120

600

30

60

120

600

50

DCR

W

Max.

0.04

0.09

0.20

0.04

0.02

0.20

0.09

0.04

Rated

Current

mA Max.

3000

2000

1000

3000

5000

1000

2000

3000

7” Reel

Qty

(Units)

4K

4k

4K

3K

Part

Number

Impedance

Z

W

±

25%

@ 100 MHz

Rated

7” Reel

DCR

Current

Qty

W

Max. mA Max. (Units)

0.015

0.04

0.07

0.04

0.015

0.04

0.015

0.04

6000

3000

2500

3000

6000

3000

6000

3000

3K

3k

2K

1K

BMB0603-P1A-300LF

BMB0603-P1A-600LF

BMB0603-P1A-121LF

BMB0603-P1A-601LF

BMB0805-P1A-300LF

BMB0805-P1A-600LF

BMB0805-P1A-121LF

BMB0805-P2A-121LF

BMB0805-P1A-601LF

BMB0805-P1A-601NLF

BMB1206-P1A-500LF

BMB1206-P2A-500LF

50

BMB1206-P1A-121LF

120

BMB1206-P1A-501LF

500

BMB1206-P1A-601LF

600

BMB1806-P1A-600LF

60

BMB1806-P2A-600LF

60

BMB1812-P1A-121LF

120

BMB1812-P2A-121LF

120

BMB1812-P1A-601LF 600 @ 50 MHz

BMB1812-P1B-132LF 1300 @ 60 MHz

Outline Dimensions (Inch/mm)

Part #

BMB 0603

(1608)

BMB 0805

(2012)

BMB 1206

(3216)

BMB 1806

(4516)

BMB 1812

(4532)

A Dim.

.063 ± .006

1.6 ± 0.15

.079 ± .008

2.0 ± 0.20

.126 ± .008

3.2 ± 0.20

.177 ± 0.01

4.5 ± 0.25

.177 ± 0.01

4.5 ± 0.25

B Dim.

.031 ± .006

0.8 ± 0.15

.049 ± .008

1.25 ± 0.20

.063 ± .008

1.6 ± 0.20

.063 ± .008

1.6 ± 0.20

.126 ± .01

3.2 ± 0.25

C Dim.

.031 ± .006

0.8 ± 0.15

.035 ± .008

0.9 ± 0.20

.043 ± .008

1.1 ± 0.20

.063 ± .008

1.6 ± 0.20

.059 ± .010

1.5 ± 0.25

D Dim.

.012 ± .008

0.3 ± 0.20

.020 ± .012

0.5 ± 0.30

.020 ± .012

0.5 ± 0.30

.024 ± .016

0.6 ± 0.40

.024 ± .016

0.6 ± 0.40

Ordering Information

Model Series

Body Dimensions:

Length (A) x Width (B)

Current Code:

P1 = 1000 to 3,000 mA

P2 = Up to 6,000 mA

Material Characteristics:

A: Standard Speed

B: High Speed

BMB

1812 - P1

A - 121

LF

Lead-Free

Impedance

(120

W)

www.bitechnologies.com

2009/10 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE

141

We reserve the right to change specifications without prior notice.
