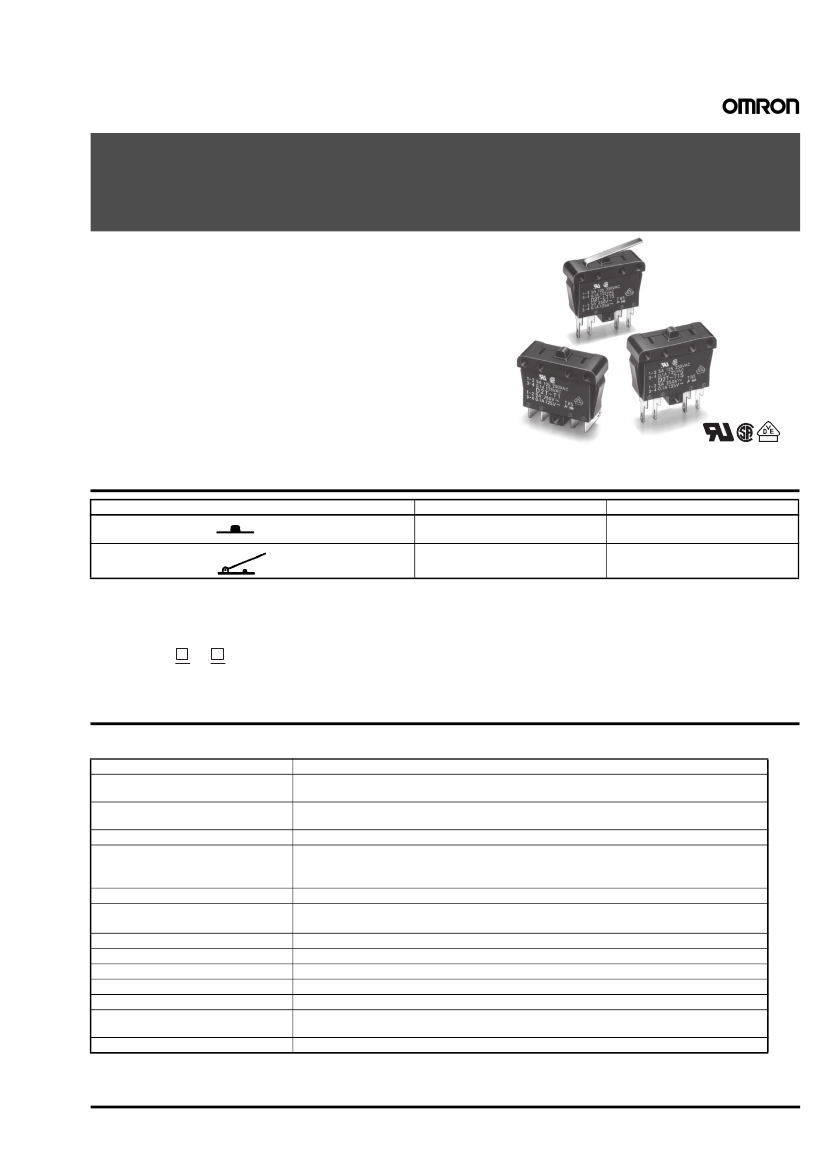

Door Interlock Switch
D2T
Compact DPST-NO Snap Action Switch
• Incorporates circuits for power and low-level loads
• Approved by safety standards, such as UL, CSA, and VDE
• As compact as OMRON's V-series snap action switches
• Contact gap of 0.7 mm min.
• Panel or screw-mounted with ease
• Straight and angled terminals are available
• RoHS Compliant
Ordering Information
Actuator
Pin plunger
Hinge lever
Right-angled solder terminal
D2T-T1
D2T-LT1
Straight solder terminal
D2T-T1S
D2T-LT1S
Note:
The actuator of the D2T is identical to that used for OMRON's V-series Snap-action Switches. The actuator can be replaced with other types
of actuators. Contact your OMRON representative for details.
Model Number Legend
D2T- T1
1
2
1.
Actuator
None:
Pin plunger
L:
Hinge lever
2.
Terminals
None:
Right-angled solder terminals
S:
Straight solder terminals
Specifications
■
Characteristics
(Initial)
Operating speed
Operating frequency
10 to 500 mm/second
Mechanical: 120 operations per minute max.
Electrical: 30 operations per minute max.
Contact resistance
50 mΩ max. between terminals 1 and 2
100 mΩ max. between terminals 3 and 4
Insulation resistance
100 MΩ min. (at 500 VDC)
Dielectric strength (See note 1)
1,000 VAC for 1 minute 50/60 Hz between terminals of same polarity
1,500 VAC for 1 minute 50/60 Hz between current-carrying metal parts and ground, and between
each terminal and non-current-carrying metal part, and between terminals of different polarity
Vibration resistance (See note 2)
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Shock resistance (See note 2)
Destruction: 1,000 m/s
2
(approx 100G) max.
Malfunction: 300 m/s
2
(approx. 30G) max.
Degree of protection
IEC IP40
Degree of protection vs. electric shock
Class I
Proof tracking index (PTI)
175
Ambient operating temperature
-25° to 85°C (at 60% RH max.) with no icing
Ambient operating humidity
85% max (for 5°C to 35°C)
Life expectancy
Mechanical: 100,000 operations min. at 60 operations/minute
Electrical: 100,000 operations min. at 30 operations/minute
Weight
Approx. 10 g (for pin plunger models)
Note: 1.
The dielectric strength shown is measured using a separator between the switch and metal mounting plate
2.
For the pin plunger models, the above values apply for use at the free position and total travel position.
For lever models, they apply at the total travel position. Contact opening or closing time is within 1ms.
Door Interlock Switch
D2T
37
