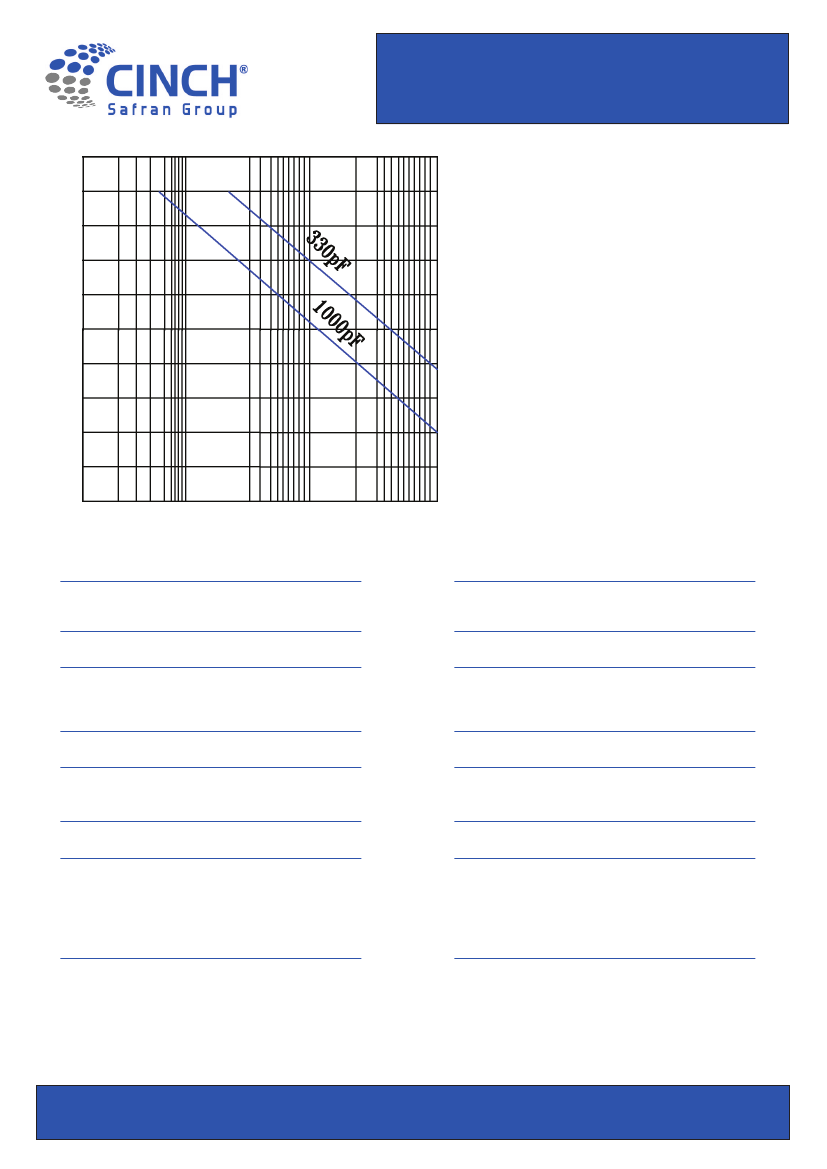

FILTERED HIGH DENSITY D SUB
CONNECTORS

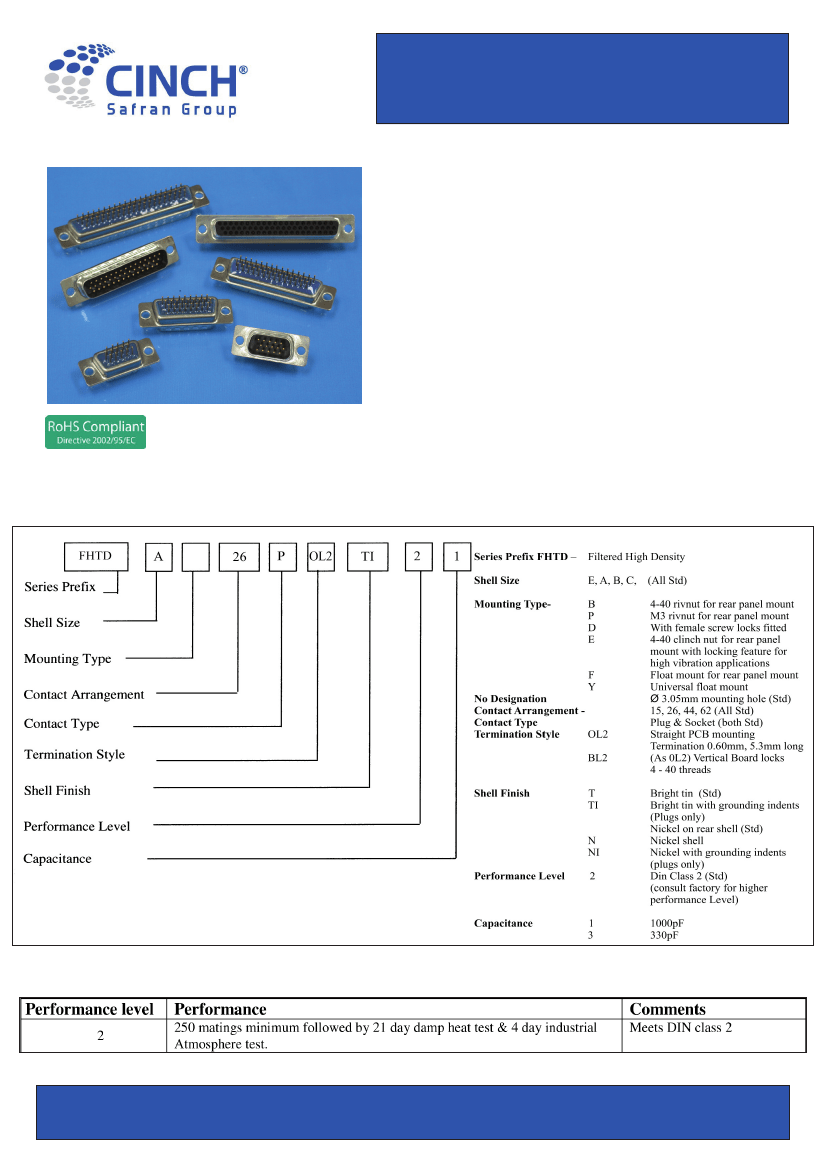

Cinch Filtered High Density Connector offers a higher Contact
density to save space but maintains all the benefits of Cinch `s
high performing Std Filter D Sub Connector range.
Features :
• Cinch High Density Filtered D Sub is a high quality
Turned Pin Contact Connector.
• Specially designed for commercial applications where
space is critical.
• The encapsulation of filter elements is made with Epoxy
for maximum resistance to hazardous environments.
• Cinch High Density Filtered D Sub range have the same
size & footprint as the Standard HTD22
D Sub Connectors.
• Accepts Standard Cinch D Sub accessories.
• Compatible to other High Density HTD22 Connectors
& variants.
• Bright Tin & Nickel finish shells with grounding
indents for EMI / RFI shielding.
Part Numbering
Plating Specification
Cinch Ltd, Shireoaks Road, Worksop, Nottinghamshire, S80 3HA
Telephone (01909) 504380, Facsimile (01909) 478321, Website www.cinchuk.com
FILTERED HIGH DENSITY D SUB
CONNECTORS
0cB
5
10
Insertion Loss dB
15
20
25
30
35
40
45
1MHz
10MHz
100MHz
Frequency MH
Z
50
1GHz
Capacitance
330pF, Tol +50% -20%
1000pF, Tol +80% -20%
Working Voltage
200V d.c. or a.c. peak
1 – 1000pF
3 – 330pF
Typical performance relates to
50 Ω system.
Mill-Std, – Measured at 1KHz 0.1rms
Termination options
Straight flow solder
OL2
Number of Contacts
Maximum Insertion
& Extraction Force
Performance Level
15 26 44 62
45 76 125 174N
2
Contact Resistance
5 x 10
-3
Ω max
Insulation Resistance
≥ 5 x 10
9
Ω
Insulator Material
Current Rating
UL94V-0 rated +
High impact Epoxy
5A
Plug Contact Material
Copper Alloy
Skt Contact Material
Copper Alloy
Shell Materials
Front: Steel - Bright Tin finish
Rear: Steel –Electrolytic
Nickel finish
(Grounding indents on Plugs only)
Temperature Range
-25°C to +125°C
Cinch Ltd, Shireoaks Road, Worksop, Nottinghamshire, S80 3HA
Telephone (01909) 504380, Facsimile (01909) 478321, Website www.cinchuk.com
FILTERED HIGH DENSITY D SUB
CONNECTORS

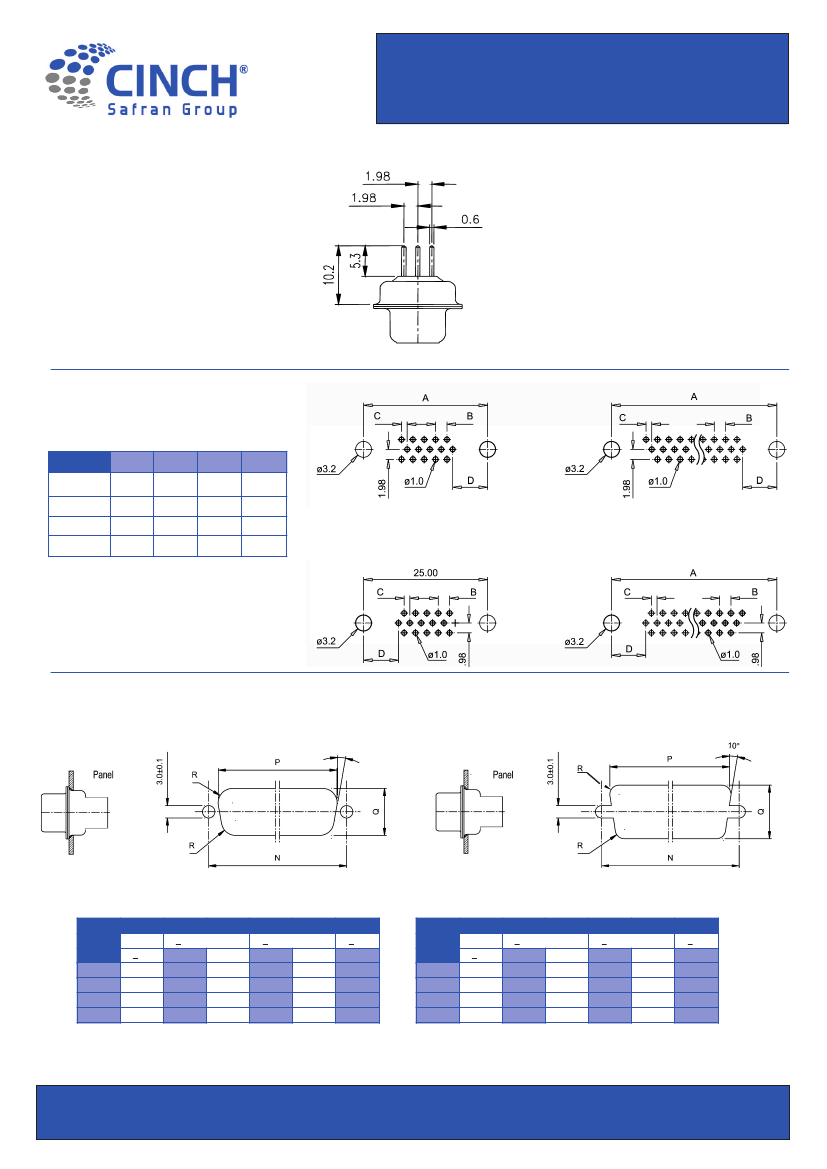

Dimensions for High Density Filter D Sub Connectors
PCB Mounting Details
Positive
15M / F
26M / F
44M / F
62M / F
A
25.0
33.3
47.1
63.5
B
2.29
2.29
2.29
2.41
C
1.145
1.145
1.145
1.205
D
7.04
6.88
6.88
7.00
15 Position Female
26, 44, 62 Position Female
Panel Mounting Details
Rear
10
0
Front
Number
of
P+(0.2)
Dimensions (mm)
Q+(0.2)
Number
R+(0.2)
of
P+(0.2)
Dimensions (mm)
Q+(0.2)
R+(0.2)
contacts
N+(0.2) Standard
Float Mount
Standard
Float Mount
Standard
16
24.99
20.32
21.16
11.30
12.09
3.50
26
44
62
33.32
47.04
63.50
28.70
42.42
58.93
29.49
43.20
59.77
11.30
11.30
11.30
12.09
12.09
12.09
3.50
3.50
3.50
contacts
N+(0.2) Standard
Float Mount
Standard
Float Mount
Standard
15
24.99
22.07
22.88
12.90
13.71
2.25
26
44
62
33.32
47.04
63.50
30.40
44.14
60.60
31.22
44.95
61.42
12.90
12.90
12.90
13.71
13.71
13.71
2.25
2.25
2.25
Cinch Ltd, Shireoaks Road, Worksop, Nottinghamshire, S80 3HA
Telephone (01909) 504380, Facsimile (01909) 478321, Website www.cinchuk.com
Proven Excellence
For over 70 years, Cinch has been a reliable supplier
of a variety of quality connector products to various
industries. We are a multi-national manufacturer
with manufacturing facilities in the U.S., U.K.
and Mexico.
Cinch has applied its extensive expertise in
interconnection technology to engineer and
manufacture connectors of various complexities
using state-of-the-art technology and tooling.
Mechanical design is accomplished using Pro/E
R
3D solid modeling nd AutoCAD
R
supported by
nonlinear and linear Finite Element Analysis,
and Mold Flow software.
Our engineers utilize in-house capabilities in high
frequency interconnect simulation, SPICE model
generation and high frequency testing to develop
the optimum product.
All prodects are validated in Cinch’s First Article,
mechanical, electrical, and environmental test
facilities ensuring the finished products meet our
customers’ most stringent specifications.
Simply, your connectors are manufactured
in state-of-the-art facilities that are committed
to customer satisfaction and continuous improvement.
Cinch Connectors
1700 Finley Road
Lombard, IL 60148 USA
Phone: 1.630.705.6000
1.800.323.9612
Fax: 1.630.705.6060
E-mail: info@cinch.com
Cinch Connectors Ltd.
Shireoaks Road Worksop
S80 3HA
Nottinghamshire, U.K.
Phone: 44.1.909.474131
Fax: 44.1.909.478321
E-mail: info@cinchuk.com
c 2006 Cinch Connectors Inc.
MIL AERO-UK-505/03.06
