HI1-302/883 datasheet, PDF - EEWORLD Datasheet

HI1-302/883: DescriptionDPST, 2 Func, 2 Channel, CMOS, CDIP14; CategoryAnalog mixed-signal IC The signal circuit; File Size223KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

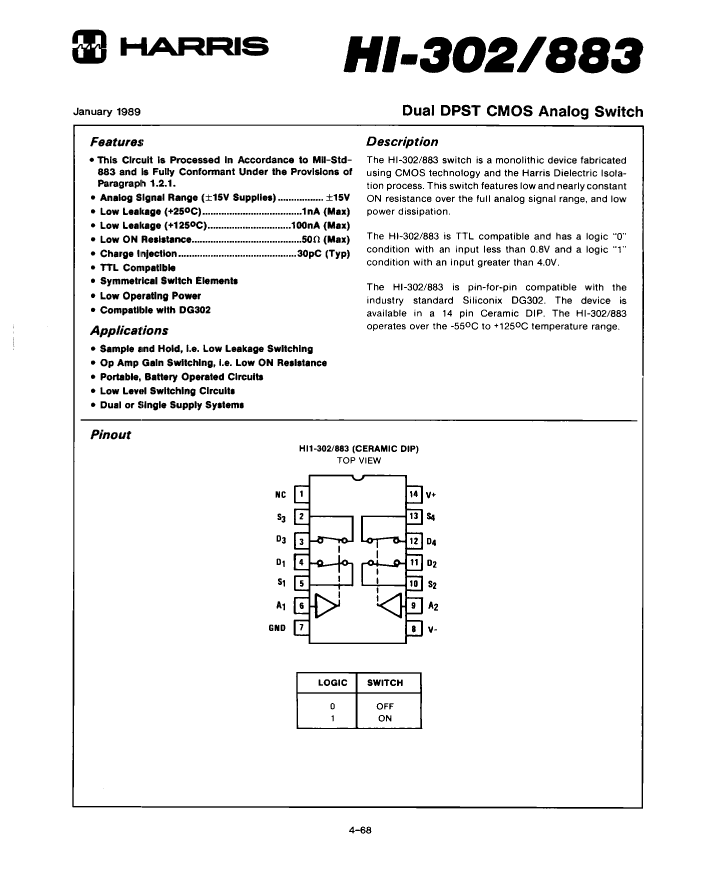

HI1-302/883 Overview

DPST, 2 Func, 2 Channel, CMOS, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	2
Number of functions	2
Number of terminals	14
Nominal off-state isolation	40 dB

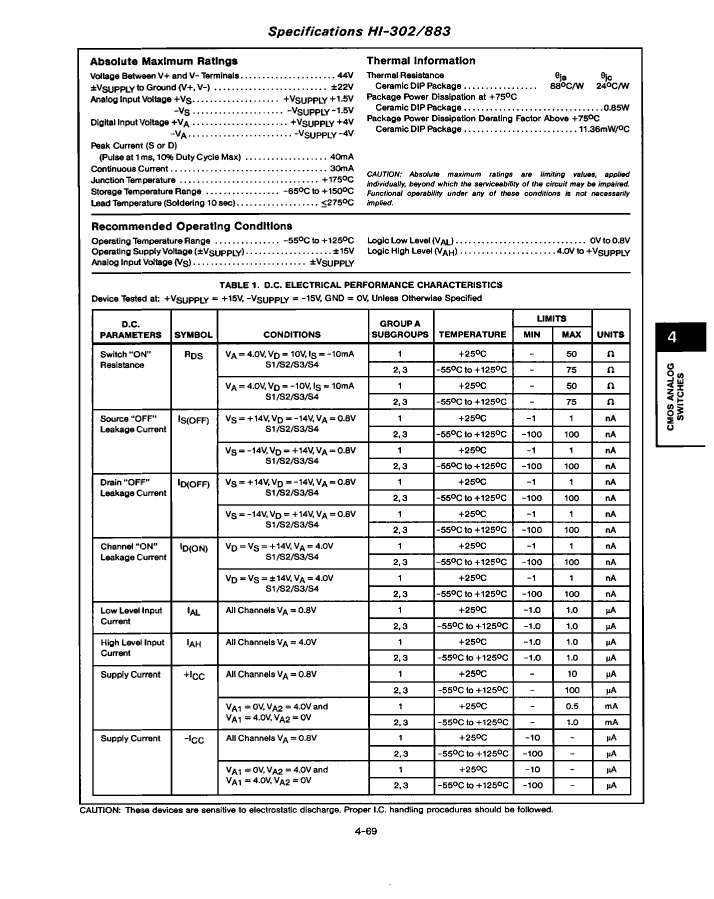

Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum supply current (Isup)	1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO

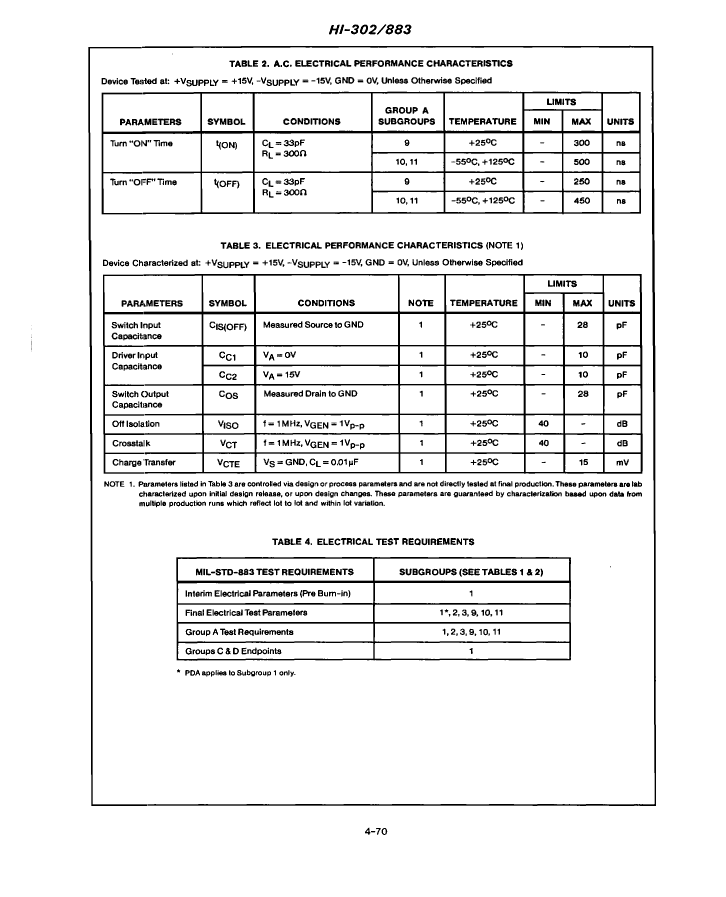

Maximum disconnect time	250 ns
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

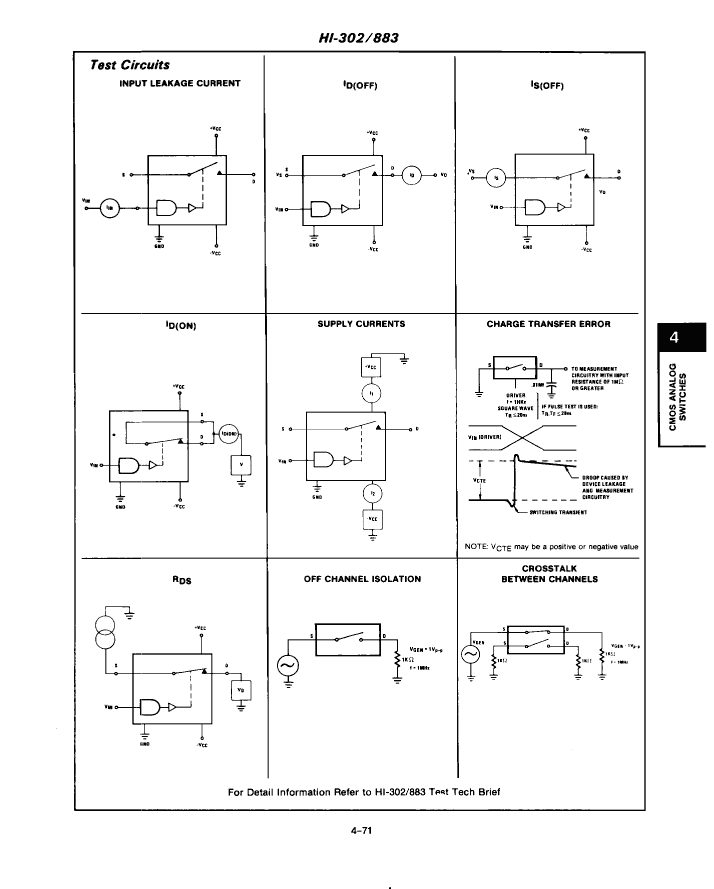

	HI1-302/883
Description	DPST, 2 Func, 2 Channel, CMOS, CDIP14
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	2
Number of functions	2
Number of terminals	14
Nominal off-state isolation	40 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum supply current (Isup)	1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	250 ns
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
