G5A-237PH-DC6: DescriptionPower/Signal Relay, DPDT, Momentary, 0.025A (Coil), 6VDC (Coil), 150mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size177KB，8 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

G5A-237PH-DC6 Overview

Power/Signal Relay, DPDT, Momentary, 0.025A (Coil), 6VDC (Coil), 150mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

G5A-237PH-DC6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OMRON
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	9.9 mm
body height	8.4 mm
Body length or diameter	16 mm
Maximum coil current (DC)	0.025 A
Coil operating voltage (DC)	4.8 V
Coil power	150 mW
Coil release voltage (DC)	0.6 V
Coil resistance	240 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@60VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Maximum contact voltage (AC)	60 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	G5A
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	5.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	16mm X 9.9mm X 8.4mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	5.5 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

Low Signal Relay

G5A

• Subminiature 8.40 H x 9.90 W x 16 L mm

(0.33 H x 0.38 W x 0.63 L in).

• Unique moving magnet armature reduces relay size,

magnetic interference, and contact bounce time.

• Low nominal power consumption (200 mW).

• Bifurcated crossbar contact assures highly reliable

switching of loads as low as 10 mVDC, 0.1 mA

(reference value).

• Automatic flow or dip soldering possible.

• Available in standard, high-sensitivity, high-dielectric

(FCC part 68), low thermoelectromotive force, and

ultrasonic cleaning versions.

• Highly stable magnetic circuit for latching endurance and

excellent resistance to vibration and shock.

• Single or double coil winding types available.

Ordering Information

To Order: Select the part number and add the desired coil voltage rating (e.g., G5AU-234P-DC12).

■

Non-Latching

Type

Standard

High-sensitivity

FCC part 68

Contact form

DPDT

Construction

Semi-sealed

Sealed

Semi-sealed

Sealed

Semi-sealed

Sealed

Note:

High-sensitivity versions of the FC type are also available.

G5A-237P

G5A-234P

G5A-237PH

G5A-234PH

G5A-237P-FC

G5A-234P-FC

Model

■

Latching

Type

Standard

Contact form

DPDT

Construction

Single-winding latching

Semi-sealed

Sealed

High-sensitivity

FCC part 68

Semi-sealed

Sealed

Semi-sealed

Sealed

G5AU-237P

G5AU-234P

G5AU-237PH

G5AU-234PH

G5AU-237P-FC

G5AU-234P-FC

Model

Double-winding latching

G5AK-237P

G5AK-234P

G5AK-237P-FC

G5AK-234P-FC

108

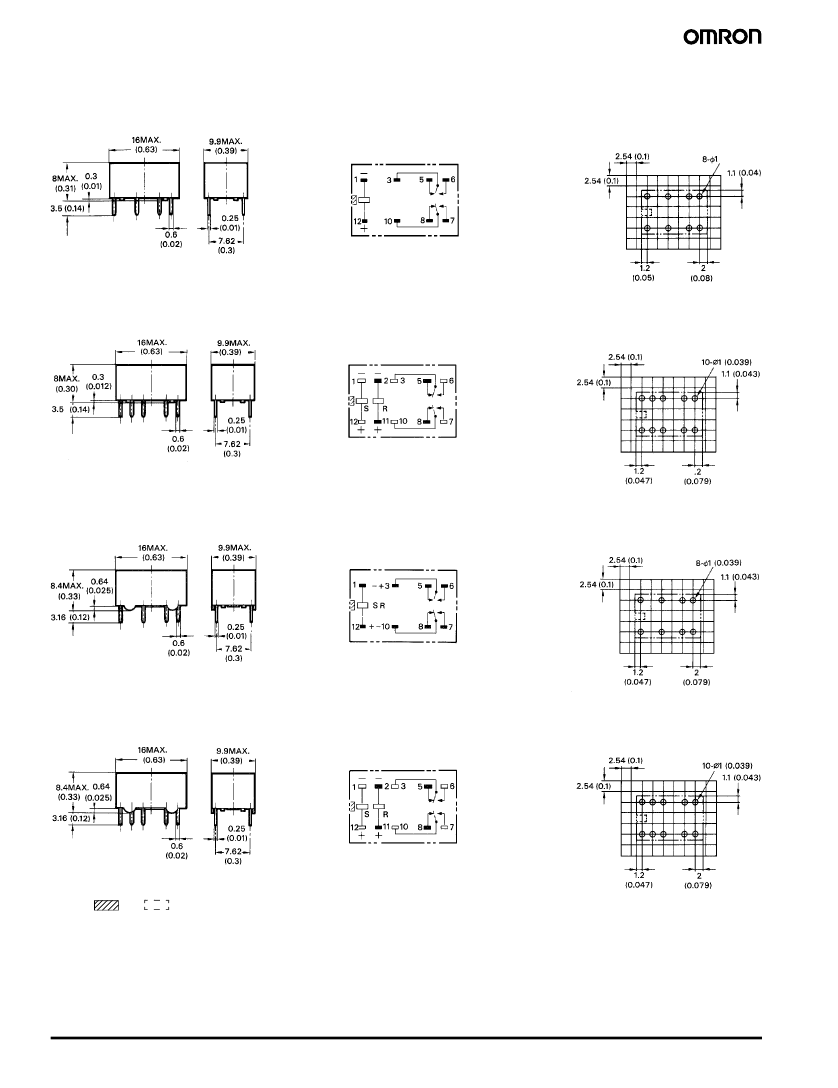

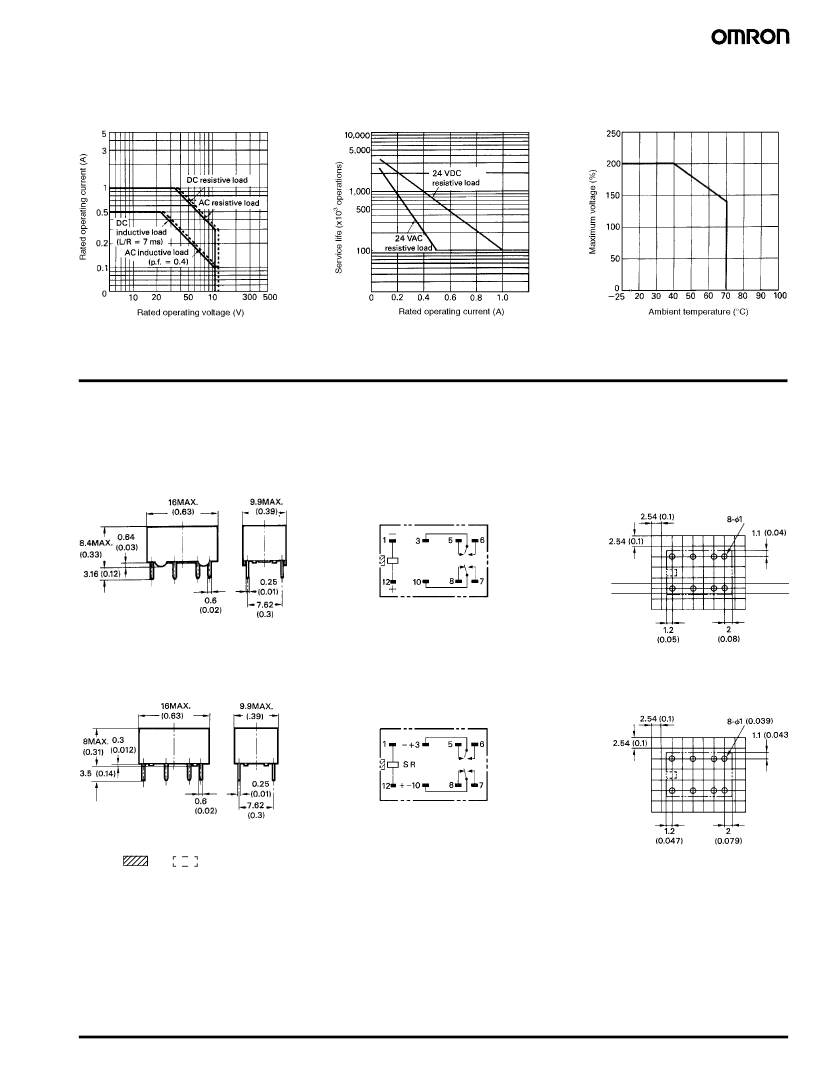

Low Signal Relay

G5A

G5A-237PH-DC6 Related Products

	G5A-237PH-DC6	G5A-237PH-DC24	G5A-237P-DC48	G5A-234PH-DC24
Description	Power/Signal Relay, DPDT, Momentary, 0.025A (Coil), 6VDC (Coil), 150mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, DPDT, Momentary, 0.007A (Coil), 24VDC (Coil), 150mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, DPDT, Momentary, 0.006A (Coil), 48VDC (Coil), 280mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, DPDT, Momentary, 0.007A (Coil), 24VDC (Coil), 150mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	OMRON	OMRON	OMRON	OMRON
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	9.9 mm	9.9 mm	9.9 mm	9.9 mm
body height	8.4 mm	8.4 mm	8.4 mm	8 mm
Body length or diameter	16 mm	16 mm	16 mm	16 mm
Maximum coil current (DC)	0.025 A	0.007 A	0.006 A	0.007 A
Coil operating voltage (DC)	4.8 V	19.2 V	33.6 V	19.2 V
Coil power	150 mW	150 mW	280 mW	150 mW
Coil release voltage (DC)	0.6 V	2.4 V	4.8 V	2.4 V
Coil resistance	240 Ω	3700 Ω	8230 Ω	3700 Ω
Maximum coil voltage (DC)	6 V	24 V	48 V	24 V
Coil/Input Power Type	DC	DC	DC	DC
Contact (AC) maximum rated R load	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC
Maximum contact current (AC)	0.5 A	0.5 A	0.5 A	0.5 A
Maximum contact current (DC)	1 A	1 A	1 A	1 A
Contact (DC) maximum rated R load	1A@30VDC	1A@30VDC	1A@30VDC	1A@30VDC
Maximum contact voltage (AC)	60 V	60 V	60 V	60 V
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC
Manufacturer's serial number	G5A	G5A	G5A	G5A
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	5.5 ms	5.5 ms	5.5 ms	5.5 ms
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
physical size	16mm X 9.9mm X 8.4mm	16mm X 9.9mm X 8.4mm	16mm X 9.9mm X 8.4mm	16mm X 9.9mm X 8mm
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	DPDT	DPDT	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	5.5 ms	5.5 ms	5.5 ms	5.5 ms
surface mount	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
