PTS645VL31 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> PTS645VL31

PTS645VL31: DescriptionKEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.27N, THROUGH HOLE-RIGHT ANGLE; CategoryMechanical and electronic products switch; File Size80KB，1 Pages; ManufacturerC&K

Download Datasheet Parametric View All

PTS645VL31 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTS645VL31	-	-	View	Buy Now

PTS645VL31 Overview

KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 12VDC, 1.27N, THROUGH HOLE-RIGHT ANGLE

PTS645VL31 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	C&K
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.024 inch
Actuator type	PUSHBUTTON
Other features	ROHS COMPLIANT
body width	6.5 mm
body height	7.1 mm
Body length or diameter	7.5 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Contact resistance	0.1 mΩ
contact time	SNAP ACTION
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	100000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Insulation resistance	100000000000 Ω
Manufacturer's serial number	PTS645
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switches	1
Maximum operating force	1.27 N
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB hole count	4
method of packing	BULK
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

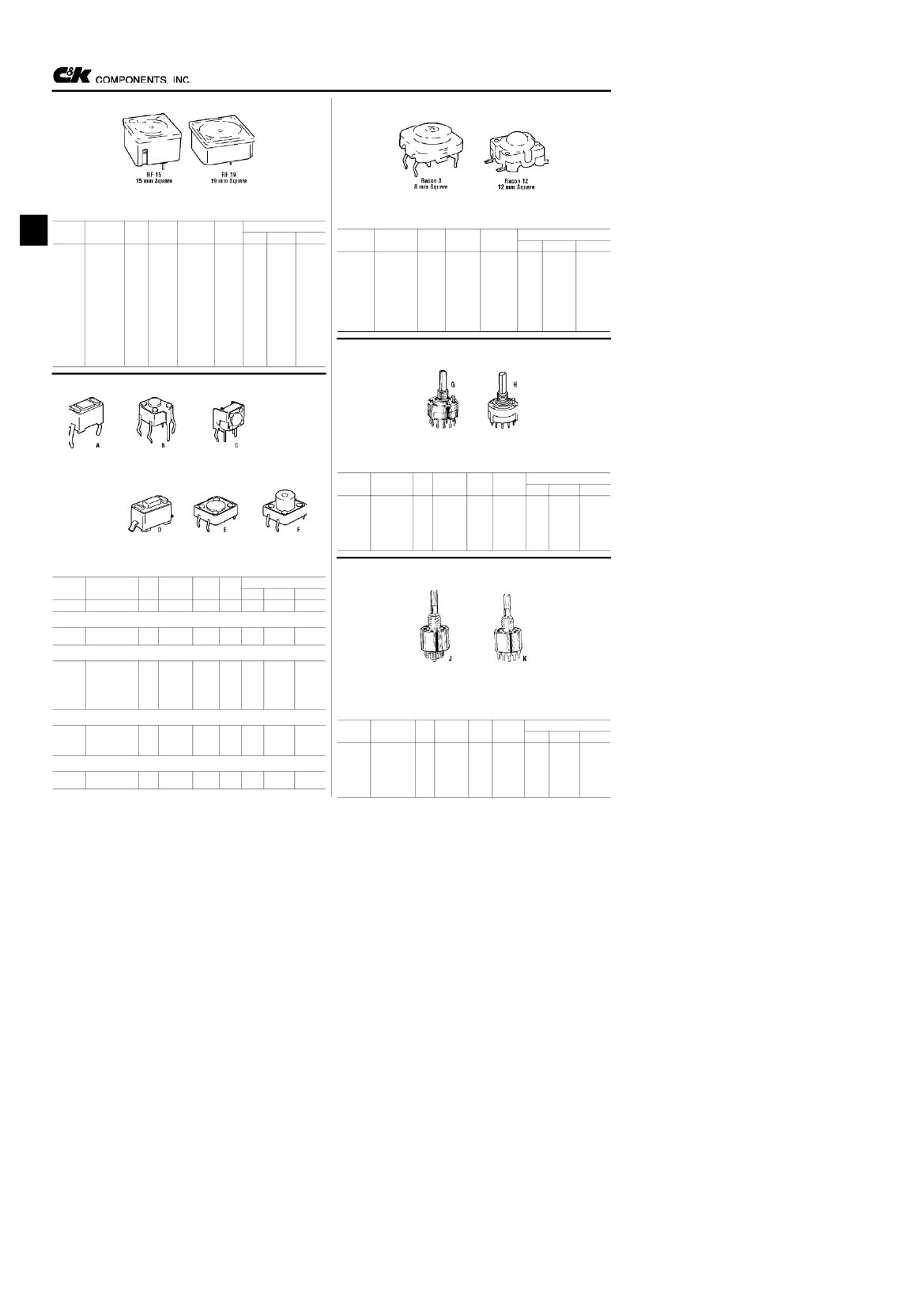

Components

Tactile and Rotary Switches

Racon 8, 12 and 12H Series Short Travel Tactile Switches

RF 15 and 19 Series Tactile Switches

Momentary SPST PCB mounted tactile switches.

Operating Life:

1,000,000 cycles minimum.

Operating Temperature:

Ð25¡C to 70¡C. Gold contacts are rated to 42 V and 100 mA AC/DC, maximum power 2 W. Silver contacts are rated to

50 V and 250 mA AC/DC, maximum power 12.5 W.

Actuator Height:

9.7 mm. Other actuator heights and spot-or full-

illumination are also available.

Stock

No.

676-4156

676-4157

676-9106

676-9107

676-9108

676-9109

676-9110

676-9111

676-9112

676-9113

676-4158

676-4159

676-9114

676-9115

676-9116

676-9117

676-9118

676-9119

676-9120

Mfr.Õs

Type

3.14100.001

3.14100.006

3.14100.030

3.14100.031

3.14100.032

3.14100.033

3.14100.040

3.14100.041

3.14100.042

3.14100.043

3.14001.001

3.14001.006

3.14001.031

3.14001.032

3.14001.033

3.14001.040

3.14001.041

3.14001.042

3.14001.043

Model

RF 15

RF 19

Contact

Material

Gold

Silver

Gold

Silver

Gold

Silver

Gold

Silver

Illumination

None

Spot

None

Spot

Actuator

Color

Clear

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Clear

Red

Green

Yellow

Blue

Red

Green

Yellow

EACH

1-99

2.47

2.15

16.34

5.32

14.24

4.39

2.71

2.15

5.32

15.97

4.92

100-499

2.20

1.92

14.16

4.61

12.34

3.81

2.40

1.93

4.61

13.84

4.27

500-999

2.00

1.76

13.07

4.25

11.39

3.52

2.19

1.76

4.25

12.77

3.94

Momentary SPST PCB mounted tactile switches are solder-proof and wash-proof.

Operating Life:

1,000,000 cycles

minimum. These switches are rated at 42 VAC/DC and 100 mA.

Actuator Height:

5 mm or 6.5/6.6 mm. Other actuator

heights are also available.

Stock

No.

676-4150

676-4151

676-4152

676-9100

676-9101

676-9102

676-4153

676-4154

676-4155

676-9103

676-9104

676-9105

Mfr.Õs

Type

1.14100.001

1.14100.002

1.14100.003

1.14100.011

1.14100.012

1.14100.013

1.14001.001

1.14001.002

1.14001.003

1.14001.011

1.14001.012

1.14001.013

Model

Terminals

Outward

Inward

SMD

Outward

Inward

SMD

Outward

Inward

SMD

Outward

Inward

SMD

Actuator

Type

Flush

Extended

Flush

Extended

EACH

1-99

4.04

3.68

3.12

4.18

2.10

3.68

3.74

1.77

4.18

1.96

100-499

3.59

3.25

2.78

3.62

1.82

3.28

3.33

1.55

3.62

1.70

500-999

3.27

3.00

2.54

3.35

3.34

1.68

2.99

3.04

1.41

3.34

1.57

A Series Rotary Switches

PTS Series Subminiature Tactile Switches

Contact Rating:

Switch Ñ 2.5 amps at 125 VAC; 350 mA at 250 VDC (UL/CSA); Carry Ñ 5 amps continuous.

Electrical

Life:

15,000 make-and-break cycles at full load.

Insulation Resistance:

ohms min.

Dielectric Strength:

1,000 V rms min.

at sea level.

Housing, Top Plate, and Bushing:

Glass filled nylon.

Movable Contact:

Coin silver, silver plated.

Stationary

Contacts and Terminals:

Brass, silver plated.

Included Hardware:

Nut, lockwasher, and stop ring.

Stock

No.

676-4257

676-4258

676-4259

676-4260

676-4261

676-4262

676-4263

676-4264

Mfr.Õs

Type

A11215RNZQ

A20615RNZQ

A30415RNZQ

A40315RNZQ

A11215RNCQ

A20615RNCQ

A30415RNCQ

A40315RNCQ

Fig.

Terminals

Solder

No. of

Poles

No. of

Positions

EACH

1-99

3.97

5.19

4.15

5.68

4.89

5.19

5.13

5.62

100-499

3.54

4.61

3.70

5.05

4.36

4.61

4.58

4.99

500-999

3.23

4.23

3.37

4.61

3.98

4.23

4.17

4.56

Tactile feel, PC mountable tactile switches. SPST normally open momentary.

Contact Rating:

50 mA @ 12 V DC.

Mechanical and Electrical Life:

25,000 operations for PTS635S and PTS453S/T models; 100,000 operations for

PTS645S/T and PTS645V models; 200,000 operations for PTS125S models.

Contact Resistance:

100 M½ max. initial.

Operating Temperature:

Ð10¡C to 60¡C.

3.5 mm Models

Stock

No.

676-5050

Mfr.Õs

Type

PTS635SL43*

Fig.

Operating

Force

130

Switch

Height

0.169

ESD

EACH

1-99

.46

100-499

.39

500-999

.37

M Series Half-Inch Rotary Switches

4.5

4.5 mm Models

676-5054

676-5055

PTS453SL38*

PTS453TL38*

130

0.150

Yes

.59

.53

.51

.46

.47

.42

6 mm Models

676-5056

676-5065

676-5066

676-5072

676-5075

676-5077

676-5080

PTS645SL43*

PTS645TL50*

PTS645TL70*

PTS645VL31*

PTS545VL83*

PTS645VH31

PTS645VH83

130

200

0.169

0.197

0.275

0.124

0.329

0.124

0.329

Yes

.34

.35

.34

.40

.34

.40

.29

.30

.29

.34

.29

.34

.27

.32

.27

.32

Contact Rating:

Switch Ñ 250 mA max. at 125 VAC or 28 VDC; Carry Ñ 6 amps continuous, non-shorting contacts.

Electrical

Life:

10,000 make-and-break cycles at 150 mA, 125 VAC or 28 VDC.

Insulation Resistance:

ohms min.

Dielectric

Strength:

600 V rms min. at sea level.

Housing and Bushing:

Zinc alloy, bright zinc plated with clear chromate finish.

Bushing:

-28UNF-2A, .250" length.

Actuator:

Zinc alloy, nickel plated.

Base:

Diallyl phthalate, with insert molded terminals.

Contacts

and Terminals:

Brass, silver plated.

Indexing:

MA00, MB00, models Ñ 36¡; MC00, MD00 models Ñ 30¡. All models have full

360¡ rotation with no stops. Stop pins are supplied for user-selectable stops.

Included Hardware:

Nut and lockwasher.

Stock

No.

676-1980

676-1985

676-1990

676-1995

676-2000

676-2006

676-2010

676-2015

Mfr.Õs

Type

MA00L1NZQD

MC00L1NZQD

MB00L1NZQD

MD00L1NZQD

MA00L1NCQD

MC00L1NCQD

MB00L1NCQD

MD00L1NCQD

Fig.

Terminals

Solder

No. of

Poles

No. of

Positions

EACH

1-99

9.17

9.40

10.21

10.48

7.86

9.69

10.49

10.76

100-499

8.33

8.54

9.25

9.51

6.13

7.52

8.15

8.38

500-999

7.61

7.80

8.45

8.69

5.66

6.95

7.53

7.74

3.5 mm Surface Mount Models

676-9121

676-9122

676-9123

676-9124

PTS635SL43SM*

PTS635SH43SM

PTS635SL25SM*

PTS635SK25SM

130

200

130

200

0.159

0.169

.64

.72

.55

.61

.51

.57

12 mm Models

676-5082

676-5083

PTS125SM43

PTS125SM85

160

0.169

0.335

.39

.35

.34

.31

.28

Actuator Color:

*Black; Gray.

200

ALLIED

For Local Personalized Service Call 1-800-433-5700
