RM3182AL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> RM3182AL

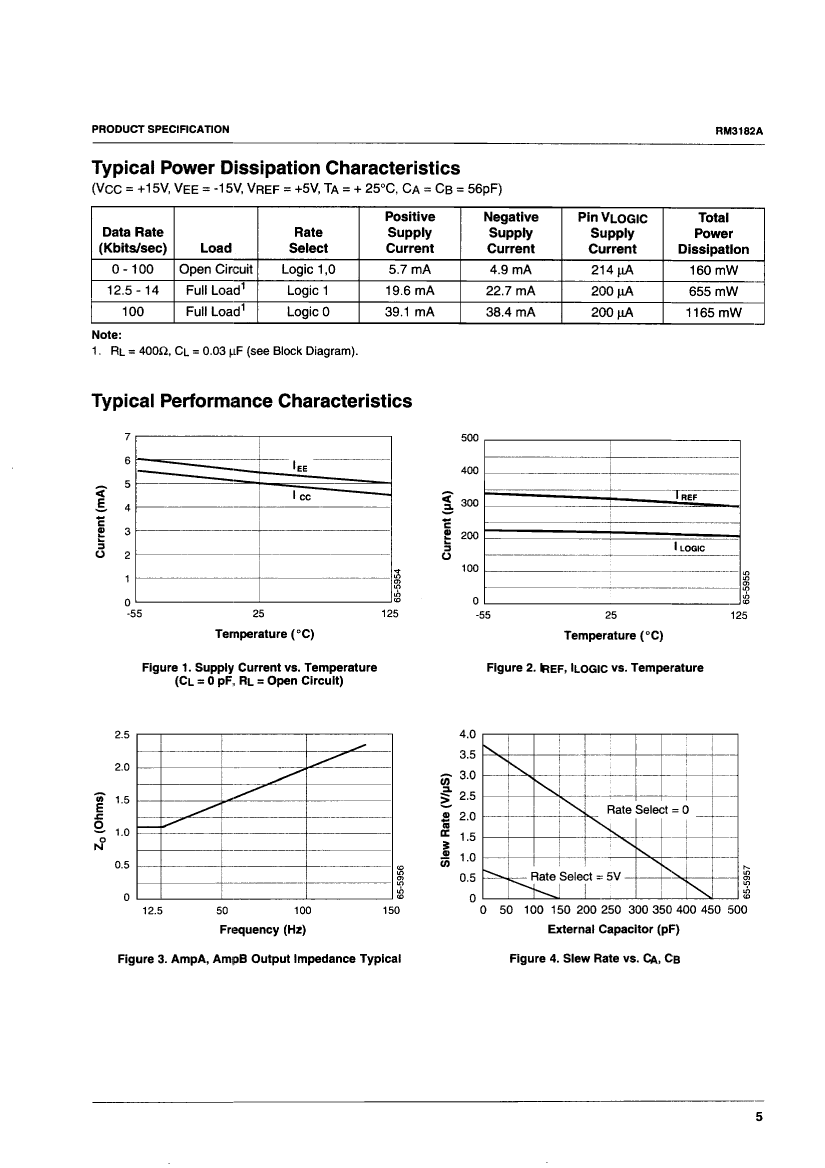

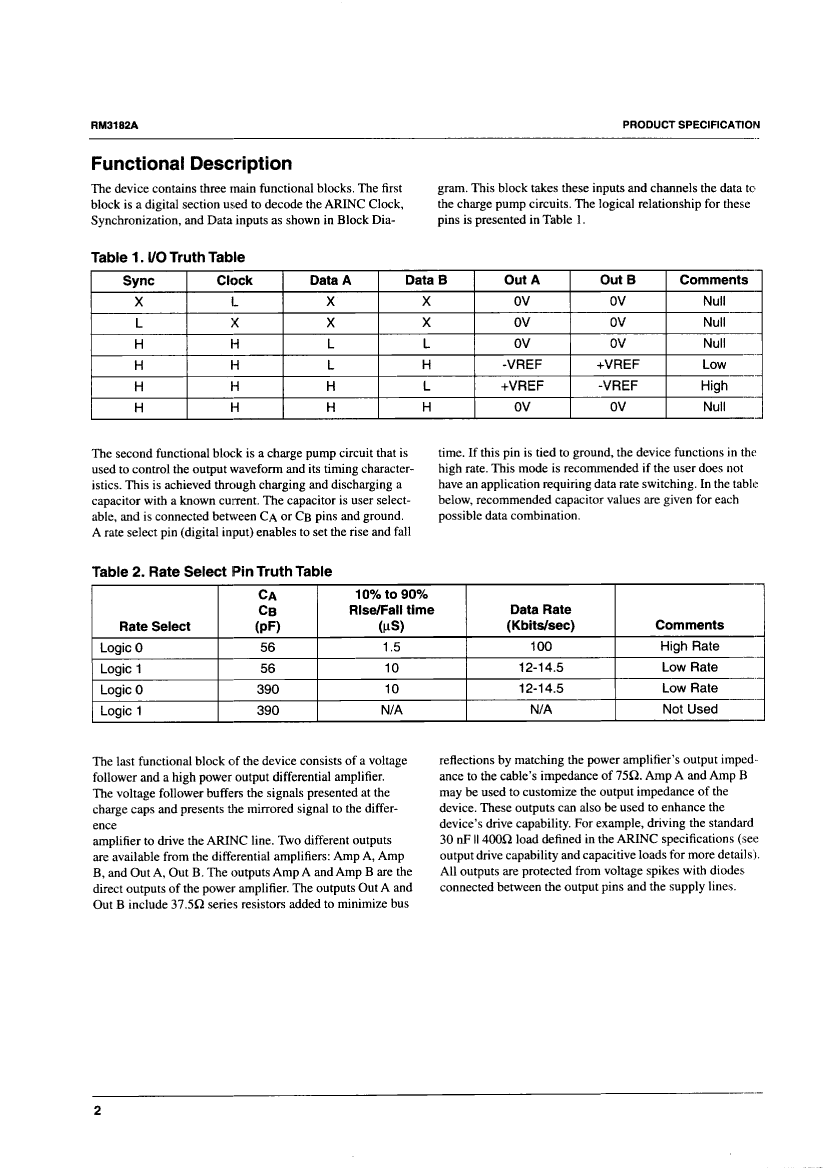

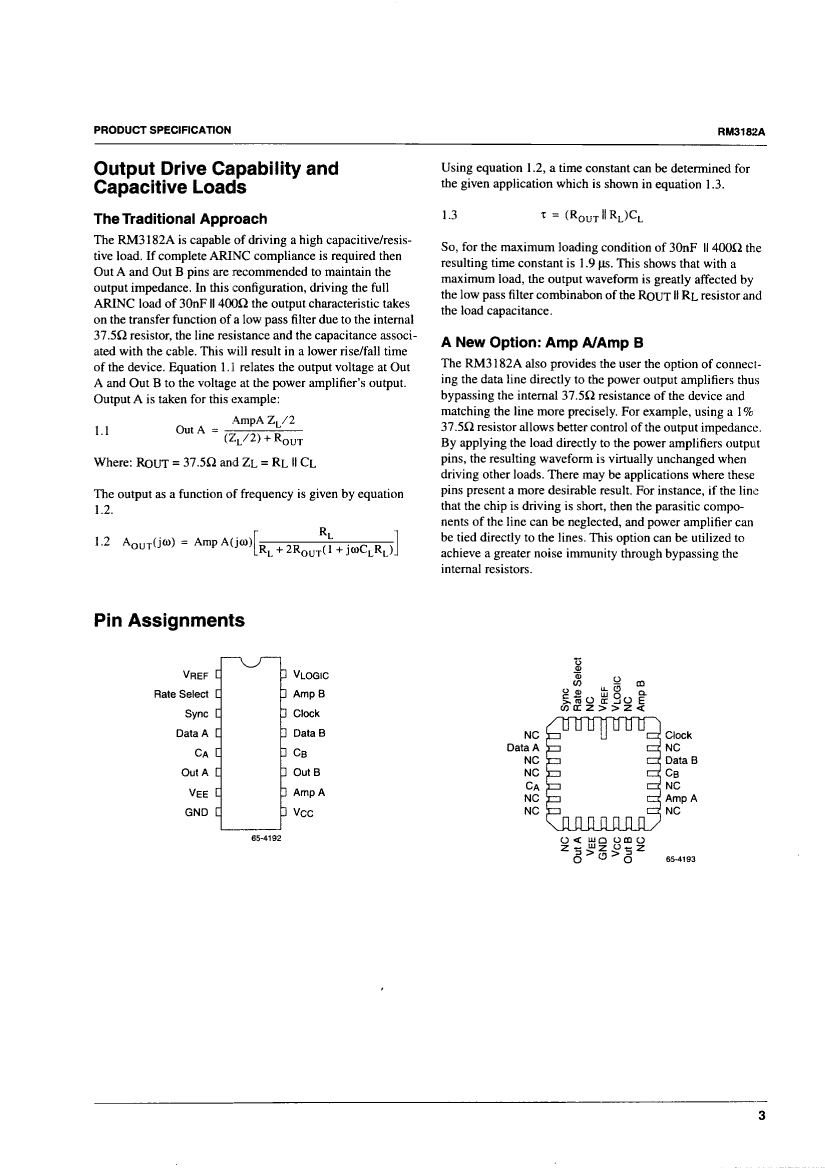

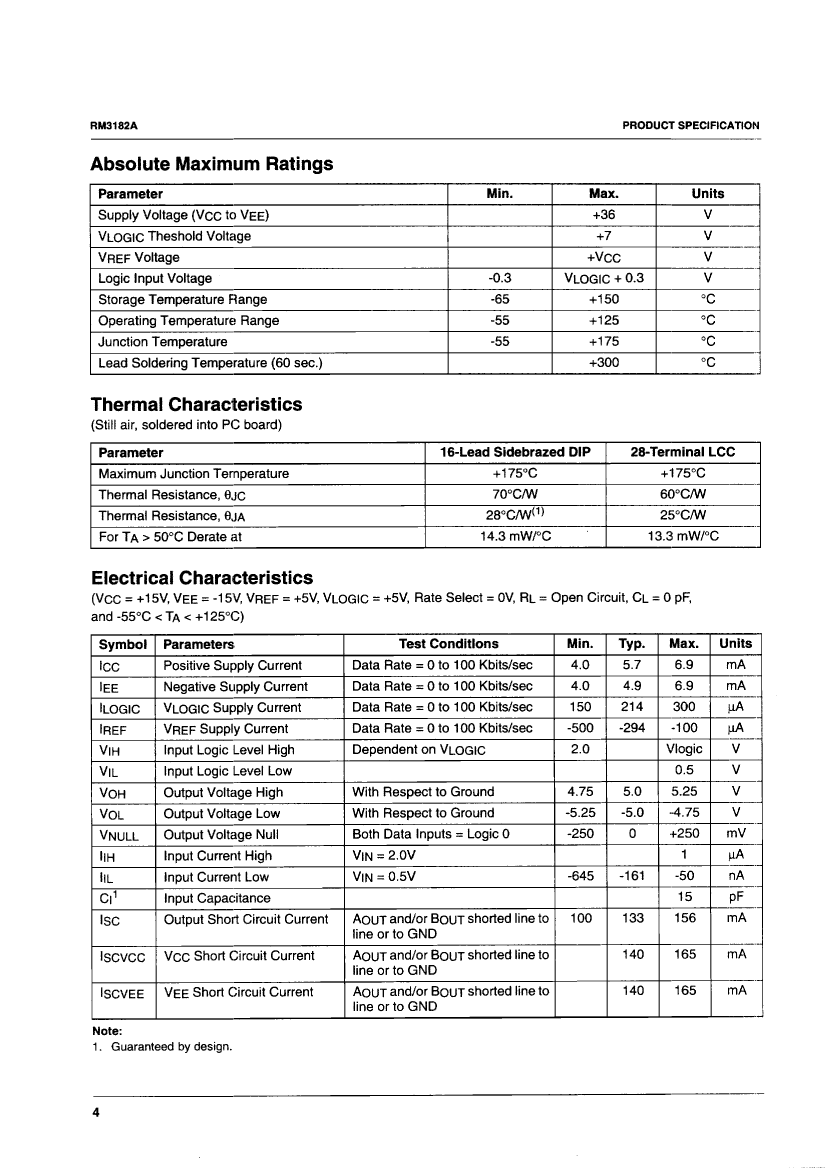

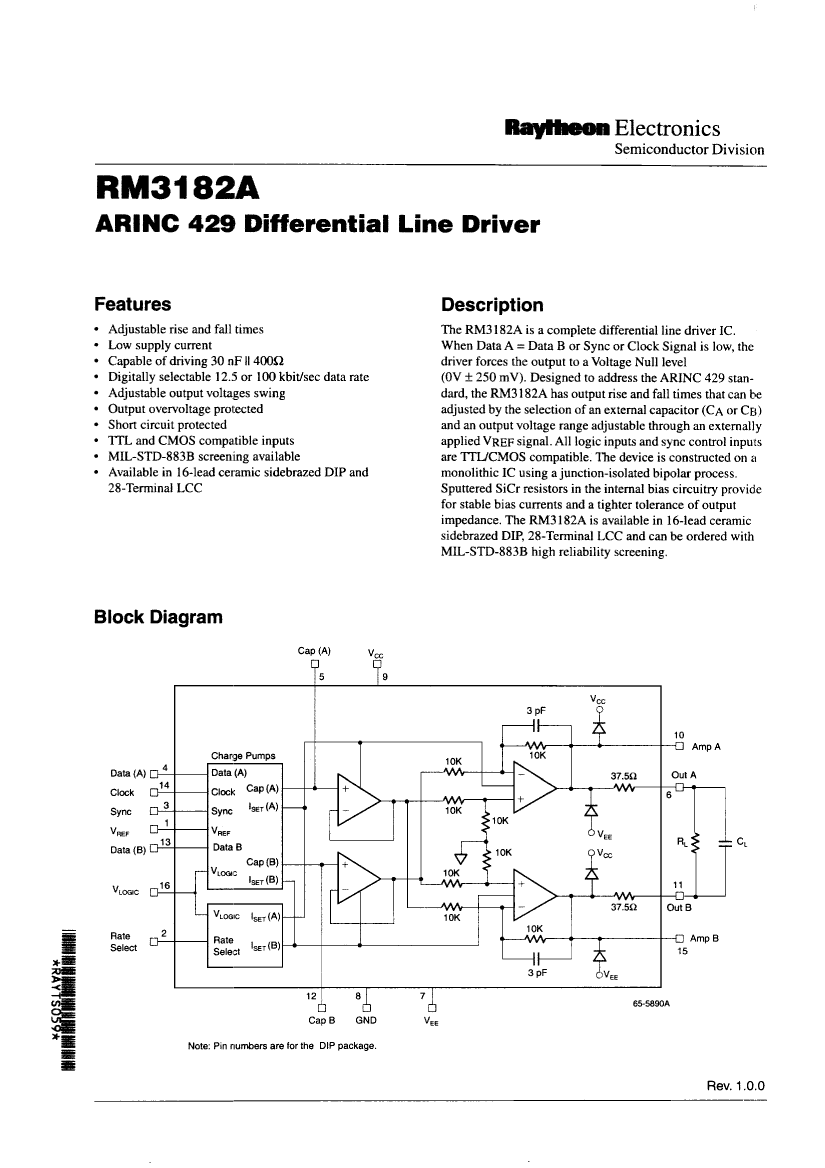

Preview

RM3182AL: DescriptionLine Driver, 2 Func, 1 Driver, BIPolar, CQCC28, LCC-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size388KB，12 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

RM3182AL Overview

Line Driver, 2 Func, 1 Driver, BIPolar, CQCC28, LCC-28

RM3182AL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
package instruction	LCC-28
Reach Compliance Code	unknown
Differential output	YES
Number of drives	1
High level input current maximum value	0.000001 A
Input properties	DIFFERENTIAL
Interface integrated circuit type	LINE DRIVER
Interface standards	ARINC 429
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
Nominal negative supply voltage	-15 V
Number of functions	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	9.5 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-STD-883 Class B
Nominal supply voltage	5 V
Supply voltage1-Nom	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	10000 ns

Preview

Download Datasheet

View All

RM3182AL Related Products

	RM3182AL	RM3182AS
Description	Line Driver, 2 Func, 1 Driver, BIPolar, CQCC28, LCC-28	Line Driver, 2 Func, 1 Driver, BIPolar, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible
Maker	Raytheon Company	Raytheon Company
package instruction	LCC-28	CERAMIC, DIP-16
Reach Compliance Code	unknown	unknown
Differential output	YES	YES
Number of drives	1	1
High level input current maximum value	0.000001 A	0.000001 A
Input properties	DIFFERENTIAL	DIFFERENTIAL
Interface integrated circuit type	LINE DRIVER	LINE DRIVER
Interface standards	ARINC 429	ARINC 429
JESD-30 code	S-CQCC-N28	R-CDIP-T16
JESD-609 code	e0	e0
Nominal negative supply voltage	-15 V	-15 V
Number of functions	2	2
Number of terminals	28	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Minimum output swing	9.5 V	9.5 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP
Encapsulate equivalent code	LCC28,.45SQ	DIP16,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B
Nominal supply voltage	5 V	5 V
Supply voltage1-Nom	15 V	15 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
maximum transmission delay	10000 ns	10000 ns
