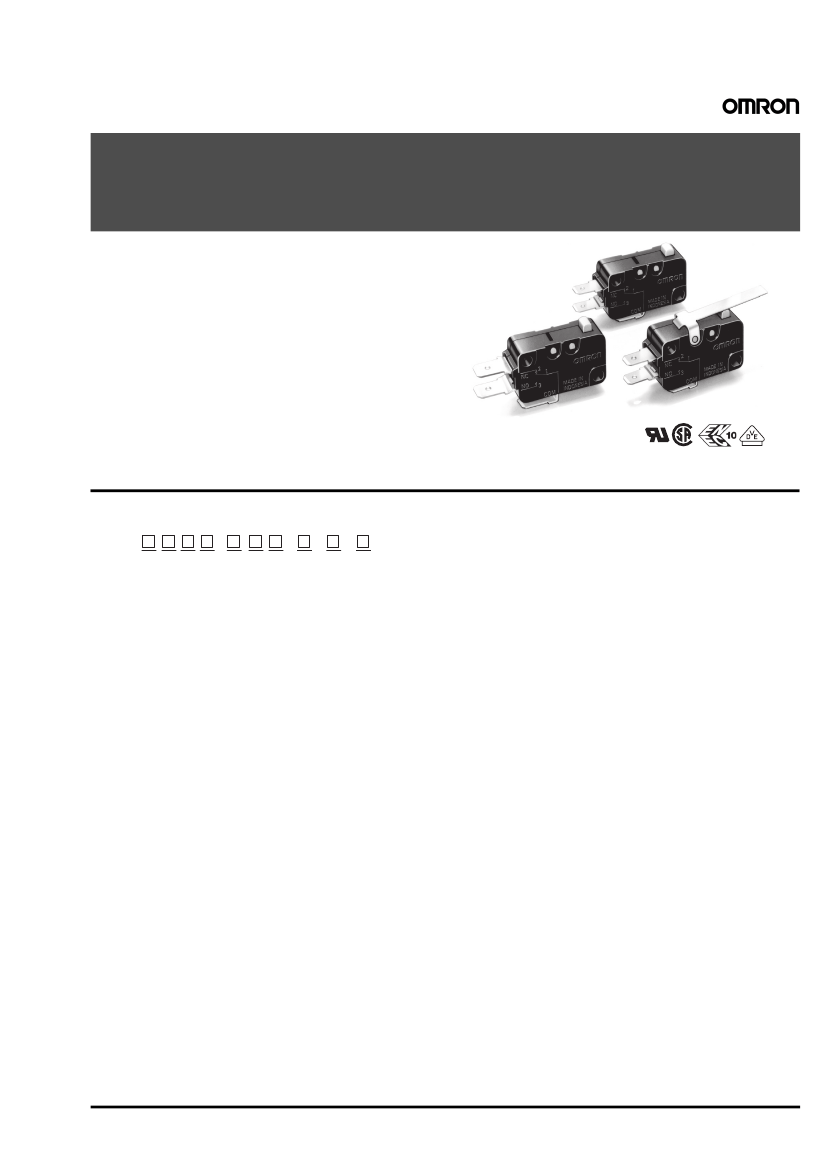

Miniature Basic Switch

D3V

Reliable Basic Switch with External Lever

• Available by 0.1 A, 6 A, 11 A, 16 A and 21 A models, all with

self-cleaning contacts. 0.1 A utilizes gold alloy crossbar

contacts for high reliability at low loads.

• Available with internally or externally fitted levers, and 2 fix-

ing positions for external levers.

• Conforms to EN61058-1 UL1054.

• High Temperature models rated up to 200°C (D3V-6, D3V-01)

and 155°C (D3V-11) are available.

• RoHS Compliant.

Ordering Information

■

Model Number Legend

D3V -

1 2 3 4

5 6 7

Contact Form

SPDT

SPST-NC

SPST-NO

Terminals

Solder terminals

C2:

Quick-connect terminal (#187)

Quick-connect terminal (#250)

C6:

RAST5 terminal (#250)

Maximum Operating Force

200 gf

4A:

125 gf

100 gf

50 gf

25 gf

Note:

These OF

values

are for

the pin plunger models.

Ratings

21:

20 (4) A at 250

VAC

16:

16 (3) A at 250

VAC

11:

11 (3) A at 250

VAC

6 (2) A at 250

VAC

01:

0.1 A at 125

VAC

Contact Gap

None:

1 mm (F gap)

0.5 mm (G gap)

Actuator

None:

Pin plunger

Short hinge lever

Hinge lever

Long hinge lever

Simulated roller lever

Short hinge roller lever

Hinge roller lever

Hinge Position

None:

Internal / Far from Plunger

External / Far from Plunger

External /

Near

Plunger

Enclosure Material

None:

Standard

High Temperature

200°C for D3V-6, D3V-01

155°C for D3V-11

W2:

EN60695-2-11/-12 Approved

(Glow

wire

flammability test method

with

PTI = 250)

Mounting Hole Size

None:

3.1 mm

2.9 mm

10. Special Code

None:

Standard

High Temperature (125°C)

Special Rating: 21 (8) A

(D3V-21, only)
