MH-33N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> MH-33N

MH-33N: Description180 Degree Hybrid Coupler, 1000MHz Min, 2000MHz Max, 0.3dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size131KB，1 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric View All

MH-33N Overview

180 Degree Hybrid Coupler, 1000MHz Min, 2000MHz Max, 0.3dB Insertion Loss-Max

MH-33N Parametric

Parameter Name	Attribute value
Maker	Aeroflex
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	47.78 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	180 DEGREE HYBRID COUPLER
Maximum voltage standing wave ratio	1.37

Preview

Download Datasheet

View All

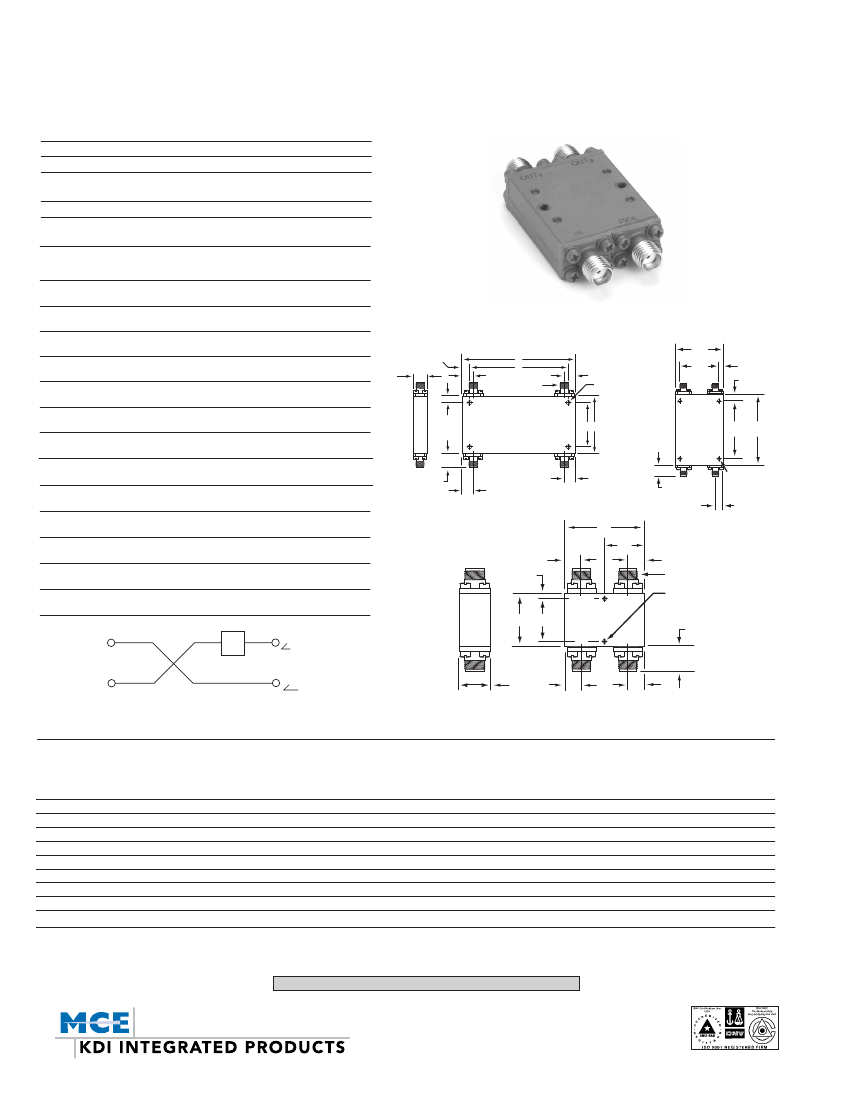

COUPLERS, HYBRID 3 DB 0°/180°

WITH SMA OR N CONNECTORS 0.2–12.4 GHz

GENERAL SPECIFICATIONS

Frequen y Rang e:

RF Impedance:

Temperature In ormation:

Connecto s:

0.20 to 12.4 GHz

50 OHMS

Ope ating tempe ature from –5 °C to

+85°C.

SMA or N

SERIES MH

MECHANICAL OUTLINES

Out-

line

[mm]

4.00

[10,2]

3.25

[82,55]

1.55

[39,37]

2.00

[50,8]

1.25

[31,75]

1.00

[25,4]

4.50

[114,3]

3.70

[93,98]

2.05

[52,07]

2.50

[63,5]

2.00

[50,8]

2.00

[50,8]

2.00

[50,8]

90˚ PHASE

SHIFTER

ISOL.

3dB 90˚

HYBRID

OUT 2

180˚

1.00

[25,4]

TYPE N

—

0.13

[3,3]

OUT 1

ISOL

OUT 2

OUT 1

0˚

ELECTRICAL PERFORMANCE

SMA

Model

No.

MH-22

MH-24

MH-29

MH-33

MH-36

MH-39

MH-42

MH-46

MH-54

Figure 3

Maximum

Dev. From

Nominal

Coupling

±0.50

±0.55

±0.60

Maximum

Type N

Model

No.

MH-22N

MH-24N

MH-29N

MH-33N

MH-36N

MH-39N

MH-42N

MH-46N

—

Frequency

Range

GHz

0.20–0.40

0.25–0.50

0.50–1.00

1.00–2.00

1.50–3.00

2.00–4.00

2.60–5.20

4.00–8.00

7.00–12.40

Nominal

Coupling

3.0 +0.25/–0

3.0 +0.30/–0

3.0 +0.35/–0

3.0 +0.45/–0

Insertion

Loss

0.25

0.30

0.35

0.45

Minimum*

Isolation Maximum

VSWR

1.30

1.35

1.40

1.45

1.50

Minimum Power**

Capability

Peak

Avg.

Watts

*UNIT S WITH TYPE N CONNEC ORS Up to 4.0 GHzm ultipl y VSWR s b y 1.05 and subt act 2.0 dB from isolation Above 4.0 GHzm ultipl y VSWR s b y 1.10 and subt act 3.0 dB from

’

isolation. **SMA = 3 kW peak

KEY:

Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100 • Fax: 973-884-0445

email: sales@mcekdi-integrated.com

See us on the web @ www.mcekdi-integrated.com

11-5-02

[mm]

3.00

[7,6]

1.70

[43,18]

1.70

[43,18]

1.70

[43,18]

1.70

[43,18]

1.10

[27,94]

3.00

[76,2]

1.70

[43,18]

1.70

[43,18]

1.70

[43,18]

1.50

[38,1]

1.00

[25,4]

2.50

[63,5]

[mm]

0.20

2.600

[5,1]

[66,04]

0.20

1.300

[5,1]

[33,02]

0.20

1.300

[5,1]

[33,02]

0.20

1.300

[5,1]

[33,02]

0.20

1.300

[5,1]

[33,02]

0.55

N/A

[13,97] 2 HOLES

2.750

0.50

[69,91] [12,7]

1.450

0.63

[36,8]

[16,0]

1.450

0.50

[36,8]

[12,7]

1.450

0.63

[36,8]

[16,0]

1.250

0.50

[31,75] [12,7]

0.750

0.50

[19,1]

[12,7]

2.250

0.50

[57,15] [12,7]

[mm]

3.800

[96,5]

3.050

[77,47]

1.350

[34,29]

1.800

[45,7]

1.050

[26,67]

0.800

[20,3]

0.50

[12,7]

0.50

[12,7]

0.63

[16,0]

0.50

[12,7]

0.50

[12,7]

0.50

[12,7]

0.50

[12,7]

0.25

[6,4]

0.40

[10,2]

0.25

[6,4]

0.38

[9,65]

0.25

[6,4]

0.25

[6,4]

—

[mm]

0.25

[6,4]

0.28

[7,11]

0.38

[9,65]

0.25

[6,4]

0.25

[6,4]

0.25

[6,4]

—

FUNCTIONAL

DIAGRAM

0.10[2,5]

0.38

[9.7]

SMA FEMALE

TYP.

OUT 1

D B

OUT 2

MODEL

MH-36

ONLY

0.93[2,36]

DIA. THRU 4

MOUNTING

HOLES

1.50

[38,1]

1.300

[33,02]

0.10[2,5]

0.20[5,1]

OUT 1

OUT 2

1.850 2.25

[46,99] [57,2]

ISOL

0.38

[9,7]

TYP.

TYPE SMA

0.38

[9,7]

TYP.

0.093[2,36]

DIA. THRU 4

MOUNTING

HOLES

0.25[5,4]

TYP.

Figure 1

A/2

N FEMALE

TYP.

0.156[3,96]

DIA. THRU 2

MOUNTING

HOLES

0.74

[18,8]

TYP.

Figure 2

Phase

Balance

Deg

±4.0

±5.0

Outline

SMA

Fig. 1

Fig. 3

See Fig. 2

—
