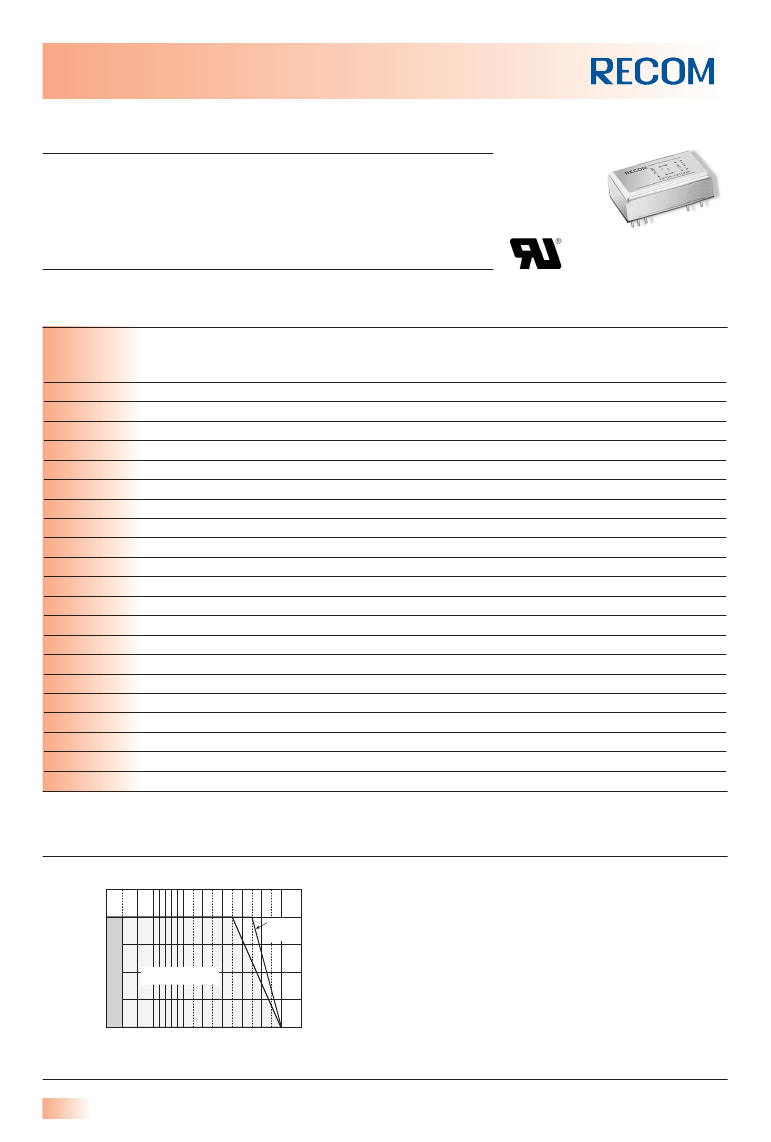

POWERLINE - DC/DC-Converter
B-Series, 3W, 1.6 kV Isolation, Regulated, 2:1 Wide Input Range (Single & Dual Output)
Features
●
3 Watts Regulated Output Power
●
2:1 Wide Input Voltage Range
●
Five-Sided Shield
●
High Efficiency up to 80%
●
Standard DIP24 & SMD Package
●
Over Current Protection
●
●
●
Also Available with Isolated Outputs,
Output 1/Output 2 (DS) Isolation
500 VDC min. *6
International Safety Standard
Approvals
UL 1950 Component Recognised
Selection Guide
12V, 24V and 48V Input Types
Part Number
DIP24
RP03-123.3SB (SMD)
RP03-1205SB (SMD)
RP03-1212SB (SMD)
RP03-1215SB (SMD)
RP03-1205DB (SMD)
RP03-1212DB (SMD)
RP03-1215DB (SMD)
RP03-243.3SB (SMD)
RP03-2405SB (SMD)
RP03-2412SB (SMD)
RP03-2415SB (SMD)
RP03-2405DB (SMD)
RP03-2412DB (SMD)
RP03-2415DB (SMD)
RP03-483.3SB (SMD)
RP03-4805SB (SMD)
RP03-4812SB (SMD)
RP03-4815SB (SMD)
RP03-4805DB (SMD)
RP03-4812DB (SMD)
RP03-4815DB (SMD)
SMD
Suffix
Input
Range
VDC
9-18
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
36-75
36-75
36-75
Output
Voltage
VDC
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
Output
Current
mA
500
500
250
200
±250
±125
±100
500
500
250
200
±250
±125
±100
500
500
250
200
±250
±125
±100
Input Current
(see note 4)
mA
196
286
333
329
293
329
329
101
149
169
169
147
169
169
50
75
84
84
75
86
86
Efficiency
(see note 5)
%
74
77
79
80
75
80
80
72
74
78
78
75
78
78
73
74
79
79
74
77
77
Capacitive
Load
max.
µF
2200
1000
220
150
±470
±100
±68
2200
1000
220
150
±470
±100
±68
2200
1000
220
150
±470
±100
±68
RP03-4805SB: Derating Curve
125
100
75
Output Power (%)
50
25
M1 Version
Natural Convection
M1
Version
0
-40 -25 -10 0
50 60 70 80 90 100
Ambient Temperature Range (°C)
PO 8
August 2002
www.recom-international.com
POWERLINE - DC/DC-Converter
B-Series, 3W, 1.6 kV Isolation, Regulated, 2:1 Wide Input Range (Single & Dual Output)
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Output Power
Voltage Accuracy (full load and nominal Vin)
Minimum Load Voltage (see note 1)
Line Regulation (LL-HL at full load)
Load Regulation (25% to 100% FL)
Cross Regulation (asymmetrical load 25%/100% FL)
Ripple and Noise (20MHz bandwith)
Temperature Coefficient
Transient Response (25% load step change)
Over Load Protection (% of full load at nominal Vin)
Short Circuit Protection
Input Voltage Range
12V nominal input
24V nominal input
48V nominal input
Single
Dual
3W max.
±2%
10% of FL
±0.2%
±0.2%
±1%
±5%
50mVp-p
±0.02%/°C, max.
200µsec
180% typ.
Continuous, automatic recovery
9-18VDC
18-36VDC
36-75VDC
Pi Type
12V Input
24V Input
48V Input
36VDC
50VDC
100VDC
20mAp-p
350ms typ.
see „Selection Guide“ table
I/O
„DS“ Dual separate type, O/O
500VDC min.
500VDC min.
10
9
Ω
min.
300pF max.
300kHz typ.
UL 1950, EN60950
Nickel-coated copper
Non-conducted black plastic
Epoxy (UL94-V0)
DIP
SMD
DIP
SMD
16g
18g
31.8 x 20.3 x 10.2mm
32.0 x 20.3 x 10.9mm
3.069 x 10
6
Hours
Standard
M1 (see note 3)
-25°C to +85°C (with derating)
-40°C to +85°C (non-derating)
+100°C
-55°C to +105°C
Natural convection
20°C/Watt
MIL-STD-810D
10-55Hz, 2G, 30 Min. along X, Y and Z
continued on next page
Input Filter
Input Surge Voltage (100 ms max.)
Input Reflected Ripple (nominal Vin and full load)
Start Up Time (nominal Vin and constant resistor load)
Efficiency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
Approved to Safety Standards
Case Material
Base Material
Potting Material
Weight
Dimensions
MTBF (see note 2)
Operating Temperature Range
Maximum Case Temperature
Storage Temperature Range
Thermal Impedance
Thermal Shock
Vibration
www.recom-international.com
August 2002
PO 9
POWERLINE - DC/DC-Converter
B-Series, 3W, 1.6 kV Isolation, Regulated, 2:1 Wide Input Range (Single & Dual Output)
Specifications continued
(typical at nominal input and 25°C unless otherwise noted)
Relative Humidity
Conducted Emissions
Radiated Emissions
Conducted Immunity
Radiated Immunity
Fast Transient
ESD
EN55022
EN55022
EN61000-4-6
EN61000-4-3
EN61000-4-4
EN61000-4-2
5% to 95% RH
Level A
Level A
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
Notes
1. The RP03 series requires a minimum of 10% loading on the output to maintain specified regulation. Operation under
no-load condition will not damage these devices, however they may not meet all listed specification.
2. BELLCORE TR-NWT-000332. Case l: 50% Stress, Temperature at 40°C (Ground fixed and controlled environment).
3. M1 version is more efficient, therefore, it can be operated in a more extensive temperature range than standard.
4. Maximum value at nominal input voltage and full load of standard type.
5. Typical value at nominal input voltage and full load.
6. Should an O/O isolation be required, please order the converter with the following part number: RP03-XXXXDB/DS
Package Style and Pinning (mm)
2.0
24
23
22
1
2
3
3.8
DIP Pin Connections
Pin #
1
2
3
10
11
12
13
14
15
22
23
24
Single
+Vin
NC
NC
–Vout
+Vout
–Vin
–Vin
+Vout
–Vout
NC
NC
+Vin
Dual
+Vin
–Vout
Common
Common
+Vout
–Vin
–Vin
+Vout
Common
Common
–Vout
+Vin
Dual
Separated
Outputs
+Vin
–V1 out
+V1 out
–V2 out
+V2 out
–Vin
–Vin
+V2 out
–V2 out
+V1 out
–V1 out
+Vin
Bottom View
22.90
31.80
2.5
15
14
13
10
11
12
15.20
20.30
10.20
0.25 x 0.50
Rectangular Pin
11.2
Pin area 1.0 x 0.5
24
23
22
21
20
1
2
3
4
5
SMD Pin Connections out in
Pin #
1
2
3
10
11
12
13
14
15
22
23
24
Others
Single
+Vin
NC
NC
–Vout
+Vout
–Vin
–Vin
+Vout
–Vout
NC
NC
+Vin
NC
Dual
+Vin
–Vout
Common
Common
+Vout
–Vin
–Vin
+Vout
Common
Common
–Vout
+Vin
NC
Dual
Separated
Outputs
+Vin
–V1 out
+V1 out
–V2 out
+V2 out
–Vin
–Vin
+V2 out
–V2 out
+V1 out
–V1 out
+Vin
NC
2.54
10.9
0.5
3.81
32.00
6.35
Bottom View
16
15
14
13
9
10
11
12
20.30
23.40
25.40
Pin Pitch Tolerance ±0.35 mm
PO 10
August 2002
www.recom-international.com
