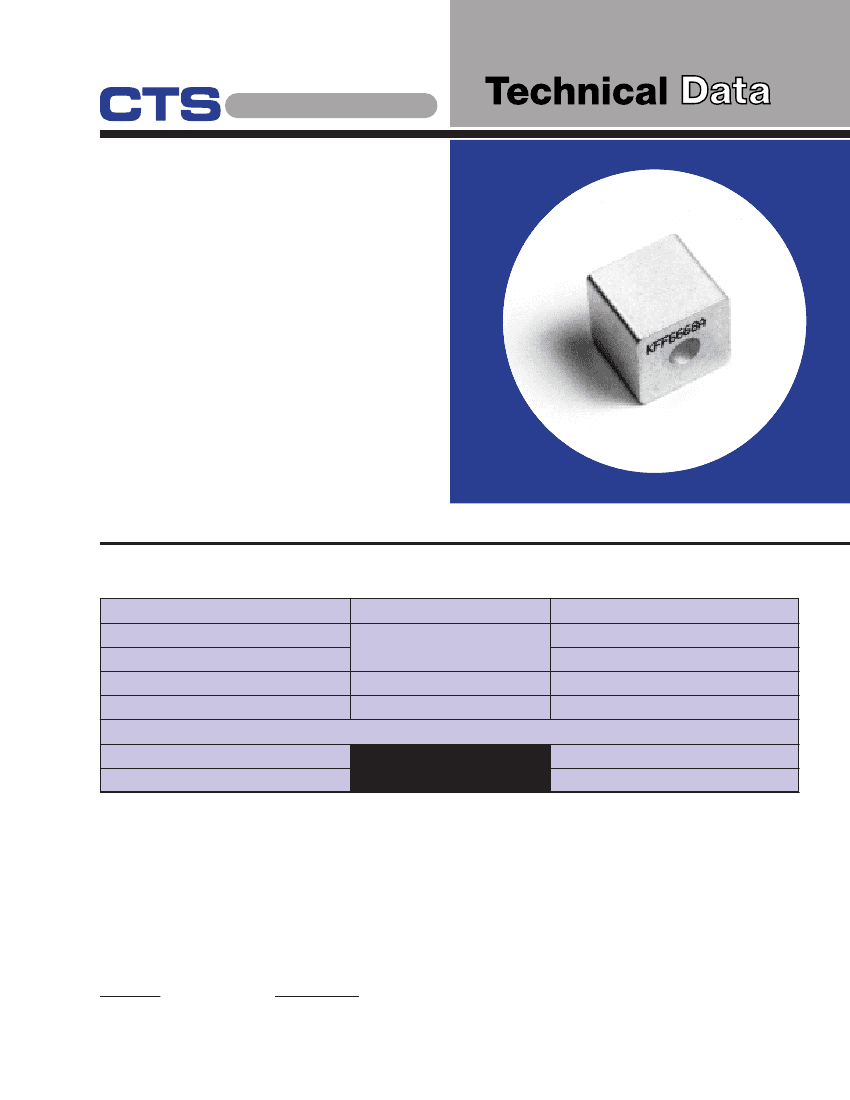

Ceramic Monoblock
Bandpass Filter
®
Model KFF6668A
W
IRELESS
C
OMPONENTS
Features:
• Small Size
• High Performance
• SMD
Description and
Applications:
This monoblock filter is suitable for
aeronautical radionavigation
applications at 1033MHz, primarily
TCAS.
Electrical Specifications
Parameters
Insertion Loss
Forward Return Loss
Attenuation
Attenuation
Power Rating
Impedance
Frequency
1033 MHz
1027 MHz
1039 MHz
Specifications @ 25º C
1.4 dB max.
15.5 dB min.
3.0 dB min.
3.0 dB min.
1W
50
Ω
NOTE: Supplier shall test each filter to the critical electrical specifications listed above or better. Any subsequent audits may deviate due to measurement
repeatability among different test systems. Such deviations shall not exceed the following limits:
Specification
Insertion Loss
Return Loss
Stopbands
Typical Allowance
0.1 dB
1.0 dB
1.0 dB
Rev. 1
CTS CORPORATION /
MANUFACTURER OF RELIABLE ELECTRONIC COMPONENTS
®
W
IRELESS
C
OMPONENTS
MODEL KFF6668A

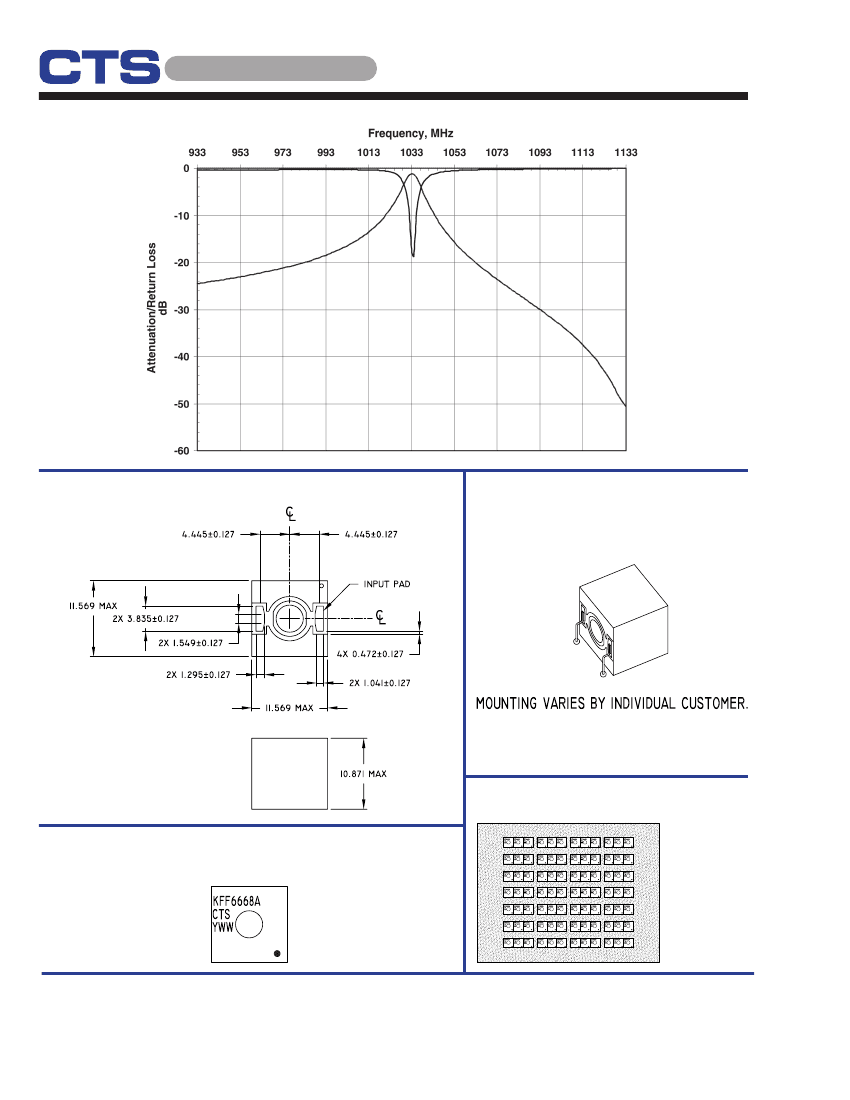

Typical Response Curve
Mechanical Dimensions
PC Board Layout
All dimensions in mm
Packaging
This product is shipped in pre-formed foam trays.
Part Marking
Y = LAST DIGIT OF YEAR
WW = SEQUENTIAL WEEK NUMBER
Contact Information:
CTS WIRELESS COMPONENTS, INC.
/ 171 Covington Drive / Bloomingdale, IL 60108
PHONE: (800) 757-6686 / www.ctscorp.com
Document Control #6287061Y01 Rev 1
Date of Origin 04/25/01
Date of Revision 04/25/01
