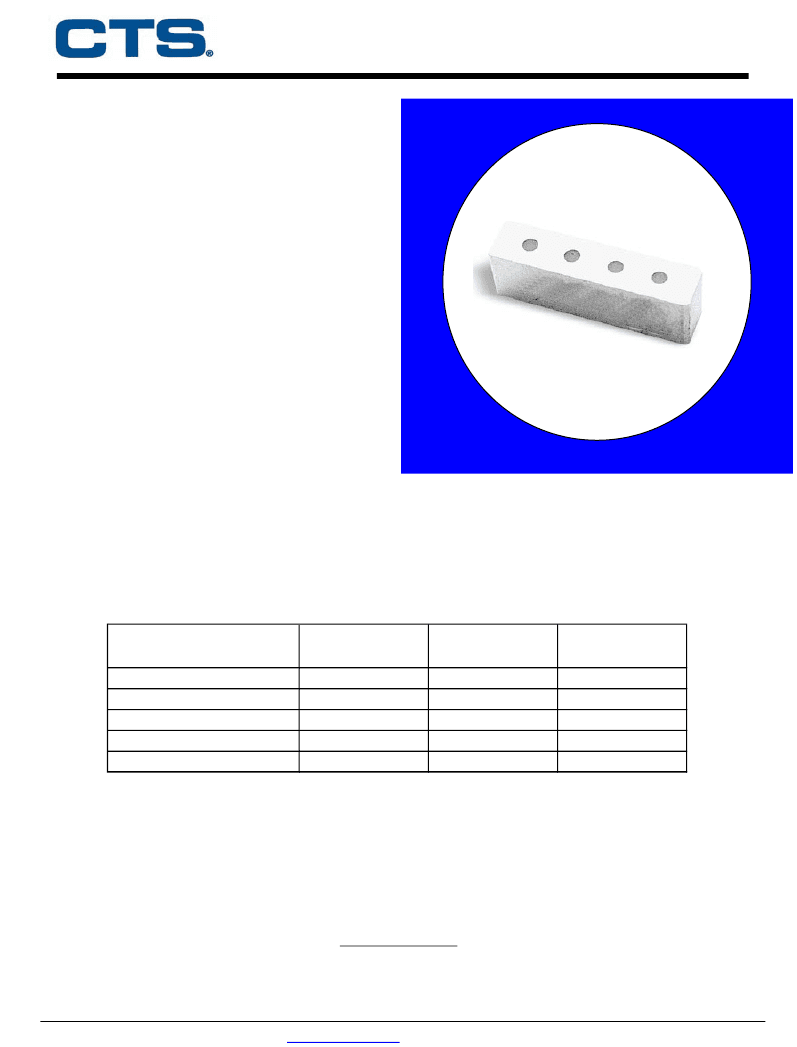

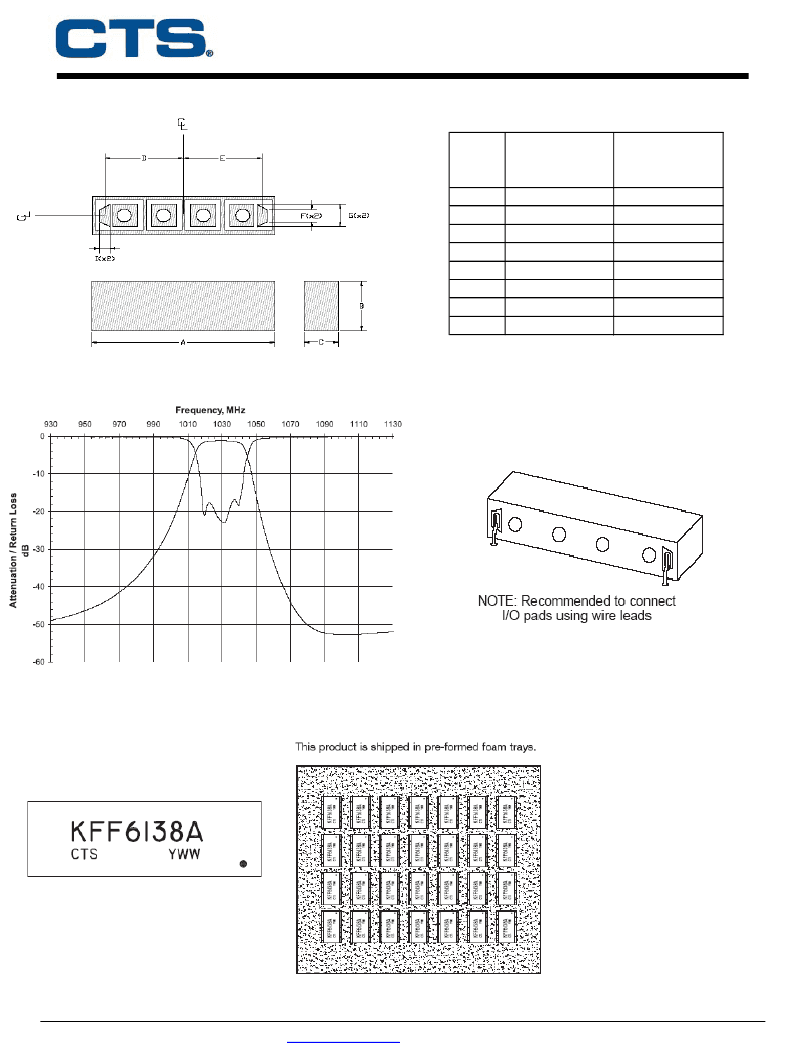

KFF6138A

1030 MHz TCAS BPF

Features

• Low Loss

• Excellent Return Loss

• High Rejection

Description

Rugged Mount, Silver (Ag) coated ceramic

filter. Developed for use in TCAS

applications.

Weight:

11.5 grams typical

Material: Filter is composed of a ceramic

block plated with Ag.

Filter complies with RoHS standards.

Electrical Specifications

Parameter

Passband Insertion Loss

Passband Return Loss

Attenuation

Frequency

(MHz)

1027-1033

1005

1055

1090

Typical @ 25ºC

1.4 dB

16.0 dB

20.0 dB

21.0 dB

48.0 dB

Spec. @

25ºC

1.7 dB max

12.0 dB min

15.0 dB min

18.0 dB min

40.0 dB min

Note: Supplier shall test each filter to the critical electrical specifications of the above table. Any subsequent audits may deviate from in value due to

measurement repeatability among different test systems. Such deviations shall not exceed the following limits:

Specification Allowance

Insertion Loss

0.1 dB

Return Loss

1.0 dB

Stopbands

1.0 dB

Document No. 008-0256-0

Page 1 of 2

Rev. X4VH

٠

CTS Electronic Components

٠

www.ctscorp.com
