KNH21471-3AA: DescriptionData Line Filter, 1 Function(s), 50V, 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size438KB，3 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

KNH21471-3AA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KNH21471-3AA	-	-	View	Buy Now

KNH21471-3AA Overview

Data Line Filter, 1 Function(s), 50V, 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN

KNH21471-3AA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	470 µF
Maximum DC resistance	0.08 Ω
filter type	DATA LINE FILTER
high	0.85 mm
length	2 mm
Manufacturer's serial number	KNH
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL
physical size	L2XB1.25XH0.85 (mm)
Rated current	1 A
Rated voltage	50 V
width	1.25 mm

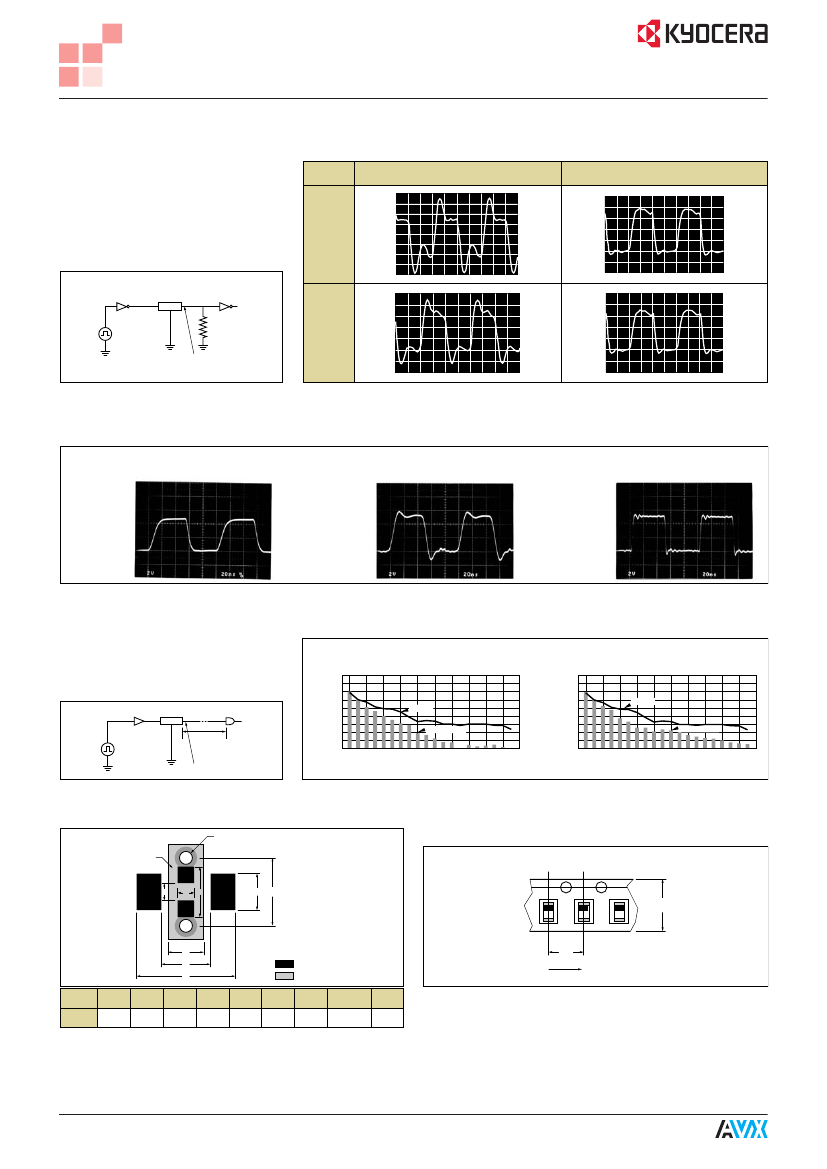

Preview

Download Datasheet

View All

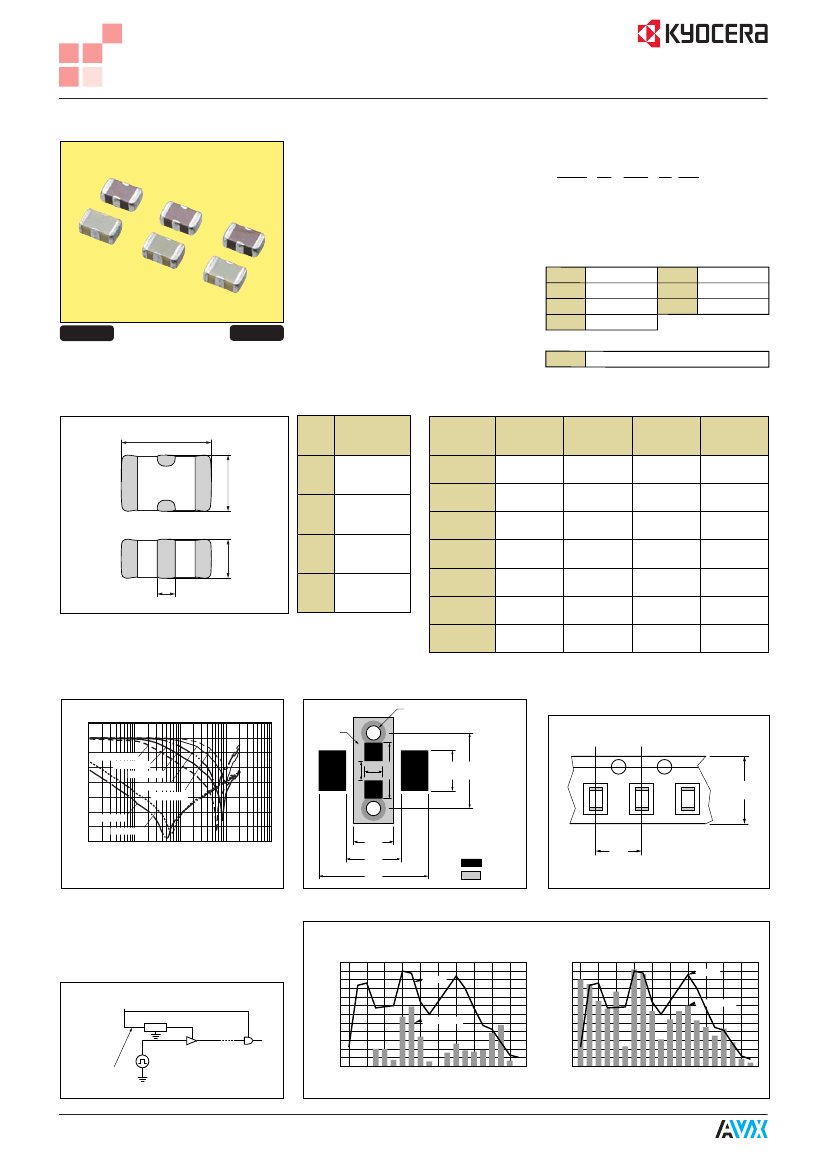

EMI Filters

KNF Series

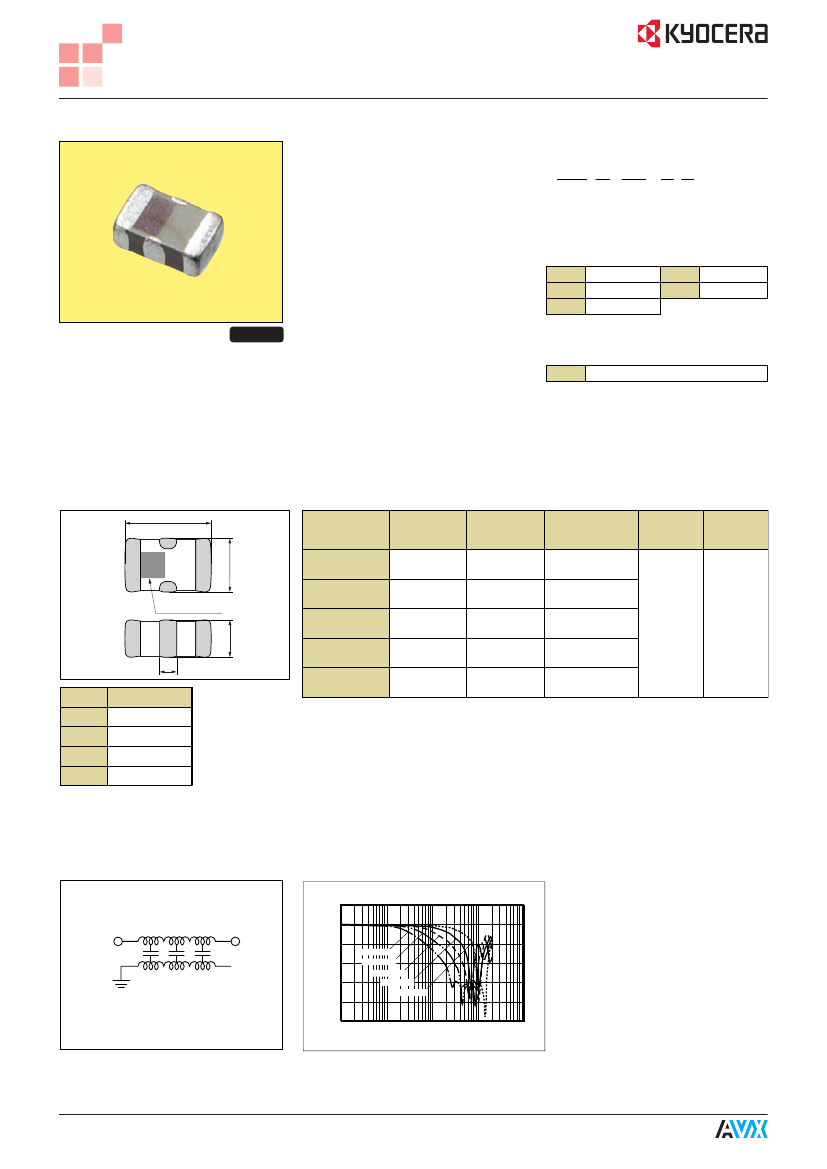

Features

• Distributed constant type LC filter.

Prevents ringing caused by circuit

impedance.

Suitable for high speed digital circuits and

video signal lines.

• Stable noise attenuation over wide

frequency ranges.

• Low profile (T=0.95mm max.) suitable for

miniature electronic equipments.

• First class auto-placement

How to Order

KNF 21 050 - W 3

①

②

③

①Series

②Size

EIA

21

:0805

③Frequency

025

050

100

25MHz

50MHz

100MHz

④ ⑤

(EIAJ)

(2012)

200

400

200MHz

400MHz

RoHS Compliant

Applications

• PCs, Laser Printers, Cellular Phone, Clock

Data Lines for LCD Display

• High Speed Video Signal Circuits and

Interface Circuits

• High Speed Digital Circuits

• Anti-Noise Solution

Achieves Effective Noise Suppression in

Noisy High Speed Circuits without Signal

Waveform Distortion

④Taping

Direction (See Fig 1)

W: Standard

⑤Quantity

per Reel

3

3000pcs.

Dimensions

L

(Unit : mm)

Specifications

Part Number

KNF21025

KNF21050

KNF21100

Cut off

Freq.

(MHz)

25MHz

50MHz

100MHz

200MHz

400MHz

Capacitance 20dB Attenuation

Rated

(+50/-20%)

(Typical)

current(mA) voltage(VDC)

(pF)

235pF

130pF

65pF

33pF

17pF

200– 600MHz

350– 850MHz

450– 950MHz

700–1200MHz

900–1400MHz

150mA

25VDC

IN

OUT

Input Direction Mark

T

W

KNF21200

G

KNF21

L

W

T

G

2.00.2

1.250.2

0.80.15

0.40.3

KNF21400

Cut

off Frequency at Attenuation typical 3dB, max. 6dB

Operating Temperature: -25 to 85(°C)

Frequency Characteristics

KNF21 Series

10

0

IN

OUT

-10

-20

GND

-30

-40

KNF21025

KNF21050

KNF21100

KNF21200

KNF21400

Equivalent Circuit

-50

1

10

100

1000

10000

Frequency(MHz)

- 17 -

KNH21471-3AA Related Products

	KNH21471-3AA	KNH21473-3AA	KNH21470-3AA	KNH21220-3AA	KNH21104-3AA	KNF21050-W3	KNF21400-W3
Description	Data Line Filter, 1 Function(s), 50V, 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN	Data Line Filter, 1 Function(s), 50V, 2A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN	Data Line Filter, 1 Function(s), 50V, 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN	Data Line Filter, 1 Function(s), 50V, 1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN	Data Line Filter, 1 Function(s), 25V, 2A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN	Data Line Filter, 1 Function(s), 25V, 0.15A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 3 PIN	Data Line Filter, 1 Function(s), 25V, 0.15A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 3 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	470 µF	47000 µF	47 µF	22 µF	100000 µF	130 µF	17 µF
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.8 mm	0.8 mm
length	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L2XB1.25XH0.85 (mm)	L2XB1.25XH0.85 (mm)	L2XB1.25XH0.85 (mm)	L2XB1.25XH0.85 (mm)	L2XB1.25XH0.85 (mm)	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)
Rated current	1 A	2 A	1 A	1 A	2 A	0.15 A	0.15 A
Rated voltage	50 V	50 V	50 V	50 V	25 V	25 V	25 V
width	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Maker	AVX	-	AVX	AVX	AVX	AVX	AVX
Maximum DC resistance	0.08 Ω	0.02 Ω	0.08 Ω	0.08 Ω	0.02 Ω	-	-
Manufacturer's serial number	KNH	-	KNH	KNH	KNH	KNF	KNF
