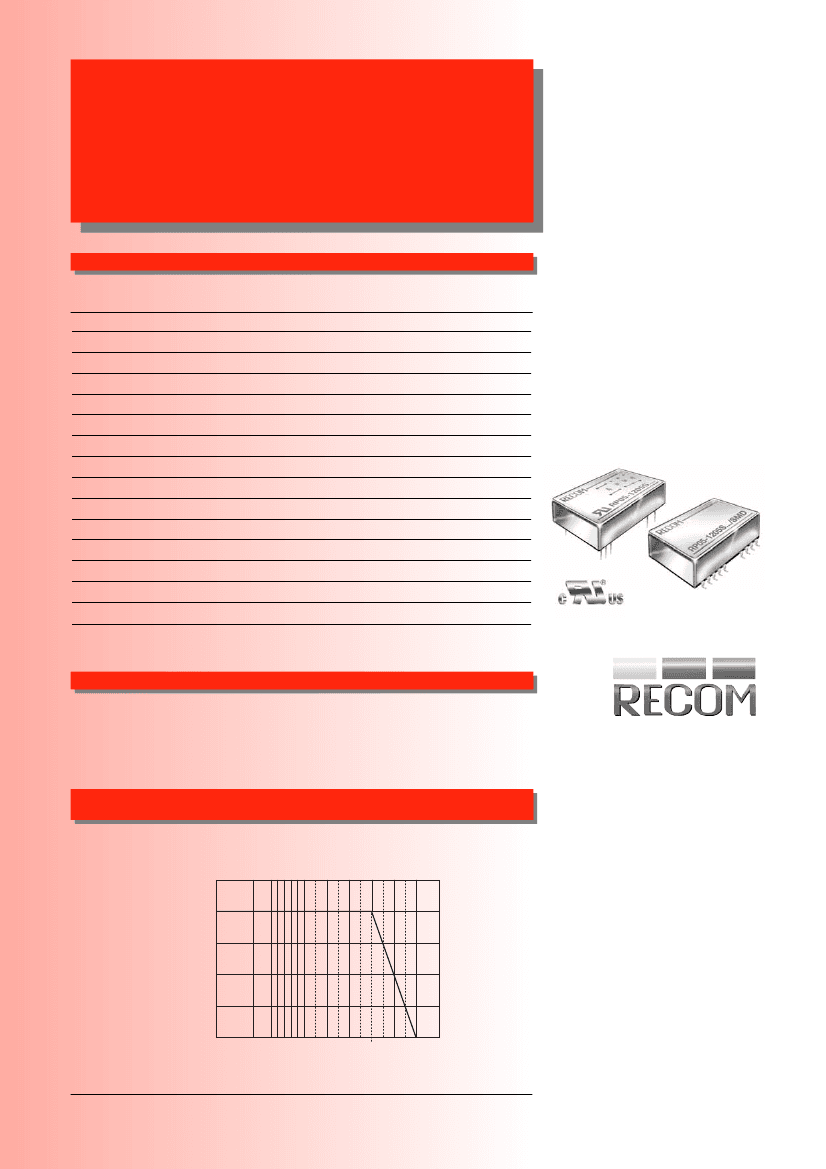

Features
Regulated
Converters
●
●
●
●
●
●
●
●
●
4:1 Wide Input Voltage Range
5 Watts Regulated Output Power
1.6kVDC Isolation
Fixed Operating Frequency
International Safety Standard Approvals
Five-Sided Shield
Standard DIP24 and SMD-Pinning
UL 1950 Component Recognized
High Efficiency to 82%
POWERLINE
Output Power (%)
w
w
ne
ne
for
for
!!
ted
ted
on
on
es
es
so
so
gg
gg
su ed
su ed
nu
ot
ot tiinu
s n nt
iis n n
co
sco
es
es
diis
er
erii e d
be
ss
iis s iillll b
Th
Th
tw
iit w
as
as
Selection Guide
12V, 24V and 48V Input Types
Input
Range
VDC
9-36
9-36
9-36
9-36
Output
Voltage
VDC
3.3
5
12
15
5
Part Number
DIP24 (SMD)
Output
Current
mA
1000
470
400
1000
Input
(4)
Current
mA
191
285
Efficiency
(5)
%
Capacitive
(6)
Load max.
µF
2200
220
150
1000
RP05-243.3SAW**
RP05-2405SAW**
RP05-2412SAW**
RP05-2415SAW**
RP05-4805SAW**
RP05-4812SAW**
RP05-4815SAW**
76
77
309
329
80
80
RP05-483.3SAW**
18-75
3.3
12
15
1000
470
400
100
73
2200
220
150
18-75
18-75
18-75
9-36
9-36
9-36
1000
145
76
1000
155
167
80
79
RP05-2405DAW**
RP05-2412DAW**
RP05-2415DAW**
RP05-4805DAW**
RP05-4812DAW**
RP05-4815DAW**
±5
±500
282
78
±680
±68
±12
±15
±5
±230
±190
295
313
82
80
±100
18-75
18-75
18-75
±500
145
76
±680
±68
±12
±15
±230
±190
151
159
80
79
±100
** add Suffix SMD for SMD package
DC/DC-Converter
RP05-
S_DAW
Series
5 Watt
DIP24
&
SMD,
Single
&
Dual Output
Description
The AW-Series of DC/DC Converters are fully certified to EN 60950: 2000.
This makes them ideal for all Telecom and safety applications where approved isolation is required.
They also meet UL 1950 and CSA 950 standards.

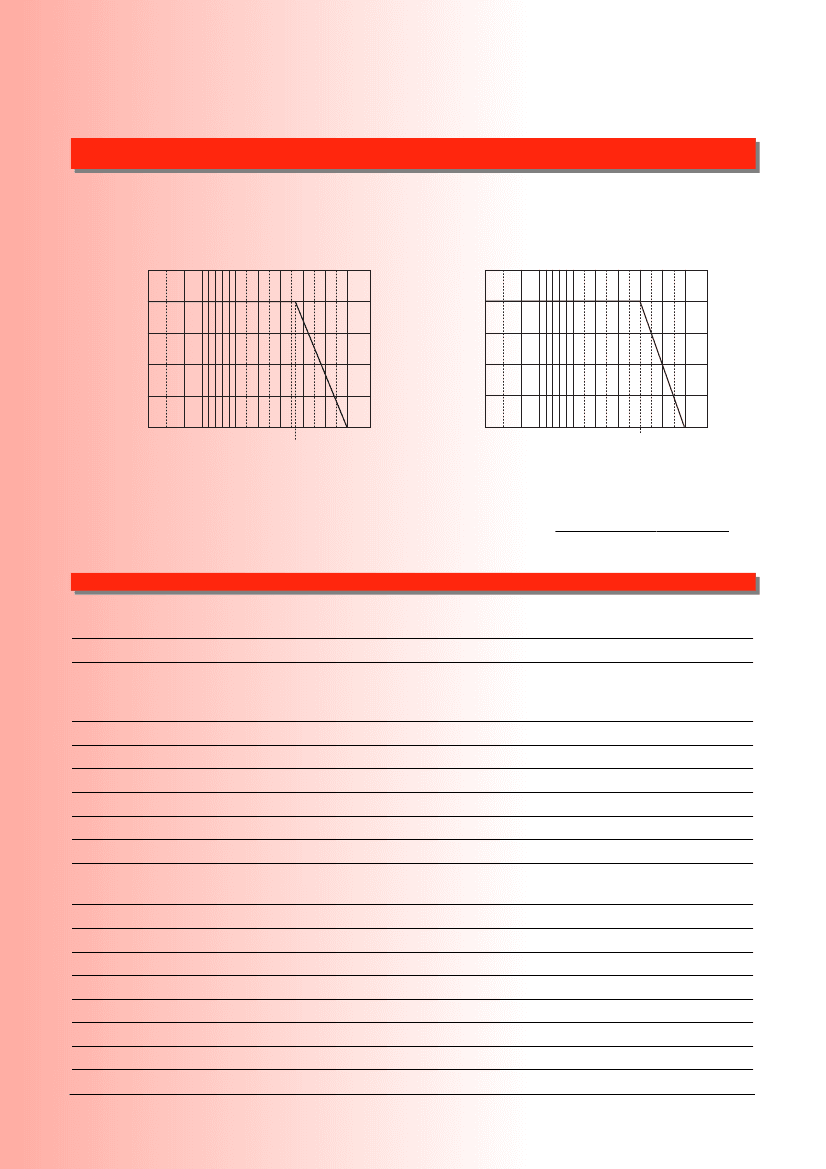

Derating-Graph
(Ambient Temperature)
RP05-2415DAW
125
100
75
50
25
0
-25
-10 0
50 60 70
80 90 100
ns
ns
sg
siig
de
de
Natural Convection
Ambient Temperature Range (°C)
194
April-2005
www.recom-international.com
POWERLINE
DC/DC-Converter
RP05-S_DAW
Series
RP05-2415DAW/M2
w
w
ne
ne
for
for
!!
ted
ted
on
es
es oon
so
gg
gg
ds
su
su ed
ue
nu
ot
ot
tiin
s n nt
iis n n
co
sco
es
es
diis
er
erii e d
be
ss
iis s iillll b
Th
Th
tw
iit w
as
as
Derating-Graph
(Ambient Temperature)
RP05-4805SAW/M2
125
125
100
75
50
25
100
75
50
25
Output Power (%)
Output Power (%)
Natural Convection
Natural Convection
0
-40 -25 -10 0
50 60 70 80 90 100
77
Ambient Temperature Range (°C)
0
-40 -25 -10 0
50 60 70 80 90 100
Ambient Temperature Range (°C)
Derating graphes are valid only for the shown part numbers. If you need detailed derating-information about a
part-number not shown here please contact our technical customer service at info@recom-development.at
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Input Voltage Range
Input Filter
24V nominal input
48V nominal input
9-36VDC
18-75VDC
Pi Type
36VDC
50VDC
100VDC
20mAp-p
600ms typ.
5W max.
±2%
10% of FL
±0.2%
±0.2%
±1%
Input Surge Voltage (100 ms max.)
12V Input
24V Input
48V Input
Input Reflected Ripple (nominal Vin and full load)
Start Up Time (nominal Vin and constant resistor load)
Output Power
Output Voltage Accuracy (full Load and nominal Vin)
Minimum Load (see Note 1)
Line Regulation (LL-HL at full load)
ns
ns
siig
sg
de
de
Load Regulation (25% to 100% FL)
Cross Regulation (asymmetrical load 25%/100% FL)
Ripple and Noise (20MHz bandwith)
Temperature Coefficient
Transient Response (25% load step change)
Over Load Protection (% of full load at nominal Vin)
Short Circuit Protection
Efficiency
Single
Dual
±5%
50mVp-p
±0.02%/°C, max.
200µS
170% typ
Continuous, automatic recovery
see „Selection Guide“ table
continued on next page
www.recom-international.com
April-2005
195
POWERLINE
DC/DC-Converter
RP05-S_DAW
Series
1.600VDC min.
DIP type 1.600VDC min.
SMD type 1.000VDC min.
10
9
Ω
min.
300pF max.
300kHz typ.
UL 1950, EN60950
w
w
ne
ne
for
for
!!
ted
ted
on
on
es
es
so
so
gg
gg
su ed
su ed
nu
ot
ot tiinu
s n nt
iis n n
co
sco
es
es
diis
er
erii e d
be
ss
iis s iillll b
Th
Th
tw
iit w
as
as
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Isolation Voltage
In to out
I/O to case
I/O to case
Isolation Resistance
Isolation Capacitance
Operating Frequency
Approved to Safety Standards
Operating Temperature Range
Maximum Case Temperature
Storage Temperature Range
Thermal Impedance
Thermal Shock
Vibration
Standard
M2 (see note 3)
Natural convection
Relative Humidity
Case Material
Base Material
Potting Material
Conducted Emissions
Radiated Emissions
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Weight
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
DIP
SMD
Dimensions
DIP
SMD
MTBF (see note 2)
-25°C to +85°C (with derating)
-40°C to +85°C (with derating)
+100°C
-55°C to +105°C
20°C/Watt
MIL-STD-810D
10-55Hz, 2G, 30 Min. along X, Y and Z
5% to 95% RH
Nickel-Coated copper
Non-conductive black plastic
Epoxy (UL94-V0)
Level A
Level A
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
16g
18g
31.8 x 20.3 x 10.2mm
32.0 x 20.3 x 10.9mm
3.165 x 10
6
Hours
Notes :
1. The RP05 AW series requires a minimum of 10% loading on the output to maintain specified regulation. Operation under no-load condition
will not damage these devices, however they may not meet all listed specification.
2. BELLCORE TR-NWT-000332. Case l: 50% Stress, Temperature at 40 °C (Ground fixed and controlled environment).
3. M2 version is more efficient, therefore, it can be operated in a more extensive temperature range than the standard version.
4. Maximum value at nominal input voltage and full load of standard type.
5. Typical value at nominal input voltage and full load.
6. Test by minimum Vin and constant resistor load.
7. Simulated source impedance of 12uH. 12uH inductor on series with +Vin.
8. See application notes for EMI-filtering.
ns
ns
sg
siig
de
de
196
April-2005
www.recom-international.com
POWERLINE
DC/DC-Converter
RP05-S_DAW
Series
3rd angle
projection
w
w
ne
ne
for
for
!!
ted
ted
on
es
es oon
so
gg
gg
ds
su
su ed
ue
nu
ot
ot
tiin
s n nt
iis n n
co
sco
es
es
diis
er
erii e d
be
ss
iis s iillll b
Th
Th
tw
iit w
as
as

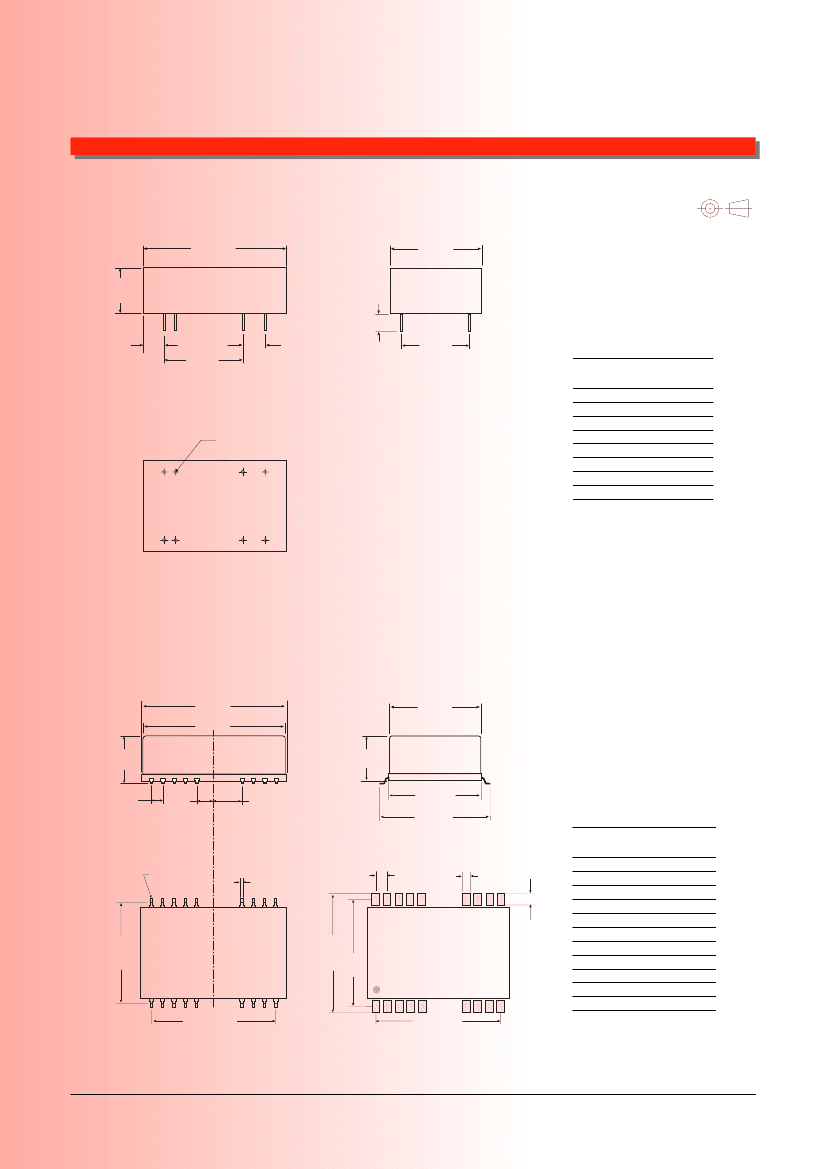

Package Style and Pinning (mm)
DIP24 Package Style
31.80
20.30
10.20
3.8
4.60
17.80
5.10
15.20
Pin Connections
Pin #
0.25 x 0.50
Rectangular Pin
9
11
2 3
Bottom View
Single
Dual
–Vin
–Vin
Com
–Vout
+Vout
Com
+Vin
+Vin
2
–Vin
3
–Vin
9
NC
11
NC
14
+Vout
16
–Vout
22
+Vin
23
+Vin
NC = No Connection
23 22
16
14
Pin Pitch Tolerance ±0.35 mm
SMD Package Style
32.00
20.30
31.40
SMD Package Style
Same spec. as the original DIP spec. and pin
definition, excl. of the SMD type pin.
11.20
10.90
2.54
3.81
6.35
21.30
25.40
Pin Connections
Pin #
Single
Dual
–Vin
–Vin
Com
NC
–Vout
+Vout
NC
Com
+Vin
+Vin
NC
Pin area
0.1 x 0.50
1 2 3 4 5
0.50
9 10 11 12
2.54
1.60
2.40
23.40
Bottom View
24 23 22 21 20
16 15 14 13
26.54
24.14
1
Top View
11 x 2.54
27.94
2
–Vin
3
–Vin
9
NC
10
NC
11
NC
14
+Vout
15
NC
16
–Vout
22
+Vin
23
+Vin
Others
NC
NC = No Connection
Pin Pitch Tolerance ±0.35 mm
ns
ns
sg
siig
de
de
www.recom-international.com
April-2005
197
