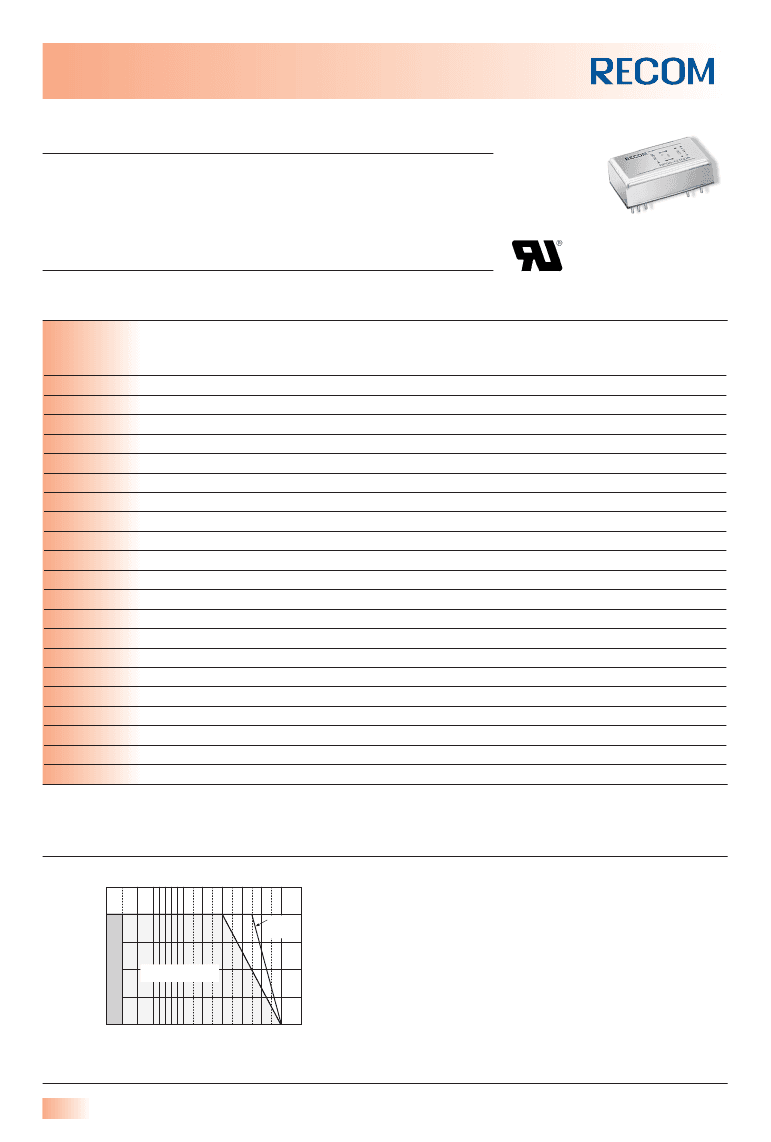

POWERLINE - DC/DC-Converter
A-Series, 5W, 1.6 kV Isolation, Regulated, 2:1 Wide Input Range (Single & Dual Output)
Features
●
5 Watts Regulated Output Power
●
2:1 Wide Input Voltage Range
●
Five-Sided Shield
●
High Efficiency up to 84%
●
Standard 24 Pin DIP & SMD
Type Package
Selection Guide
12V, 24V and 48V Input Types
Part Number
DIP
RP05-123.3SA (SMD)
RP05-1205SA
RP05-1212SA
RP05-1215SA
RP05-1205DA
RP05-1212DA
(SMD)
(SMD)
(SMD)
(SMD)
(SMD)
SMD
Suffix
Input
Range
VDC
9-18
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
36-75
36-75
36-75
●
●
International Safety Standard
Approvals
UL 1950 Component Recognised
Output
Voltage
VDC
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
Output
Current
mA
1000
1000
470
400
±500
±230
±190
1000
1000
470
400
±500
±230
±190
1000
1000
470
400
±500
±230
±190
Input Current
(see note 4)
mA
382
563
603
649
563
597
617
194
285
305
325
274
288
308
98
143
151
162
141
147
154
Efficiency
(see note 5)
%
76
78
82
81
78
81
81
75
77
81
81
80
84
81
74
77
82
81
78
82
81
Capacitive
Load
max.
µF
2200
1000
220
150
±680
±100
±68
2200
1000
220
150
±680
±100
±68
2200
1000
220
150
±680
±100
±68
RP05-1215DA ((SMD)
RP05-243.3SA (SMD)
RP05-2405SA
RP05-2412SA
RP05-2415SA
RP05-2405DA
RP05-2415DA
RP05-4805SA
RP05-4812SA
RP05-4815SA
RP05-4805DA
RP05-4812DA
RP05-4815DA
(SMD))
(SMD)
(SMD)
(SMD)
(SMD)
(SMD)
((SMD)
(SMD)
(SMD)
(SMD)
(SMD)
RP053-2412DA (SMD)
RP05-483.3SA (SMD)
RP05-4805SA: Derating Curve
125
100
75
Output Power (%)
50
25
M1 Version
Natural Convection
M1
Version
0
-40 -25 -10 0
50 60 70 80 90 100
Ambient Temperature Range (°C)
PO 22
August 2002
www.recom-international.com
POWERLINE - DC/DC-Converter
A-Series, 5W, 1.6 kV Isolation, Regulated, 2:1 Wide Input Range (Single & Dual Output)
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Output Power
Voltage Accuracy (full Load and nominal Vin)
Minimum Load (see note 1)
Line Regulation (LL-HL at full load)
Load Regulation (25% to 100% FL)
Cross Regulation (asymmetrical load 25%/100% FL)
Ripple and Noise (20MHz bandwith)
Temperature Coefficient
Transient Response (25% load step change)
Over Load Protection (% of full load at nominal Vin)
Short Circuit Protection
Input Voltage Range
RP05
RP05
RP05
12V nominal input
24Vnominal input
48V nominal input
Single
Dual
5W max.
±2%
10% of FL
±0.2%
±0.5%
±1%
±5%
50mVp-p
±0.02%/°C, max.
200µsec
170% typ.
Continuous, automatic recovery
9-18VDC
18-36VDC
36-75VDC
Pi Type
12V Input
24V Input
48V Input
36VDC
50VDC
100VDC
20mAp-p
600ms typ.
see „Selection Guide“ table
In to out
I/O to case
I/O to case
1600VDC min.
DIP type 1600VDC min.
SMD type 1000VDC min.
10
9
Ω
min.
300pF max.
300kHz typ.
UL 1950, EN60950
Nickel-coated copper
Non-conducted black plastic
Epoxy (UL94-V0)
DIP
SMD
16g
18g
See „Package Style and Pinning“ on next page
3.165 x 10
6
hours
Standard
M1 (see note 3)
-25°C to +85°C (with derating)
-40°C to +85°C (non-derating)
+100°C
-55°C to +105°C
continued on next page
Input Filter
Input Surge Voltage (100 ms max.)
Input Reflected Ripple (nominal Vin and full load)
Start Up Time (nominal Vin and constant resistor load)
Efficiency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
Approved to Safety Standards
Case Material
Base Material
Potting Material
Weight
Dimensions
MTBF (see note 2)
Operating Temperature Range
Maximum Case Temperature
Storage Temperature Range
www.recom-international.com
August 2002
PO 23
POWERLINE - DC/DC-Converter
A-Series, 5W, 1.6 kV Isolation, Regulated, 2:1 Wide Input Range (Single & Dual Output)
Specifications continued
(typical at nominal input and 25°C unless otherwise noted)
Thermal Impedance
Thermal Shock
Vibration
Relative Humidity
Conducted Emissions
Radiated Emissions
Conducted Immunity
Radiated Immunity
Fast Transient
ESD
EN55022
EN55022
EN61000-4-6
EN61000-4-3
EN61000-4-4
EN61000-4-2
Natural convection
20°C/Watt
MIL-STD-810D
10-55Hz, 2G, 3 Min. Period, 30 Min. along X, Y and Z
5% to 95% RH
Level A
Level A
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
Perf. Criteria 2
Notes
1. The RP05 A-series requires a minimum of 10% loading on the output to maintain specified regulation. Operation under
no-load condition will not damage these devices, however they may not meet all listed specification.
2. BELLCORE TR-NWT-000332. Case l: 50% Stress, Temperature at 40 °C (Ground fixed and controlled environment).
3. M1 version is more efficient, therefore, it can be operated in a more extensive temperature range than the standard and the M2 version.
4. Maximum value at nominal input voltage and full load of standard type.
5. Typical value at nominal input voltage and full load.
6. There is no pin at pin 10 & pin 15 for the RP05-W series.

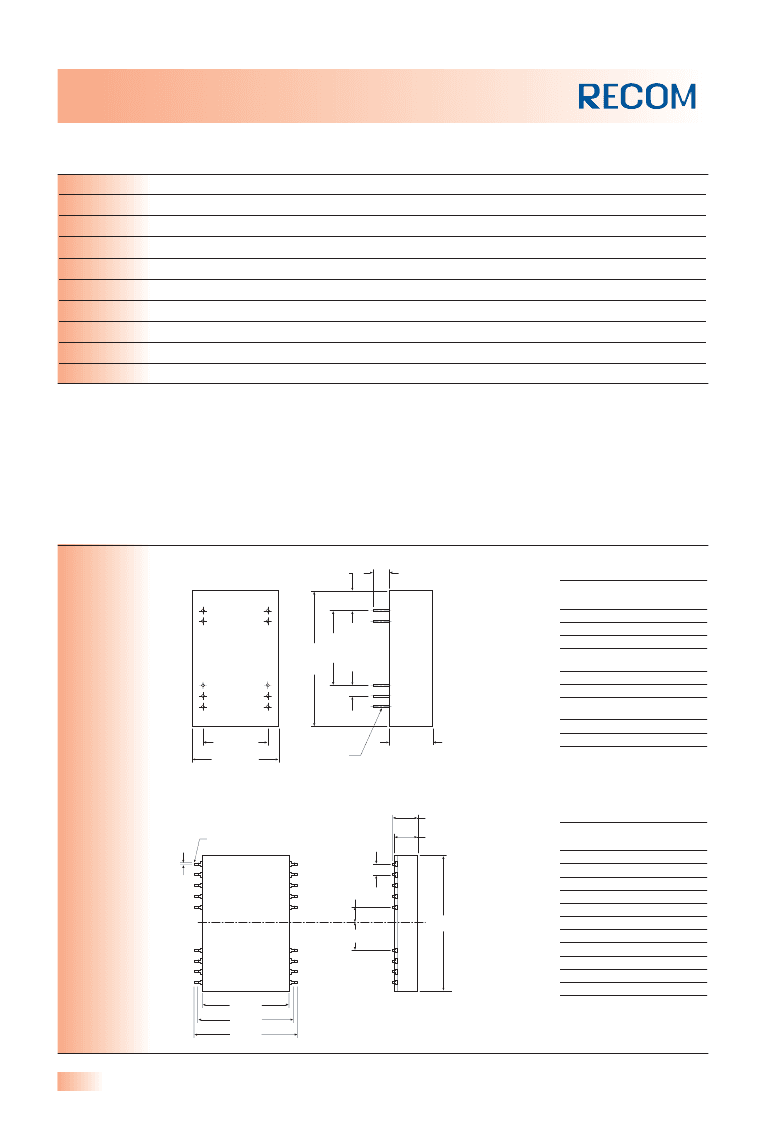

Package Style and Pinning (mm)
4.6
3.8
DIP Pin Connections
Pin #
23
22
2
3
Single
–Vin
–Vin
NC
NC
(see note 6)
NC
+Vout
NC
(see note 6)
–Vout
+Vin
+Vin
Dual
–Vin
–Vin
Common
NC
(see note 6)
–Vout
+Vout
NC
(see note 6)
Common
+Vin
+Vin
Bottom View
16
15
14
9
10
11
17.80
31.80
2
3
9
10
2.5
11
14
15
16
22
23
15.20
20.30
10.20
0.25 x 0.50
Rectangular Pin
11.2
Pin area 1.0 x 0.5
24
23
22
21
20
1
2
3
4
5
SMD Pin Connections
Pin #
2
3
9
10
11
14
15
16
22
23
Others
Single
–Vin
–Vin
NC
NC
NC
+Vout
NC
–Vout
+Vin
+Vin
NC
Dual
–Vin
–Vin
Common
NC
–Vout
+Vout
NC
Common
+Vin
+Vin
NC
2.54
10.9
0.5
3.81
32.00
6.35
Bottom View
16
15
14
13
9
10
11
12
20.30
23.40
25.40
Pin Pitch Tolerance ±0.35 mm
PO 24
August 2002
www.recom-international.com
