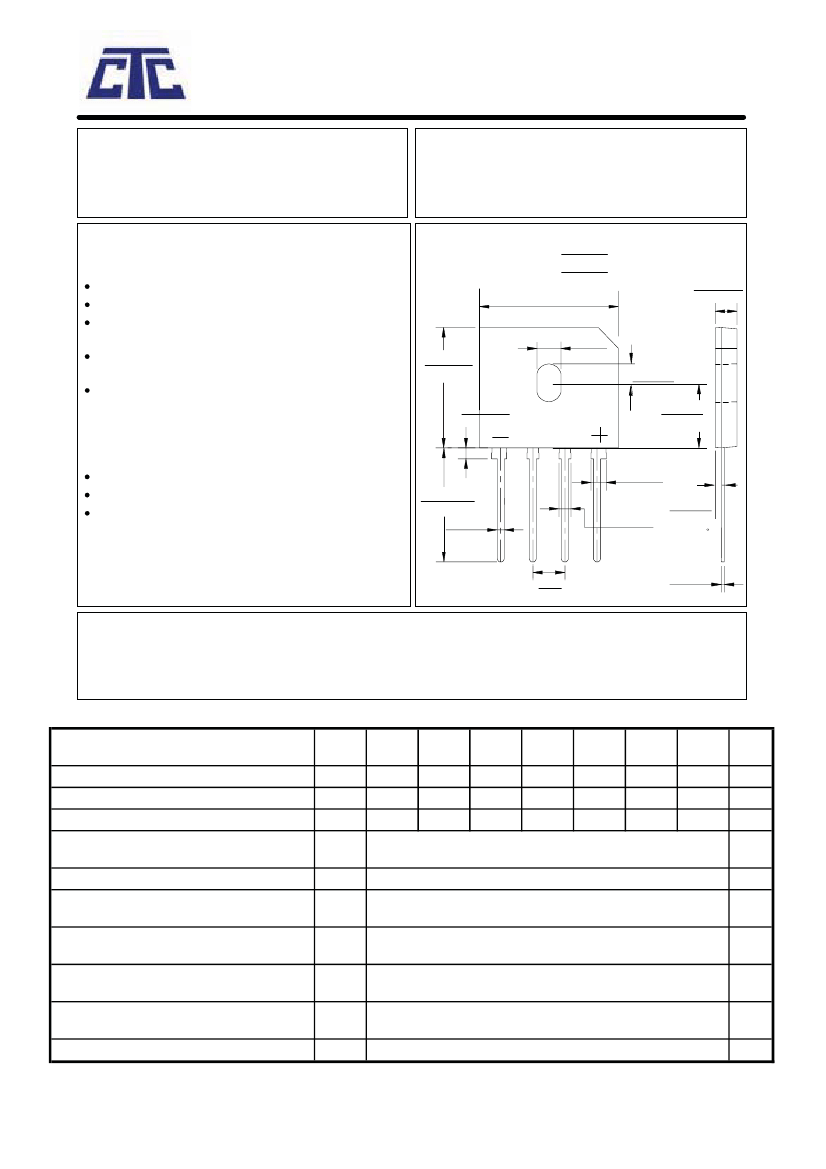

Compact Technology
GBU801 thru GBU807
REVERSE VOLTAGE
- 50
to
1000
Volts
FORWARD CURRENT
- 8.0
Amperes
GLASS PASSIVATED BRIDGE RECTIFIERS
FEATURES
Rating to 1000V PRV
Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic
technique
The plastic material has UL flammability classification
94V-0
In compliance with EU RoHS 2002/95/EC directives
GBU-S
.880(22.3)
.860(21.8)
.160(4.1)
.140(3.5)
.085(2.16)
.065(1.65)
.310(7.9)
.290(7.4)
.140(3.56)
.130(3.30)
.740(18.8)
.720(18.3)
.080(2.03)
.060(1.52)
MECHANICAL DATA
Polarity : As marked on Body
Weight : 0.134 ounces, 3.8 grams
Mounting position : Any
.367(9.3)
.342(8.7)
.050(1.27)
.040(1.02)
.100(2.54)
.085(2.16)
.080(2.03)
.065(1.65)
.040(1.02)
.030(0.76)
.210(5.33)
.190(4.83)
.030(.75)
.017(.45)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CTC0163 Ver. 2.0
1
of 2
GBU801 thru GBU807
Compact Technology

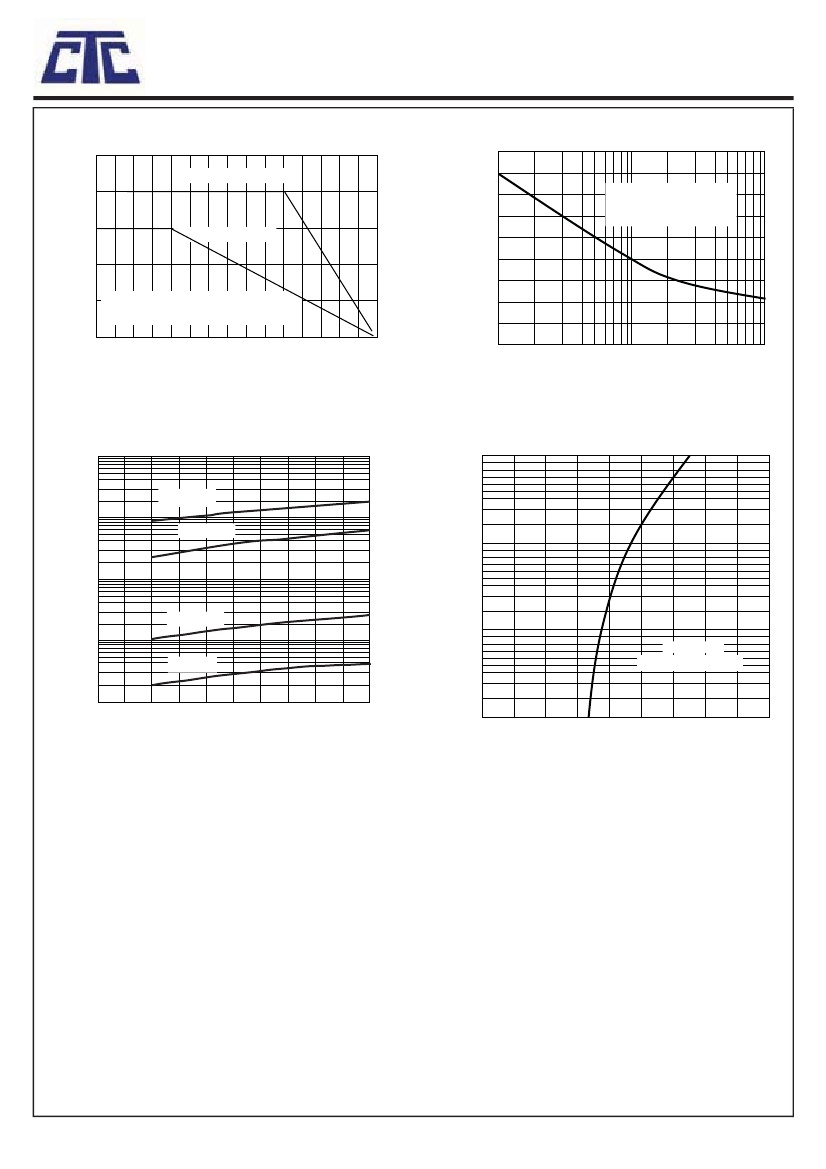

FIG.1-FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT
AMPERES
10
WITH HEATSINK
GBU801 thru GBU807
FIG.2-MAXIMUM NON-REPETITIVE SURGE CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
200
PULSE WIDTH 8.3ms
SINGLE HALF-SINE-WAVE
(JEDEC METHOD)
8.0
6.0
4.0
2.0
0.00
SINGLE PHASE HALF WAVE 60Hz
RESISTIVE OR INDUCTIVE LOAD
150
WITHOUT HEATSINK
100
50
0
0
20
40
60
80
100
120
140
0
2
5
10
20
50
100
CASE TEMPERATURE, °
NUMBER OF CYCLETS AT 60Hz
FIG.3-TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT ,(uA)
T
J
=125°C
FIG.4-TYPICAL FORWARD CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT,
(A)
100
T
J
=100°C
1.0
10
T
J
=50°C
1.0
T
J
=25°C
0.1
T
J
= 25°C
PULSE WIDTH 300us
0.1
0
20
40
60
80
100
0.01
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
CTC0163 Ver. 2.0
2
of 2
GBU801 thru GBU807
