www.niccomp.com/pcn | Technical Support: tpmg@niccomp.com
January 9, 2013
SUB: Product Change Notification, EOL Notice – Discontinued Product
Products Impacted by this notice: 0603 case size thin film chip inductors
NIC Part Numbers: See below EOL part number table below;
EFFECTIVE: Last Order Date: January 31st 2013 / Last Delivery Date: February 28
th
2013
REASON FOR CHANGE: Reduced market demand for 0603 case size
Suggested Alternates & Replacements
1.) Same Size 0603 Case Size ‐
NML06 Multilayer Chip Inductors / Designed for High Frequency Applications / High
Q and SRF Characteristics
2.) Same Construction ‐ Thin Film Construction NTI04 in smaller 0402 case size
Inductance
EOL
NML06
NTI04
(nH)
Part Number
Alternative
Alternative
1
NTI06_1N0TRF
NML06D1N0TRF
NTI04_1N0TRF
1.2
NTI06_1N2TRF
NML06D1N2TRF
NTI04_1N2TRF
1.5
NTI06_1N5TRF
NML06D1N5TRF
NTI04_1N5TRF
1.8
NTI06_1N8TRF
NML06D1N8TRF
NTI04_1N8TRF
2.2
NTI06_2N2TRF
NML06D2N2TRF
NTI04_2N2TRF
2.7
NTI06_2N7TRF
NML06D2N7TRF
NTI04_2N7TRF
3.3
NTI06_3N3TRF
NML06D3N3TRF
NTI04_3N3TRF
3.9
NTI06_3N9TRF
NML06D3N9TRF
NTI04_3N9TRF
4.7
NTI06_4N7TRF
NML06D4N7TRF
NTI04_4N7TRF
5.6
NTI06_5N6TRF
NML06D5N6TRF
NTI04_5N6TRF
6.8
NTI06_6N8TRF
NML06J6N8TRF
NTI04_6N8TRF
8.2
NTI06_8N2TRF
NML06J8N2TRF
NTI04_8N2TRF
10
NTI06_10NTRF
NML06J10NTRF
NTI04_10NTRF
12
NTI06_12NTRF
NML06J12NTRF
NTI04_12NTRF
15
NTI06_15NTRF
NML06J15NTRF
NTI04_15NTRF
18
NTI06_18NTRF
NML06J18NTRF
NTI04_18NTRF
22
NTI06_22NTRF
NML06J22NTRF
NTI04_22NTRF
27
NTI06_27NTRF
NML06J27NTRF
NTI04_27NTRF
33
NTI06_33NTRF
NML06J33NTRF
NTI04_33NTRF
39
NTI06_39NTRF
NML06J39NTRF
<‐‐
47
NTI06_47NTRF
NML06J47NTRF
<‐‐
56
NTI06_56NTRF
NML06J56NTRF
<‐‐
68
NTI06_68NTRF
NML06J68NTRF
<‐‐
100
NTI06_R10TRF
NML06JR10TRF
<‐‐
Prepared by: Technical Product Marketing Group / tpmg@niccomp.com
Follow NIC PCN alerts to get email notifications of EOL and PCN announcements at
www.niccomp.com/pcn
I S O 9 0 0 1: 2 0 0 8 R E G I S T E R E D

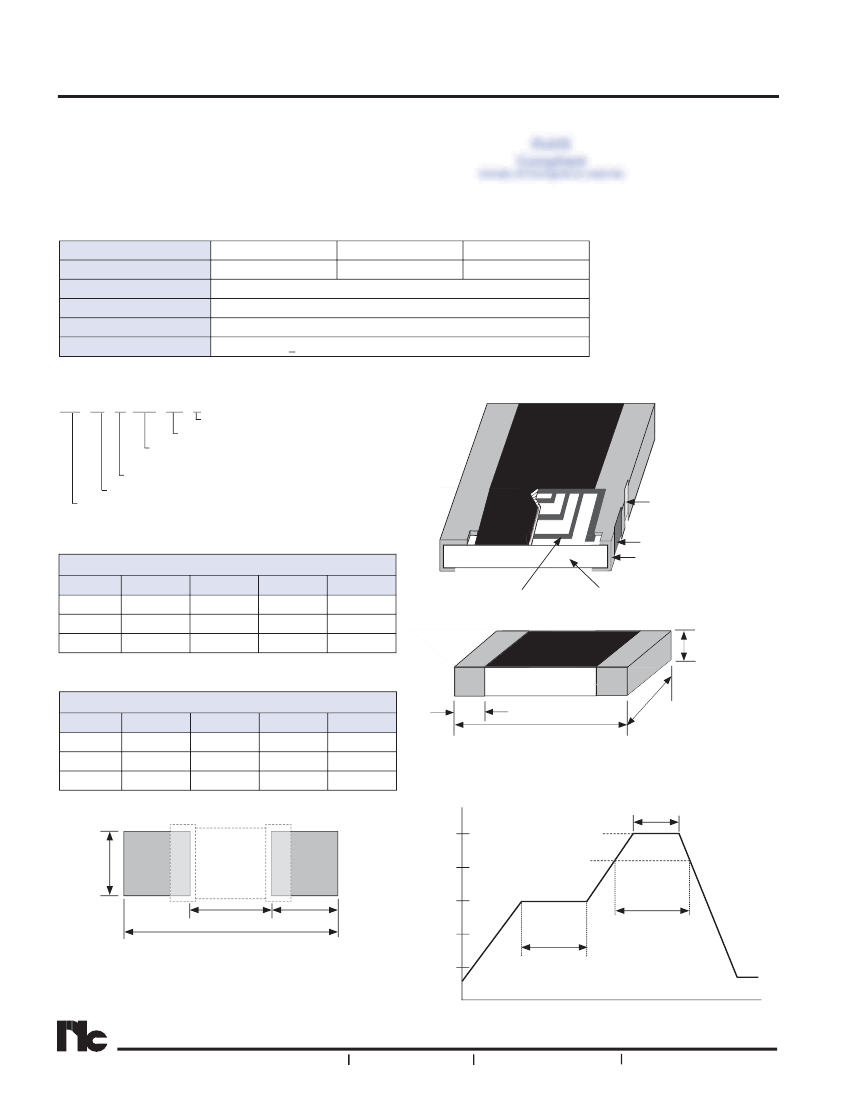

Thin Film Chip Inductors
FEATURES
• ULTRA-SMALL LOW PROFILE 0201, 0402 & 0603 SIZES
• HIGH CURRENT & HIGH SRF
• COMPATIBLE WITH Pb-FREE SOLDERING
• RoHS COMPLIANT
RoHS
Compliant
includes all homogeneous materials
NTI Series
*See Part Number System for Details
CHARACTERISTICS
Case Size
Inductance Range
Available Tolerance
Temperature Range
Resistance to Solder Heat
Temperature Cycling
0201
0.1nH ~ 10nH
0402
0.2nH ~ 33nH
0603
1.0nH ~ 100nH
±0.1nH (B), ±0.2nH (C), ±0.3nH (D), ±1% (F), ±2% (G) & ±5% (J)
-40°C ~ +85°C
260°C ±5°C for 5 seconds
ΔL
<10% after 10 cycles -40°C/+20°C/+85°C/+20°C
PART NUMBER SYSTEM
NTI 02
F 10N TR F
Pb-free/RoHS compliant
Tape & Reel Packaging
Inductance Value in nano-henries,
"N" indicates decimal point
Inductance Tolerance (see values tables)
Case Code
Series
CONSTRUCTION
Nickel-Chromium (Ni-Cr)
Termination Base
Nickel (Ni) Barrier
Tin (Sn) Outerplating
CASE DIMENSIONS (mm)
Case Sixe
0201
0402
0603
L
0.60 ± 0.05
1.0 ± 0.05
1.6 ± 0.10
W
0.30 ± 0.05
0.5 ± 0.05
0.8 ± 0.10
T
0.23 ± 0.05
0.32 ± 0.05
0.45 ± 0.10
P
0.15 ± 0.05
0.20 ± 0.10
0.30 ± 0.20
Etched Copper Coil
Alumina Substrate
T
LAND PATTERN DIMENSIONS (mm)
Case Sixe
0201
0402
0603
A
0.2 ~ 0.3
0.5 ~ 0.6
0.6 ~ 1.0
B
0.8 ~ 0.9
1.5 ~ 1.8
2.4 ~ 2.8
C
0.2 ~ 0.3
0.5 ~ 0.6
0.7 ~ 0.9
D
0.3 ~ 0.4
0.5 ~ 0.6
0.9 ~ 1.1
P
L
W
REFLOW SOLDERING PROFILE
10 sec. max.
250°C
260°C max.
220°C
130°C ~ 180°C
Time above 220°C -
60 sec. max.
90 ~ 120 sec.
A
Temperature °C
200°C
150°C
100°C
50°C
C
B
D
®
Time (seconds)
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
11
Thin Film Chip Inductors
Available Values - 0201 Case Size
Inductance
Value (nH)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.0
4.4
4.7
4.9
5.6
6.1
6.8
7.4
8.2
9.1
9.2
10
Part
Number
NTI02_0N1TRF
NTI02_0N2TRF
NTI02_0N3TRF
NTI02_0N4TRF
NTI02_0N5TRF
NTI02_0N6TRF
NTI02_0N7TRF
NTI02_0N8TRF
NTI02_0N9TRF
NTI02_1N0TRF
NTI02_1N1TRF
NTI02_1N2TRF
NTI02_1N3TRF
NTI02_1N4TRF
NTI02_1N5TRF
NTI02_1N6TRF
NTI02_1N7TRF
NTI02_1N8TRF
NTI02_1N9TRF
NTI02_2N0TRF
NTI02_2N1TRF
NTI02_2N2TRF
NTI02_2N3TRF
NTI02_2N4TRF
NTI02_2N5TRF
NTI02_2N6TRF
NTI02_2N7TRF
NTI02_2N8TRF
NTI02_2N9TRF
NTI02_3N0TRF
NTI02_3N1TRF
NTI02_3N2TRF
NTI02_3N3TRF
NTI02_3N4TRF
NTI02_3N5TRF
NTI02_3N6TRF
NTI02_3N7TRF
NTI02_3N8TRF
NTI02_3N9TRF
NTI02_4N0TRF
NTI02_4N4TRF
NTI02_4N7TRF
NTI02_4N9TRF
NTI02_5N6TRF
NTI02_6N1TRF
NTI02_6N8TRF
NTI02_7N4TRF
NTI02_8N2TRF
NTI02_9N1TRF
NTI02_9N2TRF
NTI02_10NTRF
DC Resistance
Max. (Ω)
0.20
DC Current
Max. (mA)
400
Available Tolerances & Tolerance Codes
NTI Series
Q Factor Min.
SRF
& Test Frequency Min. (GHz)
0.25
350
0.30
300
0.35
0.45
250
9
0.55
200
0.70
200
±0.1nH (B), ±0.2nH (C), ±0.3nH (D)
8
0.80
8 min. @ 500MHz
1.00
150
6
1.20
1.30
1.40
1.60
1.80
2.00
2.30
2.80
3.00
3.25
3.50
140
130
120
110
100
80
±2% (G), ±5% (J)
3
2
4
®
12
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Thin Film Chip Inductors
Available Values - 0402 Case Size
Inductance
Value (nH)
0.2
0.3
0.4
0.5
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.3
4.7
5.4
5.6
5.9
6.5
6.8
7.2
8.0
8.1
8.2
9.1
10
10.8
12
13.8
15
17
18
20.8
22
27
33
®
Part
Number
NTI04_0N2TRF
NTI04_0N3TRF
NTI04_0N4TRF
NTI04_0N5TRF
NTI04_0N8TRF
NTI04_0N9TRF
NTI04_1N0TRF
NTI04_1N1TRF
NTI04_1N2TRF
NTI04_1N3TRF
NTI04_1N4TRF
NTI04_1N5TRF
NTI04_1N6TRF
NTI04_1N7TRF
NTI04_1N8TRF
NTI04_1N9TRF
NTI04_2N0TRF
NTI04_2N1TRF
NTI04_2N2TRF
NTI04_2N3TRF
NTI04_2N4TRF
NTI04_2N5TRF
NTI04_2N6TRF
NTI04_2N7TRF
NTI04_2N8TRF
NTI04_2N9TRF
NTI04_3N0TRF
NTI04_3N1TRF
NTI04_3N2TRF
NTI04_3N3TRF
NTI04_3N4TRF
NTI04_3N5TRF
NTI04_3N6TRF
NTI04_3N7TRF
NTI04_3N8TRF
NTI04_3N9TRF
NTI04_4N3TRF
NTI04_4N7TRF
NTI04_5N4TRF
NTI04_5N6TRF
NTI04_5N9TRF
NTI04_6N5TRF
NTI04_6N8TRF
NTI04_7N2TRF
NTI04_8N0TRF
NTI04_8N1TRF
NTI04_8N2TRF
NTI04_9N1TRF
NTI04_10NTRF
NTI04_10N8TRF
NTI04_12NTRF
NTI04_13N8TRF
NTI04_15NTRF
NTI04_17NTRF
NTI04_18NTRF
NTI04_20N8TRF
NTI04_22NTRF
NTI04_27NTRF
NTI04_33NTRF
DC Resistance
Max. (Ω)
0.10
DC Current
Max. (mA)
800
Available Tolerances & Tolerance Codes
NTI Series
Q Factor Min.
& Test Frequency
SRF
Min. (GHz)
14
0.15
700
12
0.25
560
10
0.35
440
8
±0.1nH (B), ±0.2nH (C), ±0.3nH (D)
0.45
380
13 min. @ 500MHz
0.55
340
0.65
0.85
320
280
6
1.05
260
1.25
220
5.5
1.35
1.55
1.75
1.95
2.15
2.55
2.65
3.25
4.50
200
180
130
100
90
75
±5% (J)
±1% (F), ±2% (G) & ±5% (J)
4.5
3.7
3.3
3.1
2.8
2.5
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
13
Thin Film Chip Inductors
Available Values - 0603 Case Size
Inductance
Value (nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
100
Part
Number
NTI06_1N0TRF
NTI06_1N2TRF
NTI06_1N5TRF
NTI06_1N8TRF
NTI06_2N2TRF
NTI06_2N7TRF
NTI06_3N3TRF
NTI06_3N9TRF
NTI06_4N7TRF
NTI06_5N6TRF
NTI06_6N8TRF
NTI06_8N2TRF
NTI06_10NTRF
NTI06_12NTRF
NTI06_15NTRF
NTI06_18NTRF
NTI06_22NTRF
NTI06_27NTRF
NTI06_33NTRF
NTI06_39NTRF
NTI06_47NTRF
NTI06_56NTRF
NTI06_68NTRF
NTI06_R10TRF
DC Resistance
Max. (Ω)
DC Current
Max. (mA)
800
0.35
Available Tolerances & Tolerance Codes
NTI Series
Q Factor Min.
& Test Frequency
SRF
Min. (GHz)
13
10
8
0.45
0.55
0.65
0.75
0.95
1.05
1.35
1.65
1.95
2.35
2.75
3.00
5.00
7.50
±0.1nH (B), ±0.2nH (C), ±0.3nH (D)
6
300
15 @ 300MHz
5
4
3
2
250
200
150
100
±1% (F), ±2% (G), ±5% (J)
1.5
1
TAPE AND REEL DIMENSIONS (mm)
Type
NTI02
NTI04
NTI06
A
0.40 ± 0.05
0.70 ± 0.05
1.10 ± 0.10
B
E
F
W
P
0
P
1
P
2
t
0.70 ± 0.05
0.42 ± 0.02
2.0 ± 0.05
1.16 ± 0.05 1.75 ± 0.05 3.5 ± 0.05 8.0 ± 0.10 4.0 ± 0.10
2.0 ± 0.05 0.40 ± 0.03
1.90 ± 0.10
4.0 ± 0.10
0.60 ± 0.03
Reel Quantity
10,000
10,000
5,000
9.5 ± 1.0
Sprocket Hole
φ
Do
E
F
178± 1.0
13.5
W
±0.7
B
A
t
P
1
P
2
P
0
11.5
±1.0
®
14
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
60
±1.0
