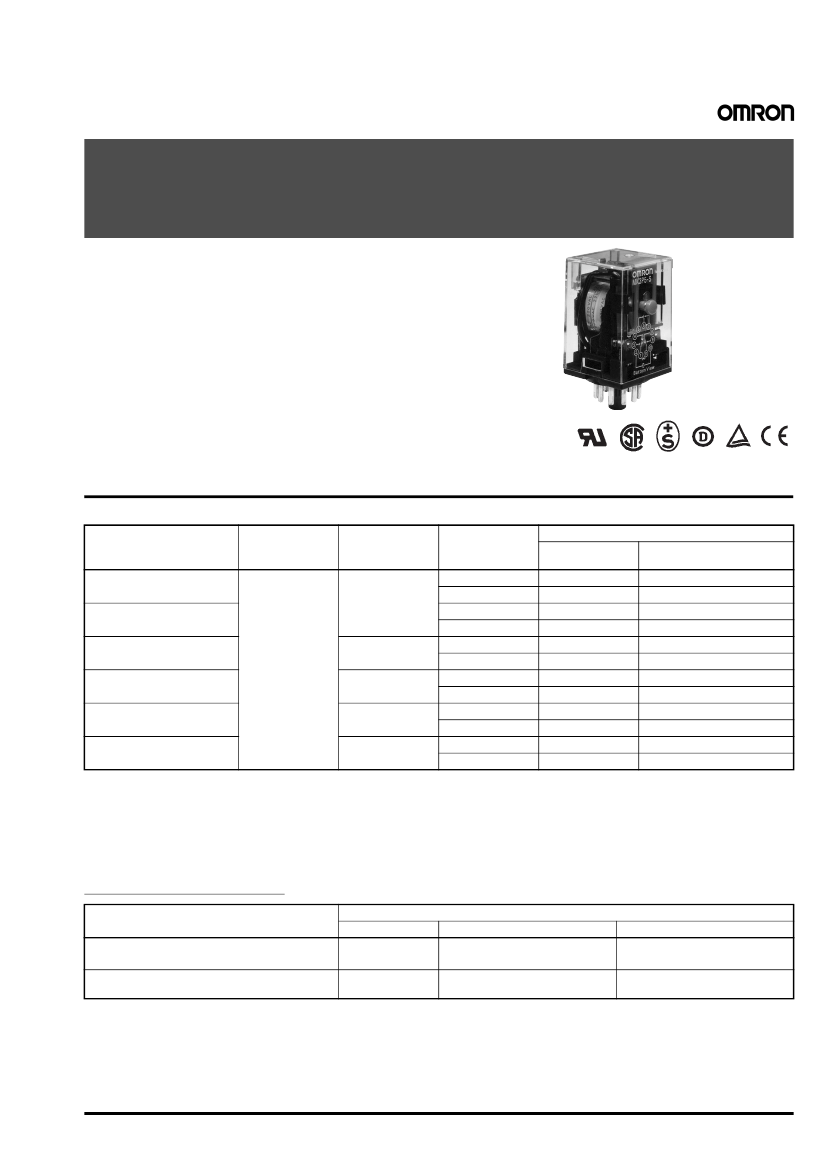

General Purpose Relay
MK
• Exceptionally reliable general purpose relay.
• Long life (minimum 100,000 electrical operations) assured
by silver contacts.
• Built-in operation indicator (mechanical, LED), diode surge
suppression, Varistor surge suppression.
• The contact operation can be easily checked by mechanical
indicator and/or push-to-test button options.
• Conforms to CENELEC standards.
• VDE approved versions available.
Ordering Information
To Order: Select the part number and add the desired coil voltage rating (e.g., MK3P5-S-AC120).
Type
Terminal
Coil
Contact form
Mechanical
indicator
Standard
LED indicator
LED indicator and diode
LED indicator and varistor
Diode
Varistor
DC
AC
DC
AC
Plug-in
AC/DC
DPDT
3PDT
DPDT
3PDT
DPDT
3PDT
DPDT
3PDT
DPDT
3PDT
DPDT
3PDT
MK2P-I
MK3P-5-I
MK2PN-I
MK3PN-5-I
MK2PND-I
MK3PND-5-I
MK2PNV-I
MK3PNV-5-I
MK2PD-I
MK3PD-5-I
MK2PV-I
MK3PV-5-I
Model
Mechanical indicator
& push-to-test button
MK2P-S
MK3P-5-S
MK2PN-S
MK3PN-5-S
MK2PND-S
MK3PND-5-S
MK2PNV-S
MK3PNV-5-S
MK2PD-S
MK3PD-5-S
MK2PV-S
MK3PV-5-S
Note: 1.
Reverse polarity versions available on DC coil types. Consult your OMRON representative for further information.
2.
VDE approved versions are available. Consult your OMRON representative for further information.
■
Accessories (Order separately)
To Order: Select the appropriate part numbers for sockets, clips, and mounting tracks (if required) from the available types chart.
Track Mounted Sockets
Relay type
Socket
SPDT
DPDT
3PDT
PF083A-E
PF113A-E
PFC-A1
PFC-A1
Model
Relay hold-down clip
Mounting track/end plate
PFP-100N
or
PFP-50N
and
PFP-M
(end plate)
PFP-100N
or
PFP-50N
and
PFP-M
(end plate)
General Purpose Relay
MK
1
■
Accessories (continued)
Back Connecting Sockets
Relay type
Socket
SPDT
DPDT
3PDT
PL08
PLE08-0
PL08-Q
PL11
PLE11-0
PL11-Q
PLC-E
PLC-10
PLC-E
PLC-E
PLC-10
PLC-E
Model
Relay hold-down clip
Specifications
■
Contact Data
Load
Rated load
2 Pole
10 A at 250 VAC
10 A at 28 VDC
Ag
10 A
250 VAC, 250 VDC
10 A
2,500 VA
280 W
10 mA at 1 VDC
Resistive load (p.f. = 1)
3 Pole
10 A at 120 VAC
10 A at 28 VDC
10 A at 250 VAC
Inductive load (p.f. = 0.4)
7 A at 250 VAC
Contact material
Carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Min. permissible load
2,500 VA/1,250 VA (NO/NC contacts)
280 W
1,750 VA
■
Coil Data
AC
Rated
voltage
(VAC)
6
12
24
50
110
120
220
240
Rated
current (mA)
(at 60 Hz)
360
180
88.0
39.0
21.0
18.0
11.0
9.2
Coil
resistance
(Ω)
3.9
16.3
68.0
338
1240
1578
5090
6737
Coil inductance
(Ref. value) (H)
Armature OFF Armature ON
0.0423
0.0201
0.3270
0.1666
0.6940
0.3760
3.195
1.530
13.45
7.32
15.04
7.19
49.73
27.02
58.62
32.07
Dropout
Maximum
voltage
voltage
% of rated voltage
30% min.
110% max.
80% max.
(at 60 Hz)
Approx.
25% min.
2.7 VA
(at 50 Hz)
Pick-up
voltage
Power
consumption
(mW)
Approx.
2.3 VA
(at 60 Hz)
Approx.
2.7 VA
(at 50 Hz)
DC
Rated
voltage
(VDC)
6
12
24
48
110
Rated
current (mA)
(at 60 Hz)
255
126
56
29.5
15.1
Coil
resistance
(Ω)
23.5
95
430
1630
7300
Coil inductance
(Ref. value) (H)
Armature OFF Armature ON
0.206
0.106
0.963
0.449
4.915
2.478
16.685
10.487
80.2
42.6
Dropout
Maximum
voltage
voltage
% of rated voltage
80% max.
15% min.
110% max.
Approx.
2.7 VA
Pick-up
voltage
Power
consumption
(mW)
Approx.
1.5 W
Note: 1.
The rated current and coil resistance are measured at a coil temperature of 23°C (73°F) with a tolerance of ±15% for DC rated current
and +15%, -20% for AC rated current.
2.
The rated current is reference value.
3.
Performance characteristic data are measured at a coil temperature of 23°C (73°F).
4.
For models with the LED indicator built-in, add an LED current of approximately 0 thru 5 mA to the rated current.
2
General Purpose Relay
MK
■

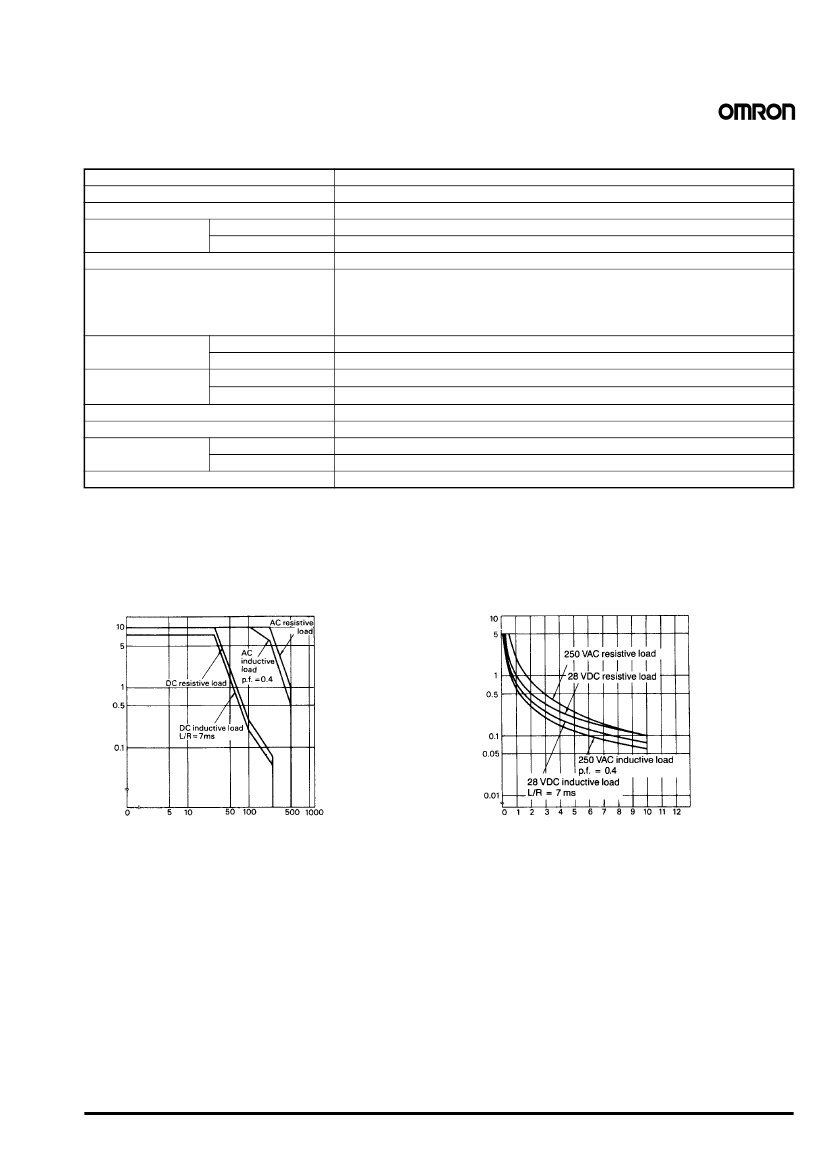

Characteristics
Contact resistance
Operate time
Release time
Operating frequency
Insulation resistance
Dielectric strength
Mechanical
Electrical
50 mΩ max.
AC: 20 ms max. DC: 30 ms max.
20 ms max.
18,000 operations/hour
1,800 operations/hour (under rated load)
100 MΩ min. (at 500 VDC)
2,500 VAC, 50/60 Hz for 1 minute between coil and contacts
1,000 VAC, 50/60 Hz for 1 minute between contacts of same poles, between
terminals of the same polarity
2,500 VAC, 50/60 Hz for 1 minute between current-carrying parts, noncurrent-
carrying parts, and terminals of opposite polarity
Mechanical durability
Mechanical durability
10 to 55 Hz, 1.50 mm (0.06 in) double amplitude
1,000 m/s
2
(approx. 100 G)
Operation: -10° to 40°C (14° to 104°F)
35 to 85% RH
Mechanical
Electrical
Weight
Note:
Data shown are of initial value.
10 million operations min. (at operating frequency of 18,000 operations/hour)
100,000 operations at rated load (at operating frequency of 1,800 operations/hour)
Approx. 85 g (3.0 oz)
Malfunction durability
10 to 55 Hz, 1.00 mm (0.04 in) double amplitude
Shock
Ambient temperature
Humidity
Service Life
Malfunction durability
100 m/s
2
(approx. 10 G)
Vibration
■
Characteristic Data
Maximum switching capacity
MK2P-S
Electrical service life
MK2P-S, MK3P5-S
Rated operating voltage (V)
Service life (x10
6
operations)
Rated operating current (A)
Rated operating current (A)
General Purpose Relay
MK
3

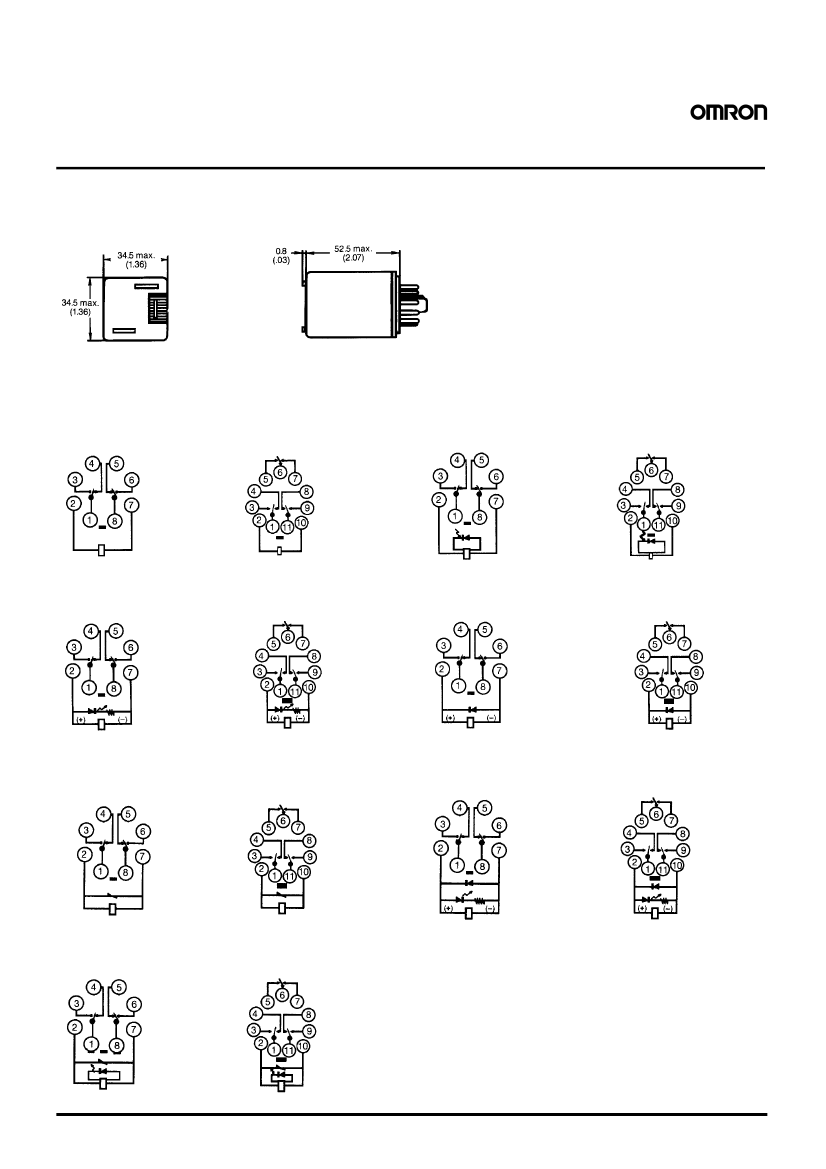

Dimensions
Unit: mm (inch)
■
Relays
■
Terminal Arrangement (Bottom view)
Standard type (AC/DC coil)
MK2P-I, -S
MK3P5-I, -S
LED indicator type (AC coil)
MK2PN-I, -S
MK3PN-5-I, -S
LED indicator type (DC coil)
MK2PN-I, -S
MK3PN-5-I, -S
Diode type (DC coil)
MK2PD-I, -S
MK3PD-5-I, -S
Varsitor type (AC coil)
MK2PV-I, -S
MK3PV-5-I, -S
LED indicator and diode type (DC coil)
MK2PND-I, -S
MK3PND-5-I, -S
LED indicator and Varsitor type (AC coil)
MK2PNV-I, -S
MK3PNV-5-I, -S
4
General Purpose Relay
MK
■

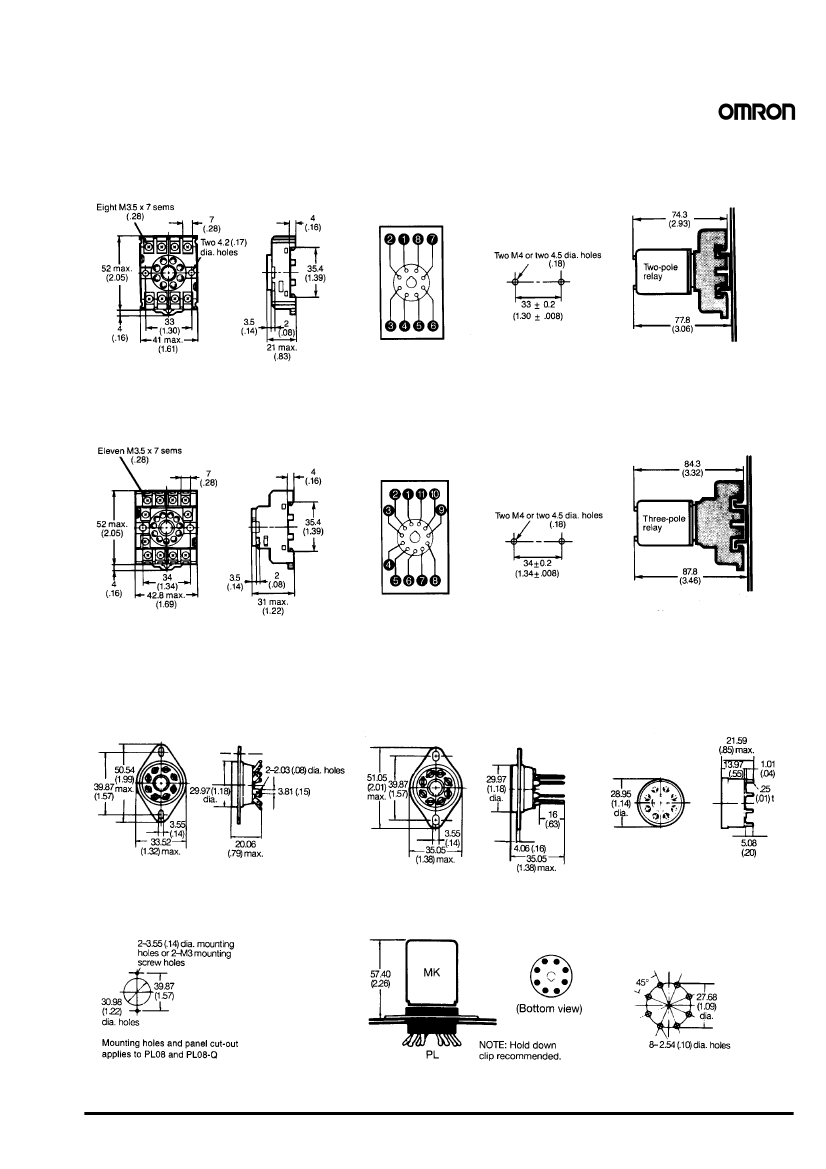

Accessories
Track mounted socket
PF083A-E (conforming to DIN EN 50022)
Terminal
arrangement
Mounting
holes
Mounting dimensions
of relay with socket
Note:
Model PF083A-E can be used as a front connecting socket.
Track mounted socket
PF113A-E (conforming to DIN EN 50022)
Terminal
arrangement
Mounting
holes
Mounting dimensions
of relay with socket
Note:
Model PF113A-E can be used as a front connecting socket.
Back connecting socket
MK2 sockets (8 pin)
PL08
(UL File No. E87929)
Solder terminals
PL08-Q
Wire wrap terminals
Printed circuit
board socket
PLE08-0
Mounting holes
PL08
PL08 type sockets and MK2 relay
Total height dimension
Recommended PCB layout
PLE08-0
General Purpose Relay
MK
5
