DG190AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG190AP

DG190AP: DescriptionSPDT, 2 Func, 1 Channel, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size742KB，10 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

DG190AP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG190AP	-	-	View	Buy Now

DG190AP Overview

SPDT, 2 Func, 1 Channel, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

DG190AP Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-CDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16
Nominal off-state isolation	50 dB
Maximum on-state resistance (Ron)	30 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	130 ns
Maximum connection time	150 ns
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

REI Datasheet

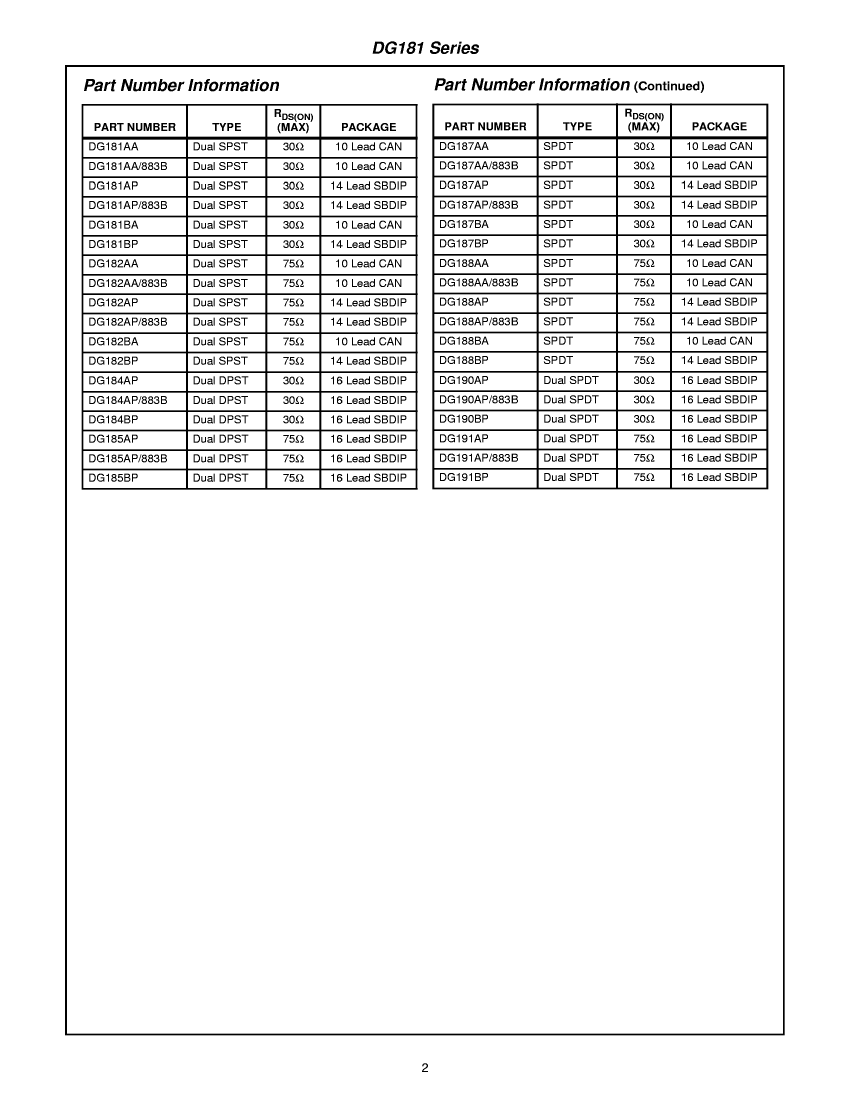

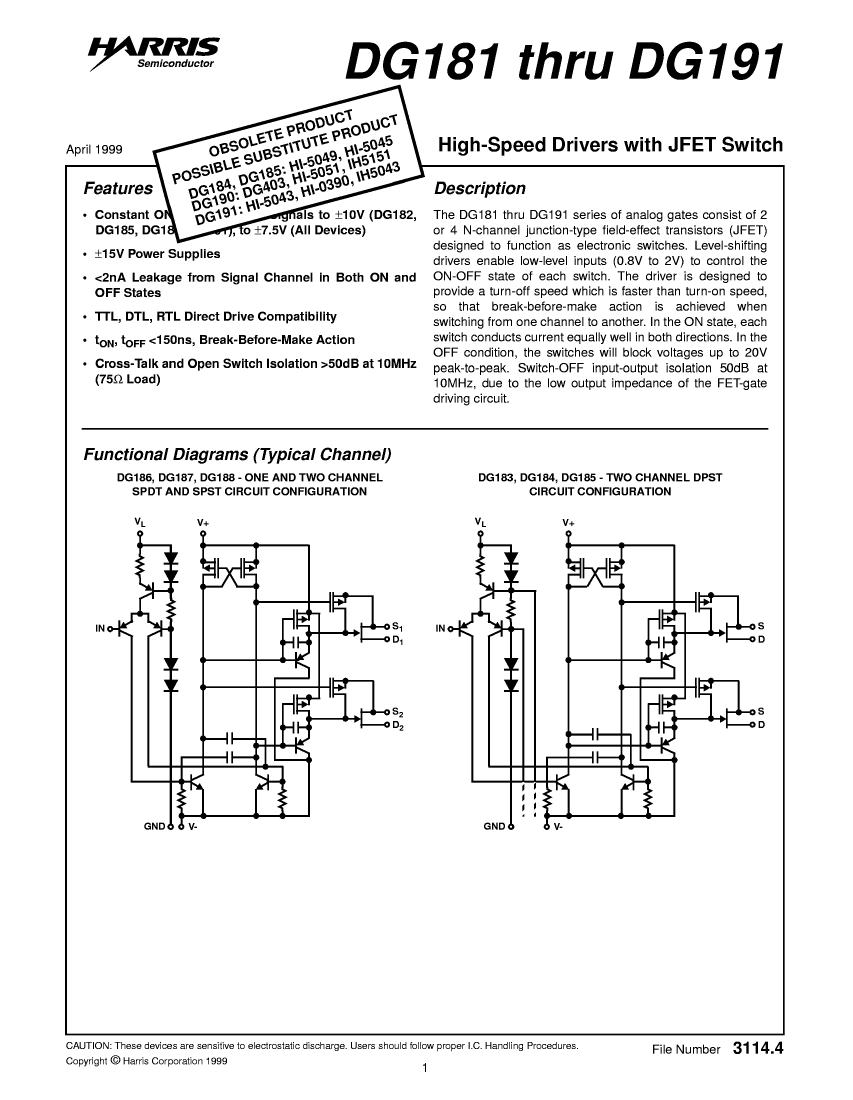

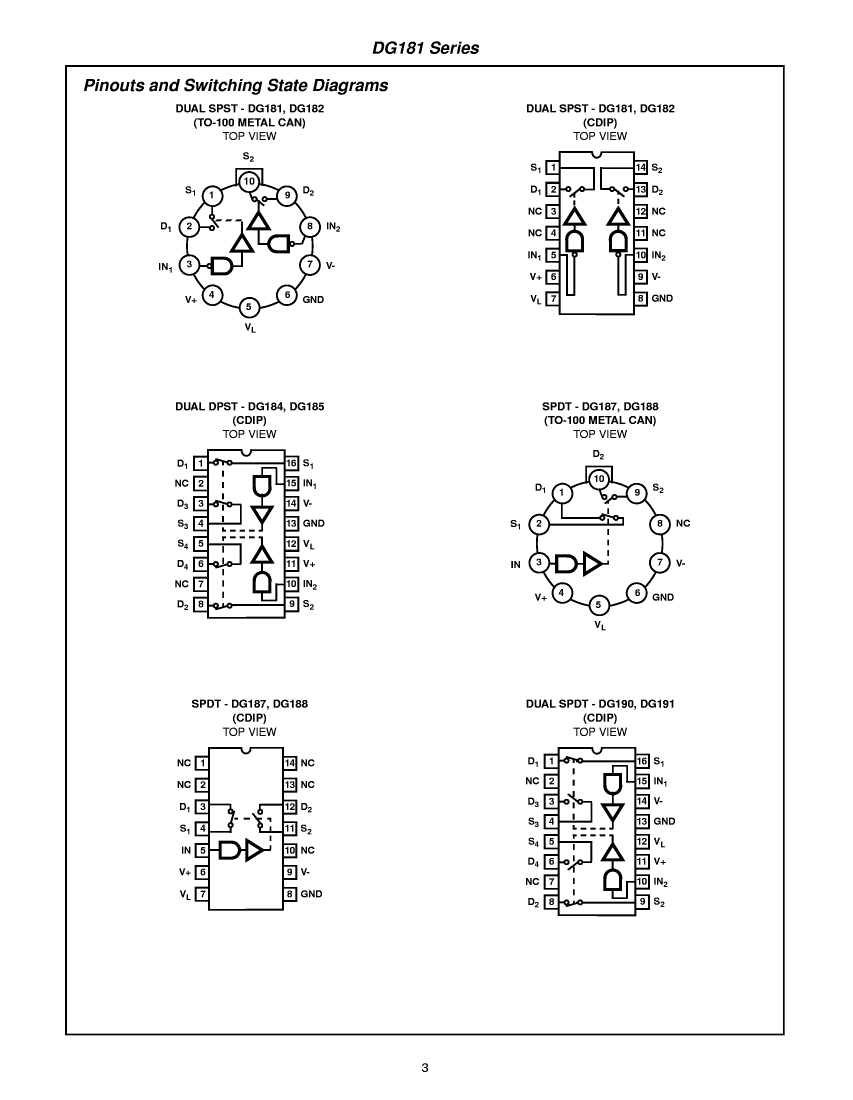

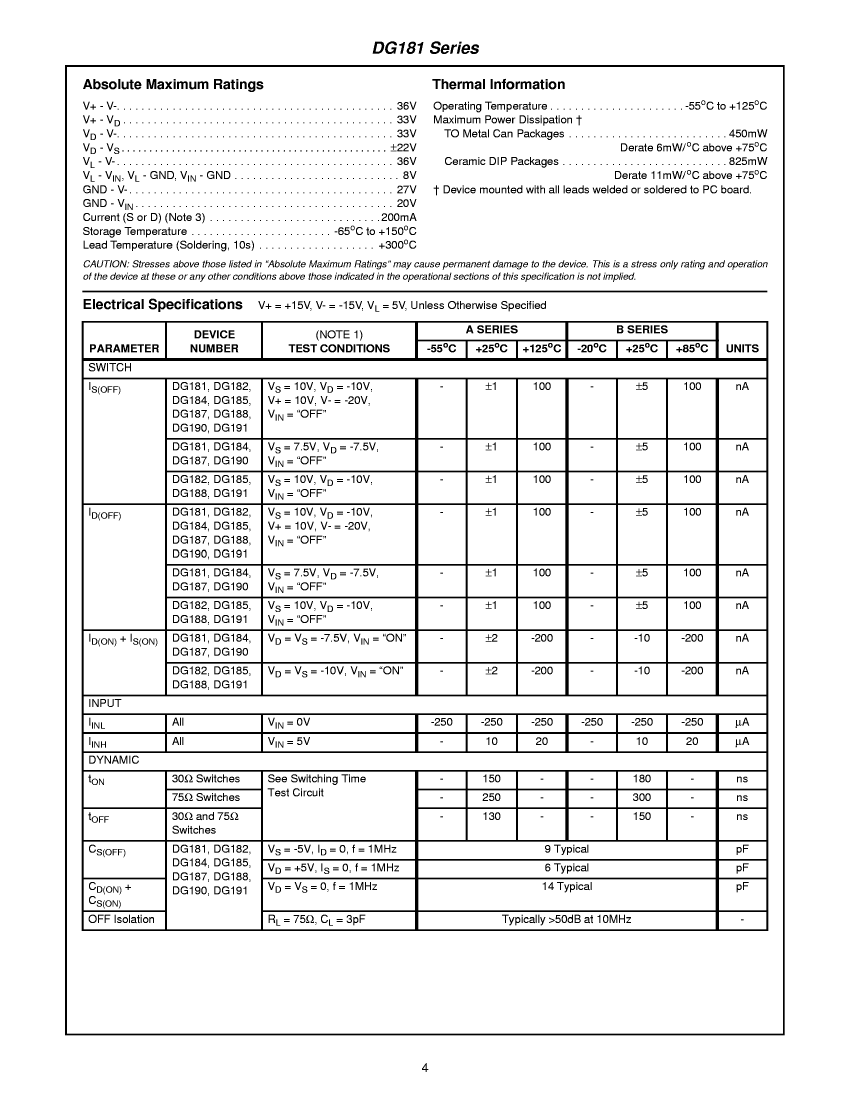

DG181-DG191

High-Speed Drivers with JFET Switch

The DG181 thru DG191 series of analog gates consist of 2 or 4 N-channel junction-type field-effect

transistors (JFET) designed to function as electronic switches. Level-shifting drivers enable low-level

inputs (0.8V to 2V) to control the ON-OFF state of each switch. The driver is designed to provide

a turn-off speed which is faster than turn-on speed, so that break-before-make action is achieved

when switching from one channel to another. In the ON state, each switch conducts current equally

well in both directions. In the OFF condition, the switches will block voltages up to 20V peak-to-peak.

Switch-OFF input-output isolation 50dB at 10MHz, due to the low output impedance of the FET-gate

driving circuit.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com
