AS2715T-3.3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AS2715T-3.3

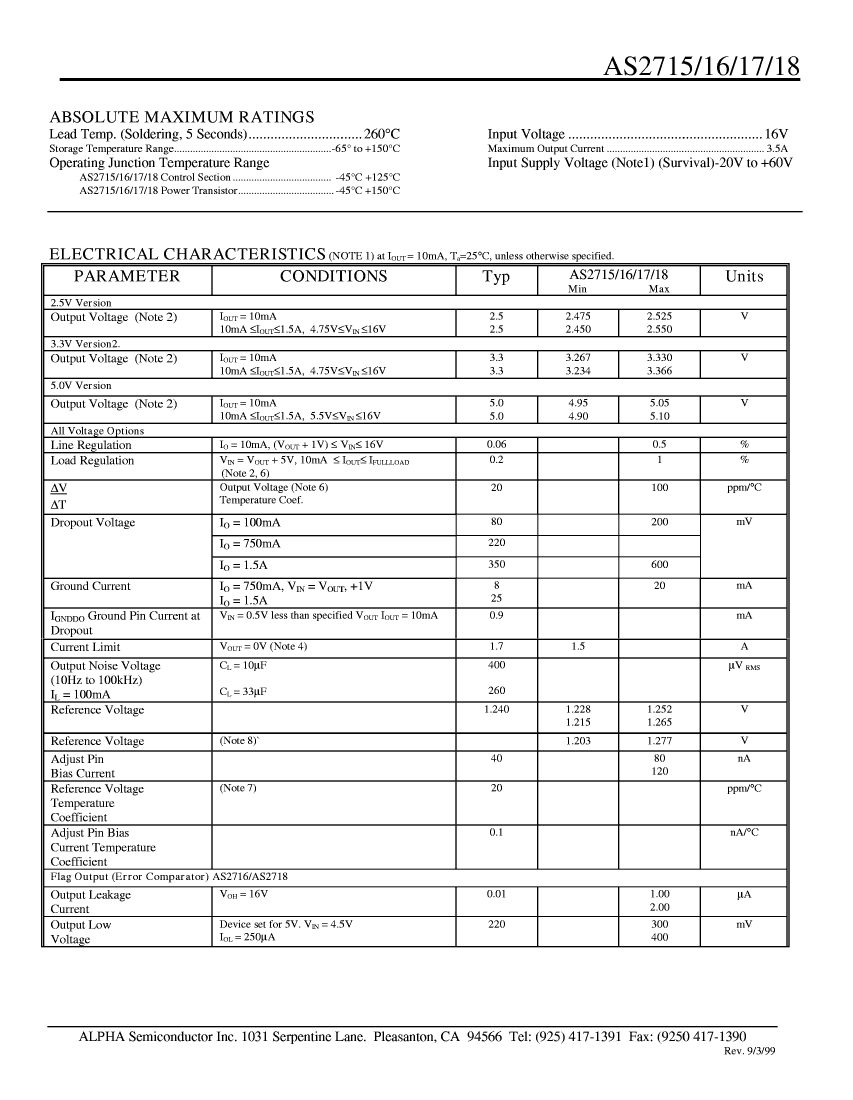

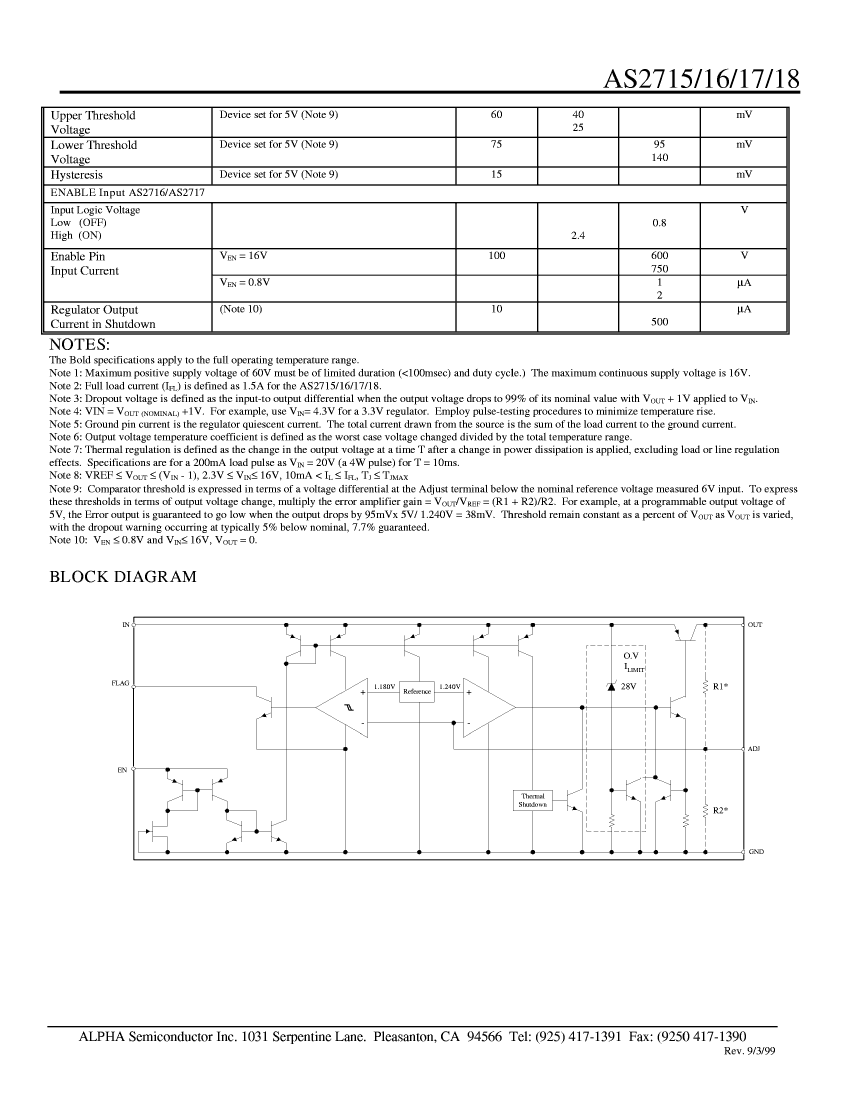

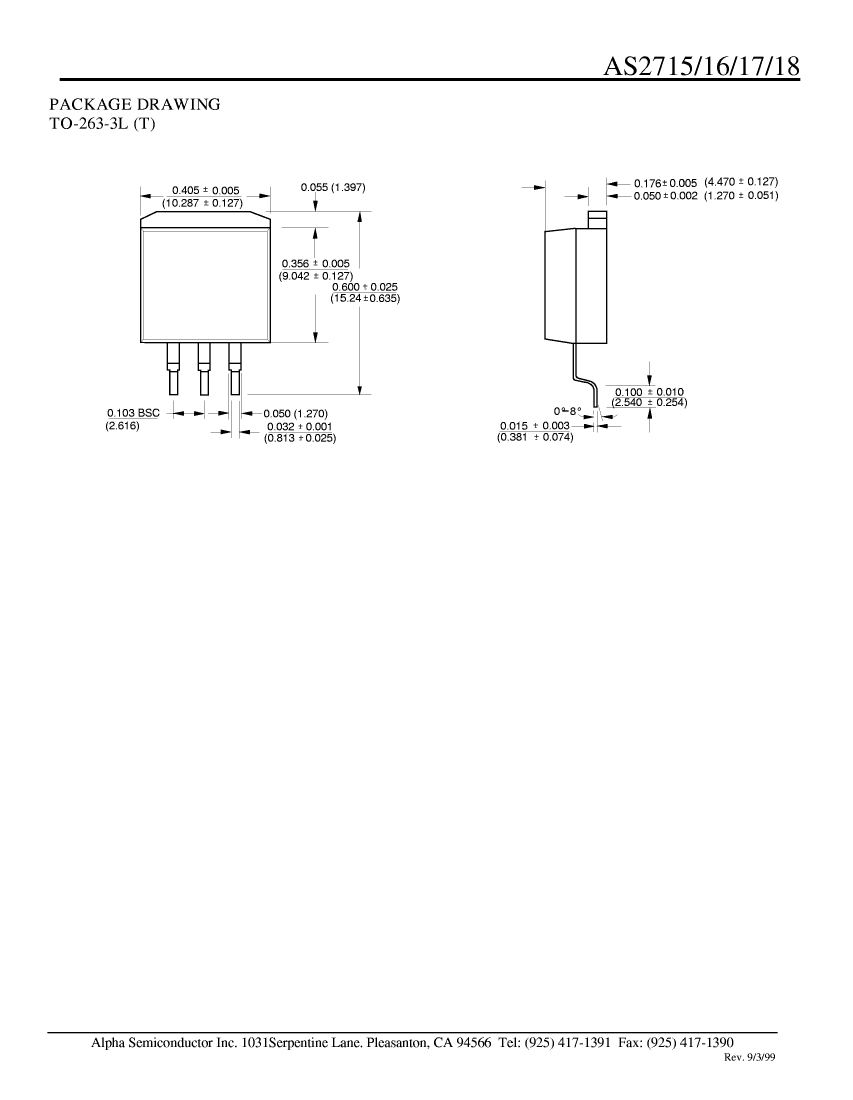

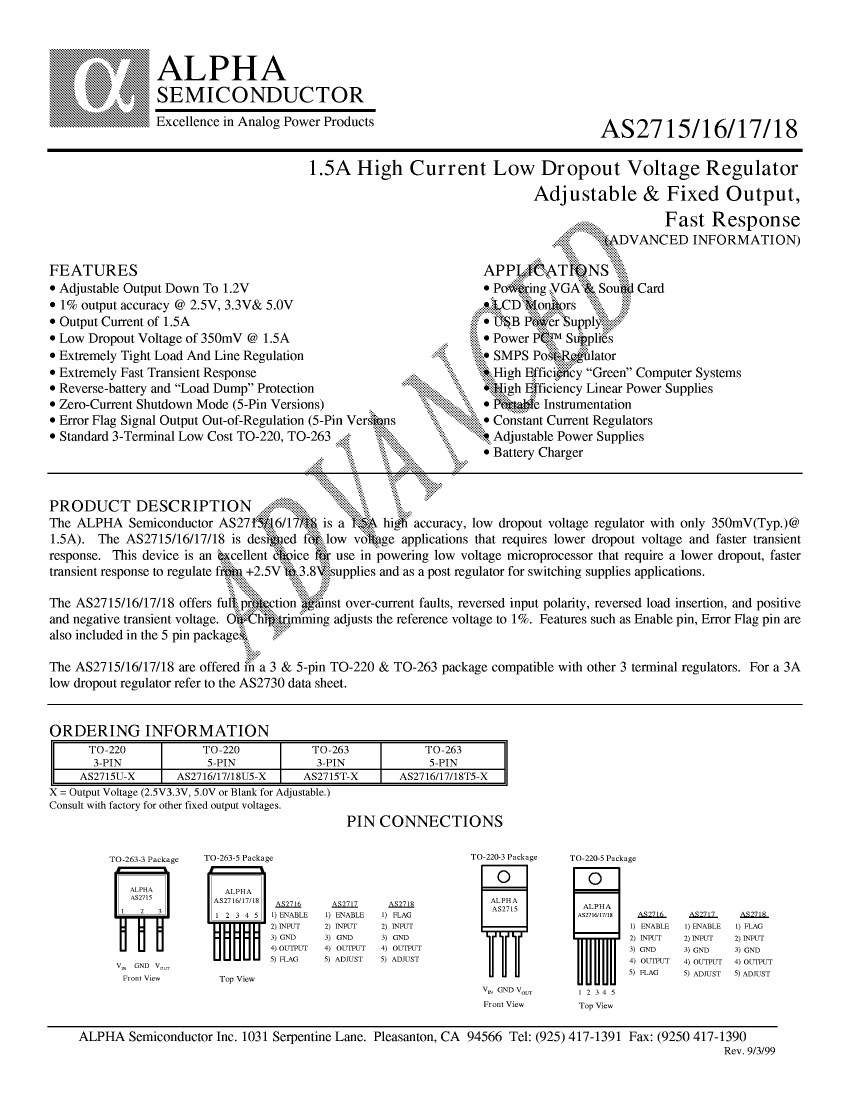

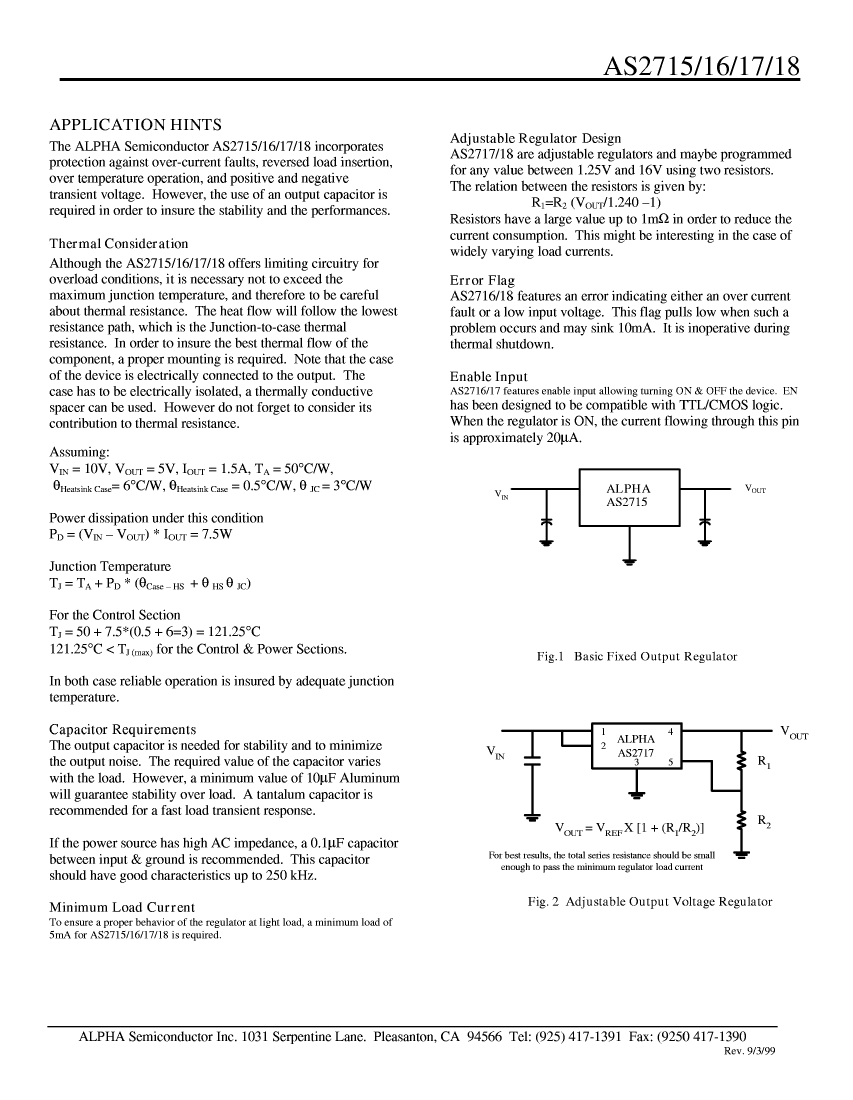

Preview

AS2715T-3.3: DescriptionRegulator, 1 Output, BIPolar,; CategoryPower/power management The power supply circuit; File Size452KB，8 Pages; ManufacturerAlpha Semiconductor

Download Datasheet Parametric Compare View All

AS2715T-3.3 Overview

Regulator, 1 Output, BIPolar,

AS2715T-3.3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Alpha Semiconductor
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	0.35 V
Maximum absolute input voltage	16 V
JESD-609 code	e0
Maximum grid adjustment rate	0.0165%
Maximum load regulation	0.033%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-45 °C
Maximum output current 1	1.5 A
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.55TB
Certification status	Not Qualified
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	2%

Preview

Download Datasheet

View All

AS2715T-3.3 Related Products

	AS2715T-3.3	AS2715T-5	AS2715T-2.5	AS2715U-3.3	AS2715U-2.5	AS2715U-5
Description	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	0.35 V	0.35 V	0.35 V	0.35 V	0.35 V	0.35 V
Maximum absolute input voltage	16 V	16 V	16 V	16 V	16 V	16 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.0165%	0.025%	0.0125%	0.0165%	0.0125%	0.025%
Maximum load regulation	0.033%	0.05%	0.025%	0.033%	0.025%	0.05%
Output times	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-45 °C	-45 °C	-40 °C	-45 °C	-40 °C	-45 °C
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Nominal output voltage 1	3.3 V	5 V	2.5 V	3.3 V	2.5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP3H,.55TB	SMSIP3H,.55TB	SMSIP3H,.55TB	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	2%	2%	2%	2%	2%	2%
